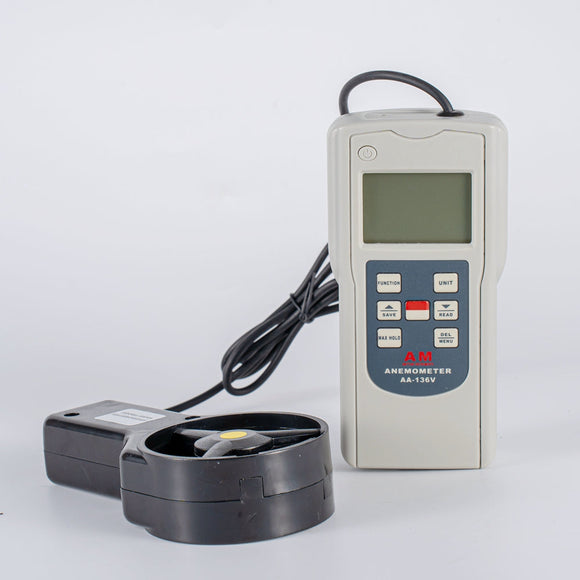

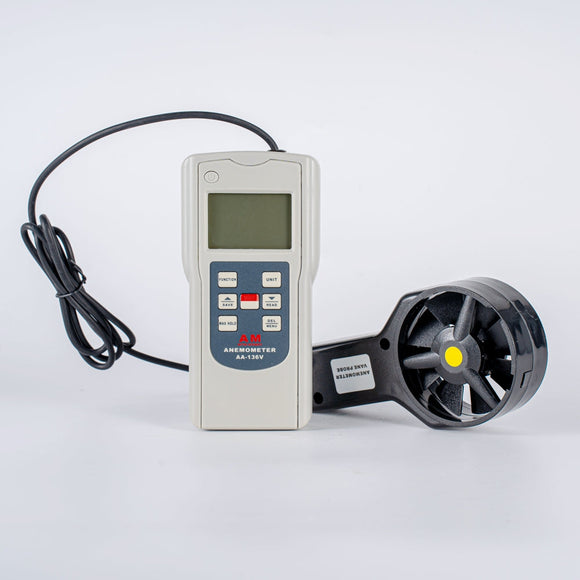

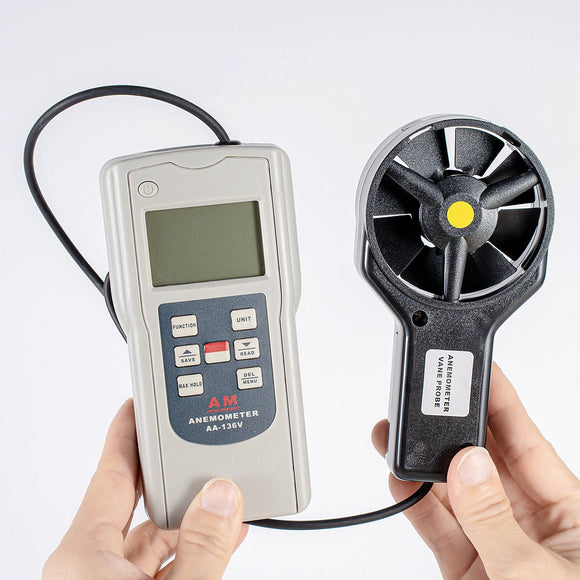

Tomlin Anemometer AA-136V

Description

The Tomlin Anemometer AA-136V is a durable and accurate tool designed for precise environmental and industrial measurements. Its user-friendly design makes it ideal for:

  • Boiler and refrigeration system monitoring
  • Ventilation duct and HVAC performance assessments
  • Environmental data collection for navigation and weather forecasting
  • Outdoor applications such as fire department operations and safety evaluations

Key Features

  • Backlight Display: Ensures clear and accurate readings in low-light conditions.
  • Metric/Imperial Conversion: Provides flexibility for global applications by enabling unit switching.
  • Data Storage: Holds up to 254 readings for convenient record-keeping.
  • Readings Memory and Review: Facilitates easy recall of stored measurements.
  • Buzzer Alert: Delivers audible notifications for key events or readings.
  • Measured Value Hold: Allows the user to freeze readings for further analysis.
  • Manual/Auto Power Off: Prolongs battery life with adjustable automatic shutoff.
  • Low Battery Indicator: Avoids unexpected interruptions by alerting when battery replacement is needed.
  • Real-Time Data Transmission: Enables continuous monitoring during critical operations.
  • Computer Connectivity: Offers USB or RS-232 output for streamlined data management and reporting.

Specifications

Parameter Range Resolution Accuracy
Air Velocity 0.4–45.0 m/s 0.1 m/s ±(2% + 0.1 m/s)
1.4–162.0 km/h 0.1 km/h ±(2% + 0.1 km/h)
80–8860 ft/min 0.1 ft/min ±(2% + 1 ft/min)
0.8–88.0 knots 0.1 knots ±(2% + 0.1 knots)
Air Flow 0–9999 CMM 0.001–1 ±(2% + 0.1 m³/min)
0–9999 CFM 0.001–1 ±(2% + 0.1 ft³/min)
Beaufort Scale 0–12 0.1 ±0.5
Wave Height 0–14 m 0.1 m -
Temperature 0–60°C (32–140°F) 0.1°C (0.1°F) ±0.5°C (±0.9°F)
  • Display: 0.5" (13mm) 4-digit LCD
  • Data Hold: Maximum value
  • Data Memorized: 24 groups
  • Sampling Rate: 1 reading per second
  • Sensors:

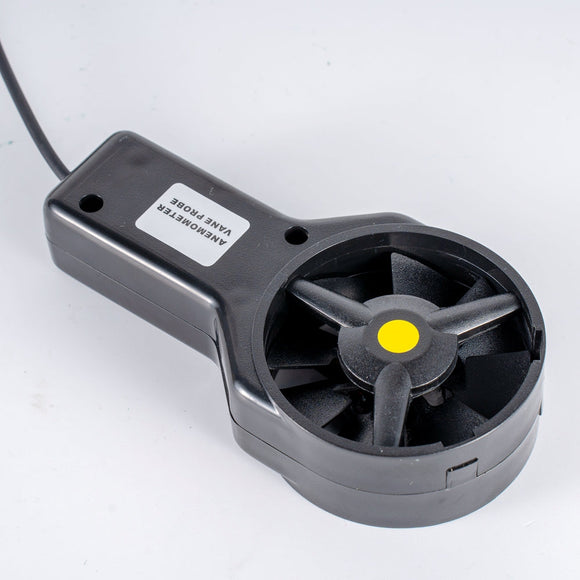

    • Air velocity/flow sensor: Angled vane probe with low-friction ball bearings
    • Temperature sensor: Precision thermistor

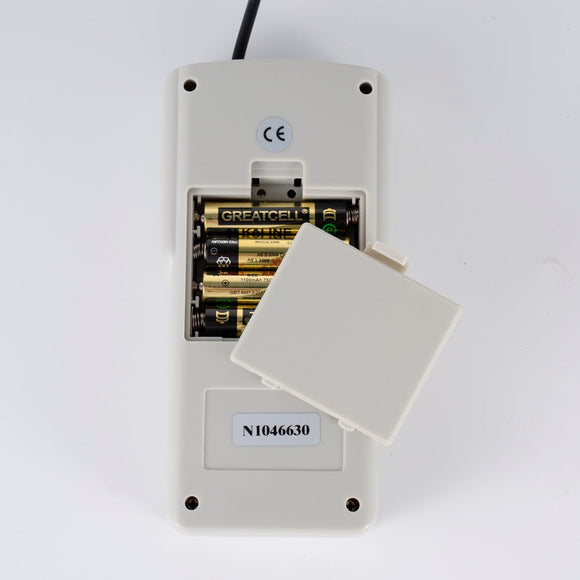

  • Power Supply: 4 x 1.5V AAA batteries
  • Operating Conditions:
    • Temperature: 0–50°C (32–122°F)
    • Humidity: < 80% RH
  • Dimensions:
    • Main Unit: 140 x 70 x 31 mm
    • Vane Probe Diameter: 72 mm
  • Weight: 375g (Including probe)

Accessories

  • Standard Accessories:
    • Vane probe with low-friction ball bearings

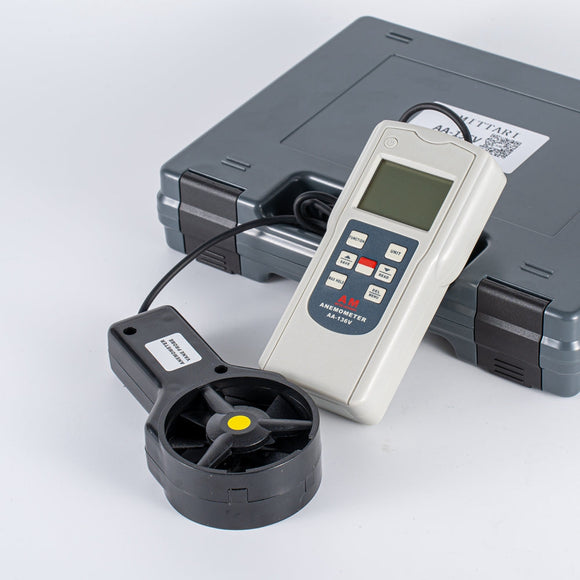

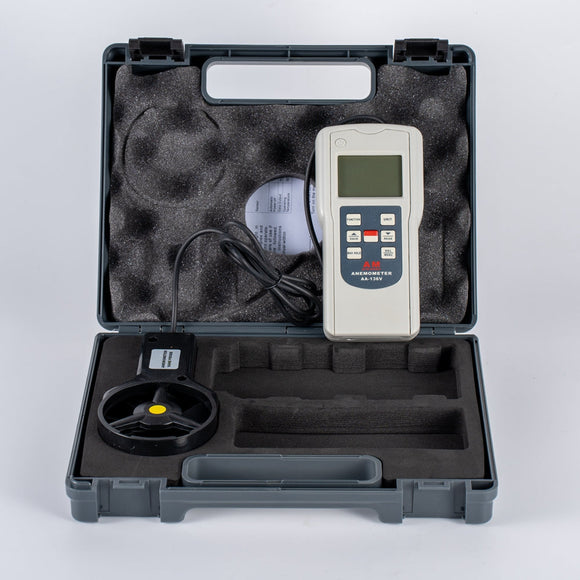

    • Carrying case
    • Operation manual
  • Optional Accessories:
    • USB Cable and Software
    • Bluetooth Adapter and Software

Downloads

PDF Specification Sheet - Download Here
