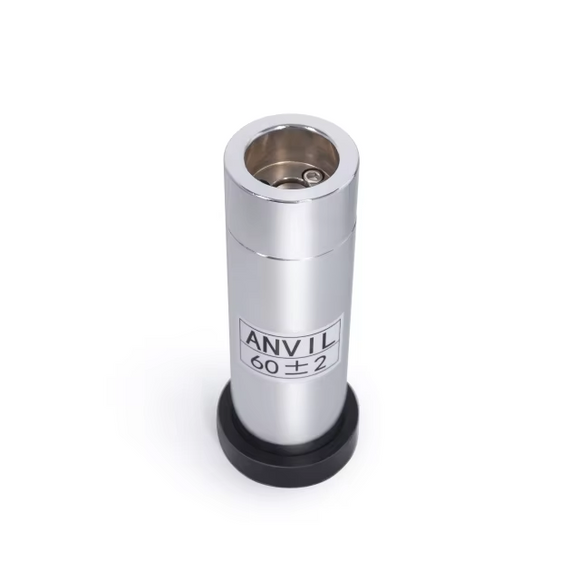

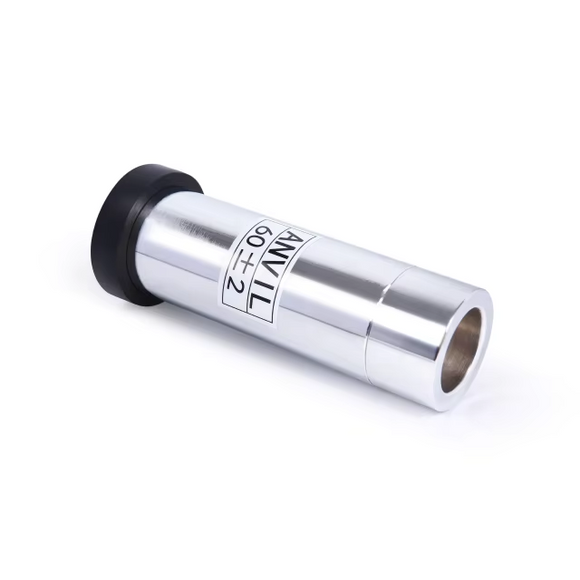

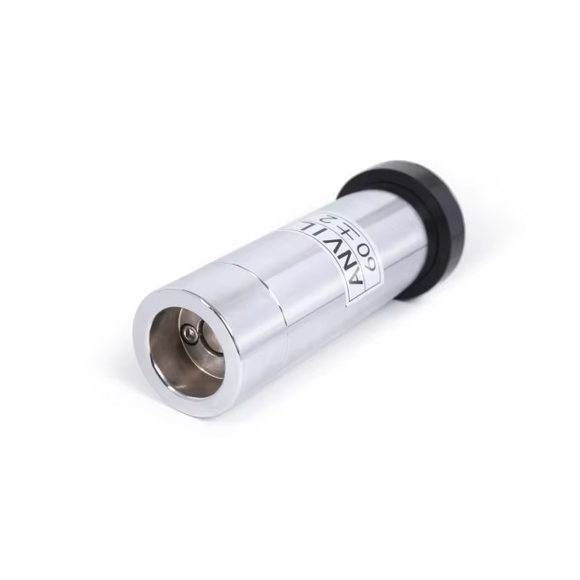

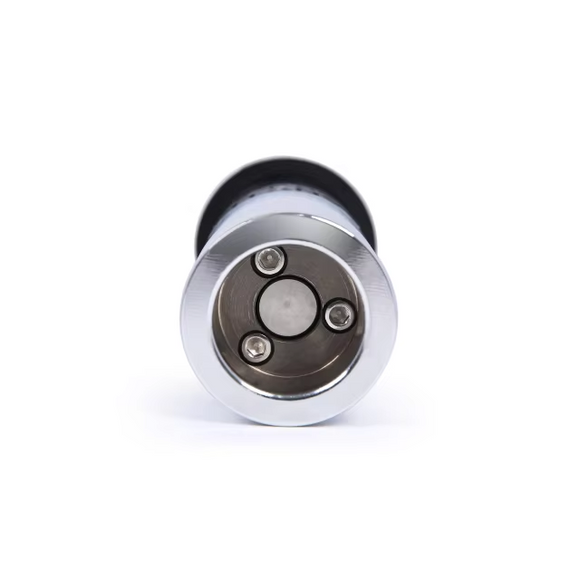

Rebound Hammer Calibration Anvil TEM-60

Product Description

Overview
The TEM-60 Calibration Steel Anvil is a compact and durable reference tool designed for verifying and calibrating N-type concrete rebound hammers (2.207J). Lightweight and easy to use, it is ideal for regular on-site checks and laboratory calibration, ensuring the accuracy and consistency of rebound hammer readings.

Used prior to testing on actual concrete surfaces, the TEM-60 provides a stable reference standard, helping users validate hammer performance and make necessary adjustments before continuing with field testing.

Key Features

• Designed specifically for N-type rebound hammers

• Compact cylindrical design for easy handling and portability

• Average calibration value: 60 ± 2 (R)

• Core hardness maintained between HRC 58–62

• Made from high-quality tool steel

• Ideal for construction sites, quality control labs, and equipment inspection

Technical Specifications

Usage Notes

1. Always perform calibration using the steel anvil before concrete testing to ensure rebound hammer accuracy.

2. Record pre-test readings and compare with post-test results. Re-calibrate if values deviate.

3. Do not remove the built-in rubber buffer pads during use; keep the anvil clamped securely but not rigidly fixed.

4. Store in a dry, dust-proof environment and avoid impact damage to maintain surface integrity.

Standard Delivery Includes

• TEM-60 Calibration Steel Anvil (fully assembled)

• Protective packaging (optional carrying case available upon request)
