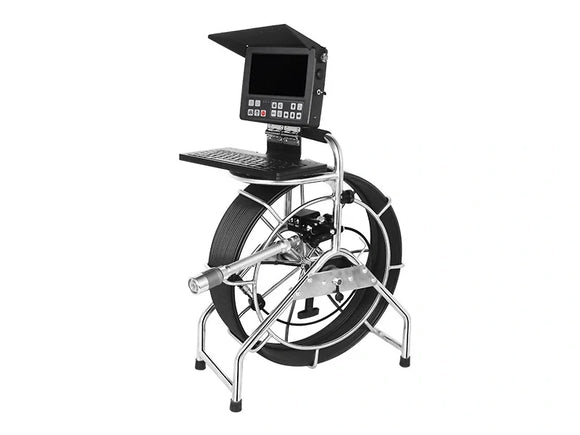

40mm Self-Levelling AHD Sewer Pipe Inspection Camera

The Tomlin 40mm Self-Levelling AHD Sewer Pipe Inspection Camera is a heavy-duty CCTV inspection system engineered for professional diagnostics of medium to large diameter pipelines. Designed for inspecting pipes from Ø50mm to Ø300mm, the system features a 40mm stainless steel self-levelling camera head with a high-definition AHD 1.3MP CMOS sensor that automatically maintains an upright image throughout the inspection.

The system combines an 8-inch HD IPS DVR control unit, digital metre counter, heavy-duty fibreglass push rod cable and rechargeable lithium-ion battery, providing reliable performance for municipal sewer inspections, industrial pipelines and professional drainage contractors.

Available with 60m, 100m and 150m cable lengths, the system is built for long-distance inspections while delivering stable HD video recording, accurate distance measurement and professional reporting capabilities.

Key Features

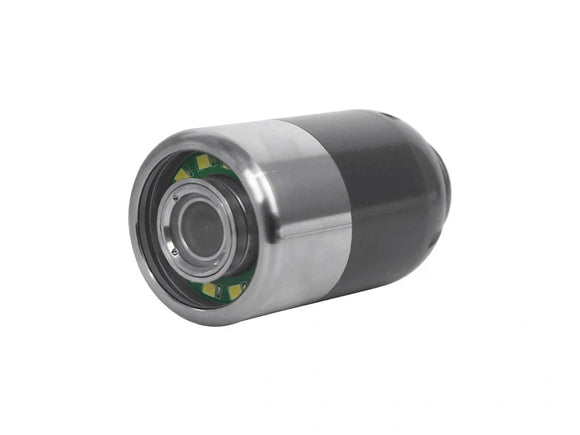

• 40mm HD self-levelling camera head
• Suitable for pipe diameters Ø50mm–300mm
• 1.3MP AHD CMOS image sensor
• Automatic self-levelling image correction
• Built in 512Hz Sonde Transmitter
• IP68 waterproof stainless steel camera head
• 12 high-intensity white LED lights

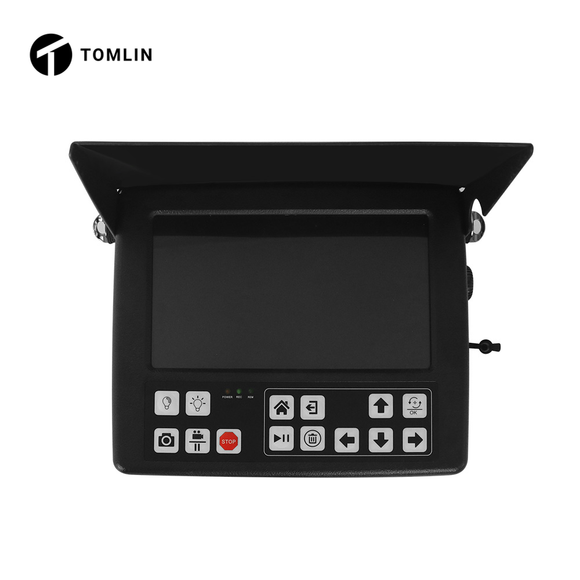

• 8" HD IPS LCD monitor
• 720P HD DVR video recording
• USB storage support (up to 32GB)
• Digital metre counter (<1% error)
• Heavy-duty fibreglass push rod cable
• Available in 60m, 100m and 150m cable lengths
• 7000mAh rechargeable Li-ion battery
• Portable design with carrying bag and sunshade

Technical Specifications

Camera System

Display & Recording

Power

Cable & Reel

System Dimensions

Applications

• Municipal sewer inspections
• Wastewater pipeline maintenance
• Industrial pipeline diagnostics
• Stormwater inspections
• Drainage system maintenance
• Underground infrastructure inspections
• Construction and civil engineering projects
• Professional plumbing services

Benefits

Automatic Self-Levelling Camera

The self-levelling camera head automatically maintains an upright image, making inspections easier to interpret and improving reporting accuracy.

Designed for Long-Distance Inspections

Available with cable lengths up to 150 metres, the heavy-duty fibreglass push rod enables efficient inspection of long sewer and drainage pipelines.

Professional HD Recording

Capture HD video directly to USB storage for inspection reports, maintenance documentation and asset management.

Built for Demanding Environments

The stainless steel camera housing, IP68 waterproof construction and industrial cable reel provide reliable performance in harsh field conditions.

Delivery Scope

• 40mm Self-Levelling AHD Camera Head
• 8" HD DVR Control Unit

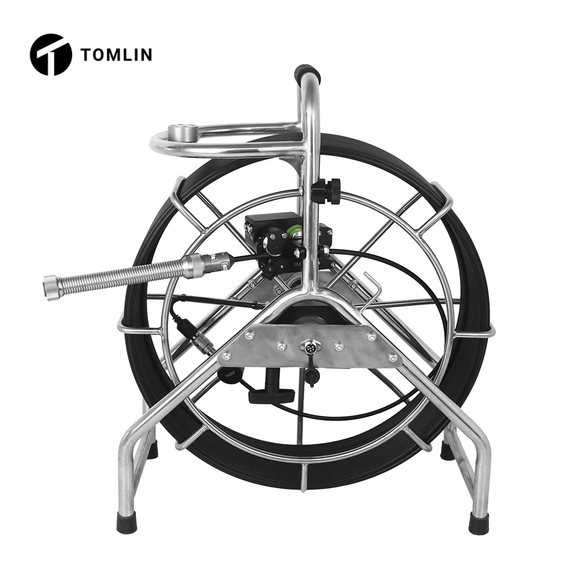

• Fibreglass Cable Reel (Length as Selected)
• 7000mAh Rechargeable Li-ion Battery

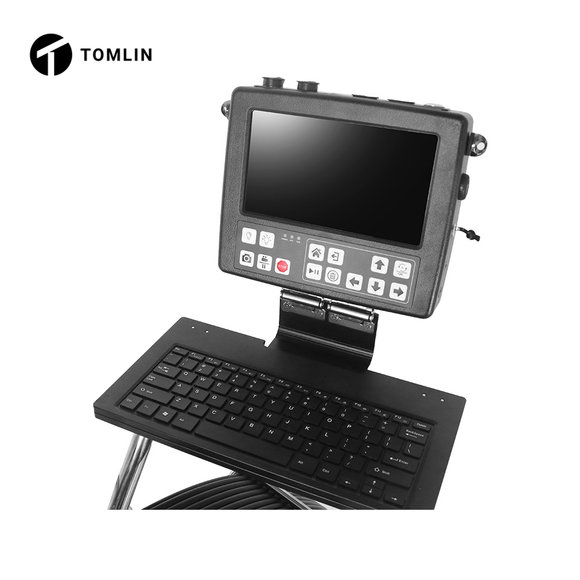

• Wireless Keyboard
• Test Cable
• Link Cables
• Power Charger

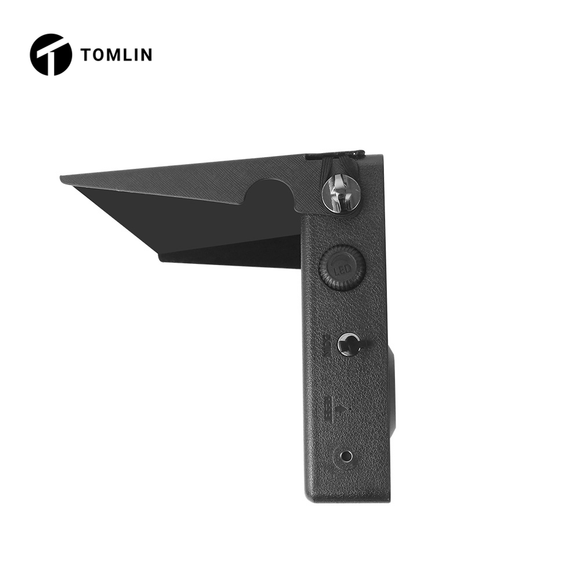

• Sunshade
• Carrying Bag
• User Manual
