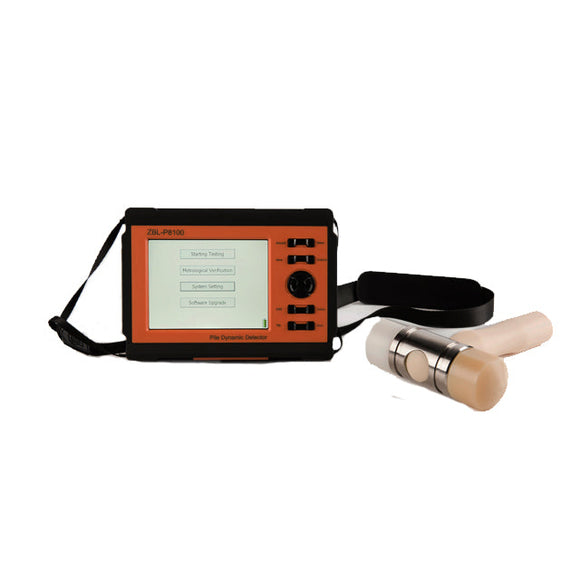

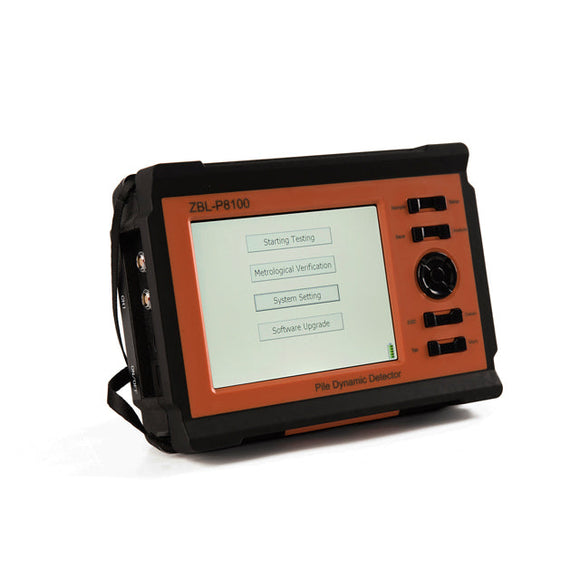

Dual-Channel Pile Integrity Tester ZBL-P8100-1
Dual-Channel Pile Integrity Tester ZBL-P8100-2
Dual-Channel Pile Integrity Tester ZBL-P8100-3
Dual-Channel Pile Integrity Tester ZBL-P8100-4

Dual-Channel Pile Integrity Tester ZBL-P8100

$17,380.00

Tax includedShipping calculated at checkout

T-Measurement SKU: ZBL-P8100

Product Description

Overview
The ZBL-P8100 Low Strain Pile Integrity Tester is designed to evaluate the structural soundness of concrete piles using reflected wave technology. Suitable for both cast-in-place and precast piles, it can detect defects, cracks, and discontinuities by analyzing waveforms generated from impact response.

Equipped with dual data acquisition channels, touchscreen operation, and advanced signal processing, it supports both hammer and accelerometer probes for maximum flexibility in the field.

Key Features

  • Tests pile integrity, defect location, and continuity

  • Dual-channel data acquisition for comprehensive analysis

  • Adjustable waveform magnification and sampling intervals

  • Built-in lithium battery or optional AC/DC power supply

  • Key + touchscreen user interface

  • Supports various probes and sensors for pile and foundation testing

  • Wi-Fi connectivity and USB output

Technical Specifications

Specification Value
Control Mode A8 Embedded Platform
Data Storage ≥24 GB
Operation Key + Touchscreen
Magnification Options 1.25, 1.0, 20, 50, 100
A/D Resolution True 24-bit A/D
Sampling Interval (μs) 1–6000 (adjustable)
Max Sampling Length 4096
Trigger Signal Trigger
Noise Level (mV) ≤1
Dynamic Range (dB) ≥84
Amplifier Frequency Range (Hz) 10–10K
Channels 2
Sensitivity (mV/g) ≥100
Probe Frequency Range (Hz) 0.5–9000
Time Value Error ≤1%
Gain Error ≤1%
Port Double USB
Wi-Fi Yes
Power (Internal) Built-in Lithium Battery
Power (External) 220V AC/DC
Operating Temp -10°C to +50°C
Humidity Range <90% RH

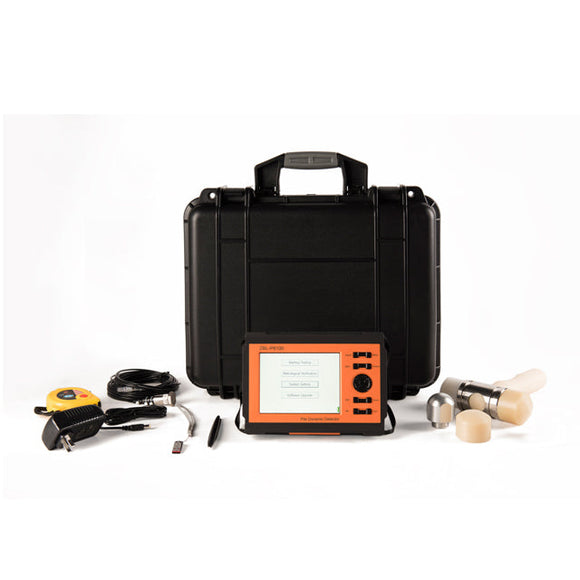

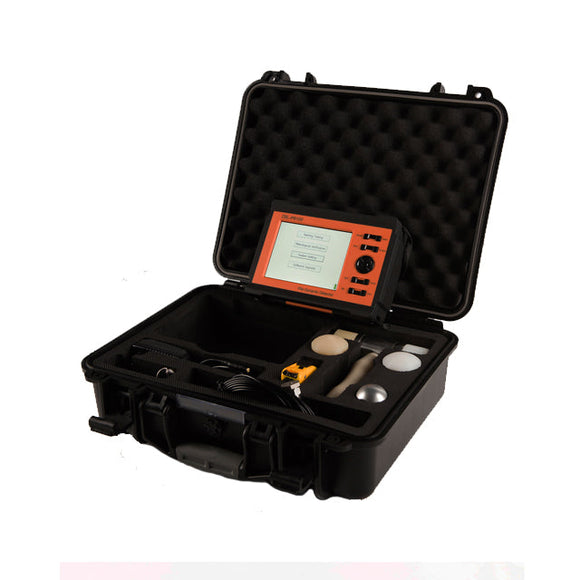

Standard Delivery Includes

  • Main Unit

  • Accelerometer or Hammer Probe

  • Signal Cable

  • Charger

  • USB Drive

  • Carrying Case

  • User Manual
