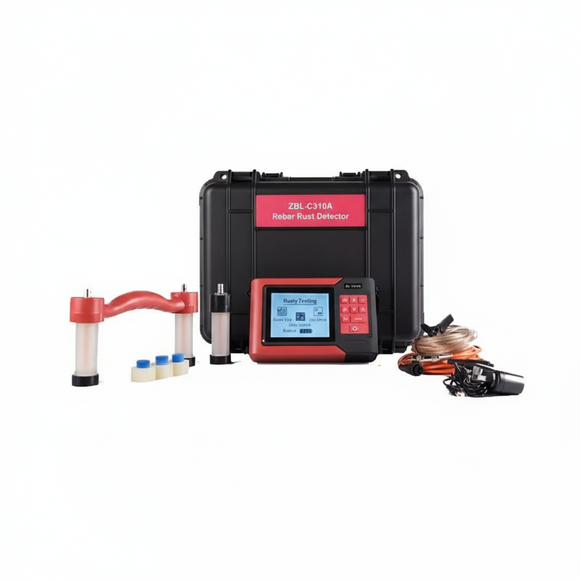

Rebar Corrosion Detector ZBL-C310A

$4,610.00

Tax includedShipping calculated at checkout

T-Measurement SKU: ZBL-C310A

Product Description

Overview
The ZBL-C310A Rebar Corrosion Detector is an electrochemical testing instrument used to assess corrosion in embedded steel reinforcement. Based on the natural potential method and electrode polarization theory, it utilizes a Cu/CuSO₄ reference electrode to measure the potential of rebar surfaces and determine corrosion levels in concrete structures.

This portable and field-ready device is suitable for evaluating corrosion risk in bridges, tunnels, buildings, and other reinforced concrete infrastructure.

Key Features

  • High-accuracy corrosion voltage readings (±0.1 mV)

  • Supports both single and double electrode methods

  • Clear LCD screen for real-time data viewing

  • USB thumb drive data storage for field convenience

  • Visual electrode detection in hierarchical graph format

  • Built-in lithium battery for long field operation

  • Adjustable test point intervals

Technical Specifications

Specification Single Electrode Double Electrode
Measuring Range (mV) ±1000 0–1000
Accuracy ±0.1 mV ±0.1 mV
Tested Points (X Interval) 0–100 Adjustable 20 Fixed
Tested Points (Y Interval) 0–100 Adjustable 0–100 Adjustable

General Specs

  • Display: 160 mm × 128 mm LCD

  • Electrode Size: Ø30 × 180 mm

  • Power: Built-in lithium battery

  • Data Storage: 234 points

Standard Delivery Includes

  • Main Unit

  • Electrodes

  • USB Data Storage

  • Charging Cable

  • Carrying Case

  • User Manual
