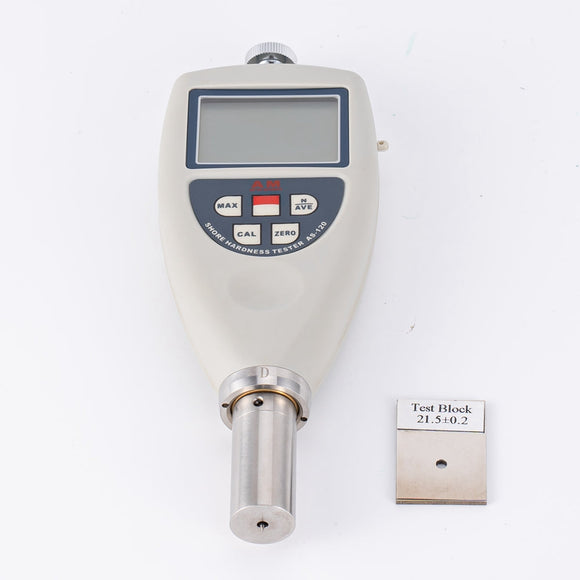

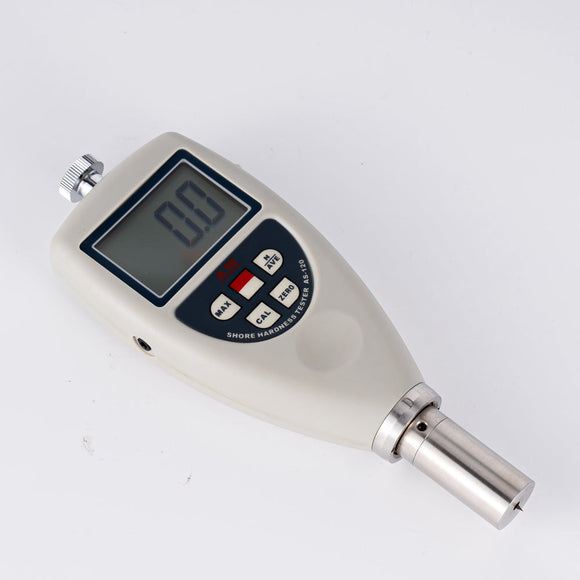

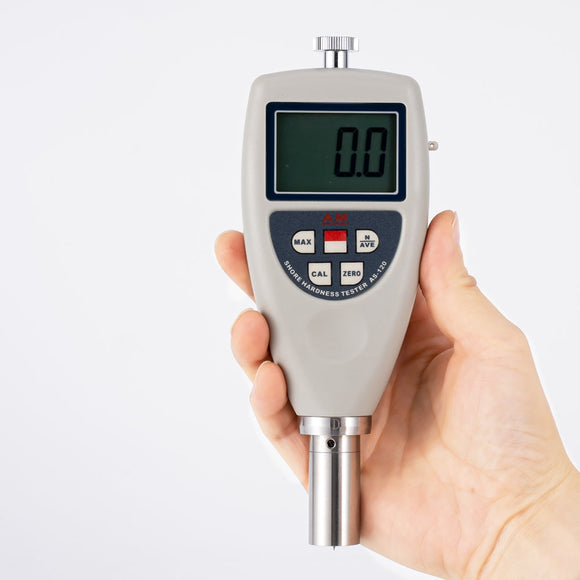

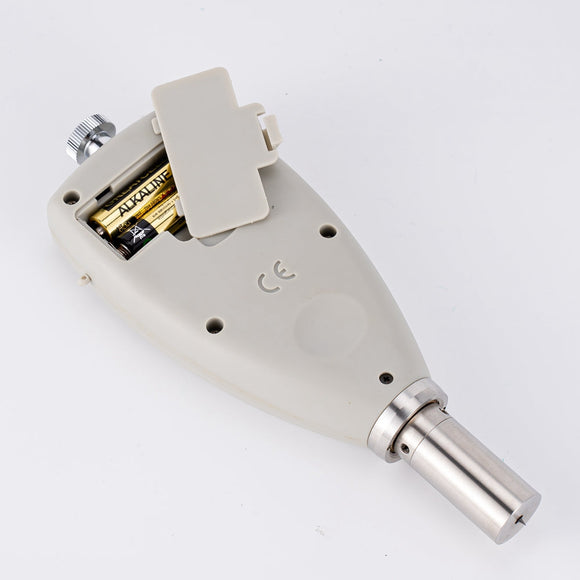

Shore Hardness Tester AS-120

Description
The TOMLIN Shore Hardness Tester Series is a versatile range of instruments designed for accurately measuring the hardness of various materials, including rubber, resins, wood, leather, and formica. By applying spring-loaded force through a point or ball, these testers provide reliable hardness measurements for diverse applications.

Features

• Backlight Display: Clear visibility in all lighting conditions.
• Average Calculation: Calculates average hardness over multiple readings.
• Maximum Value Hold Function: Retains the highest recorded hardness value.
• Buzzer Sound Reminder: Alerts users upon measurement completion.
• Handheld & Stand Use: Models A, D, and OO support both handheld and stand-mounted operation (stand optional).

Specifications

Hardness Levels and Model Selection
The Shore Hardness Tester models are classified according to the hardness levels of the materials being tested:

• Soft:

  • Shore O: Below 20 Shore DO
  • Shore OO: Below 20 Shore O
  • Shore OOO: Below 20 Shore OO

• Middle:

  • Shore A: 20–90 Shore A (e.g., soft rubbers)
  • Shore B: Above 90 Shore A / Below 20 Shore D
  • Shore C: Above 90 Shore B / Below 20 Shore D
  • Shore DO: Above 90 Shore C / Below 20 Shore D
  • Shore E: Above 90 Shore DO / Below 20 Shore A

• Hard:

  • Shore D: Above 90 Shore A (e.g., hard rubbers and thermoplastics)

Accessories

• Standard Accessories:

  • Main Unit
  • Pin Length Test Block

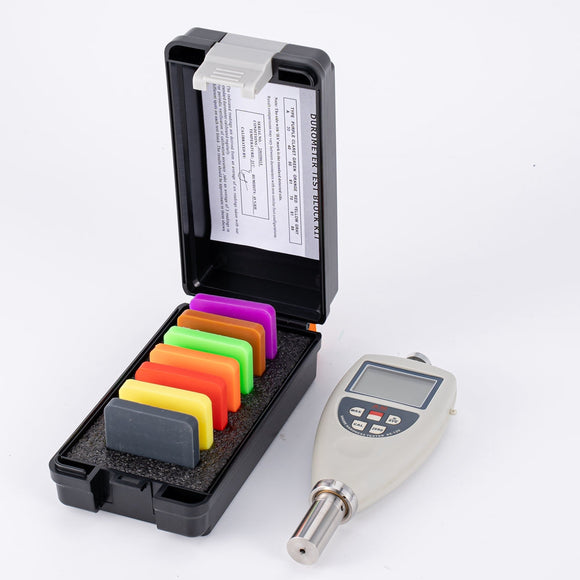

  • Rubber Hardness Test Block (A and D Types)

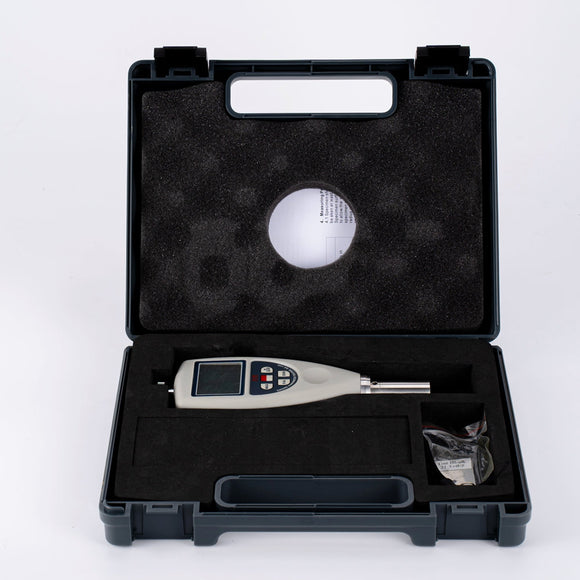

  • Carrying Case
  • Operation Manual

• Optional Accessories:

  • Shore Hardness Tester Measurement Stand (for Models A, D, and OO)
  • Bluetooth Adapter & Software
  • USB Cable & Software

Alternative Names

• Shore A Hardness Tester
• Rubber Hardness Gauge
• Digital Hardness Tester
• Resins Hardness Meter
• Thermoplastics Hardness Tester
