Hay Moisture Meter

Moisture Meter (Pin Type) for Hay

Applications

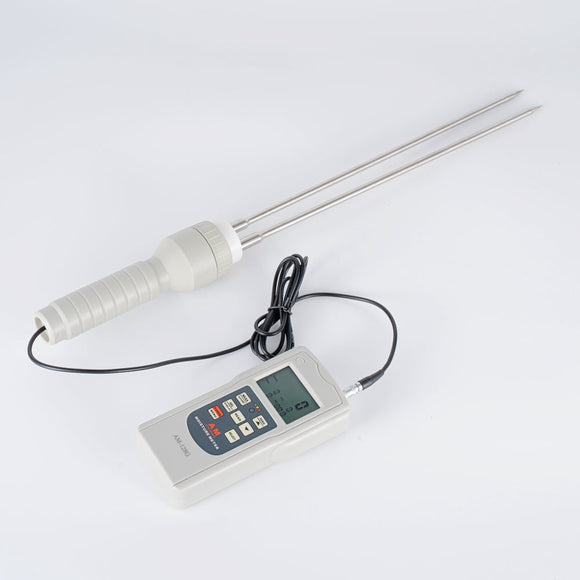

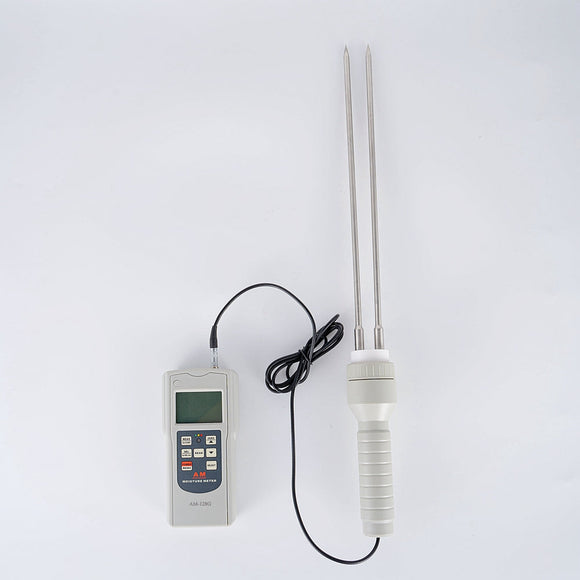

The Tomlin Moisture Meter is a multifunctional instrument designed specifically for measuring the moisture content of hay bales. With a 500mm long probe, it is perfect for efficiently testing large hay bales and other non-conductive materials such as straw, silage, and forage.

Features

• Accurately measure the moisture of hay using the conductivity between two pin probes.
• Designed for hay applications with a 500mm long probe for deep penetration.
• Dual display: Digital screen and color-coded LED indications for quick results.
• Stores up to 99 groups of data with statistical functions for easy tracking.
• Auto shut-off and manual shutdown to conserve battery. Includes undervoltage instructions.
• Compatible with "USB Data Output" and "RS-232 Data Output" for PC connections.
• Offers optional "Bluetooth™ Data Output" for wireless data transmission.

Specifications

• Display: 4 digits, 10 mm LCD
• Display Lights:
  • Green LED: Represents a safe, air-dry state.
  • Yellow LED: Indicates a borderline state.
  • Red LED: Signals a damp state.
• Measurement Range: 0–80%
• Measurement Code: 10 codes for up to 150 types of materials
• Accuracy: ±0.5%n or ±0.5%
• Probe Length: 500mm (ideal for hay bale measurements)
• Operating Conditions:
  • Temperature: 0–50°C
  • Humidity: Below 90% RH
• Power Supply: 4x1.5V AAA batteries (UM-4 type)
• Dimensions: 140 x 70 x 30 mm
• Weight: 175 g (excluding batteries)

Accessories

• Standard Accessories:
  • Main Unit (1 pc)
  • Carrying Case (1 pc)
  • Operation Manual (1 pc)
• Optional Accessories:
  • USB Data Output
  • RS-232 Data Output
  • Bluetooth™ Data Output

This moisture meter is specially optimized for hay, offering precision, durability, and ease of use for farmers and agricultural professionals.
