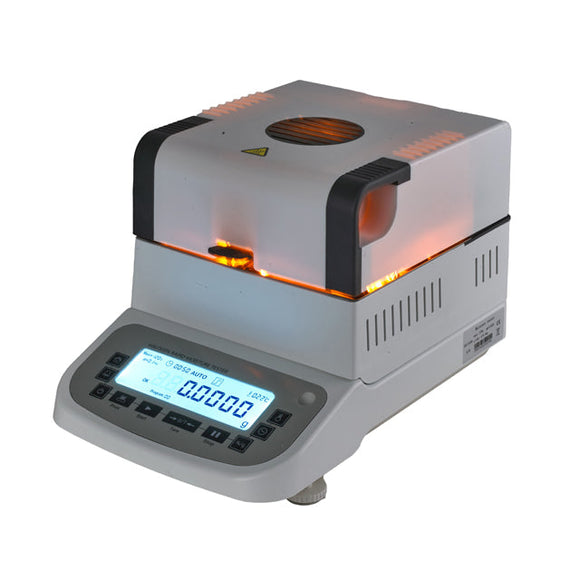

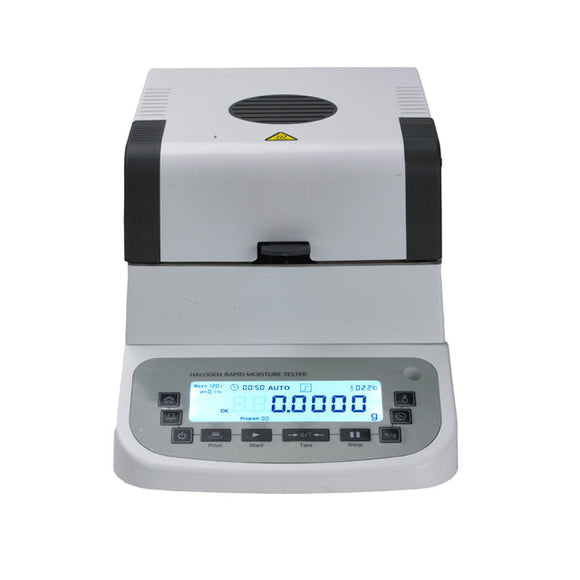

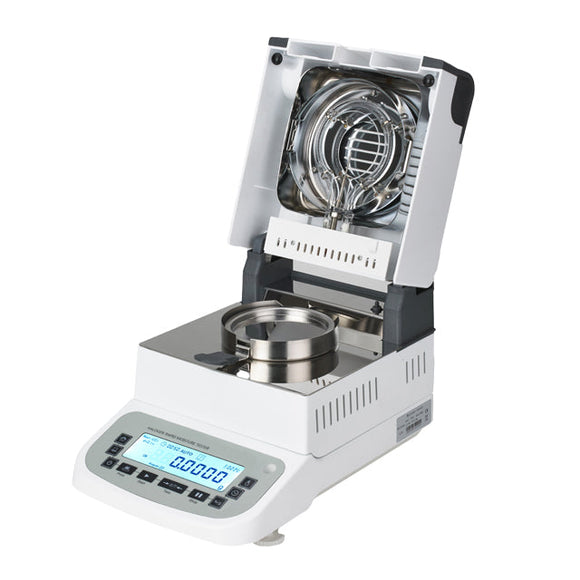

Halogen Moisture Analyzer ES-F104

$1,600.00

Tax includedShipping calculated at checkout

Tomlin Instruments SKU: ES-F104

Product Description:

The ES-F Series Moisture Analyzers are precision drying balances designed to determine moisture content with exceptional accuracy and consistency. Ideal for laboratories, production lines, and quality control environments, these instruments combine halogen heating, digital weighing, and advanced calibration in a single, compact unit.

Choose from three models based on your resolution needs:

  • ES-F102: Entry-level model with 0.005g readability

  • ES-F103: Higher precision with 0.001g readability

  • ES-F104: Lab-grade accuracy with 0.0001g readability

All models support standard, staged, and weightless drying modes, and feature RS232 connectivity, temperature and weight calibration, and programmable stop/time settings. These units are CE and RoHS certified, making them reliable and compliant tools for a wide range of industries.

Key Features:

  • 120g weighing capacity across all models

  • High precision sensors (Loadcell or Magnetic)

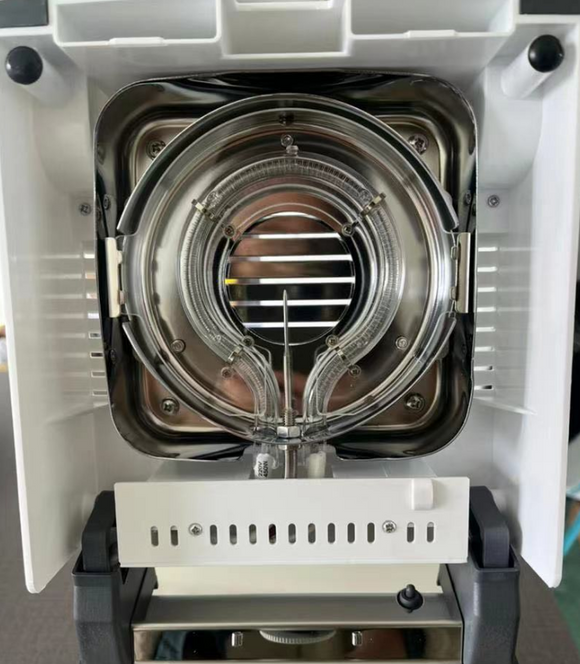

  • Halogen heating for fast, even drying

  • Adjustable drying temperature: 60–200°C

  • Multiple drying modes: Standard, Staged, Weightless

  • LCD display for clear, real-time results

  • RS232 port for PC/printer connectivity

  • Time range: 0–99 minutes

  • Certified to CE & RoHS standards

  • Compact and durable for lab or industrial environments

Technical Specifications (All Models):

Specification ES-F102 ES-F103 ES-F104
Capacity 120g 120g 120g
Sensor Type Loadcell Magnetic Magnetic
Readability 0.005g 0.001g 0.0001g
Repeatability >2g ±0.05% ±0.005% ±0.005%
Repeatability >5g ±0.01% ±0.01% ±0.001%
Operating Temp. 13–25°C 13–25°C 13–25°C
Heating Source Halogen Lamp Halogen Lamp Halogen Lamp
Calibration Method Temp & Weight Calibration Temp & Weight Calibration Temp & Weight Calibration
Pan Size 90 mm 90 mm 90 mm
Warm-up Time 20–30 min 20–30 min 20–30 min
Baud Rate 300–9600 300–9600 300–9600
Display LCD LCD LCD
Temperature Range 60–200°C 60–200°C 60–200°C
Drying Settings Standard, Staged, Weightless Standard, Staged, Weightless Standard, Staged, Weightless
Stop Settings Auto / Manual / Timer Auto / Manual / Timer Auto / Manual / Timer
Time Setting 0–99 min 0–99 min 0–99 min
Output Interface RS232 RS232 RS232
Certification CE & RoHS CE & RoHS CE & RoHS
Dimensions (mm) 310 × 205 × 200 310 × 205 × 200 310 × 205 × 200
Net Weight 4.6 kg 4.6 kg 4.6 kg

Industries Used In:

  • Food & Beverage

  • Pharmaceutical & Chemical

  • Cosmetics & Personal Care

  • Agriculture & Soil Testing

  • Plastics, Polymers & Resins

  • Paper & Pulp Quality Labs

  • R&D and Academic Labs

Alternative Names:

Moisture Analyzer Balance
Halogen Moisture Meter
Gravimetric Moisture Tester
Digital Drying Analyzer
Laboratory Moisture Determination Instrument
