Product Description:

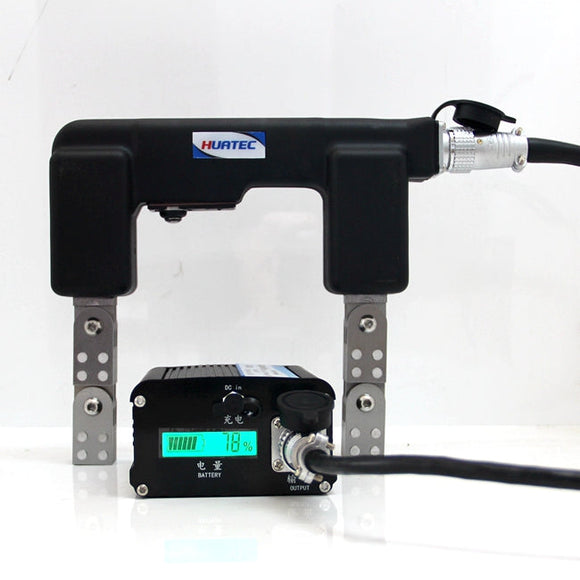

The HCDX-Y9 Electromagnetic AC Yoke is a premium magnetic particle inspection (MPI) device designed for maximum mobility, durability, and performance in field testing. With support for both AC power and a built-in DC battery pack, this yoke delivers reliable surface flaw detection—even in hard-to-access locations or remote environments.
Engineered with an ergonomic, lightweight design and IP54-rated housing, the HCDX-Y9 reduces operator fatigue while withstanding rugged work conditions. A digital display battery pack, optional UV & white LED lamps, and replaceable components ensure versatility and long service life.
Compliant with ASTM E1444, ASTM E709, ISO 9934, and other global standards, the HCDX-Y9 is trusted by professionals for detecting cracks, seams, and fatigue-related defects in metals.
Key Features:
-
Dual Power Supply – Operates on AC or DC (rechargeable battery with display)
-
Battery Runtime: Up to 6 hours | Charging Time: 3 hours
-
High Magnetic Field Strength: >2kA/m at pole midpoint
-
Optional UV & White LED Lamps – Bright, long-lasting illumination
-
Field-Replaceable Power Cord, Trigger Switch & Components
-
IP54 Dust & Water Resistant Housing
-
Supplied with full kit: yoke, power cord, battery, charger, battery bag, and carrying case
-
Operating Temp: -10°C to +40°C | Duty Cycle: 50% (Max 90 seconds ON)
-
Leg Span: 0–220mm | Lifting Force (DC): ≥22.2kg
-
Weight: Yoke – 2.3kg | Battery – 0.6kg
Applications:
Ideal for detecting surface defects like:
-
Seams
-
Fatigue cracks
-
Shrinkage cracks
-
Weld flaws
-
Quenching cracks
Used in:
-
Field inspections
-
Spot inspections
-
In-service testing
-
Hard-to-reach or off-grid locations
