Welding Gauge Automatic Weld Size

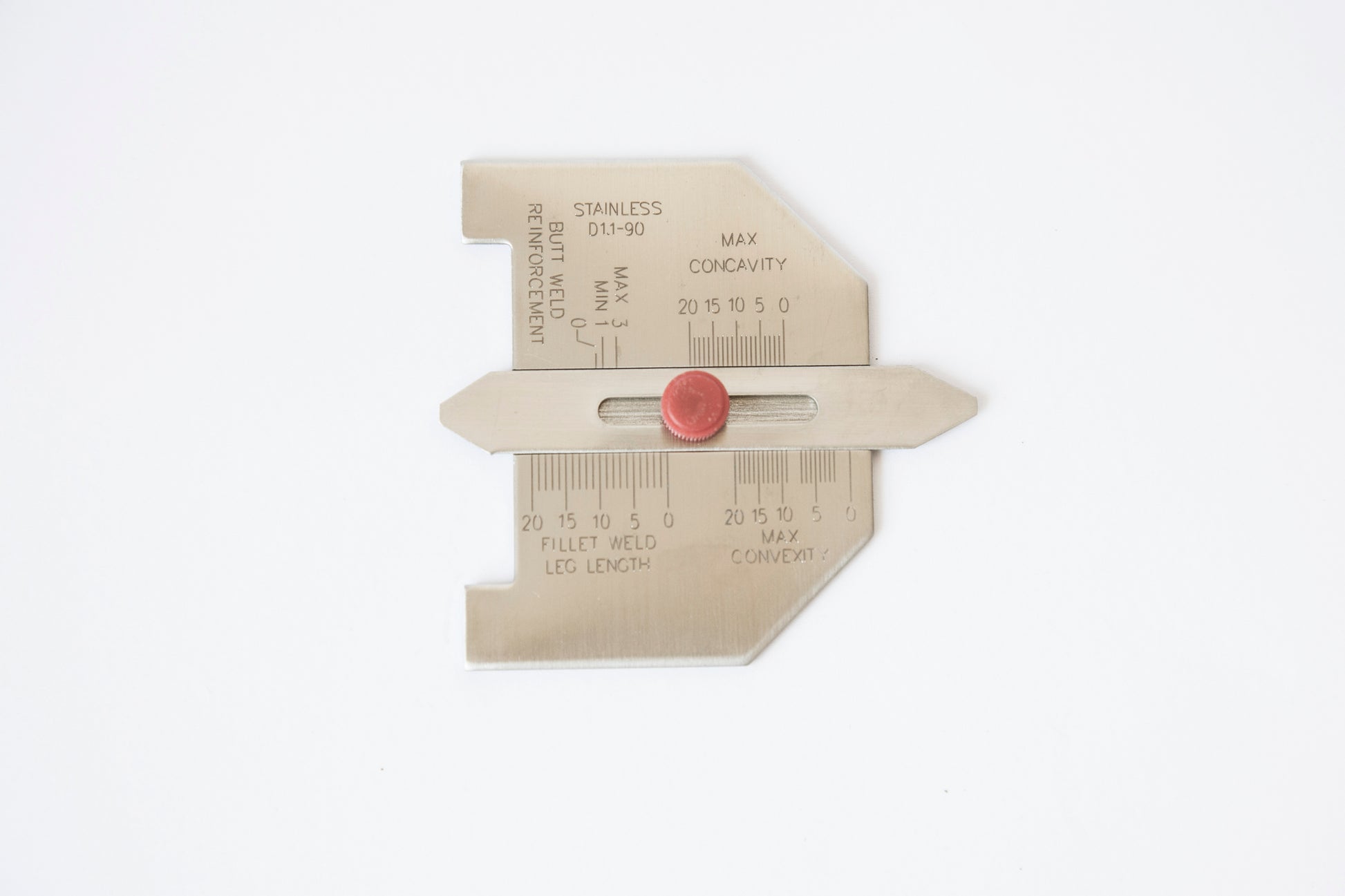

The AWS Automatic Weld Size Gauge, comparable to the Cam Bridge Gauge, is an essential tool for precise weld inspection and quality control. Designed for professional use, this gauge allows you to perform multiple critical measurements on various types of welds. With its sturdy stainless steel construction, the AWS Gauge provides accurate readings for fillet weld leg length, weld concavity, convexity, and reinforcement, ensuring that all welds meet structural standards. Ideal for welders, inspectors, and quality control personnel, this gauge simplifies complex measurements for enhanced efficiency on the job.

Key Features:

• Multi-Function Tool: Measures fillet weld leg length, concavity, convexity, and reinforcement for comprehensive weld inspection
• Easy-to-Use Slider Mechanism: Slide allows for fast, accurate readings across multiple measurement types
• High-Quality Construction: Made from durable stainless steel for long-lasting performance and resistance to corrosion
• Precision Measurements: Provides precise readings to meet AWS (American Welding Society) standards
• Portable Design: Compact and easy to transport, ideal for on-site inspections

Specifications:

• Material: Stainless steel
• Measurement Functions:
  • Fillet Weld Leg Length: Place gauge squarely against plate and read leg length
  • Concavity Check: Uses Max Concavity scale to ensure weld meets minimum requirements
  • Convexity Check: Uses Max Convexity scale to verify weld meets permissible standards

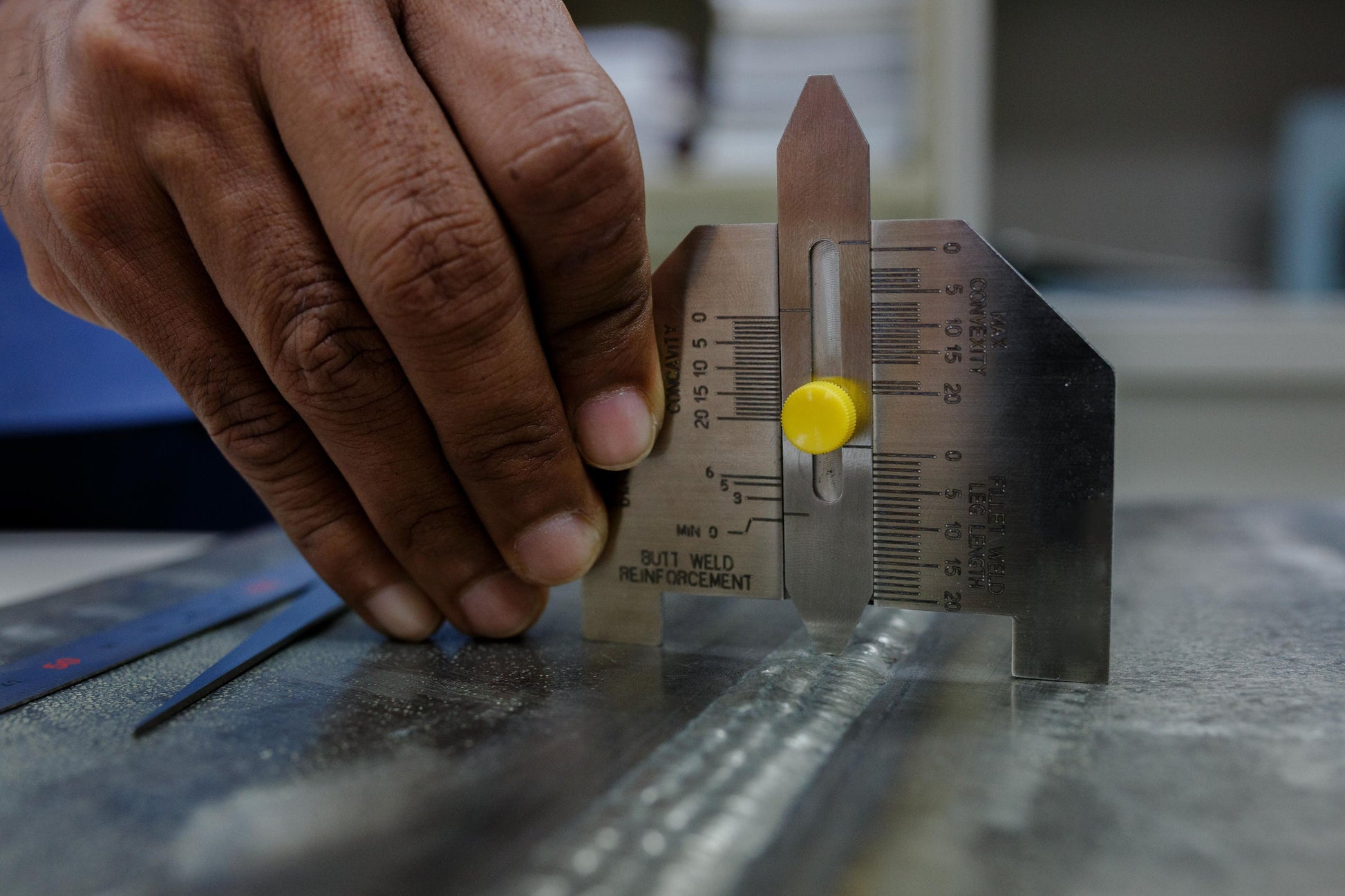

  • Reinforcement Measurement: Measures butt weld reinforcement for structural integrity
• Accuracy: Precision-etched scales for easy readability and reliability

Package Includes:

• 1 x Automatic Weld Size Gauge
• Optional: Available individually or as part of the complete Large Tool Kit set with additional gauges

With the Automatic Weld Size Gauge, achieve reliable, standard-compliant weld measurements that ensure safety and quality in every project. Perfect for professionals who demand accuracy and efficiency.
