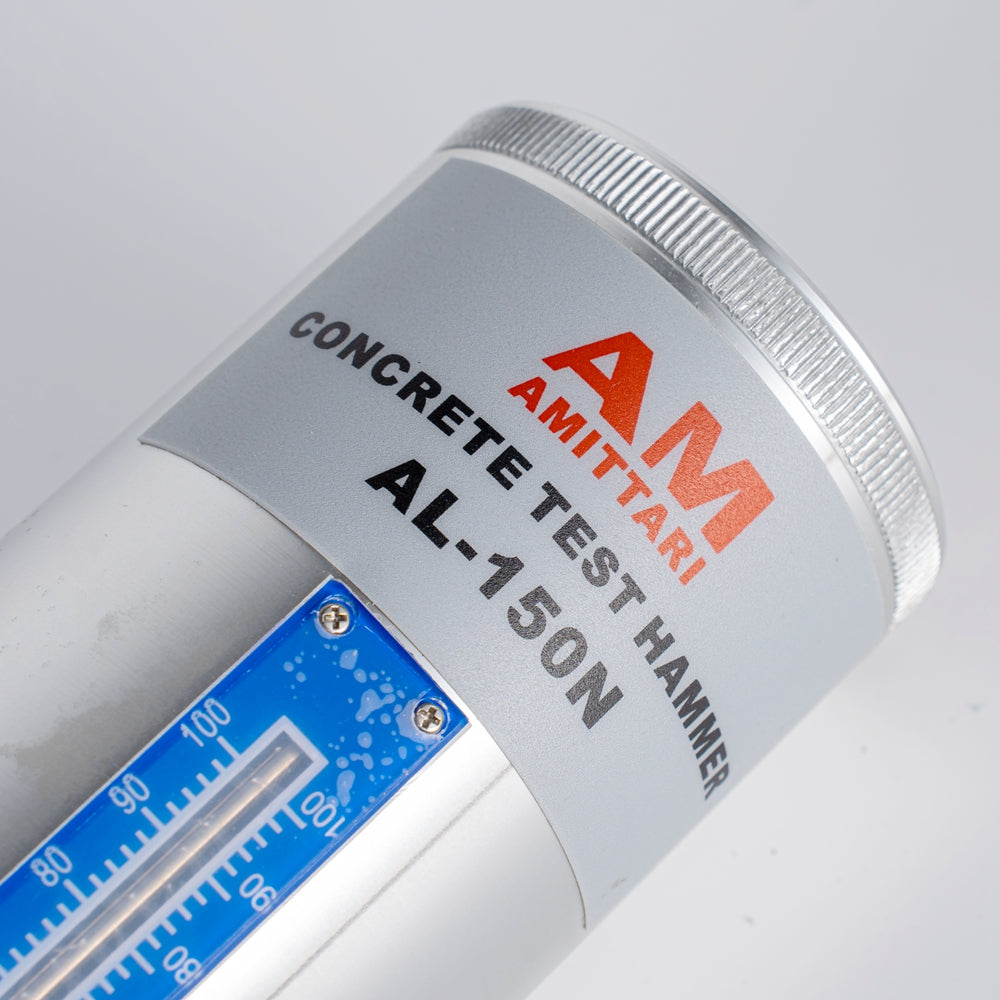

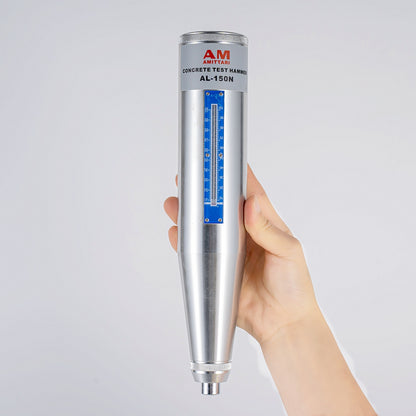

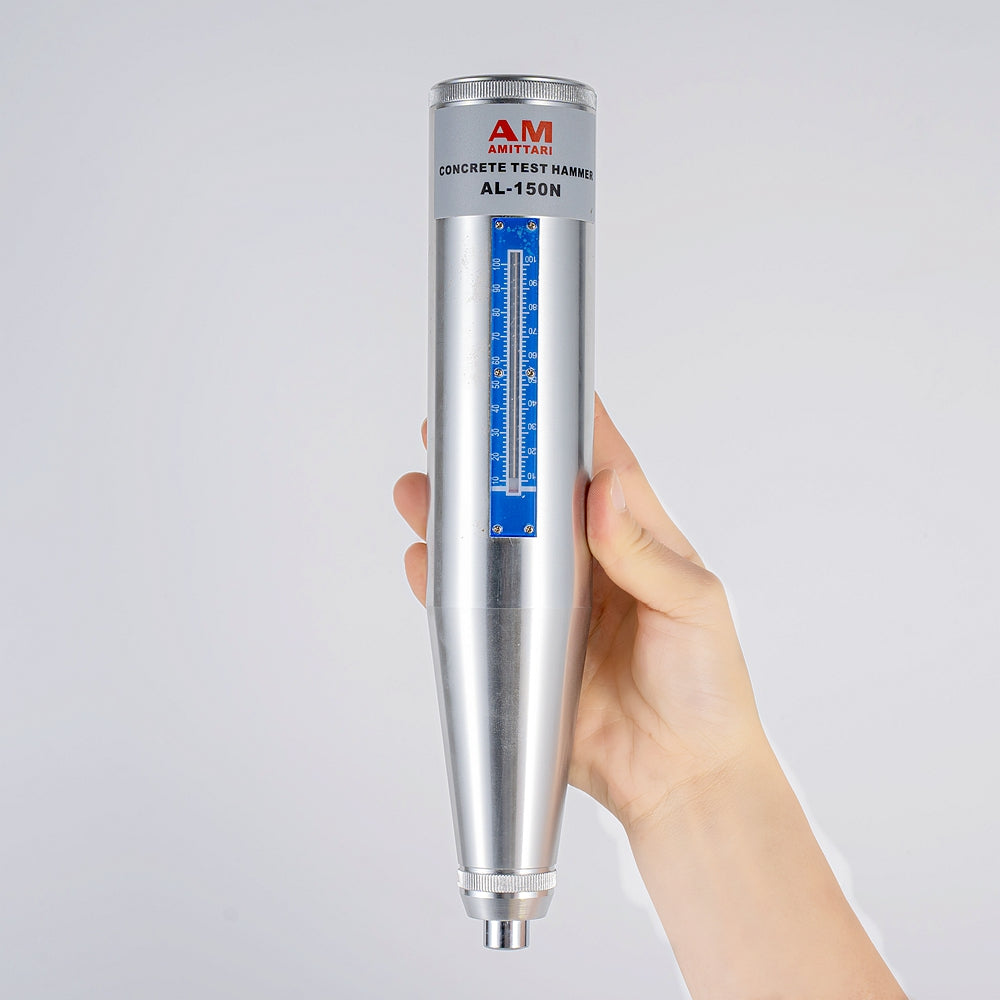

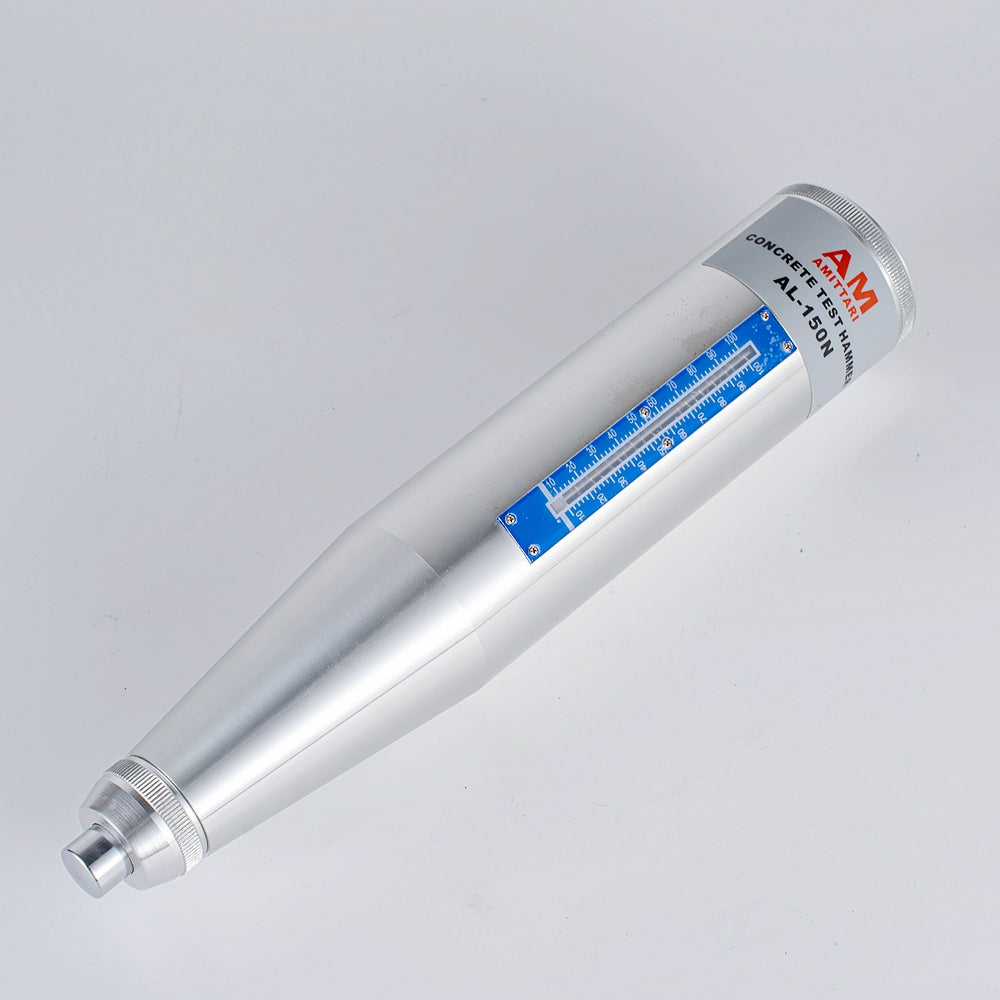

Cement Hardness Tester AL-150N

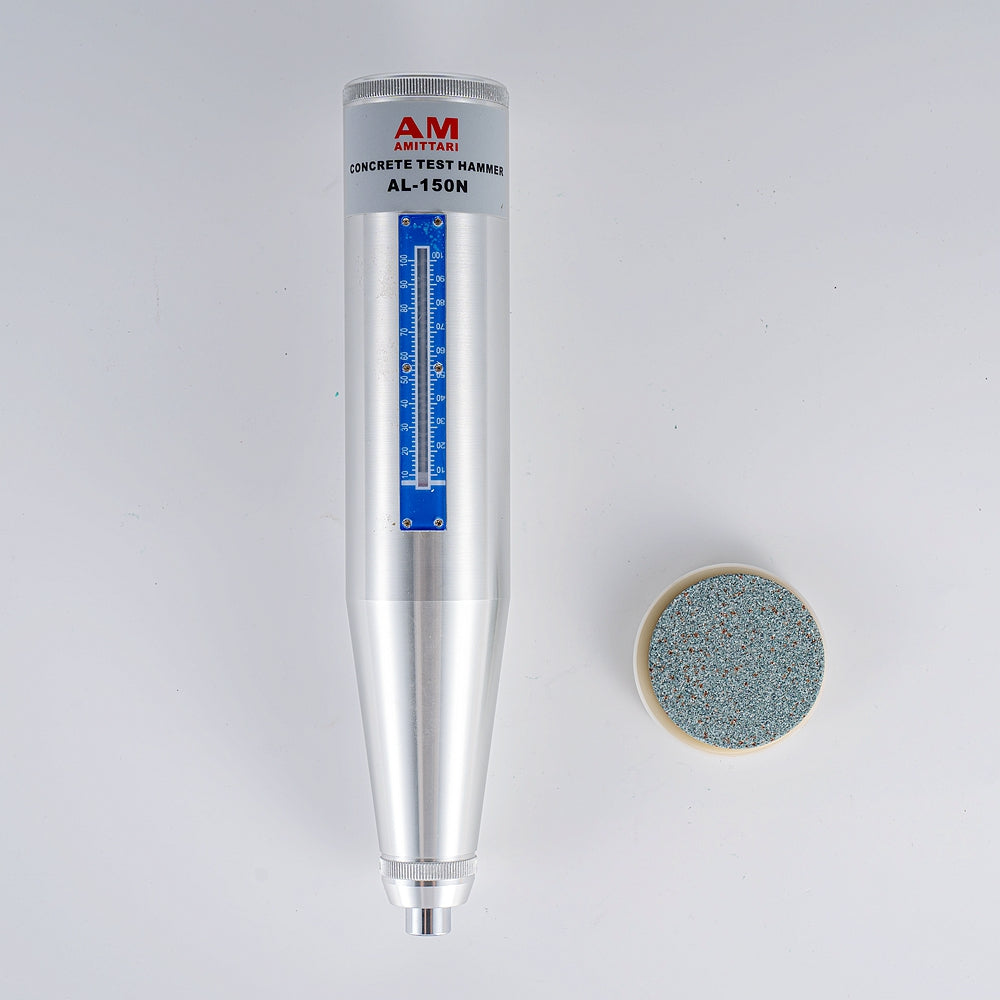

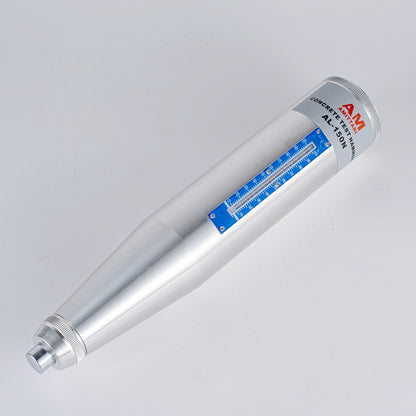

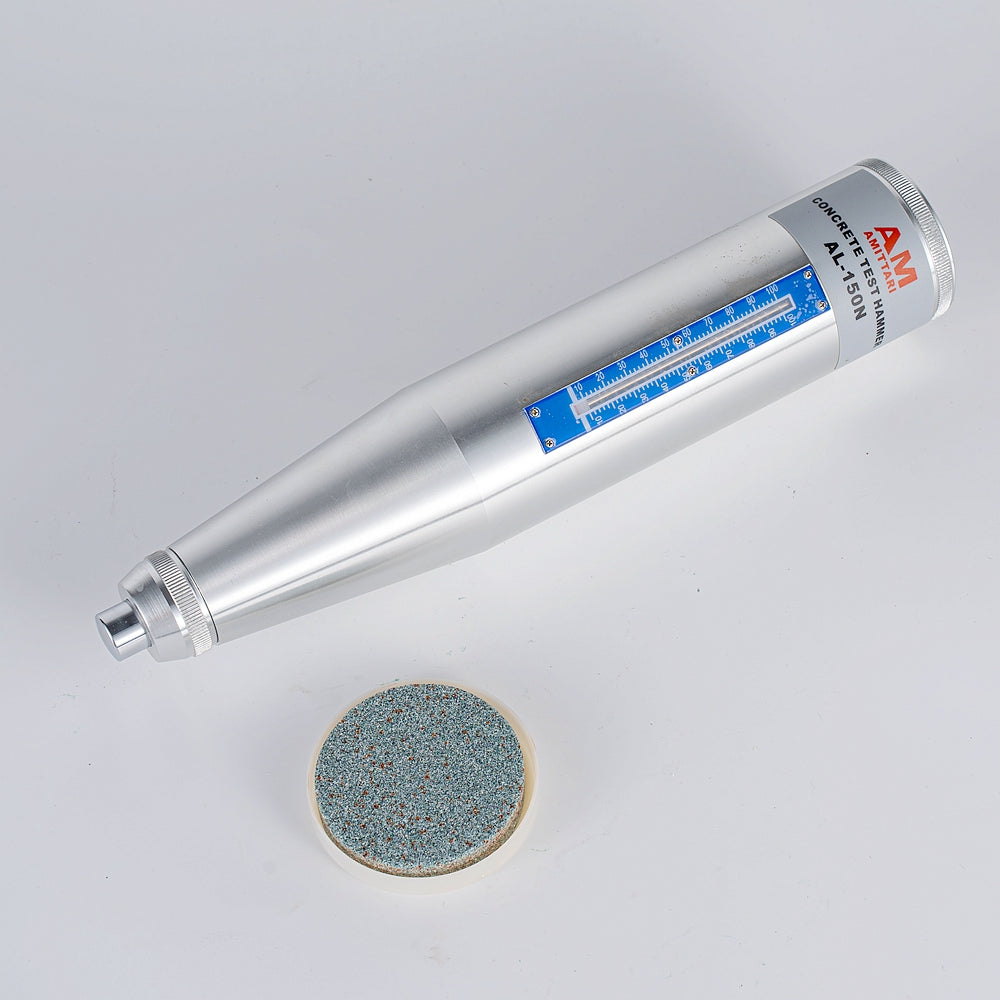

TOMLIN Cement Hardness Tester

Description

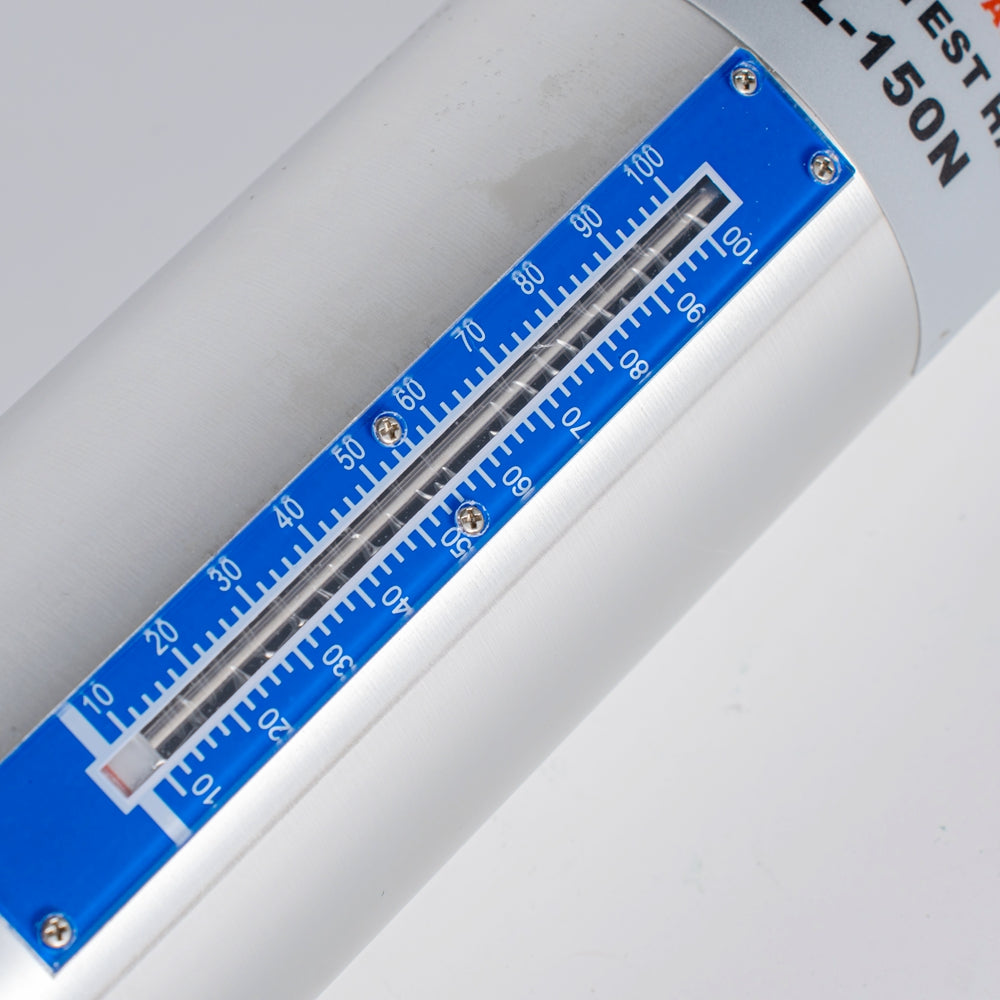

The TOMLIN Cement Hardness Tester is designed to meet JGJ/T23-2001 technical standards, utilizing the HX-225 mechanism to accurately measure cement hardness and concrete compressive strength within a range of 20–60 MPa. With a standard energy of 2.207 J, it employs a pointer-based direct reading system to deliver precise measurements. Compliant with the GB9138-88 and JJG817-1993 national metrological verification standards, this tester is officially recognized by the China Construction Science Research Institute. It is a perfect solution for structural testing in general construction, bridges, and various components like plates, beams, columns, and more.

Features

• Precision Engineering: Center guide made from imported materials ensures exceptional accuracy and wear resistance.
• Durable Construction: Super hard aluminum shell prevents damage and extends the device’s service life.
• Advanced Spring Coil Design: Simplifies friction adjustment and enables consistent pointer operations.
• Energy-Efficient: Features low-power consumption with backlight control, automatic sleep mode, and automatic shutdown functionality.

Specifications

• Measurement Range: 20–60 MPa
• Impact Energy: 2.207 J (0.225 kgf·m)
• Pointer Length: 20.0 ± 0.2 mm
• Pointer Friction: 0.65 ± 0.15 N
• Maximum Static Friction Force: 0.5–0.8 N
• Drill Rate Constant Mean: 80 ± 2

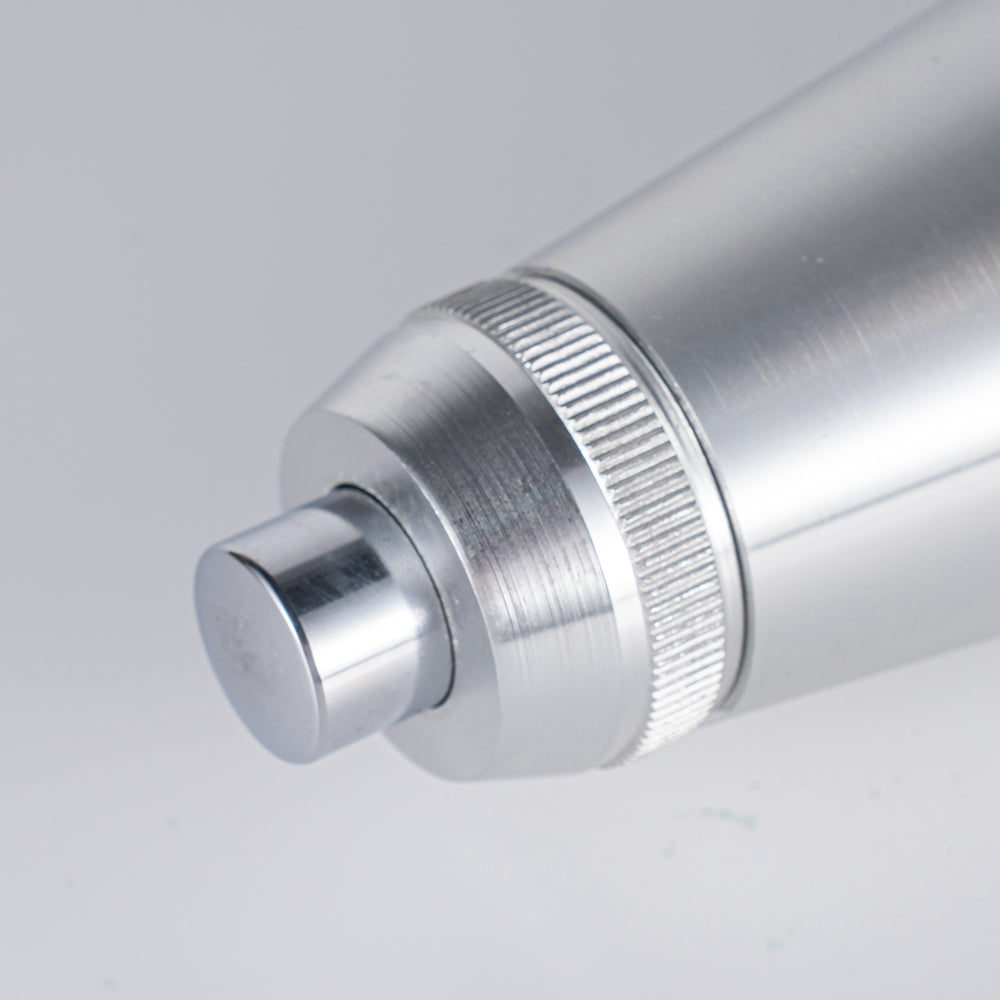

• Bomb Strike Rod Spherical Radius: 25 ± 1 mm
• Spring Stiffness: 7.85 ± 0.40 N/cm
• Decoupling Position: "100" scale line
• Spring Working Length: 61.5 ± 0.3 mm
• Impact Length: 75 ± 0.3 mm
• Dive Location: "0" scale line
• Steel Anvil Rate Constant Value: 80 ± 2
• Size: 270 x 55 x 55 mm
• Weight: 1040 g

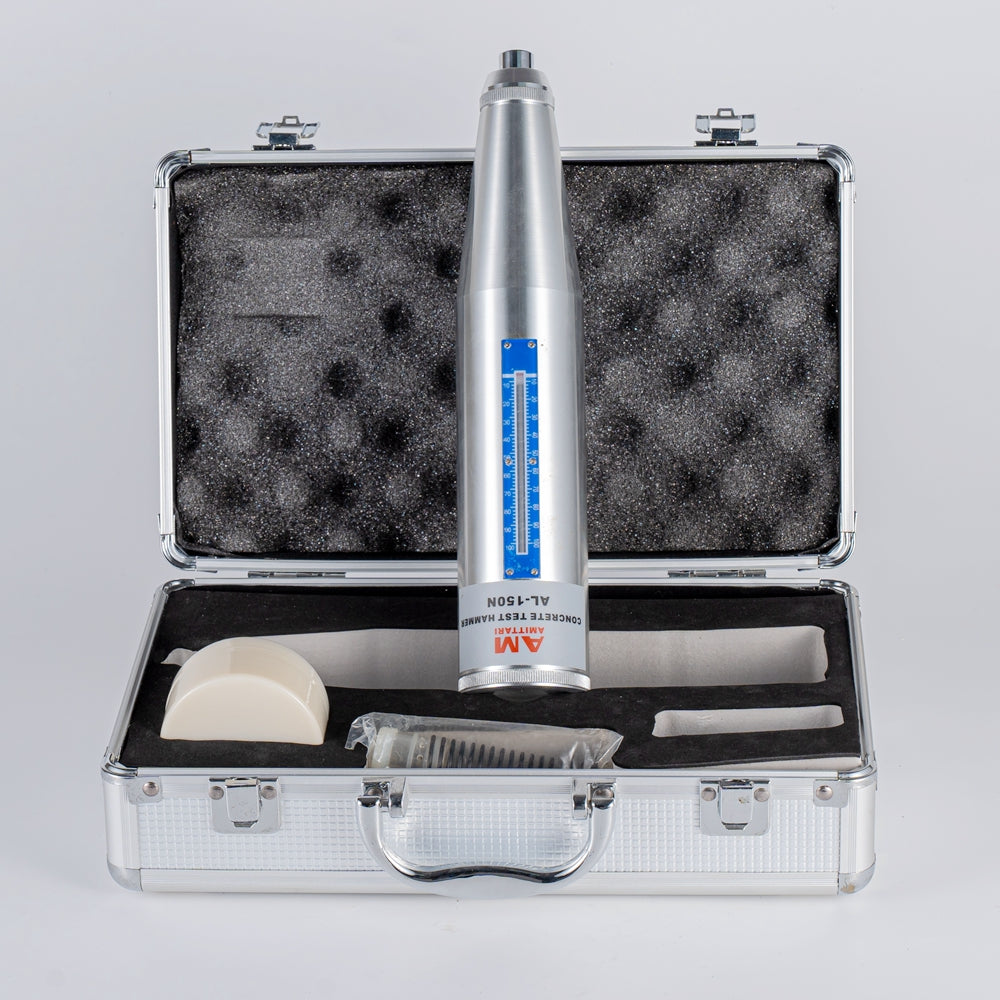

Accessories

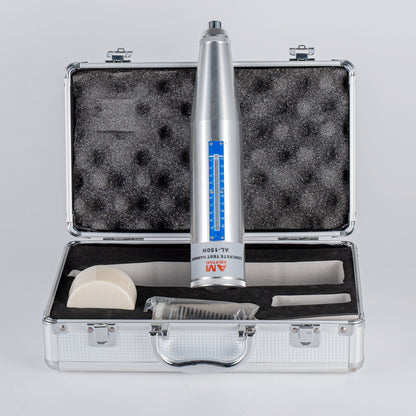

• Standard Accessories:
  • Main Unit (1 pc)
  • Windscreen (1 pc)

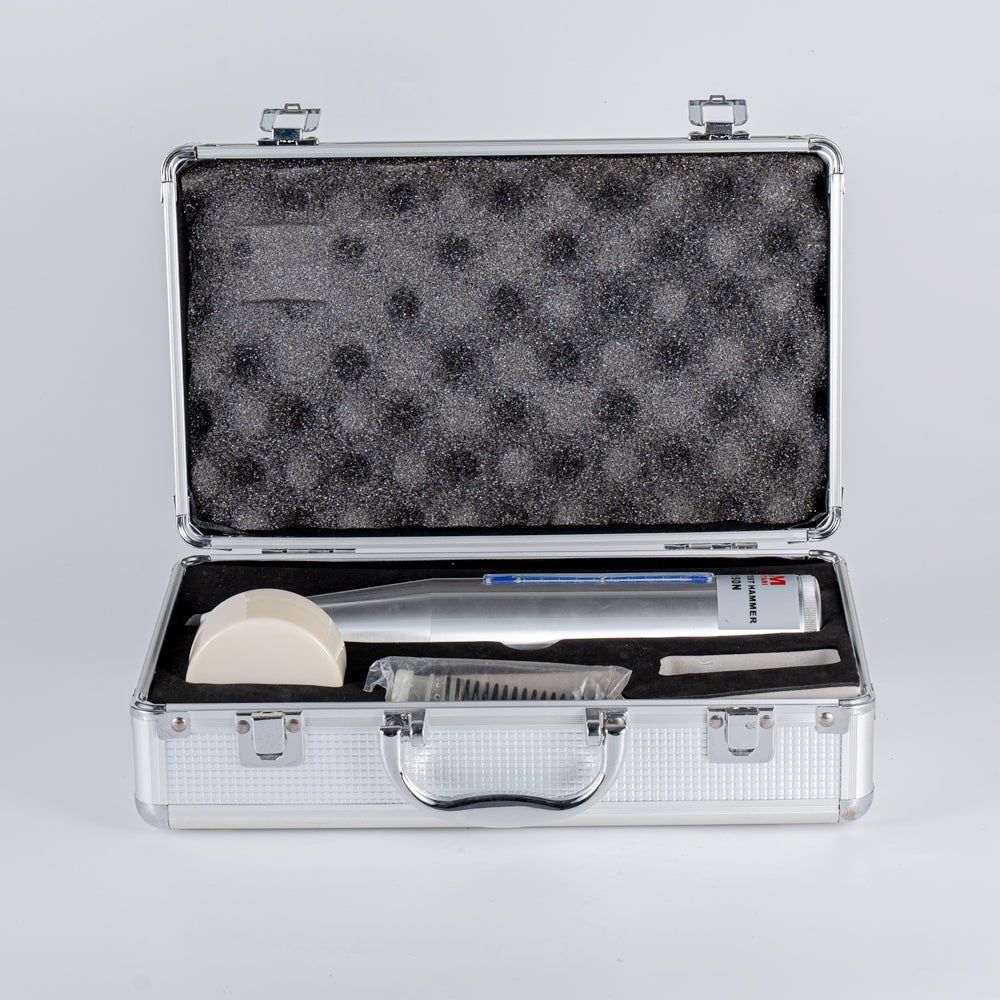

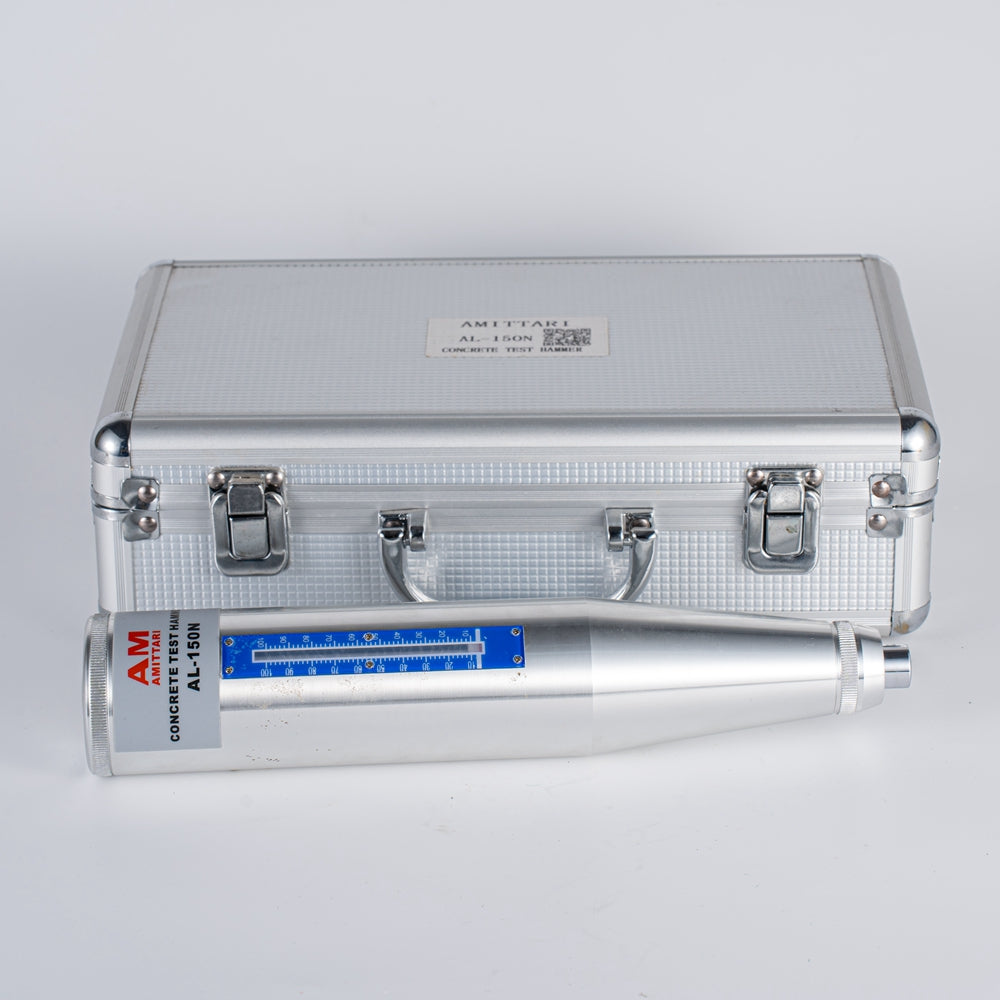

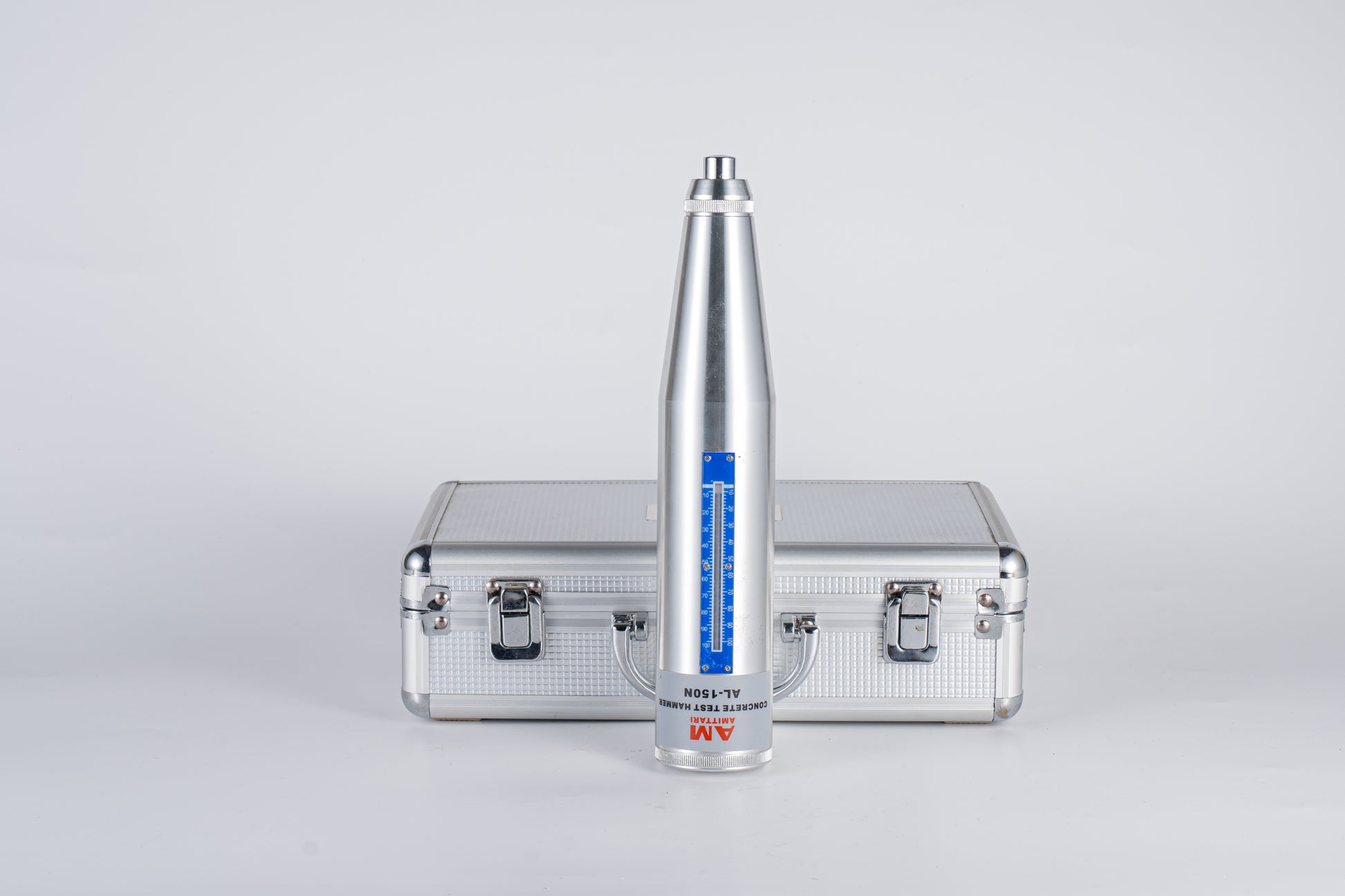

  • Carrying Case (1 pc)
  • Operation Manual (1 pc)
