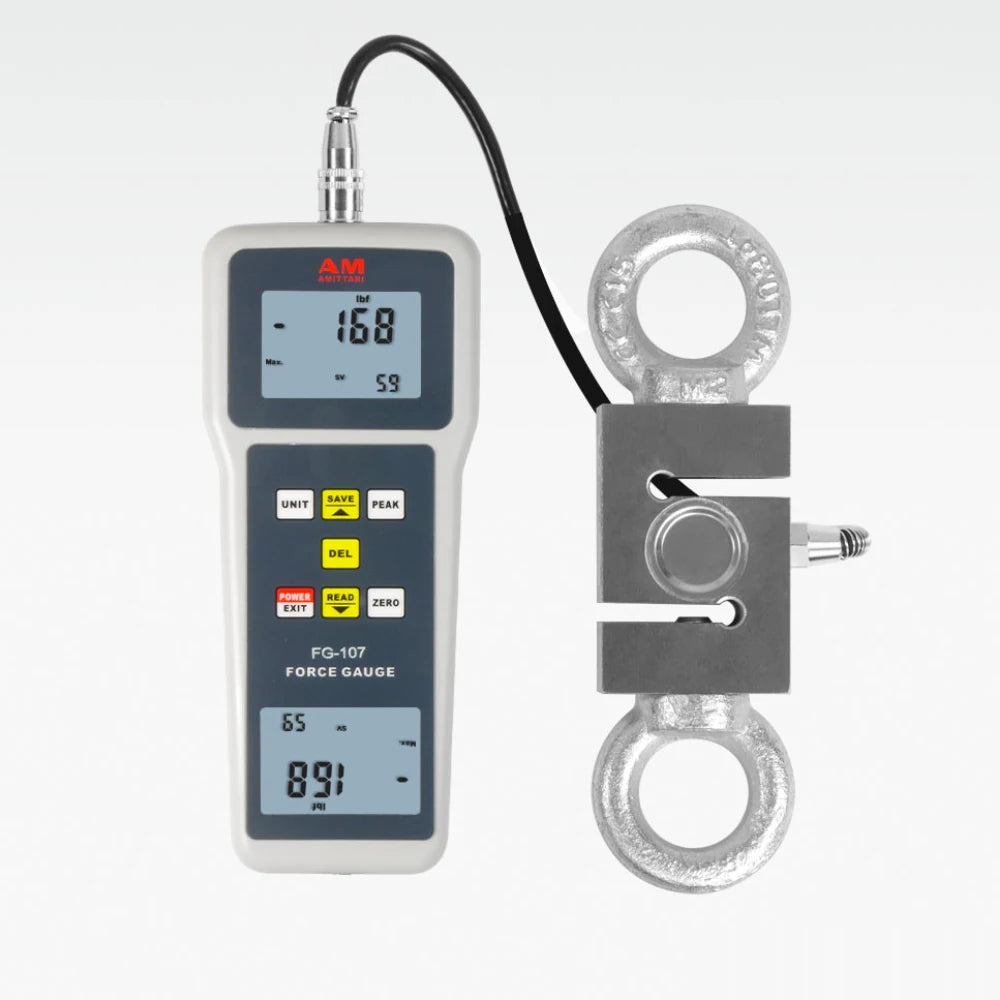

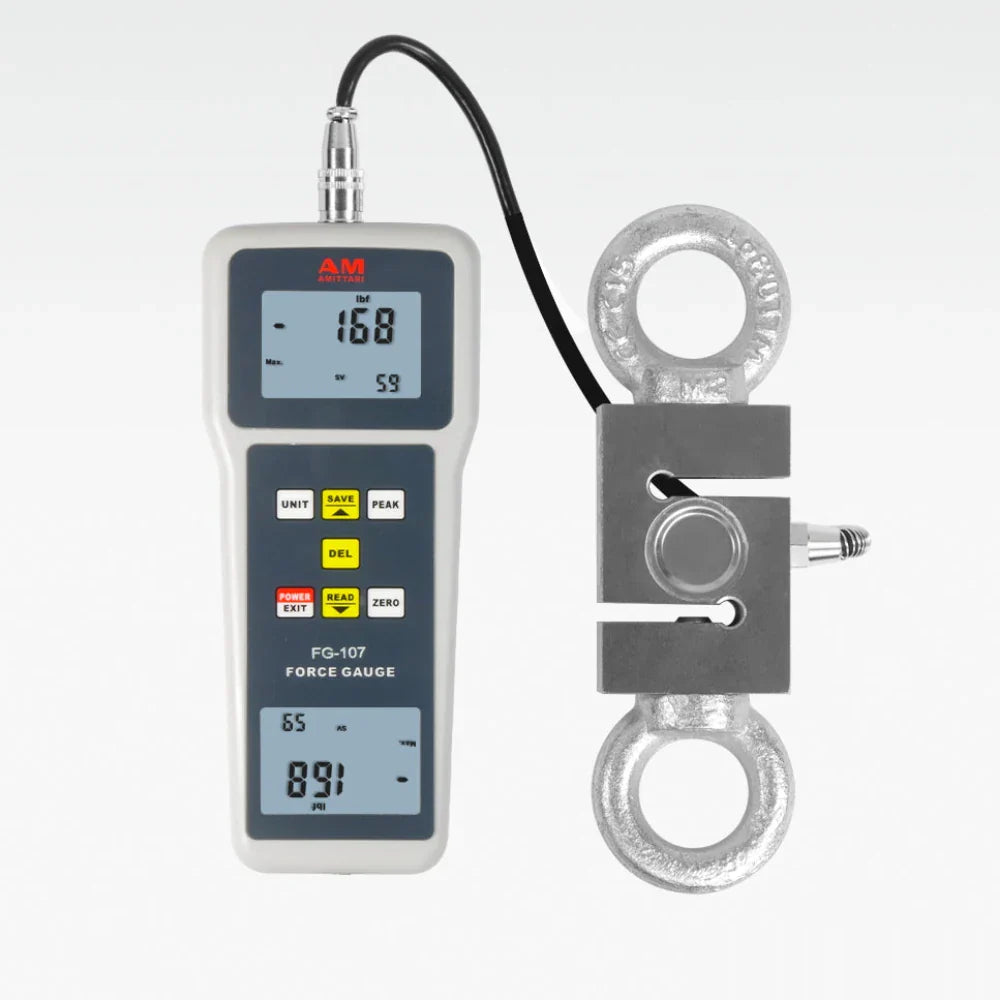

Product Name: TOMLIN Heavy-Duty Digital Force Gauge - FG107 Series (200kg to 2000kg)
Description:
The TOMLIN Heavy-Duty Digital Force Gauge is specifically engineered to handle high-capacity force measurements with exceptional precision. Designed for rigorous applications in industrial and manufacturing settings, this robust device is perfect for testing and monitoring large forces up to 2000kg. Its advanced features, durable construction, and user-friendly interface make it the ultimate solution for professionals requiring accurate push/pull force measurements in high-load environments.
Ideal for use in industries such as construction, automotive, heavy machinery, and manufacturing, the TOMLIN Heavy-Duty Force Gauge ensures safety, efficiency, and compliance with industry standards.
Key Features:
- High-Capacity Measurement: Measures forces ranging from 200kg to 2000kg with high accuracy.
- Digital Display: Provides a clear and precise readout for ease of use.
- Peak Value Hold Function: Captures and locks the maximum measured force for better analysis.
- Backlit LCD Display: Ensures visibility in any lighting condition.
- Memory and Review Function: Stores up to 99 test results for later analysis.
- Versatile Applications: Ideal for destructive tests, heavy load testing, and pull/push tests in demanding environments.
- Multiple Units of Measurement: kgf, N, Lbf for compatibility with diverse applications.
- Overload Protection: Built-in safety mechanisms prevent damage to the device.
- Low Battery Indicator and Auto Power-Off: Ensures uninterrupted performance and battery conservation.
Specifications:
-
Measurement Ranges:
- FG-107-200K: ±200kgf | ±1960N | ±440Lbf
- FG-107-500K: ±500kgf | ±4900N | ±1100Lbf
- FG-107-1000K: ±1000kgf | ±9800N | ±2200Lbf
- FG-107-2000K: ±2000kgf | ±19600N | ±4400Lbf
- Accuracy: ±0.2%FS ± 1 Digit
- Display: Reversed 4-digit LCD
- Power Supply: 6V DC power supply or 2x1.5V AA batteries (optional for portability)
-
Operating Conditions:
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: <80%, vibration-free environment
- Dimensions: 211 x 80 x 36 mm (8.3 x 3.1 x 1.4 inches)
- Weight: 390g (13.76 oz)
Standard Accessories:
- Main Unit
- Carrying Case
- Operation Manual
Optional Accessories:
- USB Cable and Software
- Bluetooth Adapter and Software
- Force Gauge Support
- Power Adapter
Also Known As:
- Heavy-Duty Force Gauge
- High-Capacity Load Tester
- Digital Force Testing Meter
- Push-Pull Force Gauge for High Loads
- Industrial-Grade Force Gauge
Downloads
PDF Specification Sheet -Download Here
