Digital Pressure Gauge Y-Series

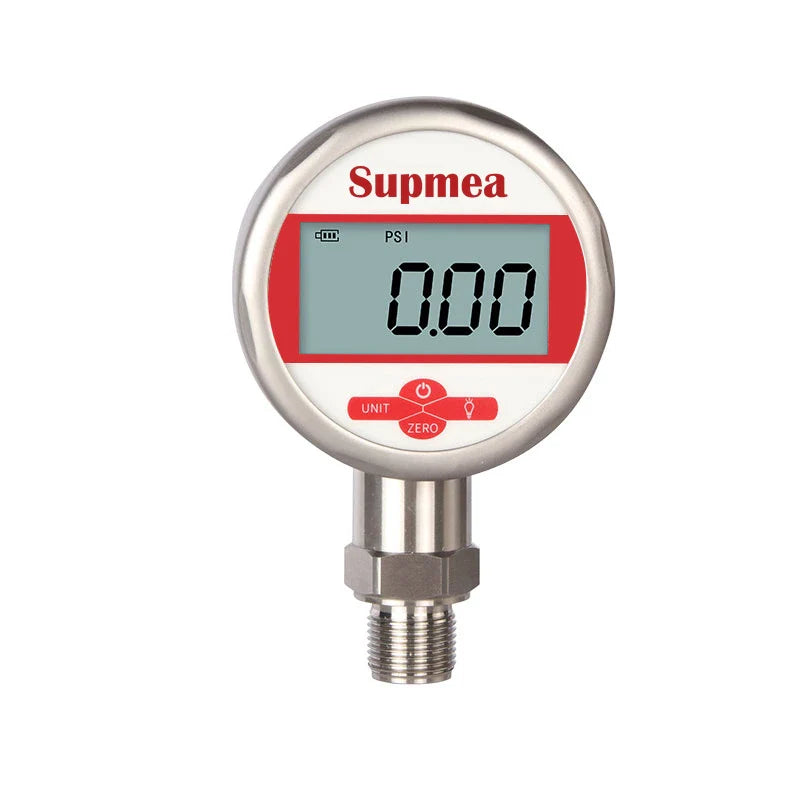

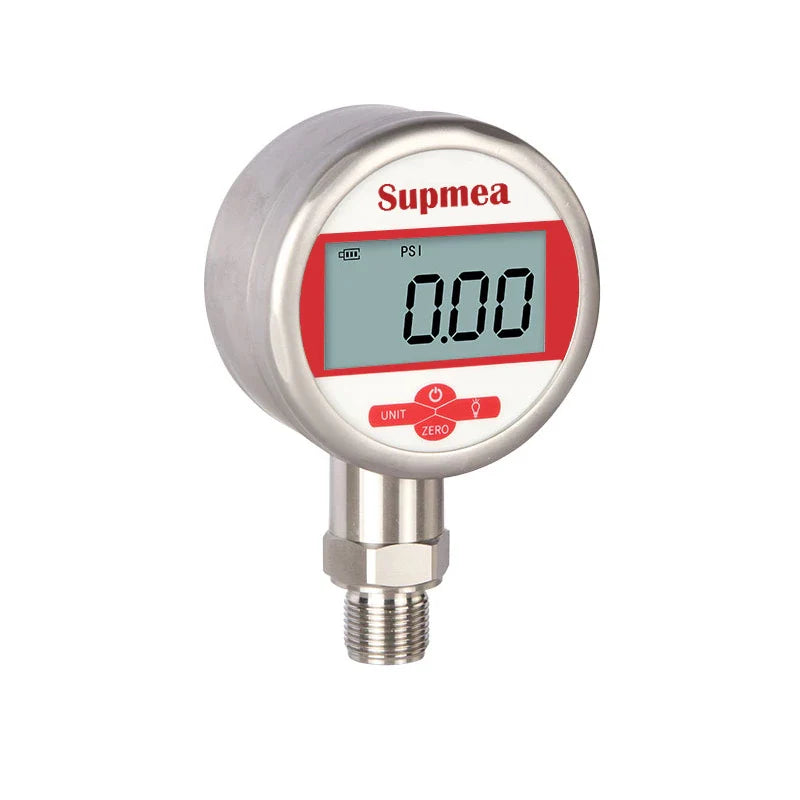

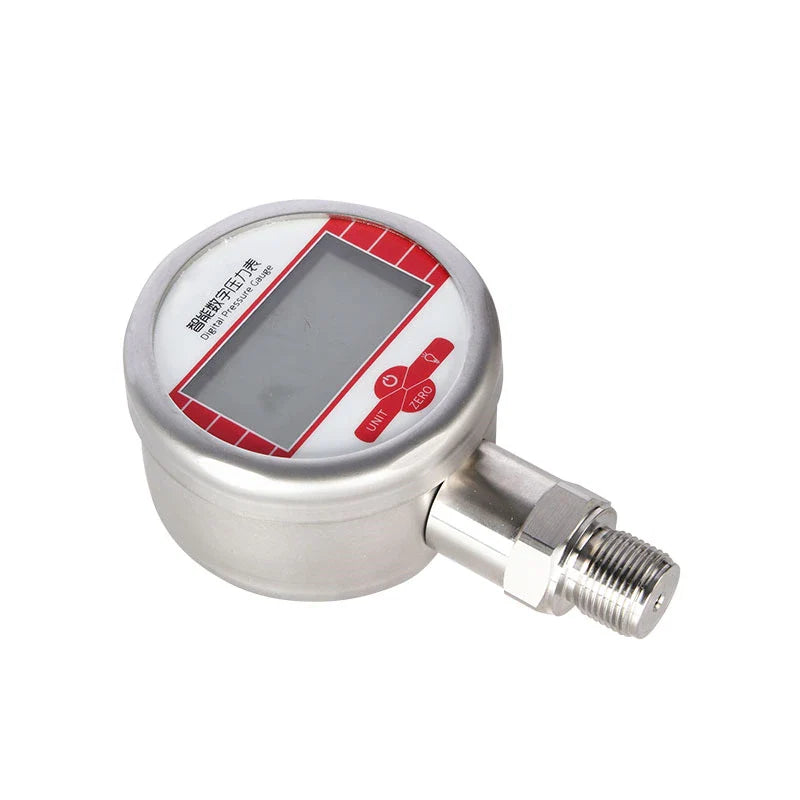

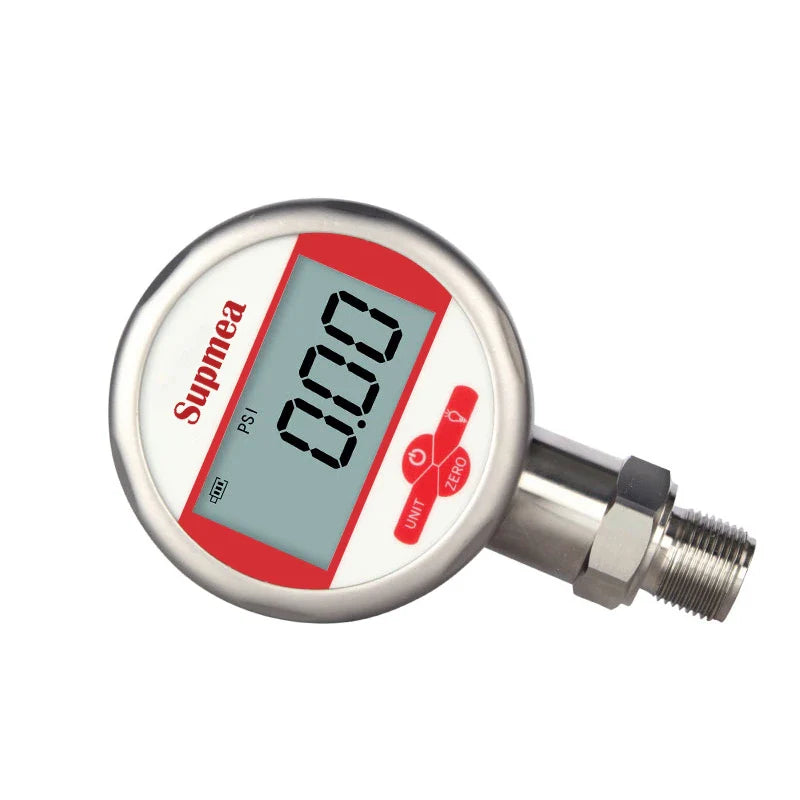

Y Series Digital Pressure Gauge

The Y-Series Digital Pressure Gauge is designed for high-precision pressure measurement with low power consumption and a durable stainless steel construction. Its advanced thin-film sensor technology ensures accuracy and reliability across a wide pressure range, making it suitable for various industrial applications.

Key Features:

Low Power Consumption – Battery-powered for long-lasting operation.
Durable Construction – Sturdy stainless steel casing for enhanced durability.
Advanced Sensor Technology – High-precision thin-film pressure sensor.
Wide Pressure Range – Measures from -100 kPa to 10 MPa. (-1 to 100 Bar)
Multiple Unit Conversions – Supports MPa, bar, kPa, psi, and kg/cm².
Real-Time LCD Display – White backlit screen with peak recording functionality.
High Resistance – Withstands pressure spikes and vibrations.

Technical Specifications:

Display Range: -199999 to 199999 digits (5 ½ digit display).
Display Resolution: Adjustable (4 to 5 ½ digits) based on pressure unit selection.
Display Mode: LCD with white backlight.
Power Supply: 3 x 1.5V AAA or AA alkaline batteries.
Battery Life: 5000 to 7500 hours (without backlight).
Collection Frequency: 3 times per second.
Memory Function: Stores Min/Max readings.
Accuracy: 0.25%FS
Operating Temperature: -20°C to +85°C (medium), -10°C to +60°C (ambient).
Storage Temperature: -20°C to +70°C.
Material: 304 stainless steel (shell and connector).
Pressure Connection Options: G1/4, G1/2, NPT1/4, NPT1/2.
Diameter: 80mm

Pressure Performance:

Range (Bar)	Range (kPa)	Range (MPa)	Range (PSI)
-1 ~ 3 bar	-100 ~ 300 kPa	-0.1 ~ 0.3 MPa	-14.5 ~ 43.5 psi
0 ~ 6 bar	0 ~ 600 kPa	0 ~ 0.6 MPa	0 ~ 87 psi
0 ~ 10 bar	0 ~ 1000 kPa	0 ~ 1 MPa	0 ~ 145 psi
0 ~ 100 bar	0 ~ 10,000 kPa	0 ~ 10 MPa	0 ~ 1450 psi
0 ~ 250 bar	0 ~ 25,000 kPa	0 ~ 25 MPa	0 ~ 3,625 psi

**Custom pressure ranges are available upon request.

Applications:

Engineering Machinery – Reliable pressure monitoring for heavy-duty equipment.
Pressure Control & Monitoring – Ideal for industrial systems requiring precision.
Energy & Water Treatment – Suitable for utility and processing plants.
Agricultural Machinery – Ensures optimal performance in farming applications.
Hydraulic & Pneumatic Systems – Essential for fluid power systems.
Iron, Steel & Light Industries – Durable for demanding environments.
Mechanical Pressure Gauge Replacement – Upgrade from traditional gauges.
Liquid Level Measurement – Accurate readings in tanks and reservoirs.
Test Equipment – Ideal for laboratory and field testing.
