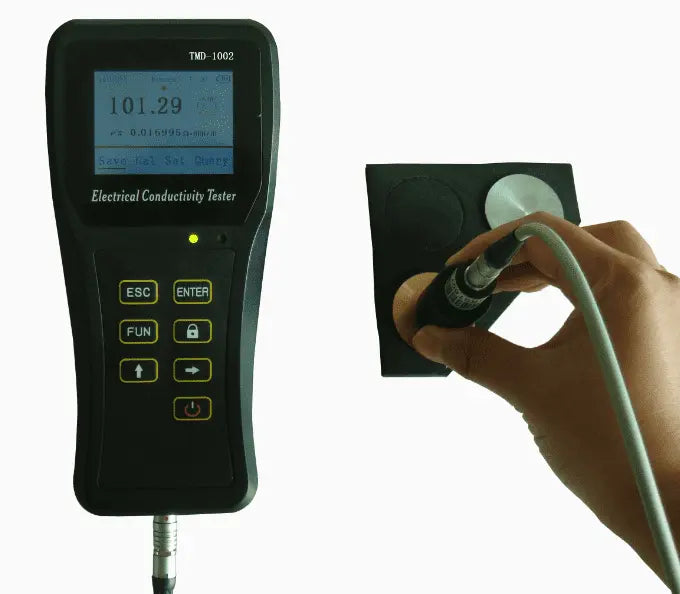

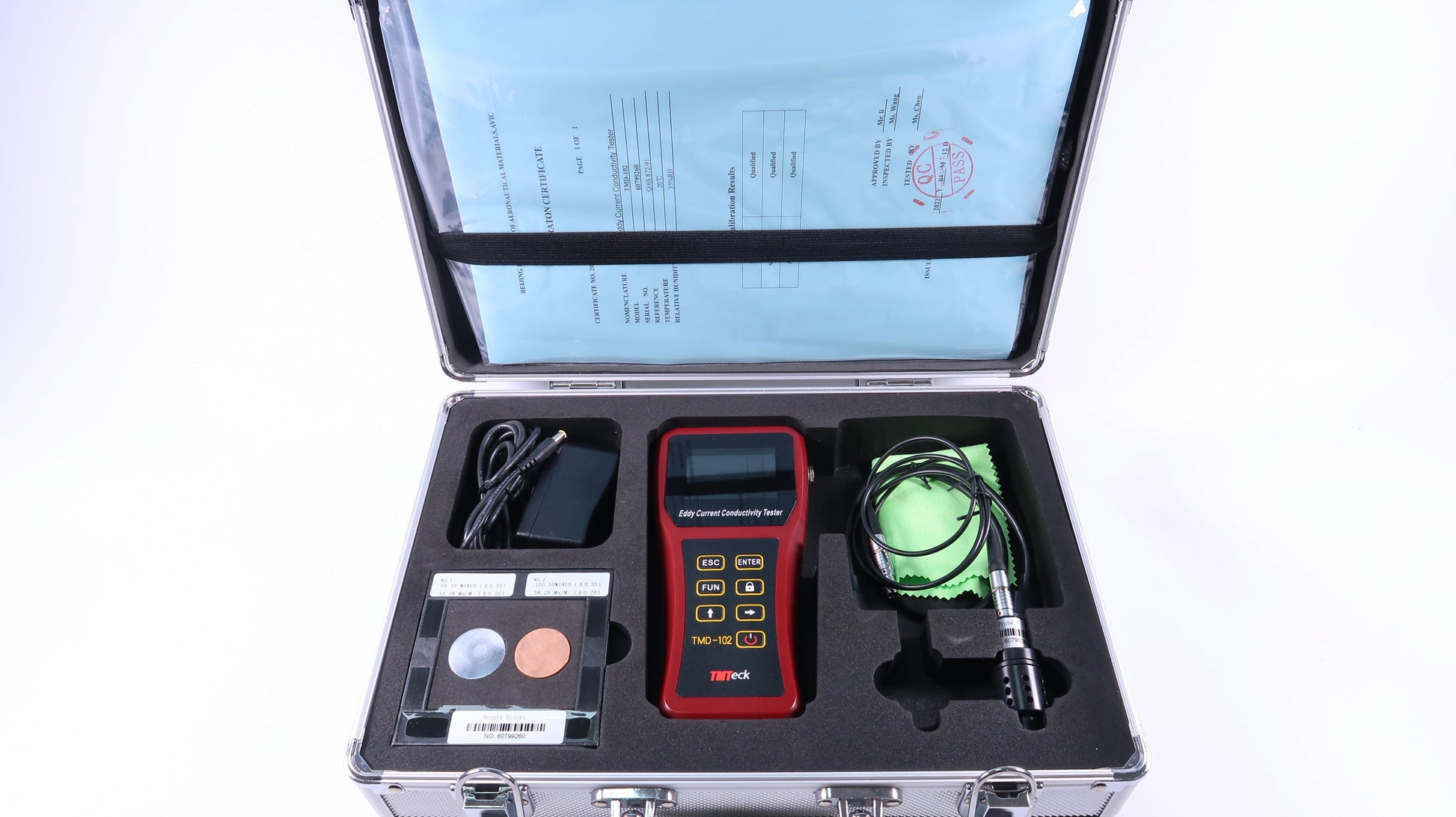

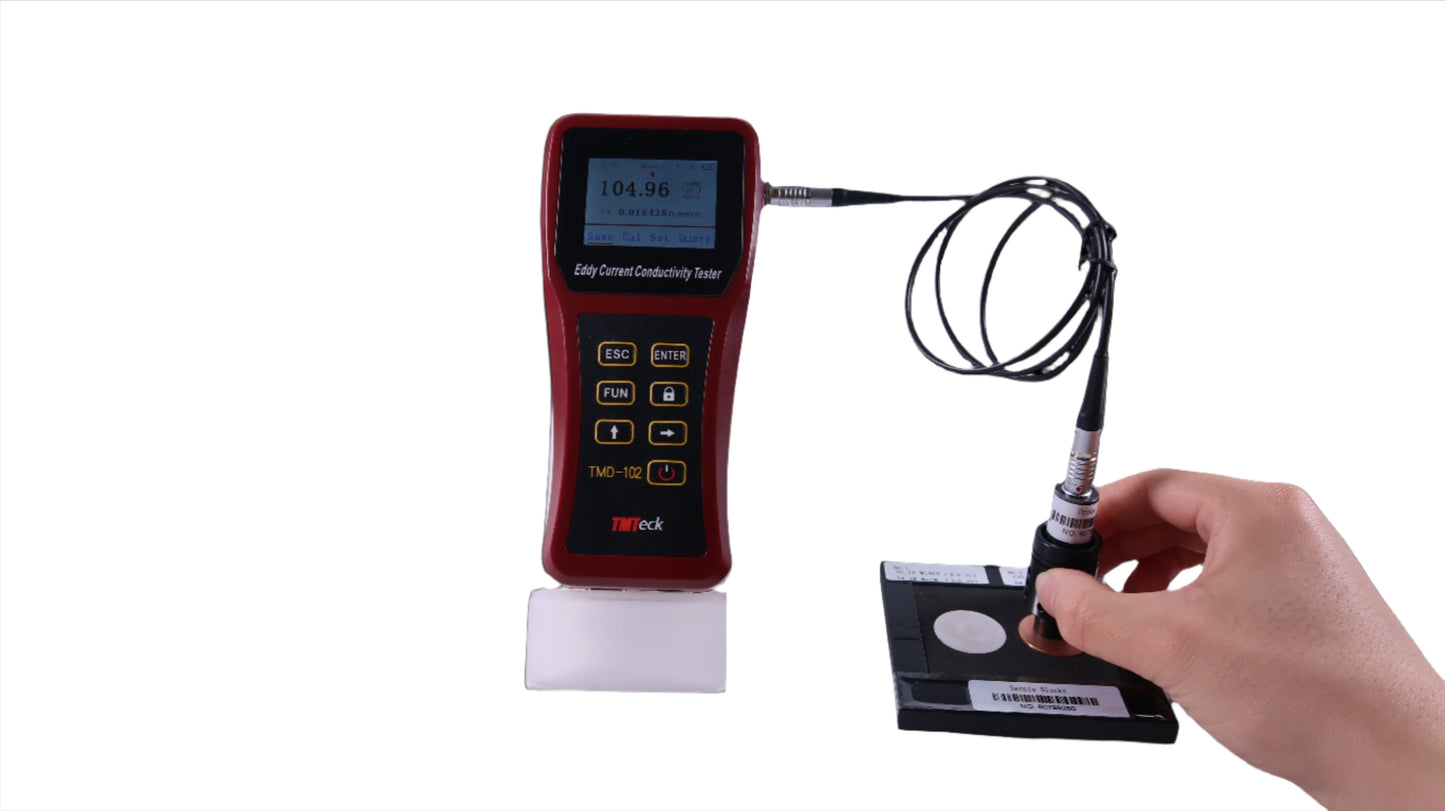

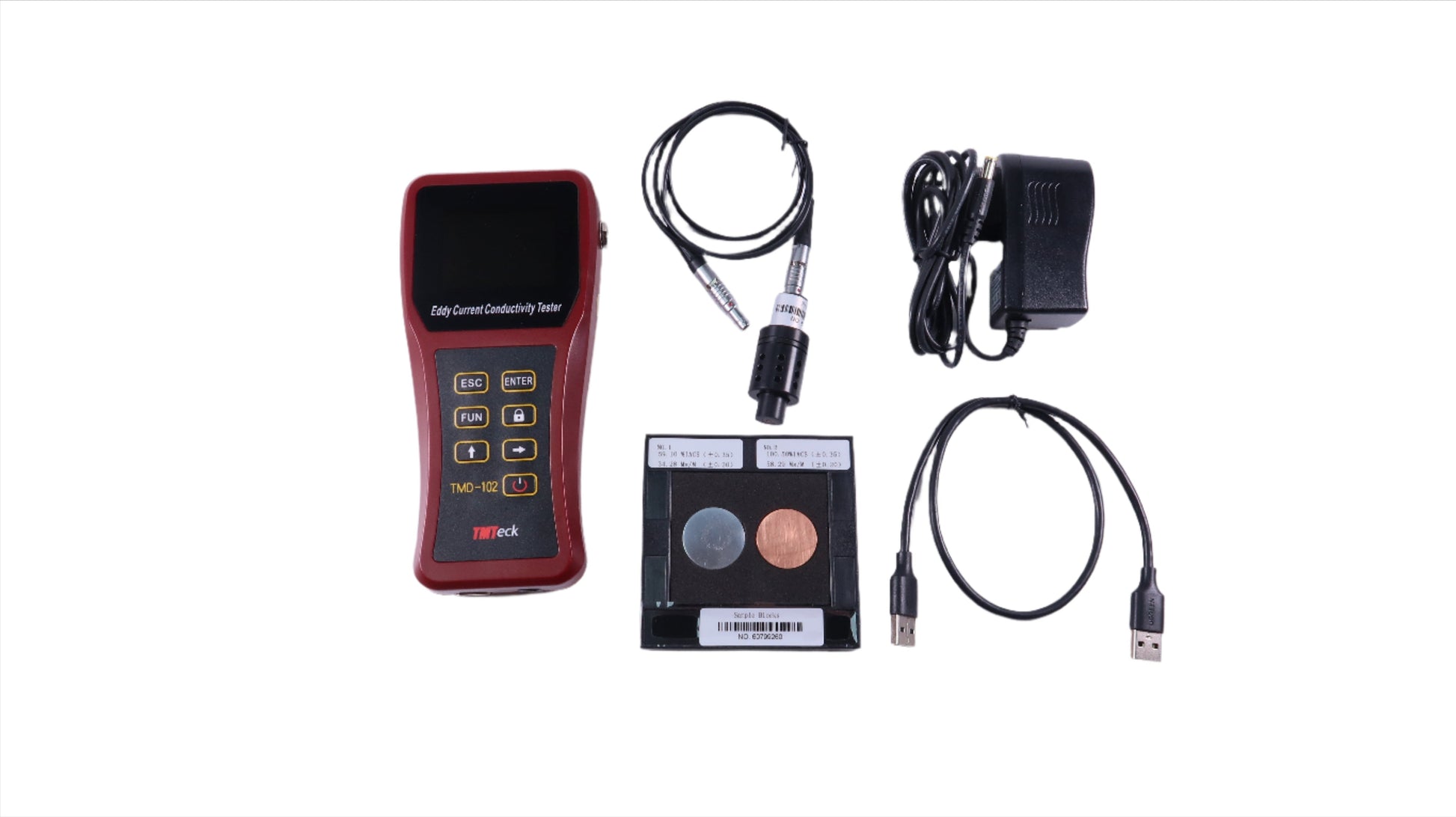

Eddy Current Conductivity Meter TMD-102

Product Name: Eddy Current Electrical Conductivity Meter TMD-102

Short Description: The TMD-102 is an advanced eddy current electrical conductivity meter tailored for rapid and precise measurement of non-ferromagnetic materials. Ideal for industries requiring material separation, quality control, and material state verification.

Features:

• High Frequency Precision: Operates at 60 KHz, the standard frequency for the aviation industry, ensuring accurate conductivity measurements in %IACS or MS/m.
• User-Friendly Interface: Features a large typeface and backlit display for easy reading in low-light conditions.
• Language Support: Offers interface options in multiple languages to meet diverse user needs.
• Portability: Equipped with a high-capacity battery and compact design for extended use and easy transportation.
• Flexible Probe Usage: Allows for outdoor probe replacement without needing to recalibrate at a service center.
• Data Storage: Can store up to 1000 measurement readings, facilitating extensive data collection.

Applications:

• Testing conductivity in aluminum, copper, and other non-ferrous metals within the processing industry.
• Monitoring heat treatment processes and verifying the hardness of aluminum alloys in aerospace and automotive industries.
• Assessing the purity of materials and their thermal performance.

Technical Specifications:

• Measurement Technology: Eddy current
• Operating Frequency: 60KHz and 240KHz
• Display: TFT-LCD, 240x320 pixels, with four background color options
• Dimensions: 180mm x 80mm x 30mm
• Weight: 260g
• Power Supply: Lithium polymer battery
• Measuring Range: 6.9%IACS to 110%IACS (4.0 MS/m to 64 MS/m)
• Accuracy: ±0.1% IACS at 0~23%IACS; ±0.3% IACS at 23%IACS to 110%IACS
• Temperature Compensation: Automatic adjustment to 20°C values

The TMD-102 sets the standard for non-destructive testing with its high precision, ease of use, and robust functionality, making it an essential tool for quality assurance in critical manufacturing and processing applications.
