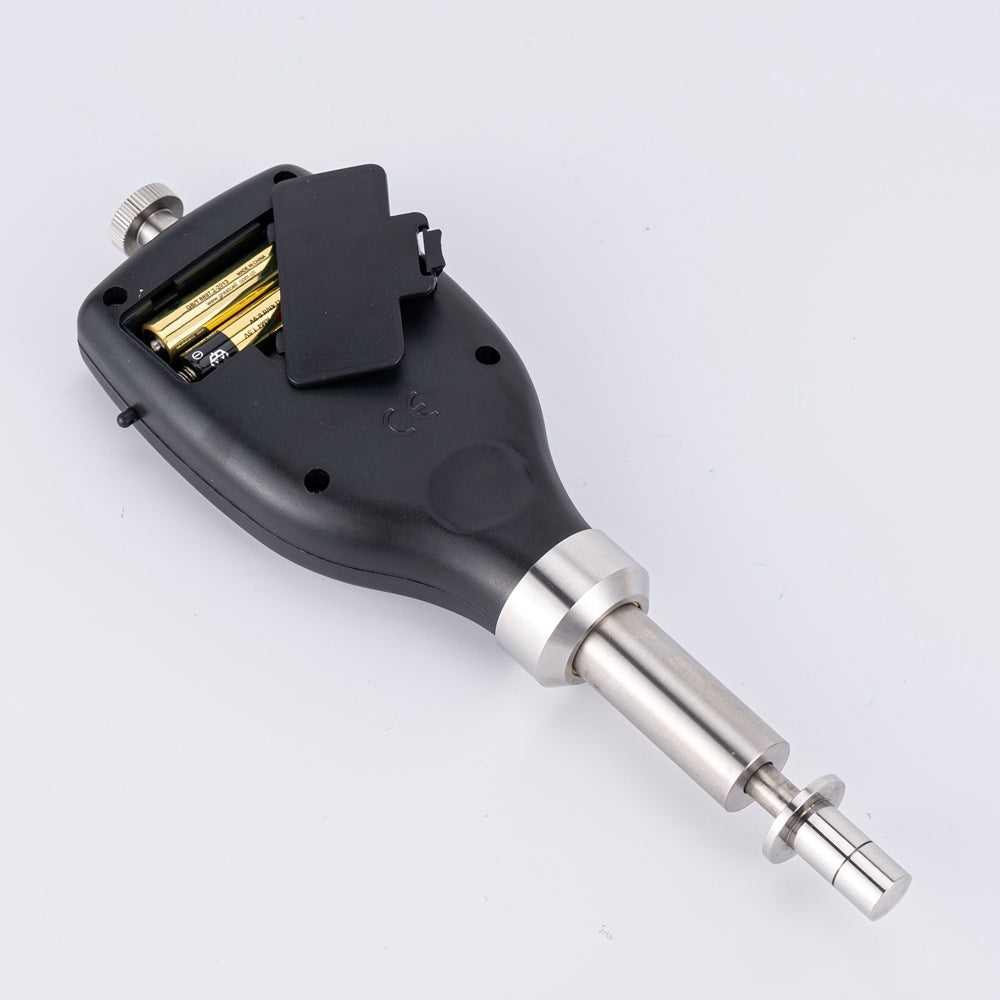

Fruit Hardness Tester CS402

Description
The TOMLIN Fruit Hardness Tester CS-402 Series is a compact and user-friendly instrument designed for precise firmness measurement across a variety of fruits, such as strawberries, apples, and other general fruit types. Its lightweight and integrated design make it a practical tool for fruit quality assessment in agricultural, production, and distribution settings.

Features

• Integrated Design: Lightweight, compact, and easy to handle, perfect for field or lab use.
• Digital Display: Provides clear, intuitive readings for accurate measurements.
• Versatile Applications: Suitable for assessing firmness in strawberries, apples, and a range of other fruit varieties.
• Automatic Power-Off: Saves battery power during periods of inactivity.
• Customizable Probes: Equipped with interchangeable probes tailored to specific fruit types for optimal accuracy.

Specifications

Models and Measurement Ranges

• CS-402-5 (Strawberry-like fruits):
  • Measurement Range: 0.2–5 kg/cm² (×10⁵ Pa)
  • Probe Diameter: 3.5 mm
• CS-402-15 (Apple-like fruits):
  • Measurement Range: 2–15 kg/cm² (×10⁵ Pa)
  • Probe Diameter: 11.1 mm
• CS-402-1122 (General fruits):
  • Measurement Range: 0.5–10 kg/cm² (×10⁵ Pa)
  • Probe Diameter: 7.9 mm

Common Specifications

• Resolution: 0.01 / 0.1
• Accuracy: ±1%
• Pressing Depth: 10 mm
• Power Supply: 2 x 1.5V AAA (UM-4) batteries
• Weight: 195 g (excluding batteries)
• Dimensions: 210 x 63 x 24 mm

Standard Accessories

• Main Unit (1 pc)
• Presser (1 pc per model)
• Carrying Case (1 pc)
• Instruction Manual (1 pc)

Optional Accessories

• RS-232 or USB Interface Cable & Software

Alternative Names

• Fruit Firmness Tester
• Fruit Quality Meter
• Fruit Texture Analyzer
• Digital Fruit Hardness Gauge
• Fruit Penetrometer

Downloads

PDF Specification Sheet - Download Here
