DESCRIPTION

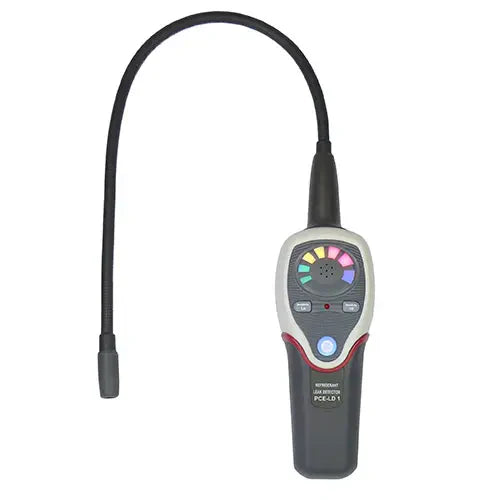

PCE-LD 1 Refrigerant Gas Leak Detector
Accurate, affordable handheld CFC / HFC refrigerant gas leak locator

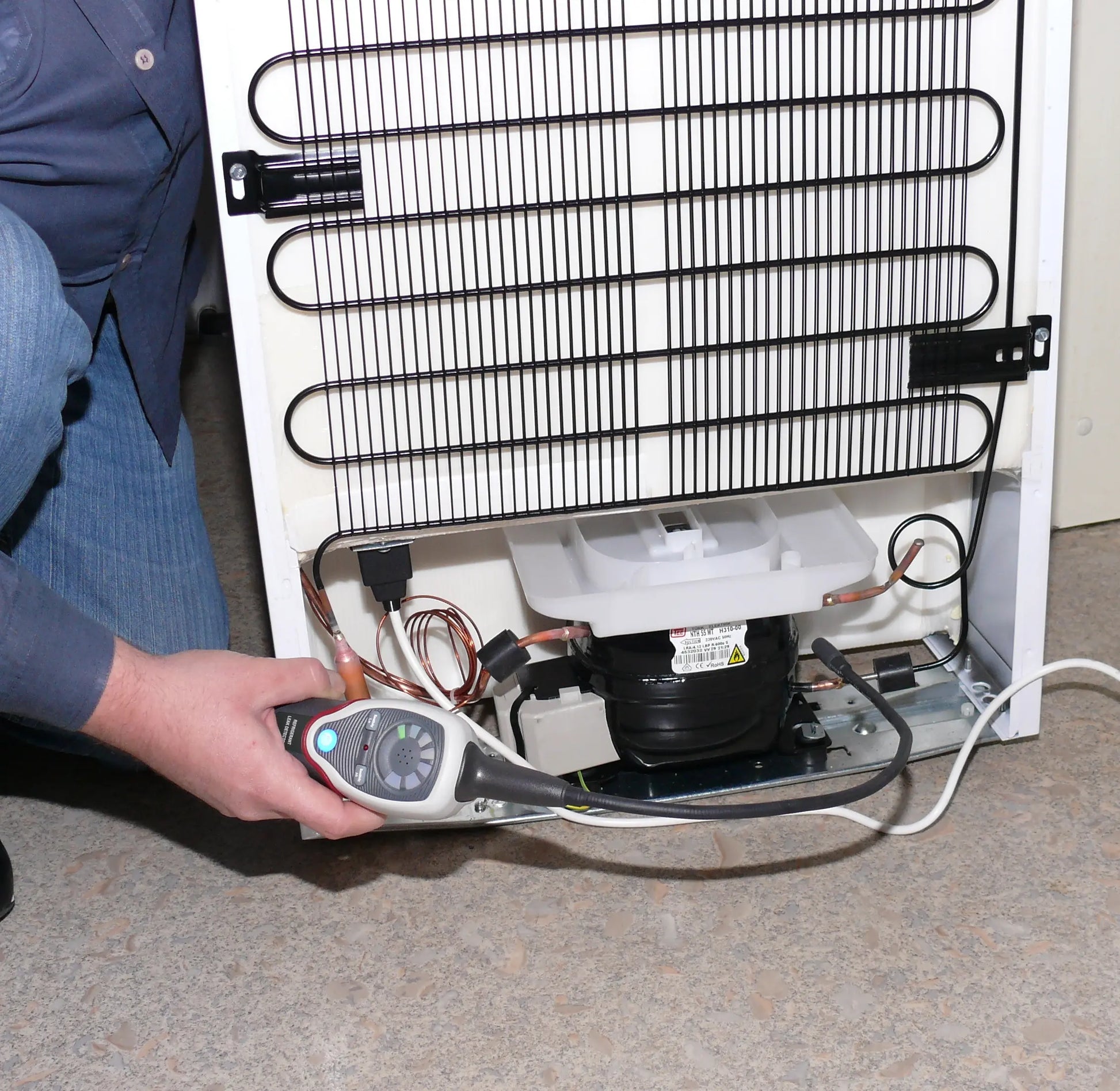

PCE-LD 1 is a portable handheld refrigerant gas leak detector used to locate CFC/HFC refrigerant gas leaks. This highly sensitive gas leak detector can locate gas leaks from HVACR refrigeration systems even in areas contaminated by other gases. The gas sensor is located at the end of a 390 mm / 15.35 in flexible goose-neck tube, allowing unique access to hard-to-reach places.


HIGHLIGHTS

- Detects R-134a, R-404A, Freon R-407C, R-410A and R-22 (per EN 14624)
- High / low sensitivity per SAE J1627 rating criteria
- Audible and visual alarms
- Easy to use
- Tricolor LED indicator shows concentration of gas
- Sensor life: Approx. 1 year - see accessories for replacement

SPECIFICATION

Sensitivity Adjustable high / low (per SAE J1627 rating criteria):
6 g/yr or 30 g/yr for R-22 and R-134a
8 g/yr or 40 g/yr for R404A, R-407C and R-410A
Warm-up time Approx. 90 seconds
Gases detected CFC / HFC refrigerants including R-134a, R-404A, Freon R-407C, R-410A and R-22
Per standard EN 14624
Test cycle Continuous
Sensor tube length Approx. 390 mm / 15.35 in
Power supply 4 x AA batteries
Battery life Approx. 40 hours of normal use
Auto shut-off After 10 minutes of inactivity
Dimensions 6.8 x 2.6 x 2.2 in / 173 x 66 x 56 mm
Weight < 1 lb / 400 g


See user manual for complete technical specifications.

DELIVERY SCOPE

1 x PCE-LD 1 refrigerant gas leak detector
1 x Gas sensor on tube
1 x Carrying case
4 x AA batteries
1 x Leak check bottle
1 x User manual
