EMF Meter PCE-EMF 20

EMF Meter PCE-EMF 20

Regular price $390.00
Regular price Sale price $390.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

EMF measuring device / measures electric and magnetic fields simultaneously / audible and visual alarm / automatic power off

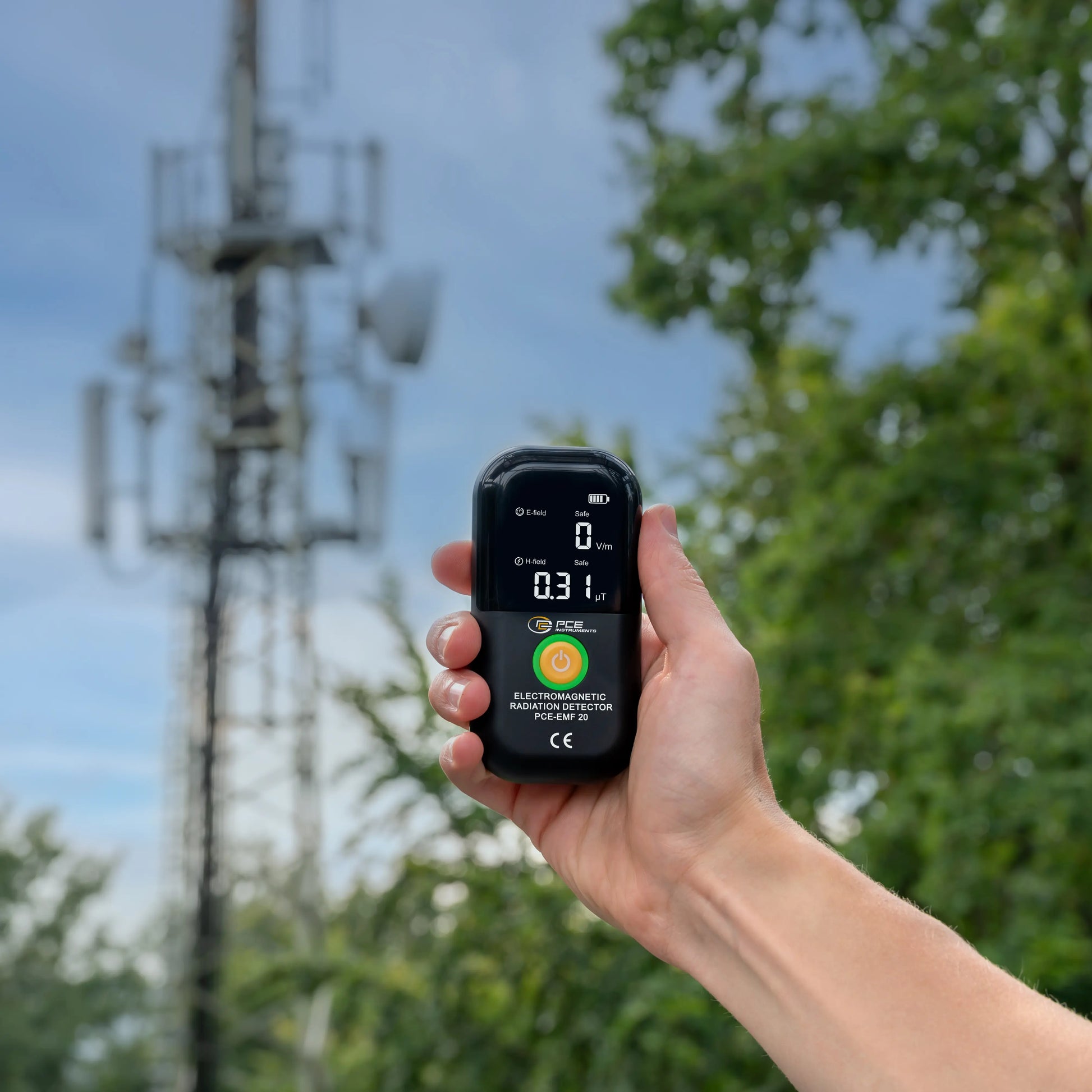

The EMF measuring device is a device for the simultaneous measurement of electric and magnetic fields. It is ideal for domestic use for testing routers, Bluetooth devices, radios, televisions, computers, printers, microwave ovens, refrigerators and mobile phone masts. It offers a measurement range from 1 to 1999 V/m for electric fields and from 0.01 to 99.99 µT for magnetic fields. The EMF measuring device has an alarm threshold of 40 V/m or 4 µT, above which an audible alarm is automatically triggered.

The EMF measuring device operates within a bandwidth of 5 Hz to 3500 MHz and takes less than a second to deliver a measurement result. A built-in rechargeble 700 mAh lithium battery with USB-C interface makes the device convenient and durable. An LED display provides a clear indication of the measured values and the compact design with only one key ensures easy use. In addition, the EMF measuring device switches off automatically when inactive to save energy.


Highlights

- measurement range: 1 ...1999 V/m / 0.01 ... 99.99 µT
- alarm threshold: 40 V/m, 4 µT
- bandwidth 5 Hz ... 3500 MHz
- alarm: audible and visual
- automatic power off
- battery status display

Specification

Radiation
Measurement range up to 1 ... 1999 V/m
Resolution 1 V/m
Accuracy 1 V/m
Radiation
Measurement range up to 0,01 ... 99,99 µT
Resolution 0,01 µT
Accuracy 0.01 µT
General technical data

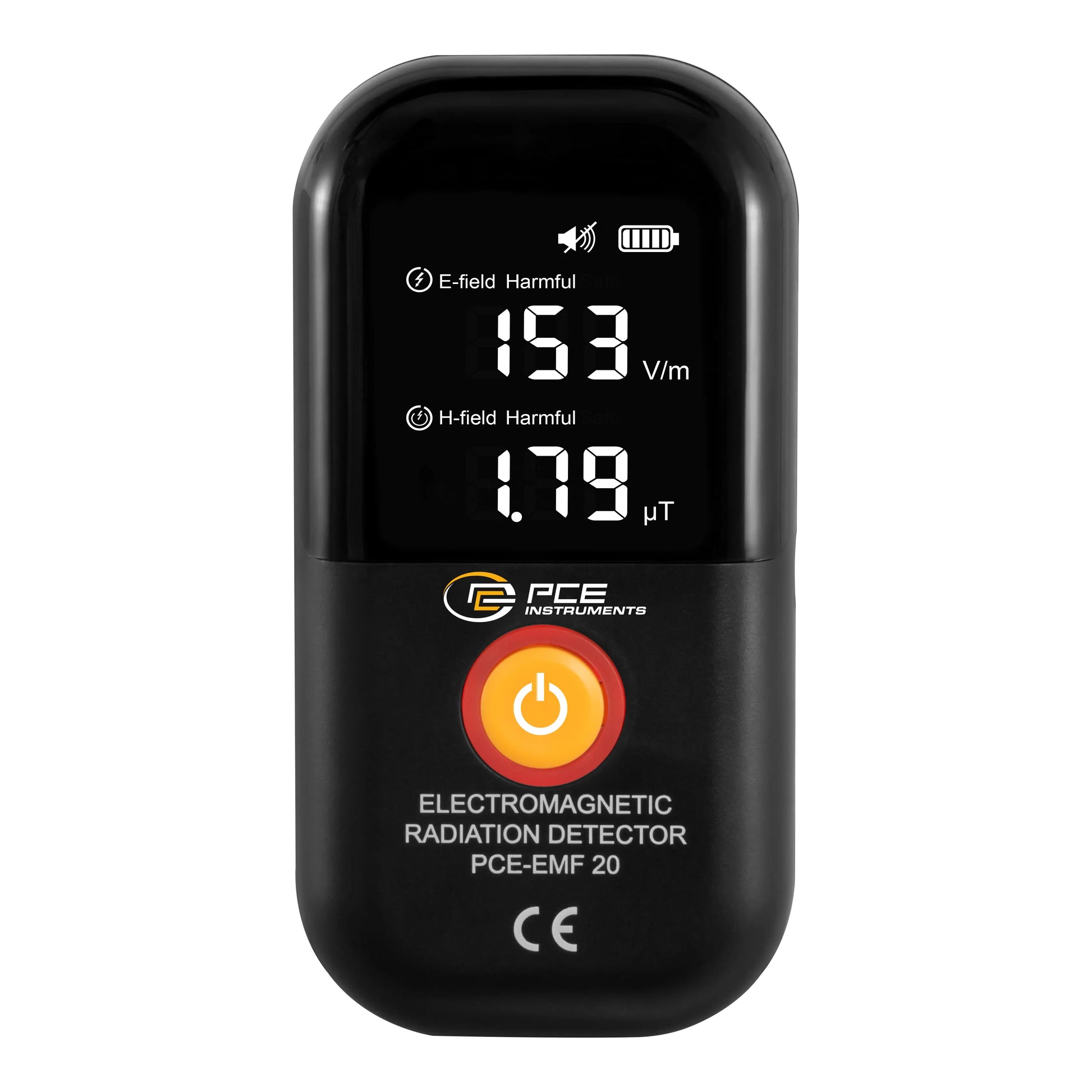

Display type LED
Display size 2,2 Inch

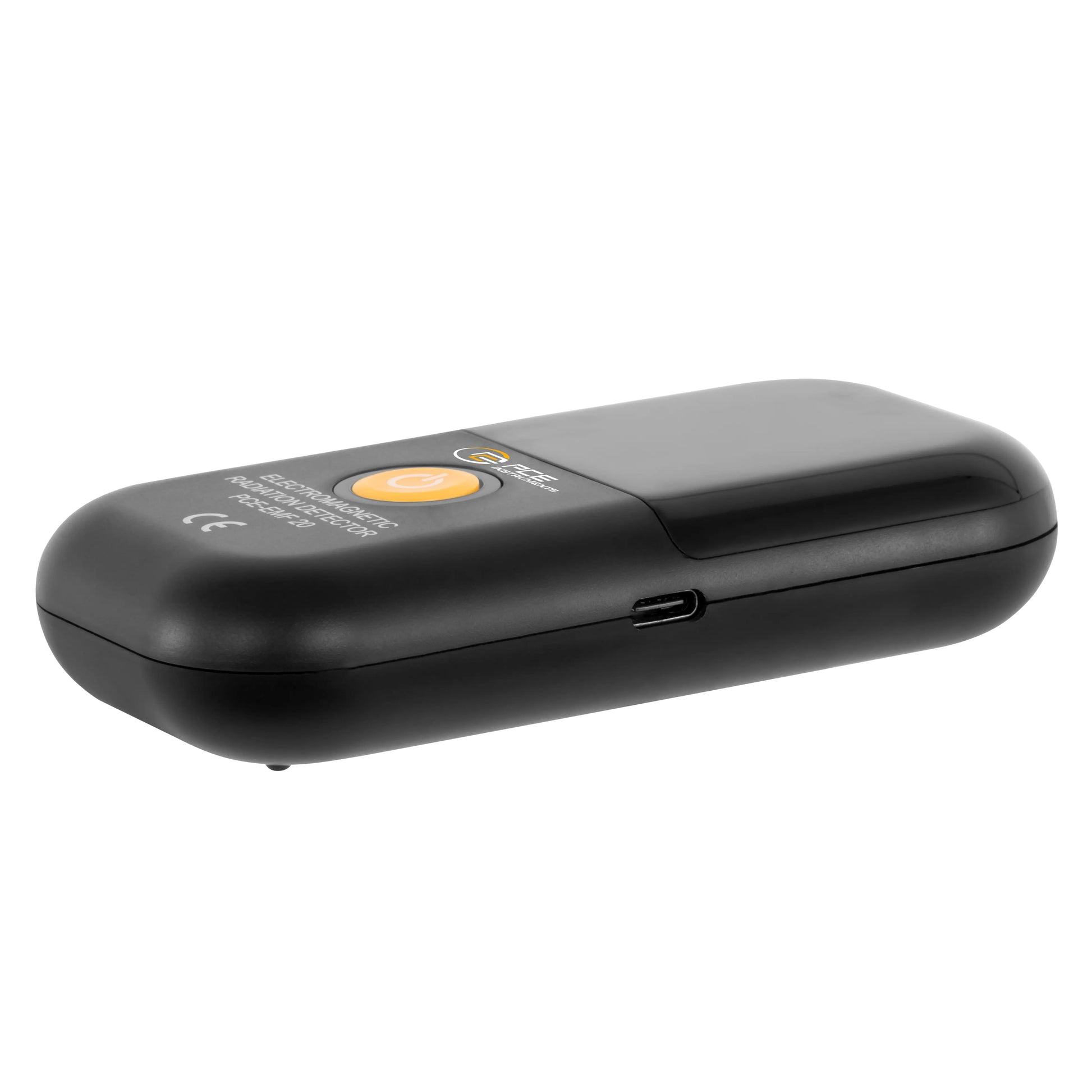

Interface USB-C
Response time 0,5 s
Automatic power-off 5 min
Bandwidth MF from 5 Hz
Bandwidth MF to 3500 MHz
Bandwidth EF from 5 Hz
Bandwidth EF to 3500 MHz
Alarm Acoustic, optical
Menu language English, English (GB)
Protection class (device) IP20
Power supply 5 V
Weight 75 g
Operating conditions 0 ... 50 °C , 0 ... 90 % RH
Storage conditions 0 ... 50 °C , 0 ... 90 % RH
(Rechargeable) battery 1 x 3,7 V SL 603040 , Lithium-ion battery
Capacity 700 mAh
Dimensions ( L x W x H ) 110 x 55 x 23 mm

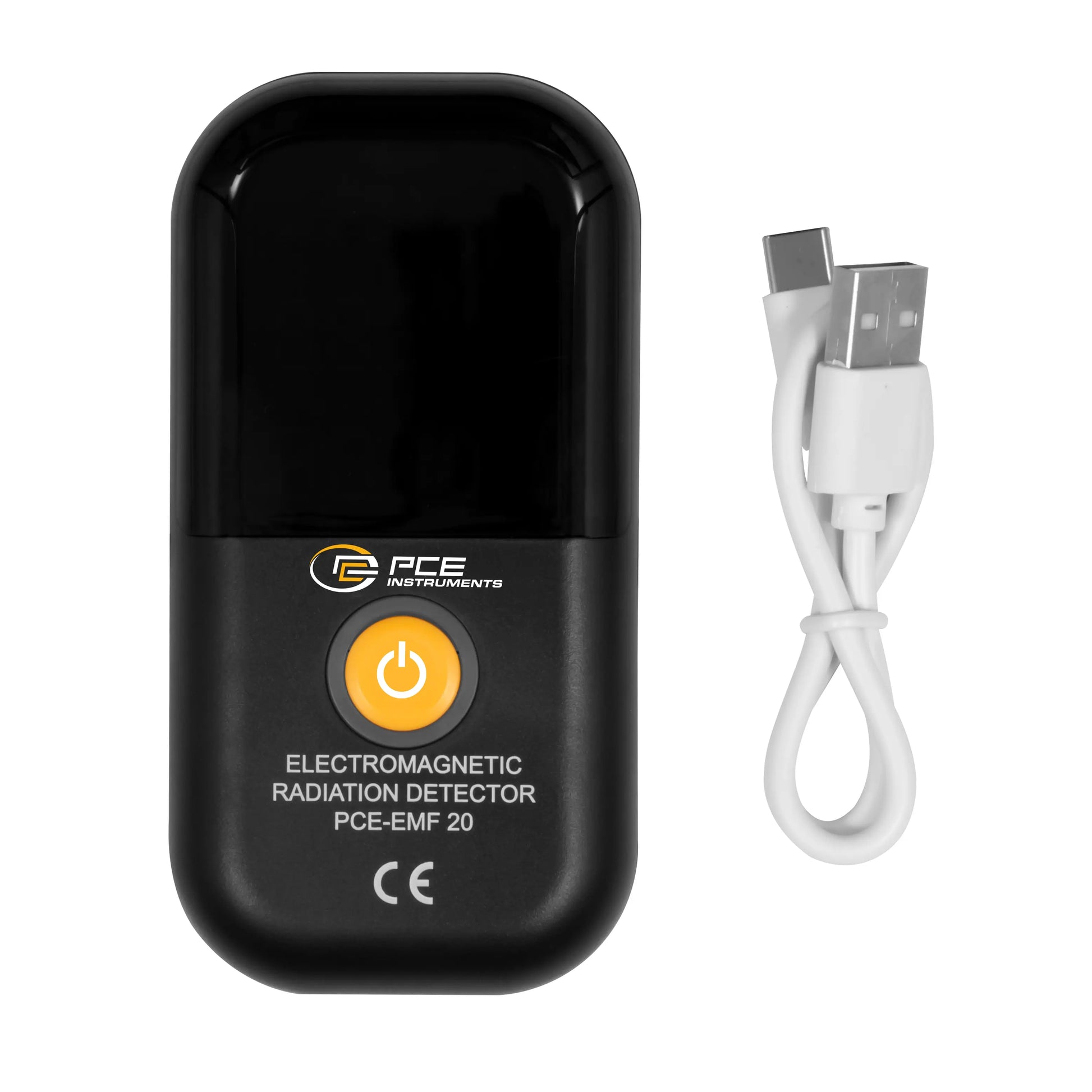

Delivery Scope

1 x EMF measuring device PCE-EMF 20
1 x USB-C cable
1 x user manual
