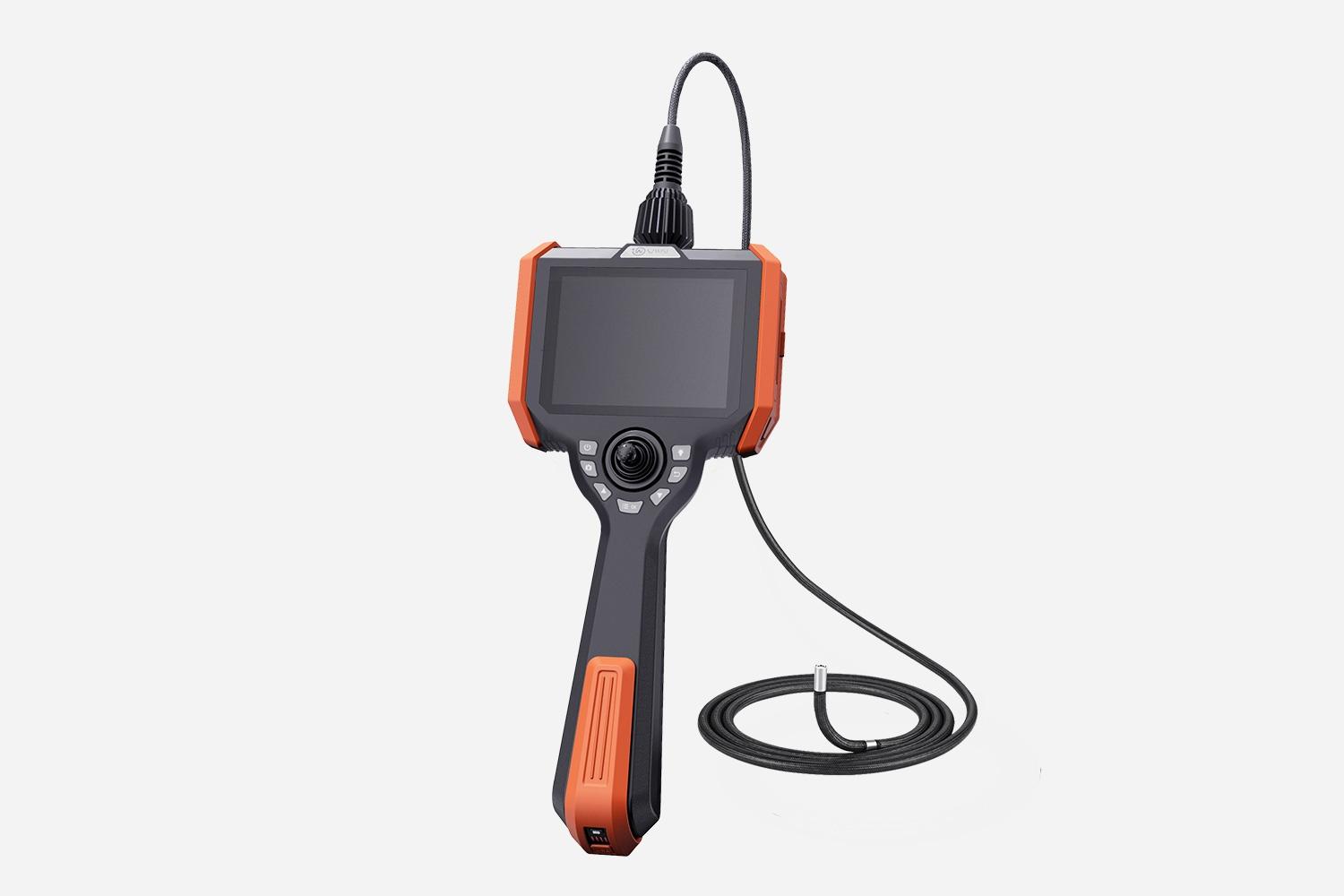

Industrial Endoscope VS-K60 Series

Product Description

The VS-K60 Series Industrial Video Endoscope is a professional inspection tool designed for high-precision visual diagnostics in automotive, pipeline, aerospace, and electrical industries. Featuring a 1MP HD camera, 360° full-way probe articulation, and rear high-power LED fiber optic illumination, it delivers exceptionally clear images even in dark environments.

Equipped with a 5-inch industrial touch LCD screen, multifunctional operating system, and a variety of probe lengths and diameters, the VS-K60 offers flexibility for different inspection tasks. Optional WiFi transmission, temperature warning, and quick-change probes make it a versatile tool for advanced inspection needs.

Key Features

• 1MP HD resolution camera with direct, side, or double view lens options

• 360° full articulation with bend angles from 120° to 170° (model dependent)

• High-power fiber optic illumination for ultra-clear imaging

• 5-inch industrial touch LCD screen for easy viewing

• Freeze, zoom, photo, video, flip, and playback functions

• Supports JPEG image and AVI video recording formats

• Quick-change probe design with lengths from 1m to 6m

• Flexible tungsten-braided probe tube for durability

• Rechargeable lithium battery pack with ≥4 hours runtime

• Multilingual system (Chinese, English, German, French, Russian, Spanish, Italian, Polish, Japanese, Ukrainian, and more)

• Rugged IP54 host and IP67 probe for industrial environments

Technical Specifications

Host

• Dimensions: 350 × 155 × 59 mm

• Display: 5-inch industrial touch LCD screen

• Storage: 32GB internal memory, TF card support

• Output Ports: HDMI, Micro USB, TF card slot

• Power: Rechargeable lithium battery pack, ≥4 hours runtime

• Ingress Protection: IP54

• Operating Temperature: -10°C to +50°C

• Storage Temperature: -20°C to +60°C

• Relative Humidity: ≤95%, no condensation

• System Functions: Freeze, zoom, flip, photo, video playback, analog ruler

• File Format: JPEG (images), AVI (videos)

Probe

• Resolution: 1MP

• Diameter: 6 mm (other diameters 0.95–8 mm available)

• Length: 3m, 4m, 5m

• Articulation: 360° full-way

• Bending Angles: 120°–170° (depending on model)

• View Direction: Direct view (VS-K), Side view (VS-KC), Double view (VS-KS)

• View Angle (FOV): 120°

• Depth of Field (DOF): 12–200 mm

• Illumination: Rear high-power LED with fiber optic transmission

• Brightness: Up to 100,000 Lux (depending on probe length)

• Ingress Protection: IP67

• Operating Temperature: -20°C to +70°C

• Material: Flexible tungsten-braided tube

Packing List

1. Host (main unit) – 1 pc

2. Rechargeable battery – 1 pc

3. Carrying case – 1 pc

4. Memory card – 1 pc

5. Card reader – 1 pc

6. Tripod – 1 pc

7. USB cable – 1 pc

8. Charger – 1 pc

9. Warranty card – 1 pc

10. User manual – 1 pc

11. Guarantee card – 1 pc

Applications

• Automotive inspection

• Pipeline and plumbing inspection

• Electrical and power equipment maintenance

• Aerospace and manufacturing quality control

• Industrial facility inspection

Downloads

Data Sheet - Click Here
