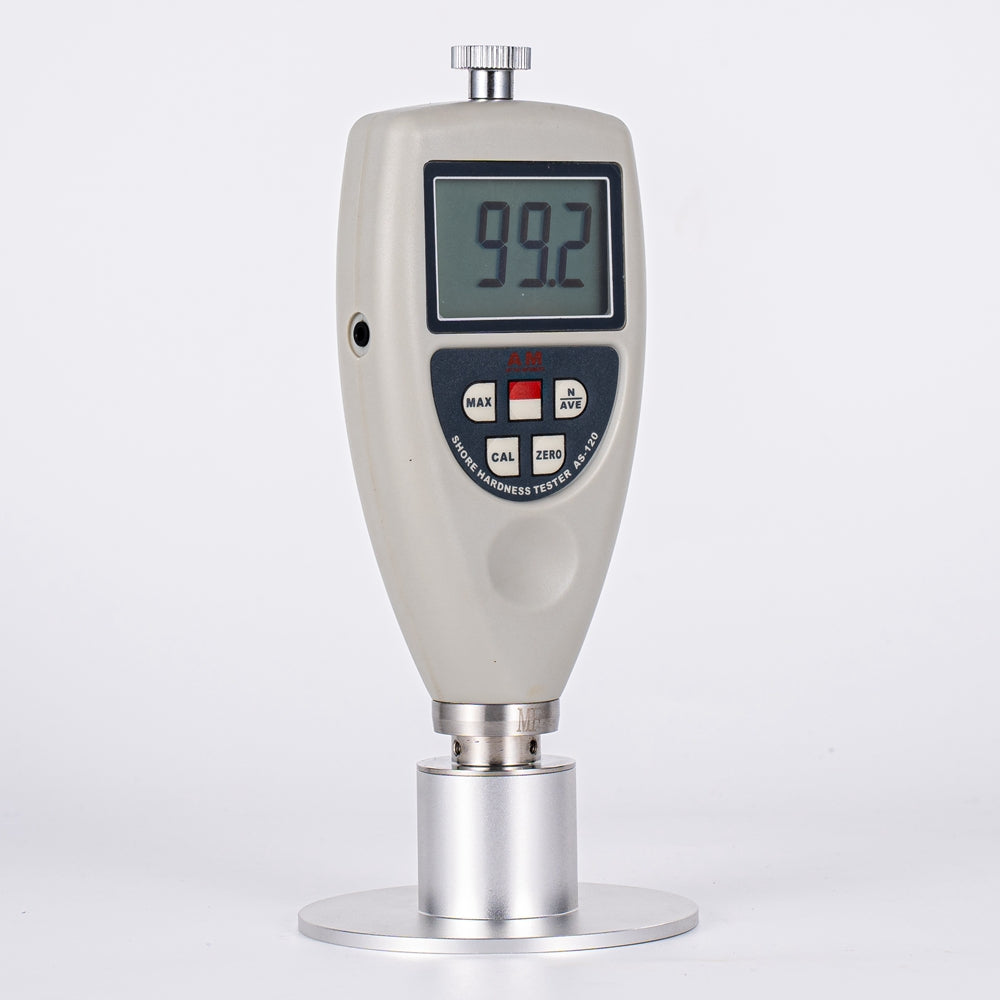

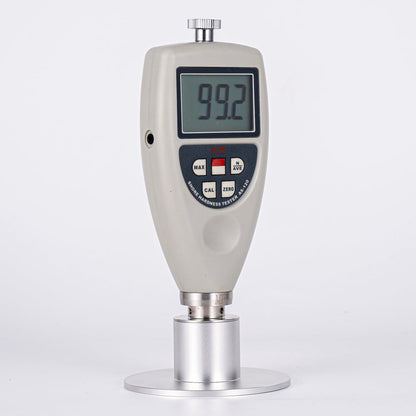

Foam Hardness Tester AS-120F

Foam Hardness Tester AS-120F

$855.00
$855.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Description

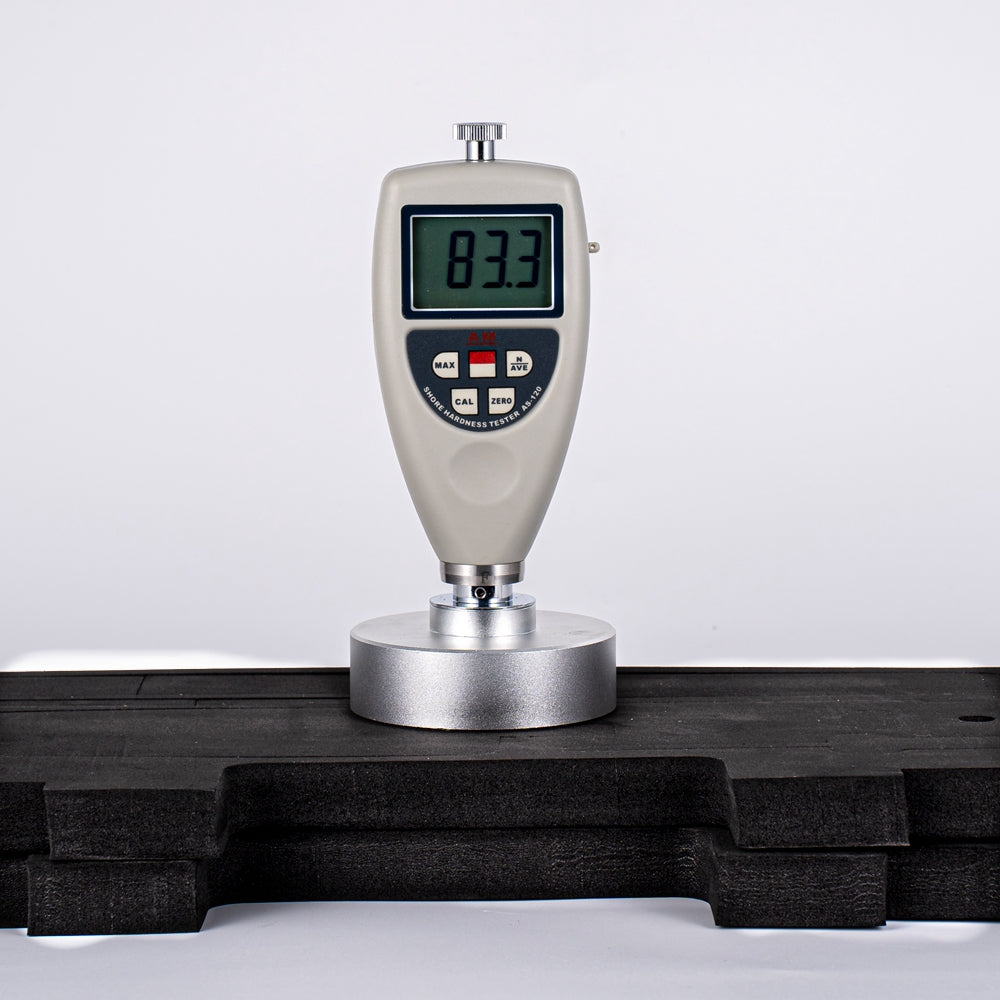

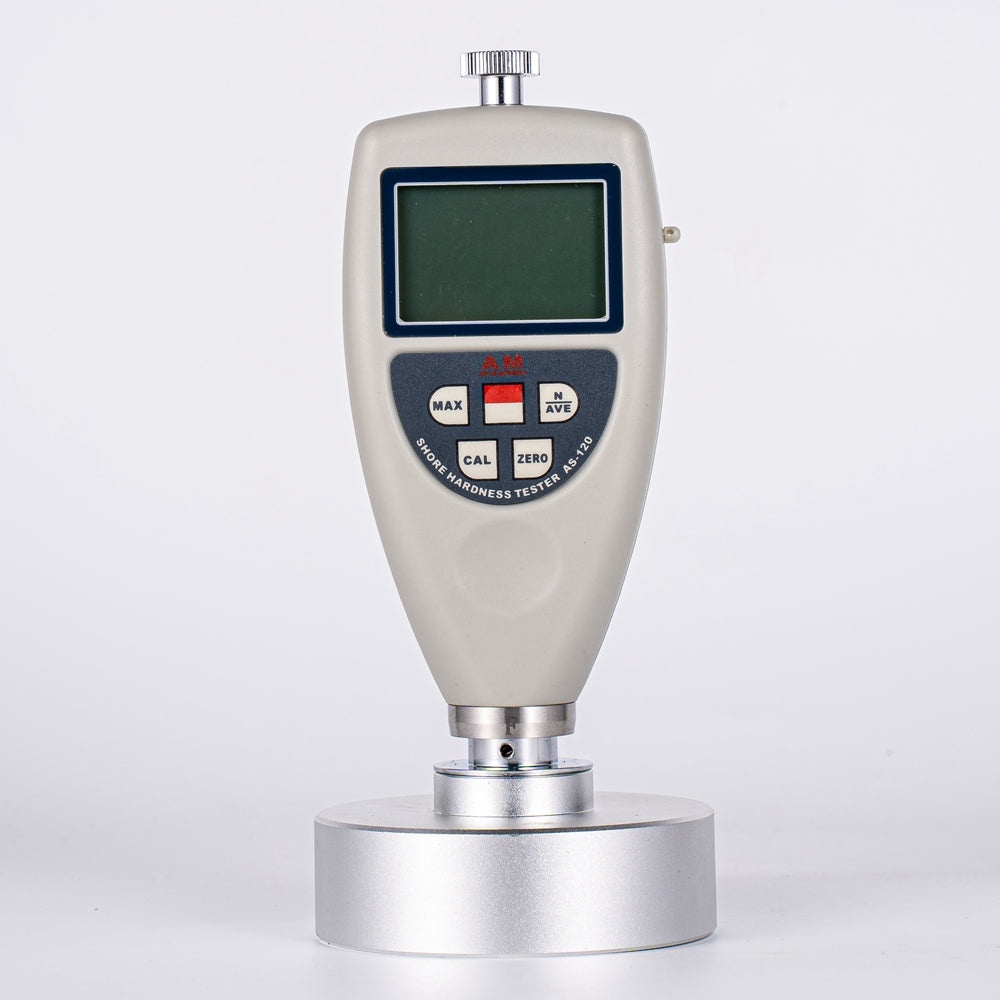

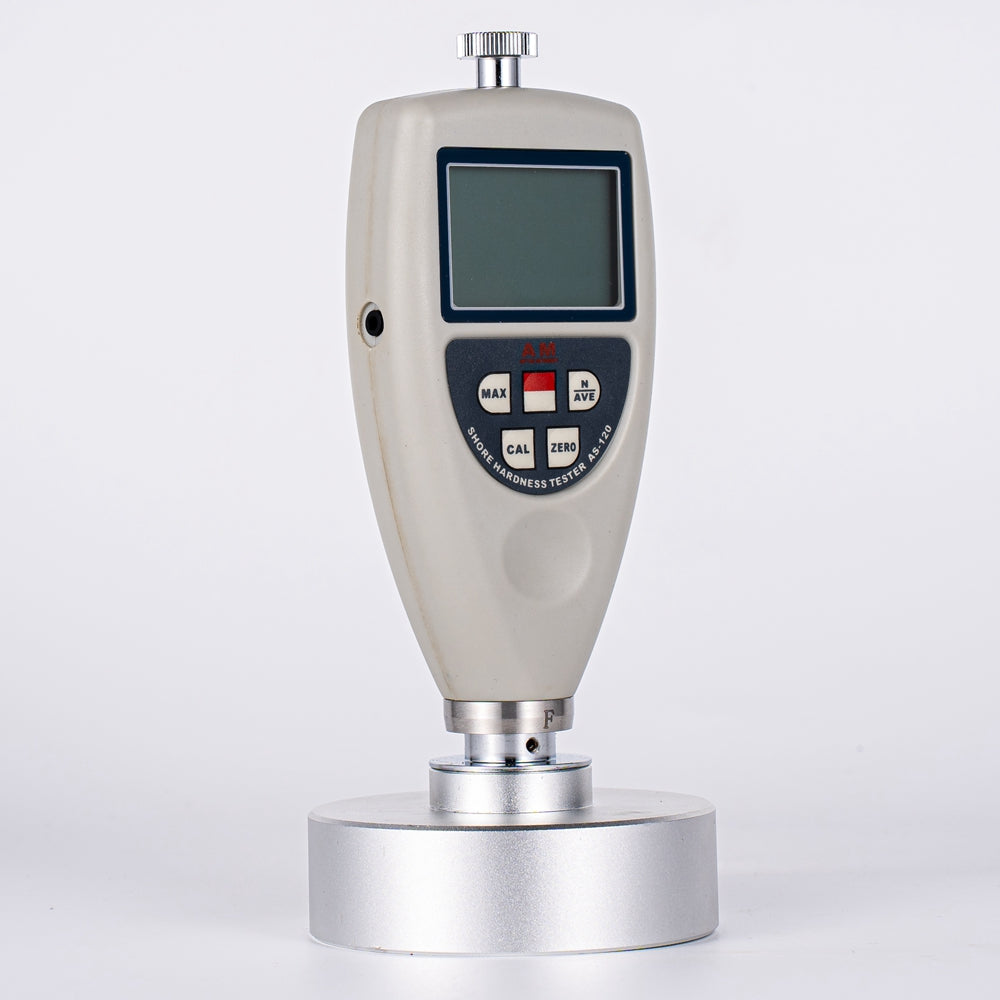

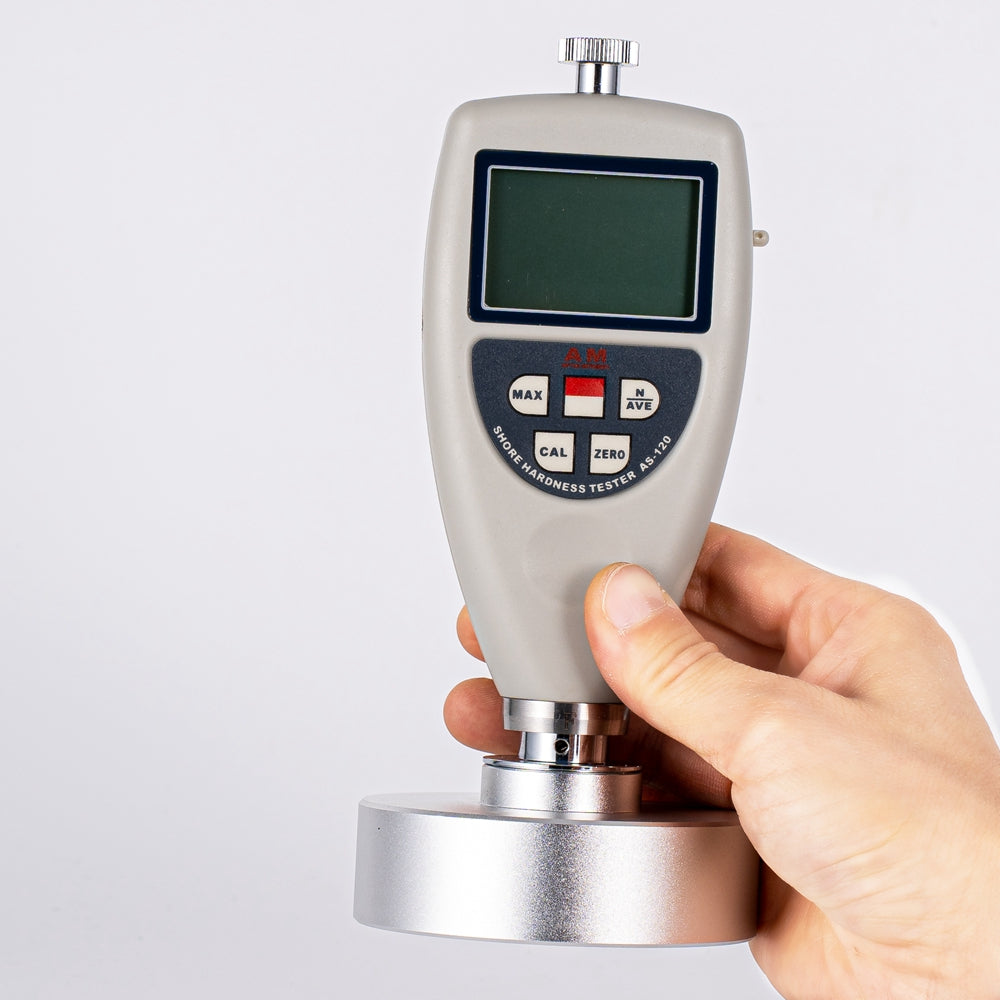

The TOMLIN Foam Hardness Tester Series is designed for accurately assessing the hardness of foam materials, including soft foam and polyurethane foam products. The AS-120F model is ideal for soft foam, while the AS-120MF model is tailored for memory foam. These devices apply the principles of Shore hardness testing, using their own weight as the measuring load and a large presser foot for precise readings.

Features

  • Backlight Display: Ensures clear visibility in any lighting conditions.
  • Manual/Auto Power Off: Conserve battery life with automatic or manual shutdown options.
  • Average Calculation: Enables averaging of multiple measurements for improved consistency.
  • Maximum Value Hold Function: Captures and holds the highest recorded value.
  • Low Battery Indicator: Alerts users when the battery level is low.
  • Computer Connectivity: Allows data transfer via USB or Bluetooth for advanced analysis.
  • Buzzer Sound Reminder: Provides an audible notification upon successful reading (AS-120F only).
Specifications
Model AS-120F AS-120MF
Display Range 0~100 HF 0~100 HMF
Measurement Range 10~90 HF 10~90 HMF
Resolution 0.1 HF 0.1 HMF
Accuracy ≤±1 HF ≤±1 HMF
Spring Force 455 gf 228 gf
Indenter Diameter 25 mm 25 mm

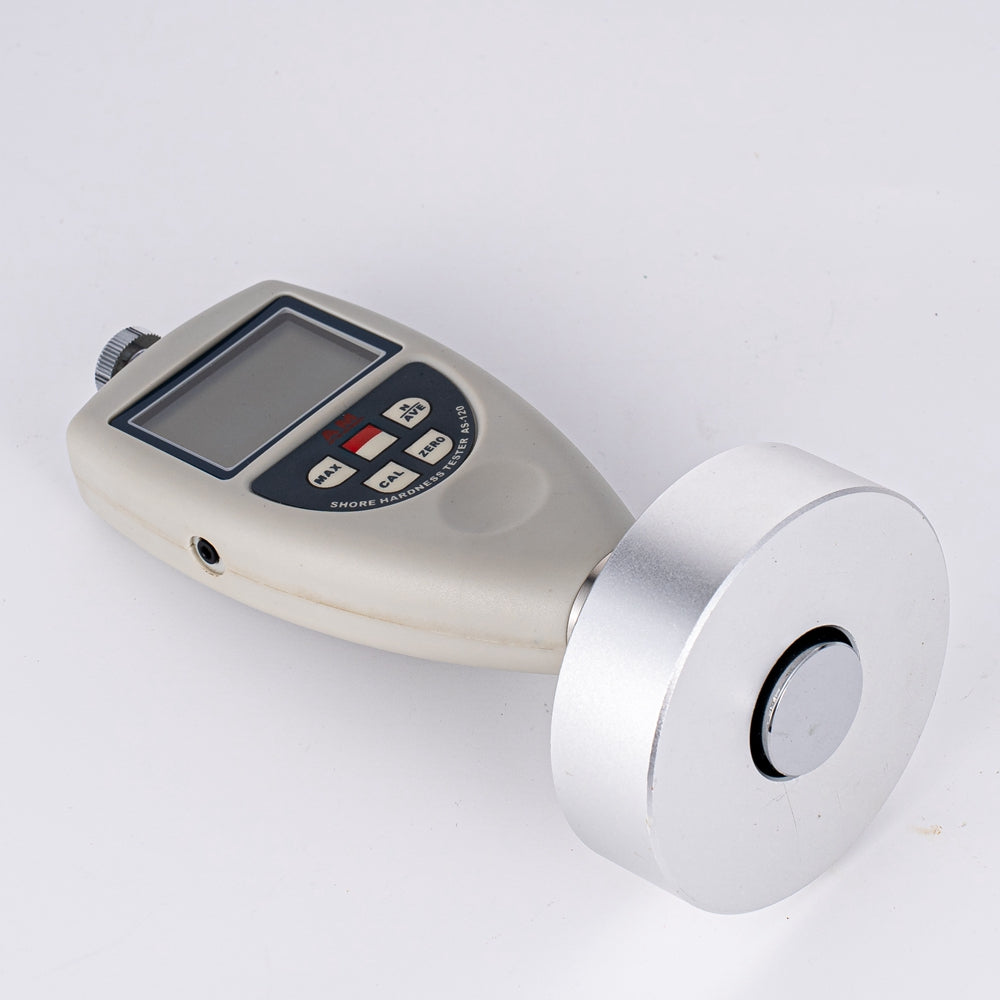

Presser Foot Diameter 80 mm 80 mm
Display Parameters Tested, Mean, and Max Values Tested, Mean, and Max Values
Operating Temperature 040°C (32104°F) 040°C (32104°F)
Operating Humidity < 80% RH < 80% RH

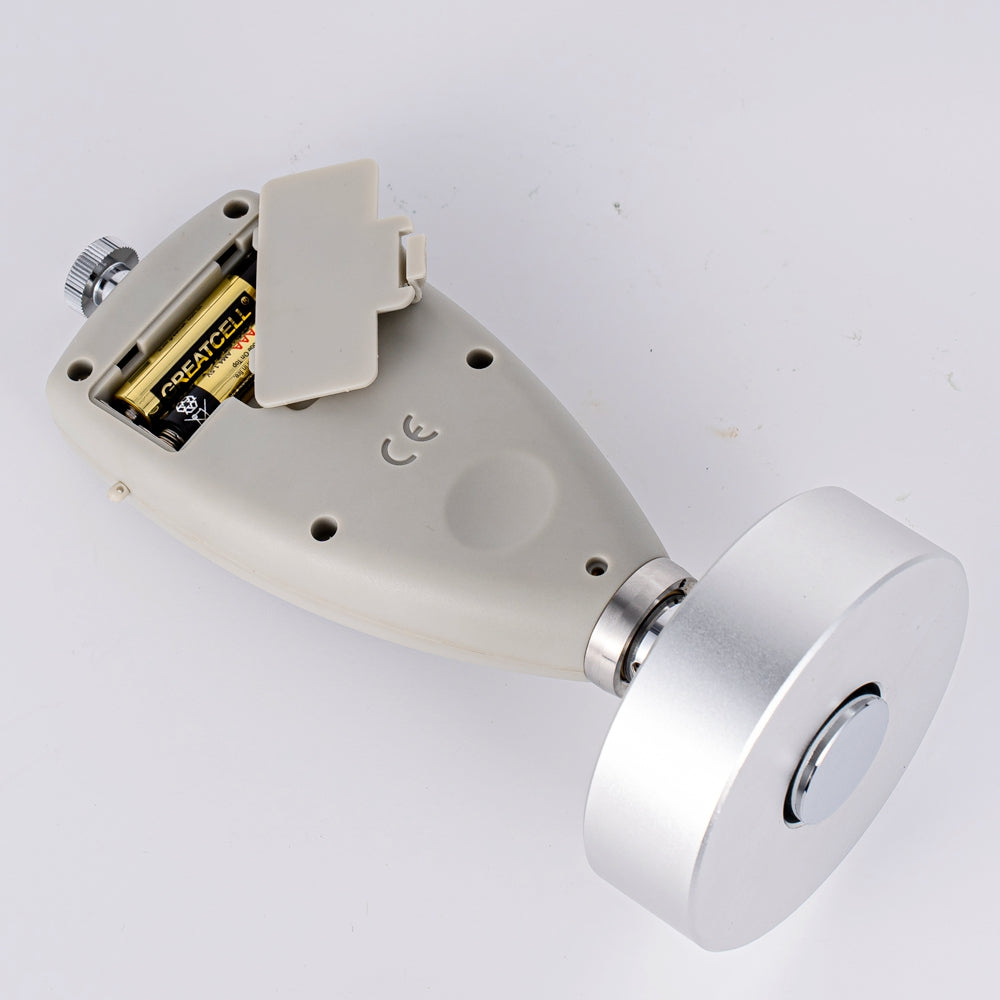

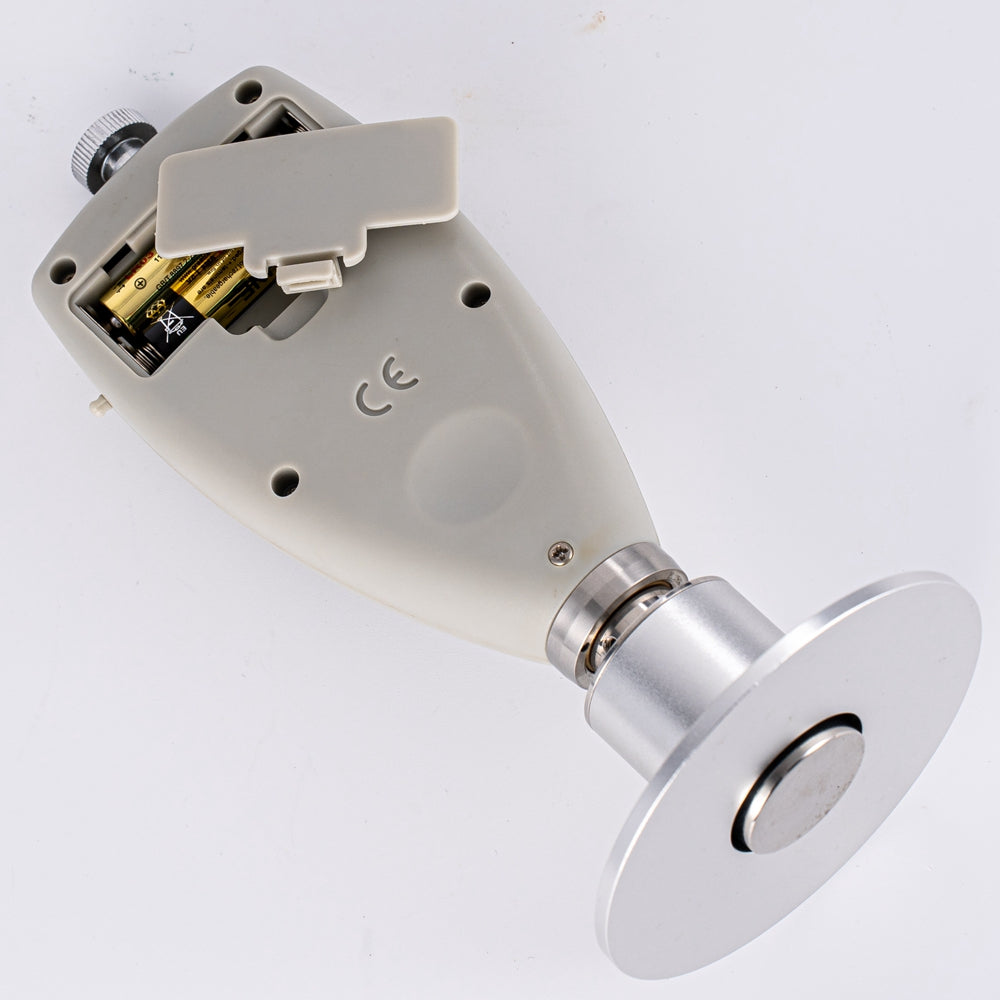

Power Supply 2 x 1.5V AAA UM-4 Batteries 2 x 1.5V AAA UM-4 Batteries
Dimensions 162 x 80 x 80 mm (6.4 x 3.1 x 3.1 in) 162 x 80 x 80 mm (6.4 x 3.1 x 3.1 in)
Weight (Without Batteries) 490 g (17.28 oz) 250 g (8.82 oz)

Accessories

  • Standard Accessories:

    • Main Unit
    • Operation Manual

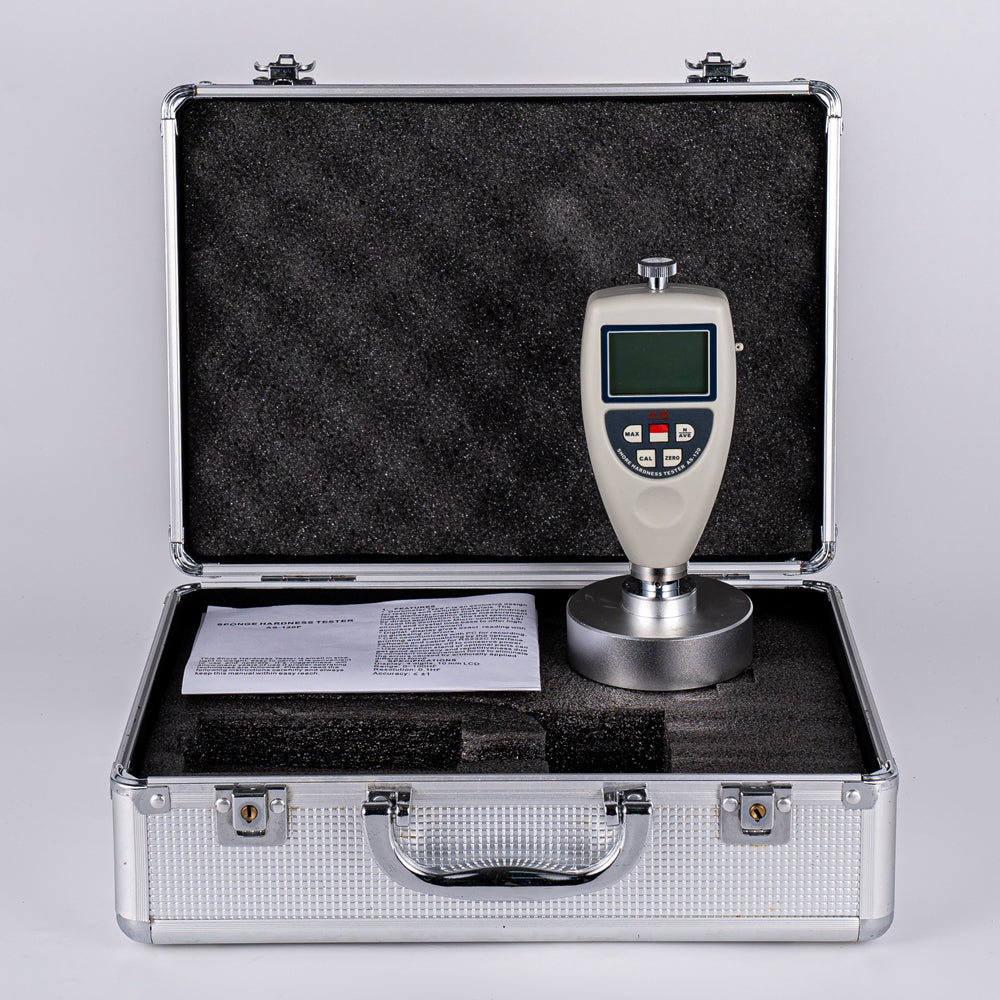

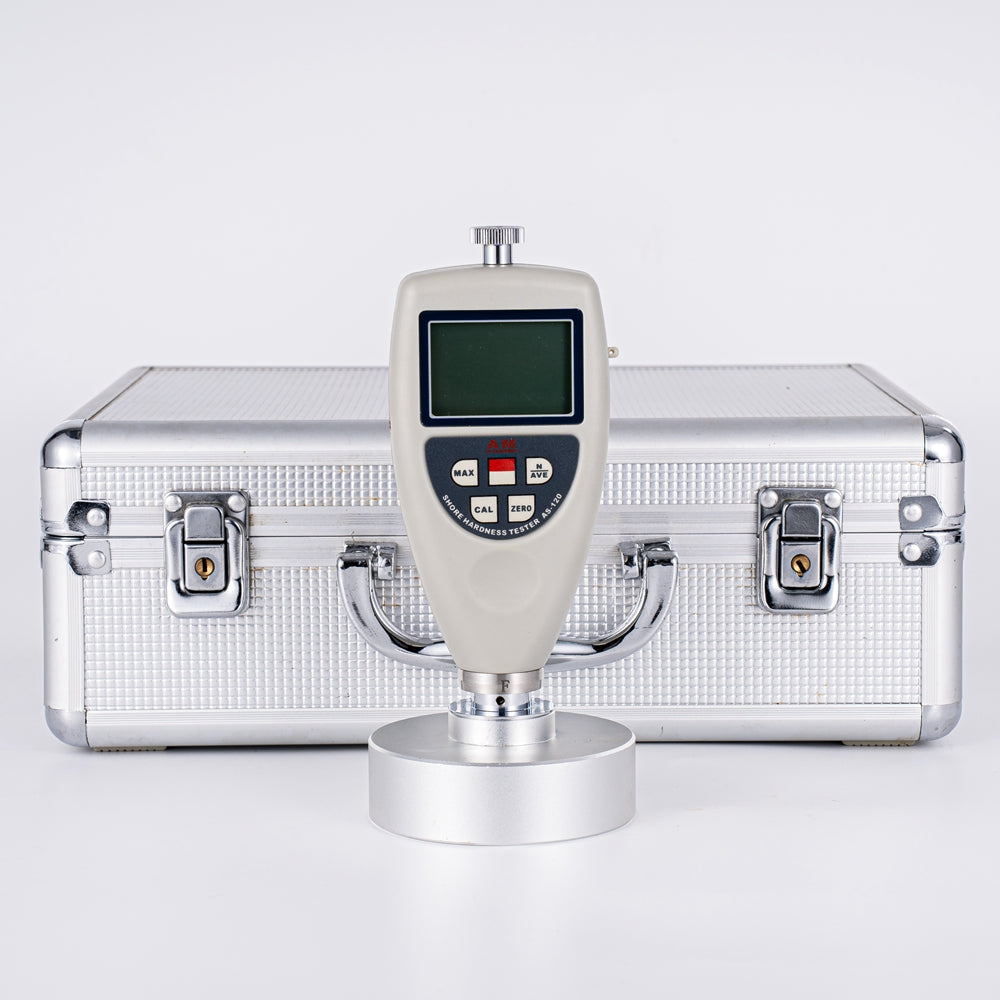

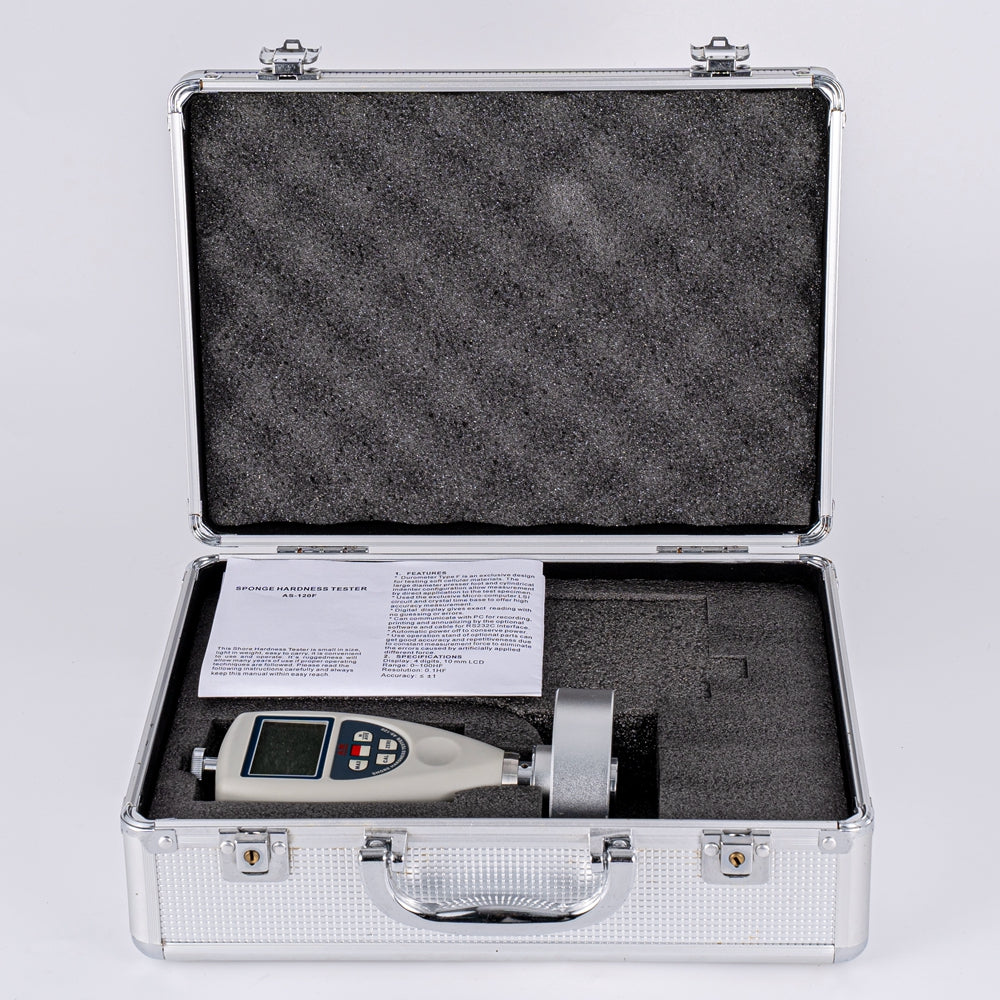

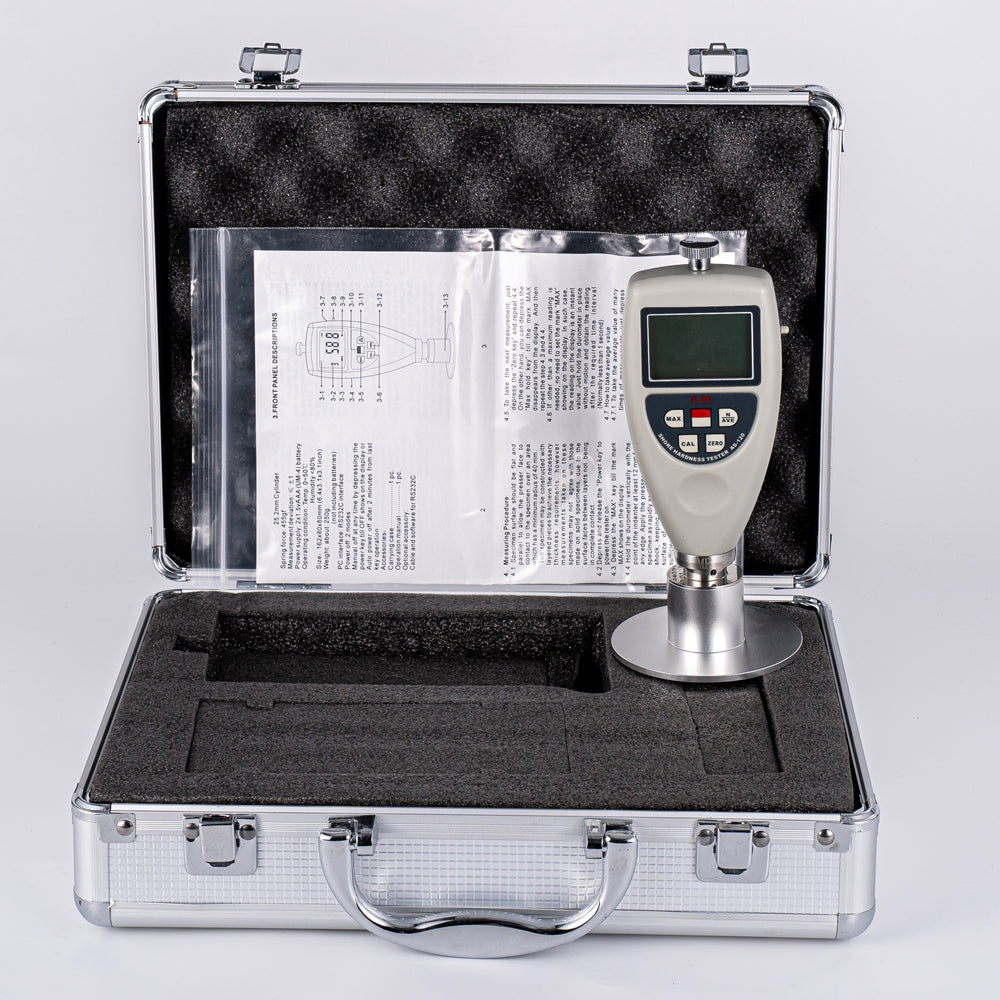

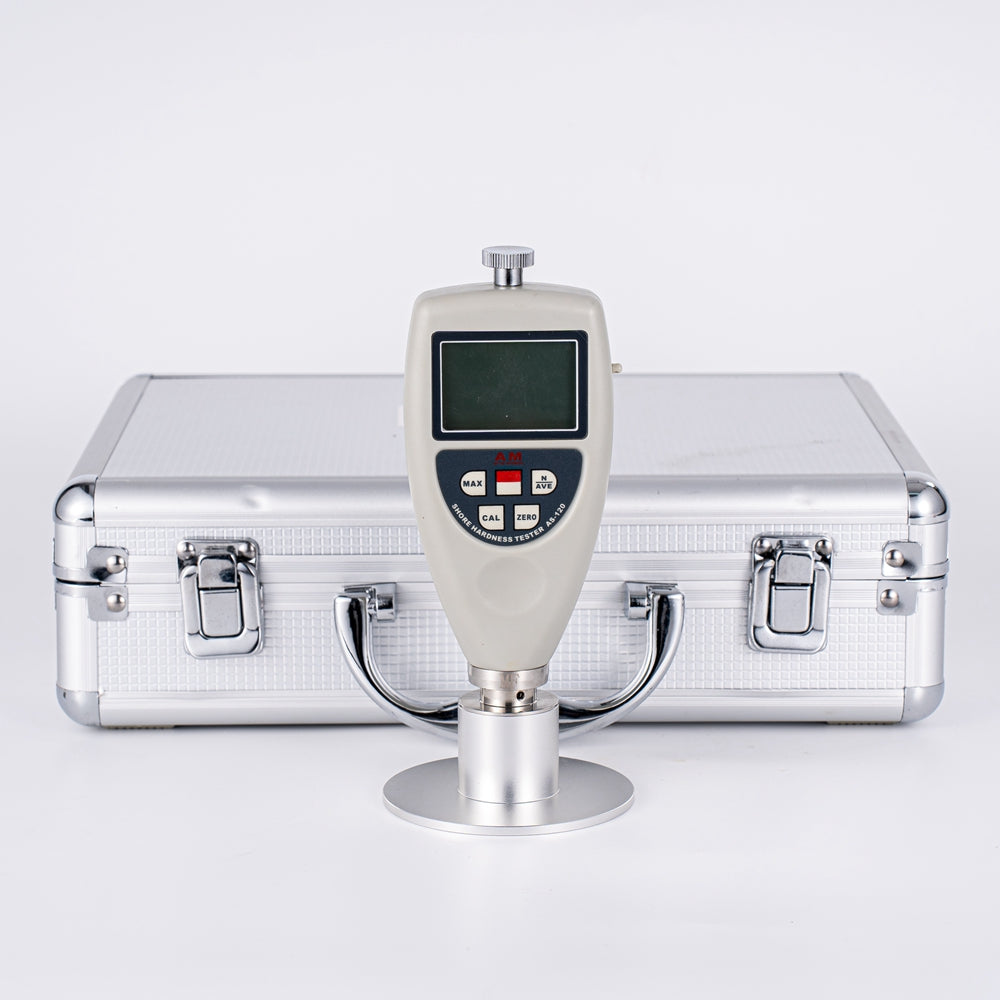

    • Carrying Case

  • Optional Accessories:

    • USB Cable & Software
    • Bluetooth Adapter & Software

Alternative Names

  • Foam Hardness Meter
  • Memory Foam Hardness Tester
  • Polyurethane Foam Tester
  • Shore Hardness Tester for Foam
  • Cushion Hardness Meter
  • Sponge Hardness
Downloads

PDF Specification Sheet - Download Here
