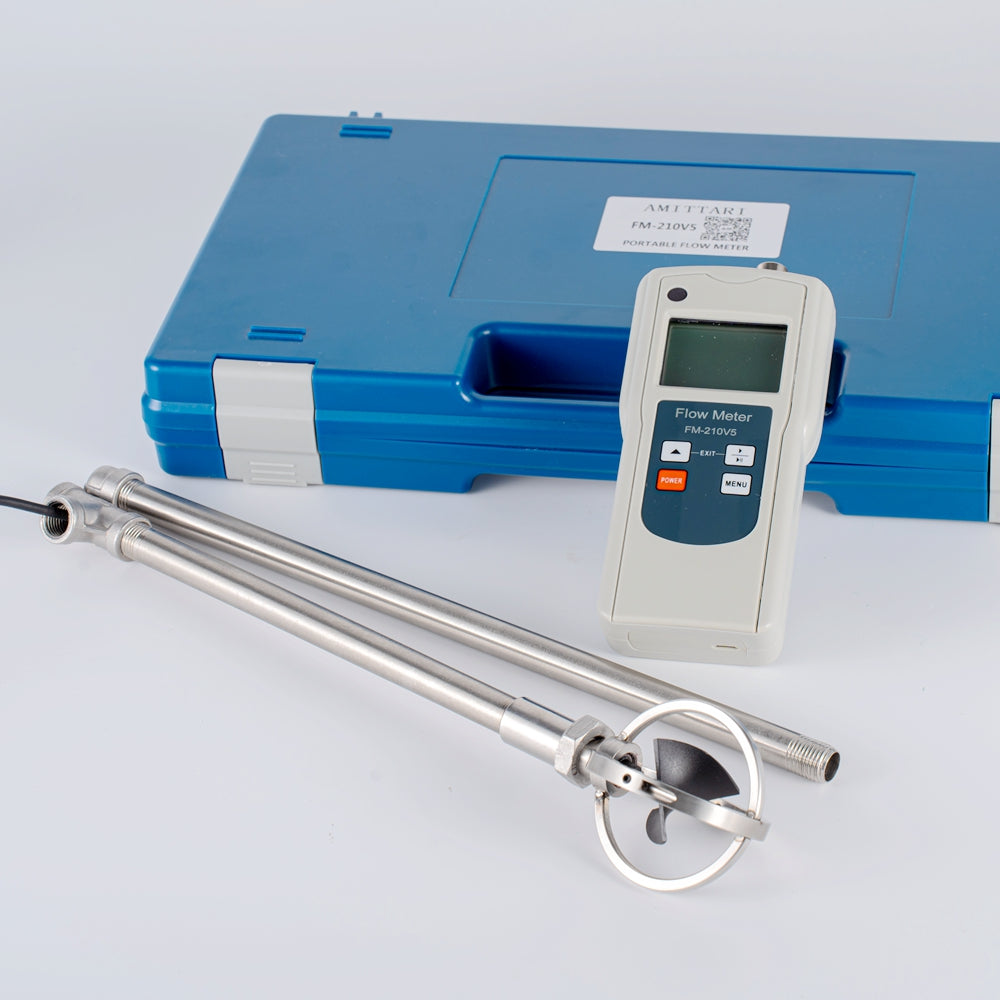

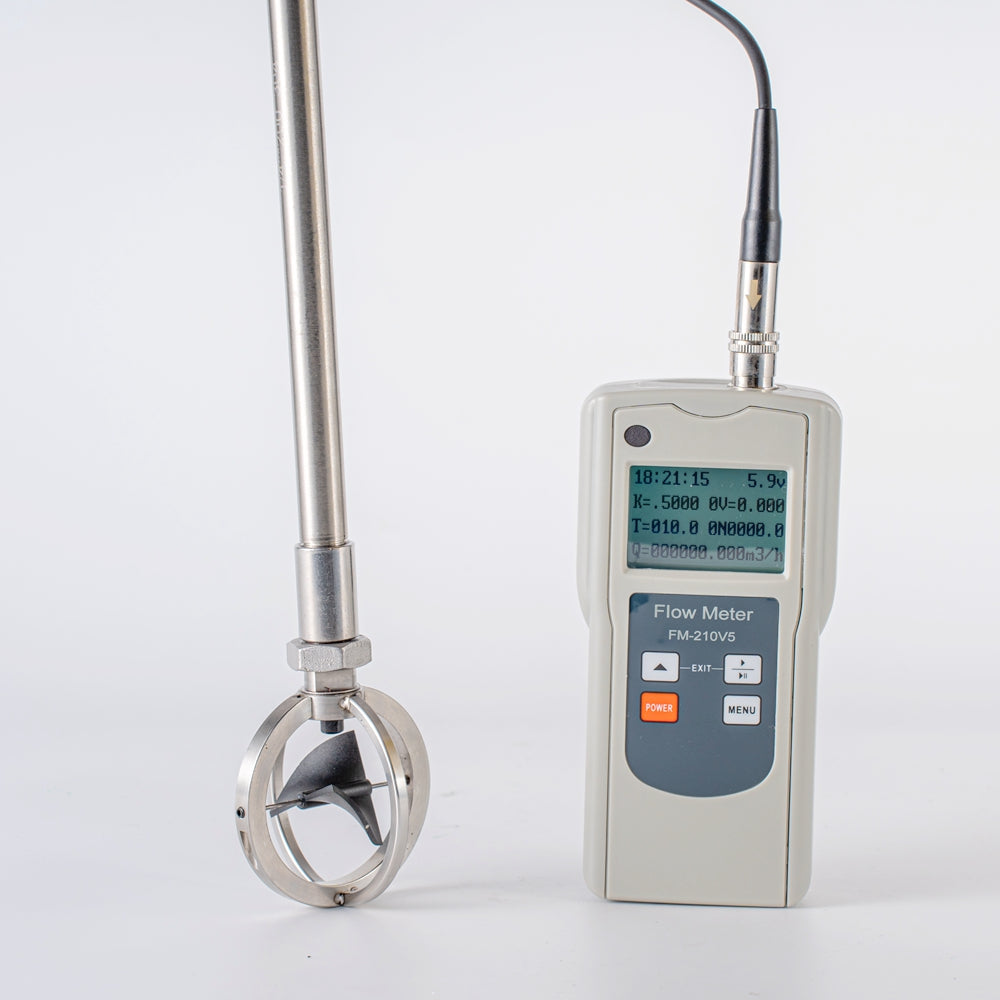

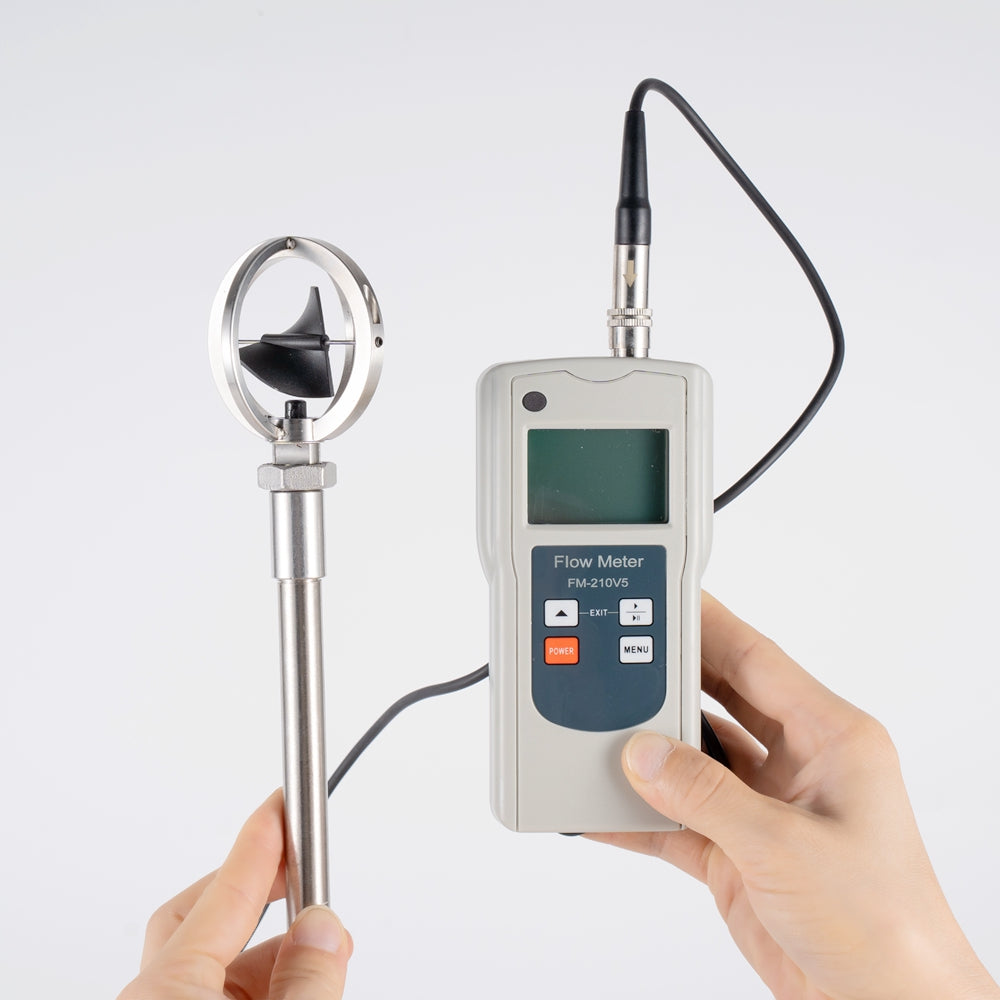

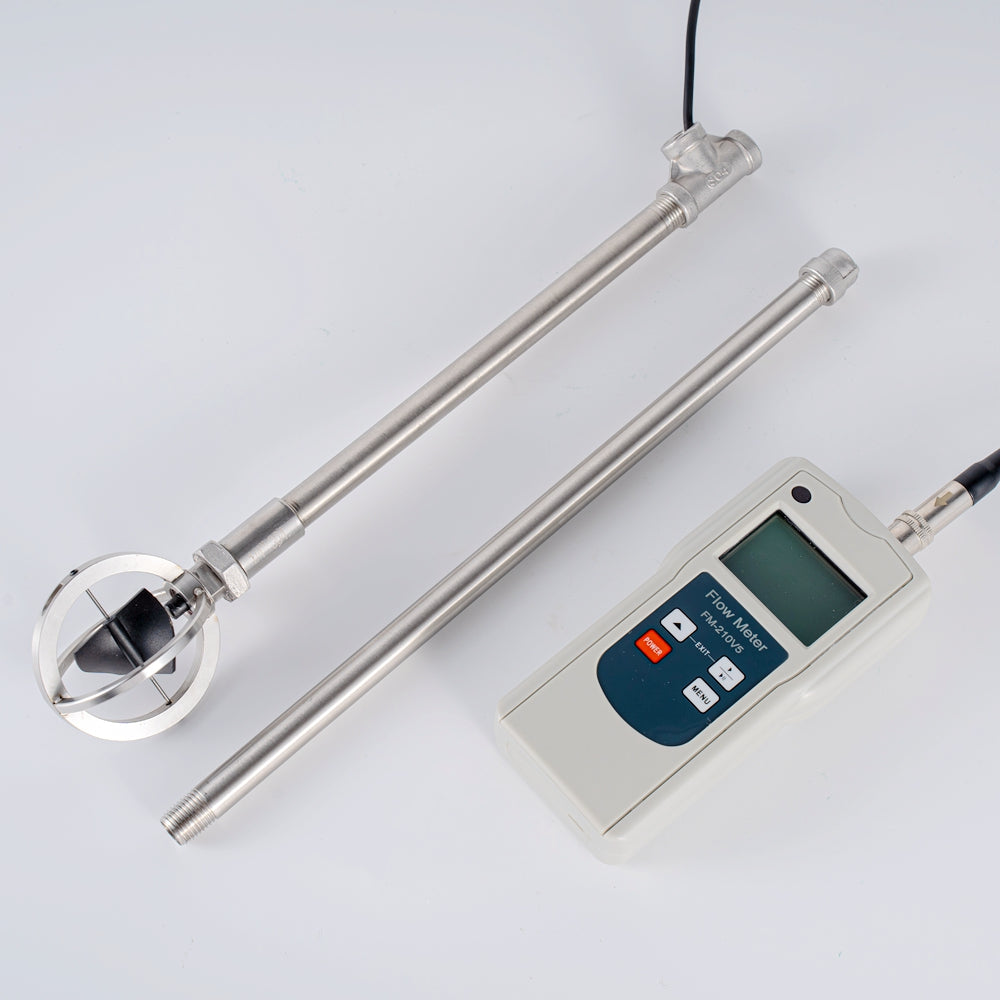

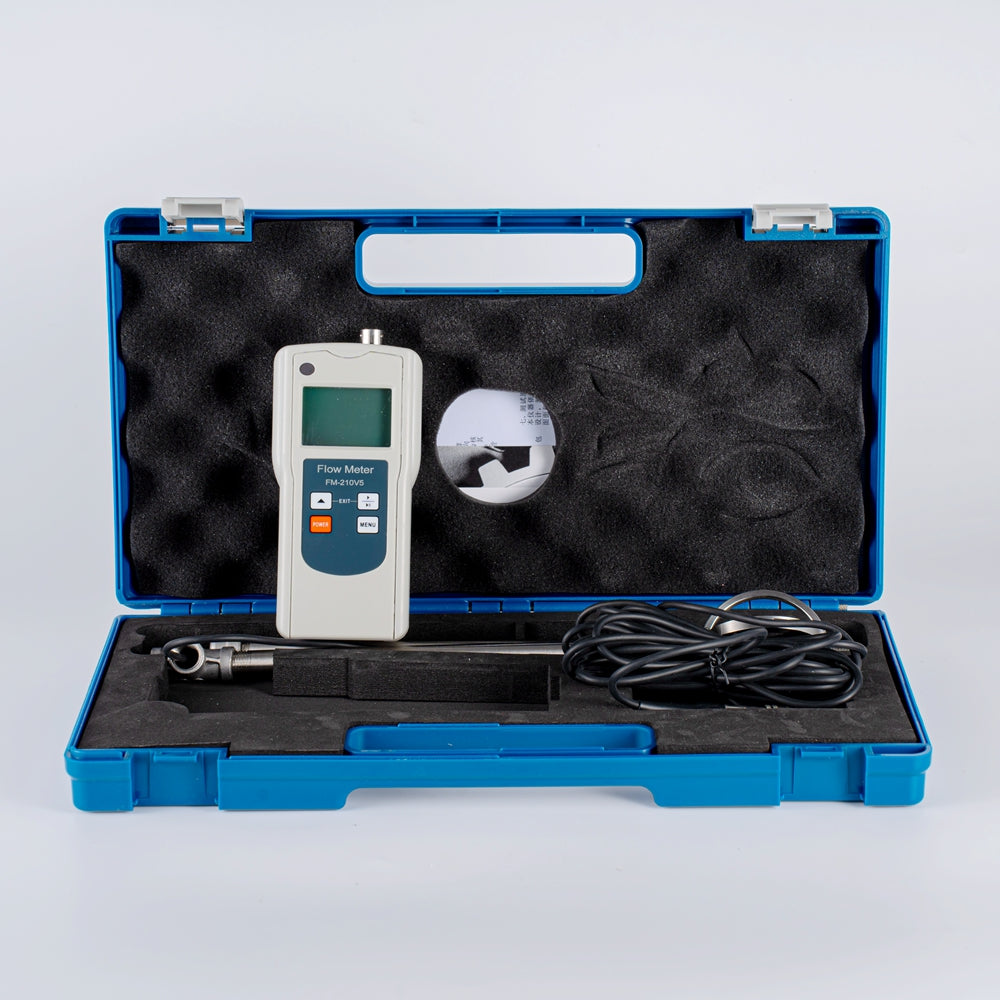

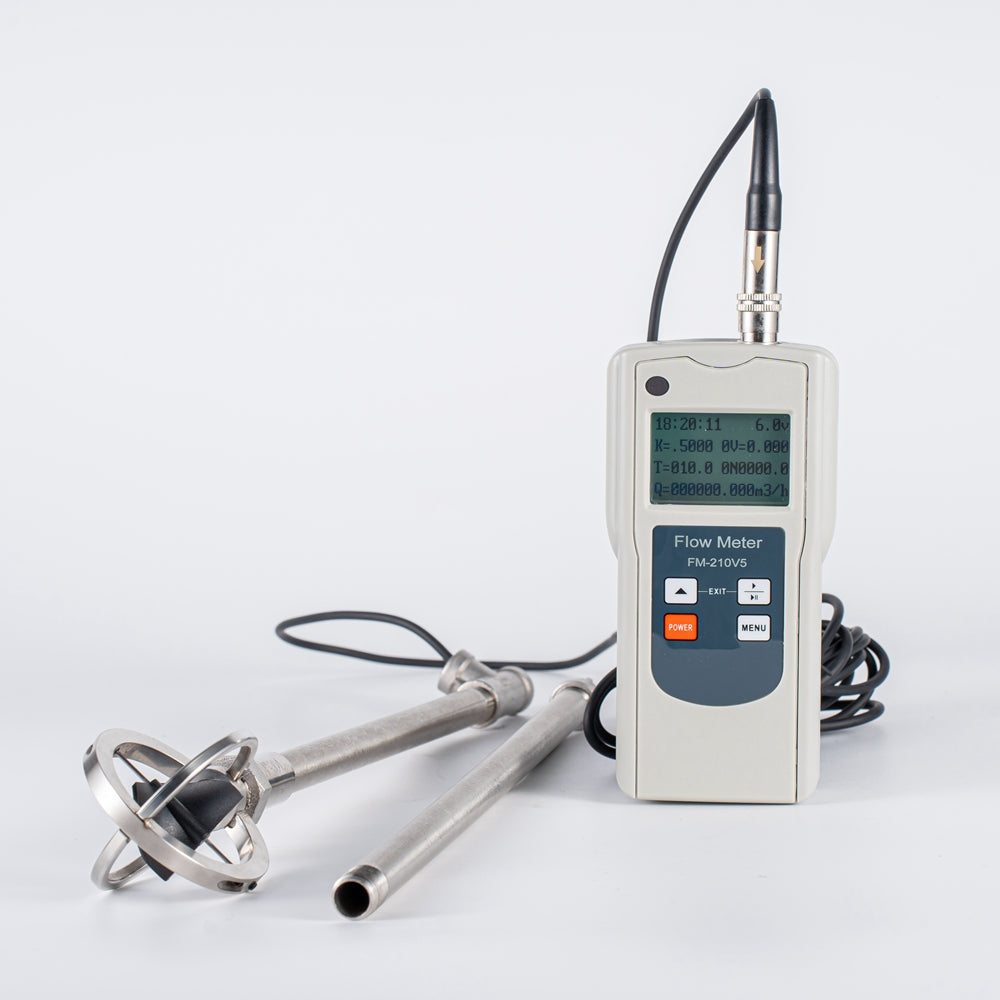

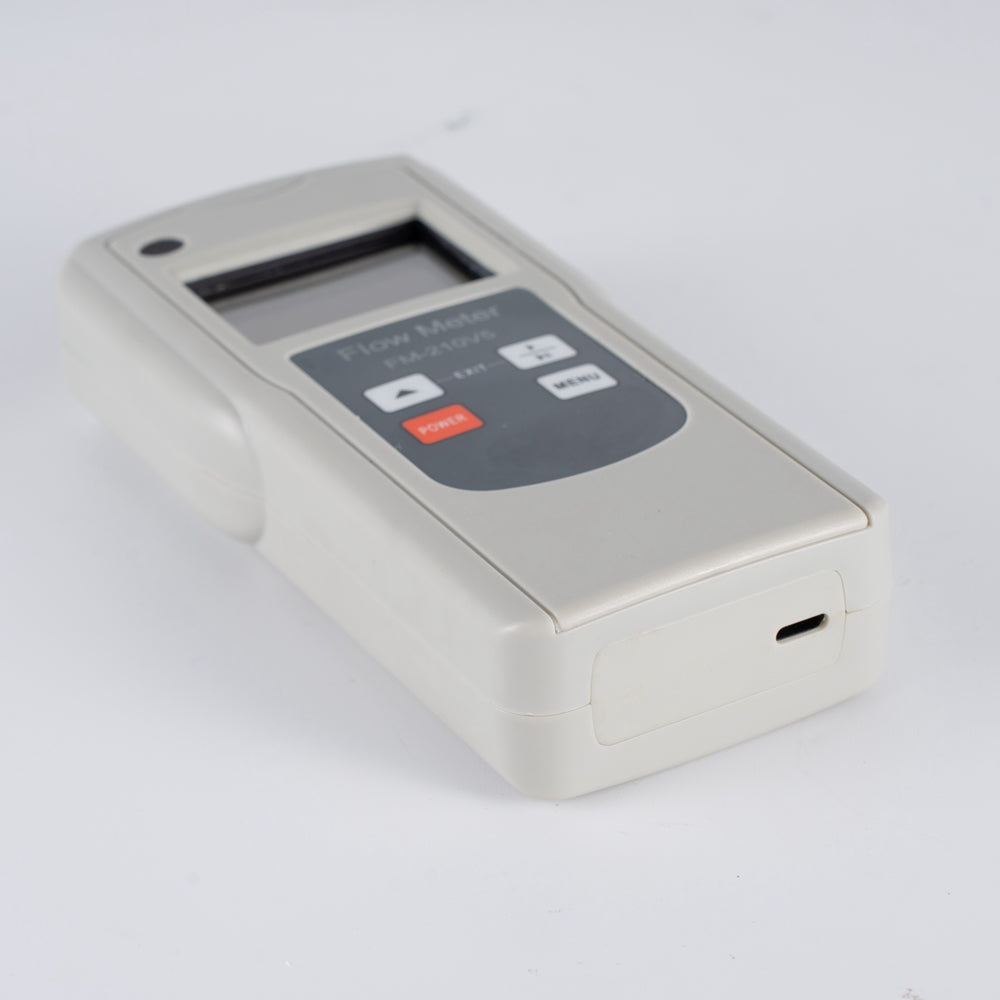

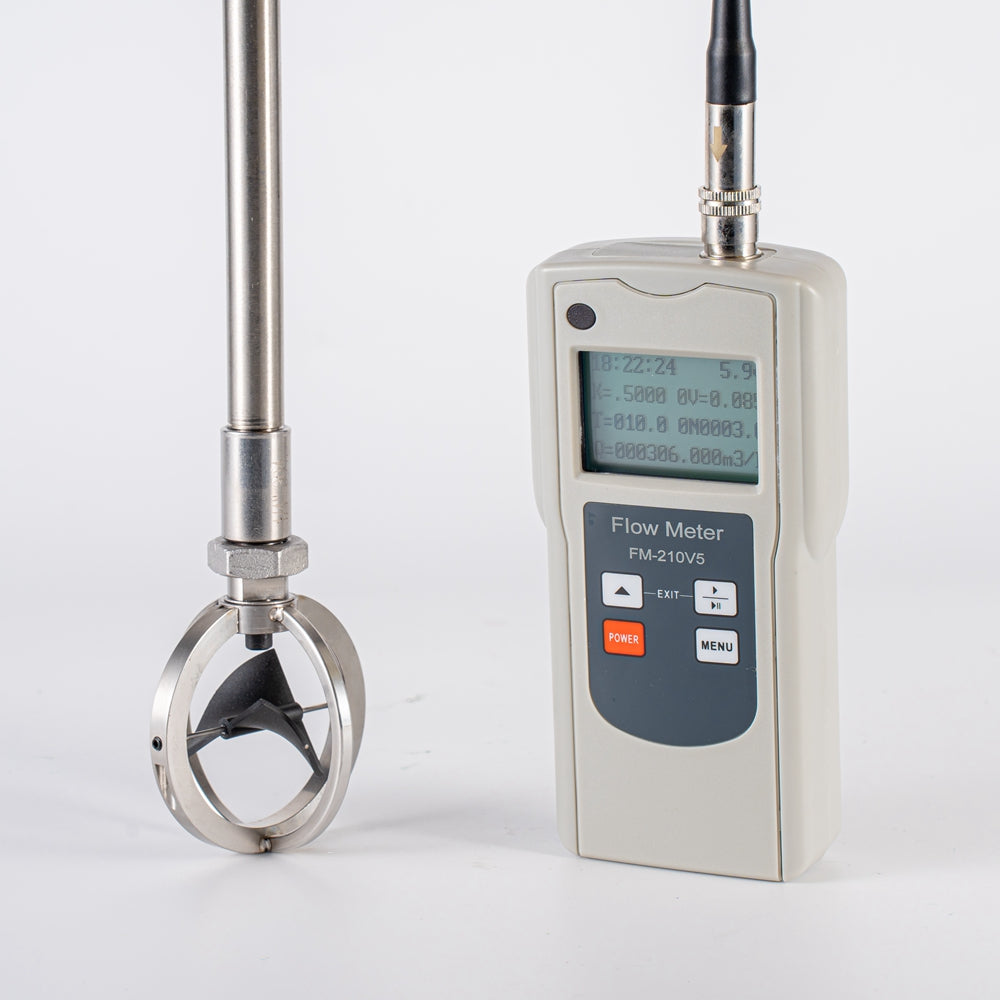

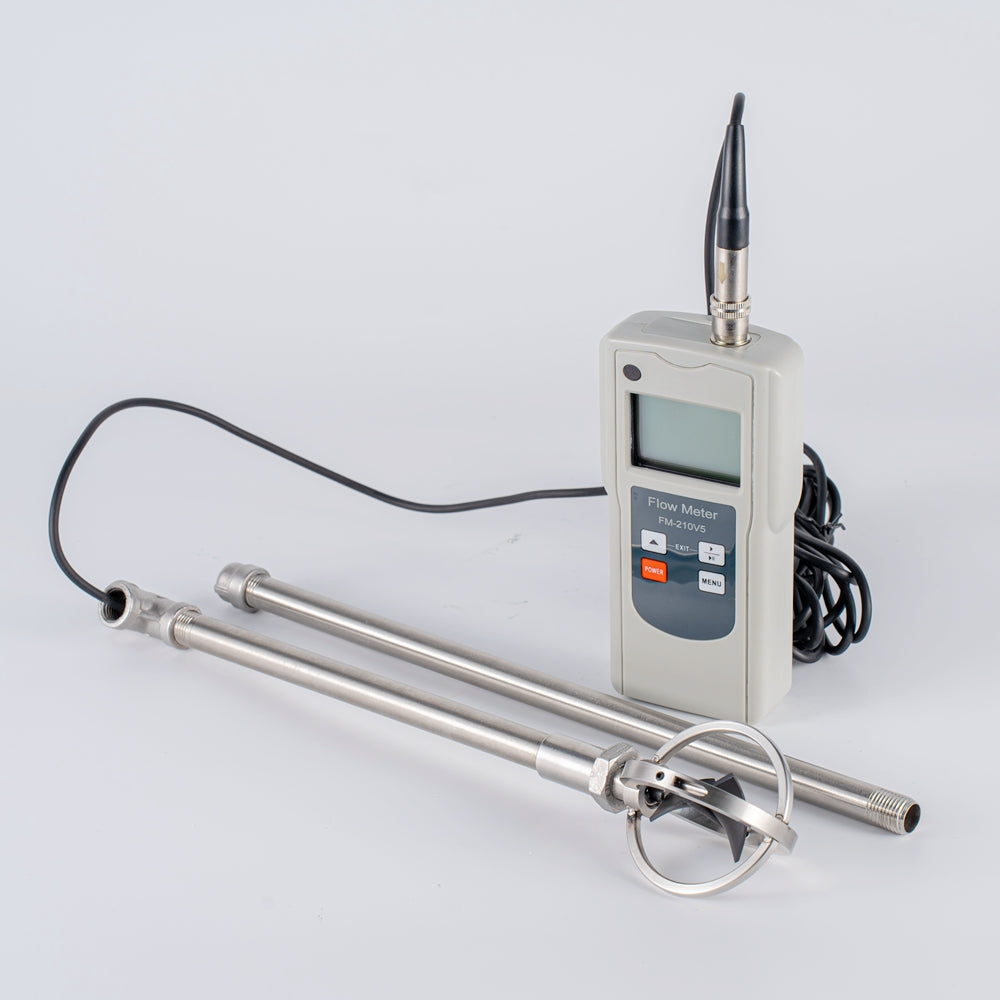

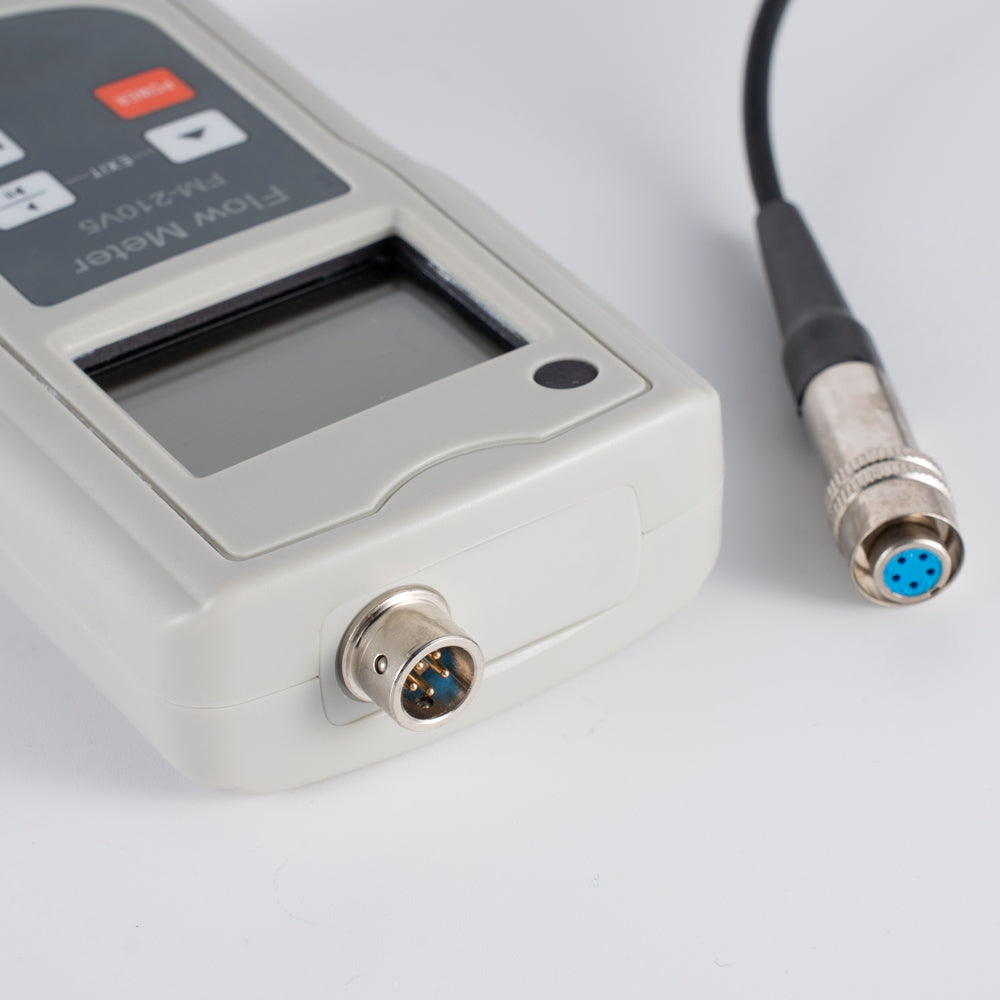

FM-210V5 Portable Flow Rate Meter
Description
The FM-210V5 Portable Flow Rate Meter is a versatile and highly automated instrument designed to measure the velocity of flow in open channels. This device is ideal for use in hydrological stations, environmental monitoring, farmland irrigation and drainage, hydrogeology surveys, and more. With a lightweight and convenient structure, the FM-210V5 offers reliable performance and is perfectly suited for fieldwork.
Features
- Simple Structure: Lightweight, portable, and easy to use.
- Energy-Efficient: Low power consumption with a complete set of functions.
- High Automation: Offers stable and reliable performance with minimal manual intervention.
- Advanced Technology: Conforms to national standards for high-temperature rotary slurry measurements.
- Versatile Applications: Designed for hydrological stations, factories, environmental protection, irrigation, drainage, and more.
Principle
The FM-210V5 Portable Flow Rate Meter is engineered for measuring the velocity of flow in open channels, making it essential for applications in various sectors such as hydrological studies, environmental monitoring, and agricultural irrigation. It offers precise and efficient measurements in the field.
Specifications
Formula:
V = (KN / T) + C (m/s) (automatic computer)
K: 0.0500, C: 0.0100
Instrument:
Speed range: FM-210V5 (0.01-5.00 m/s)
Current measurement error:
≤1.5%
LCD:
Liquid crystal display
Measurement method:
Pole positioning measurement
Temperature range:
-10°C to 50°C
Power:

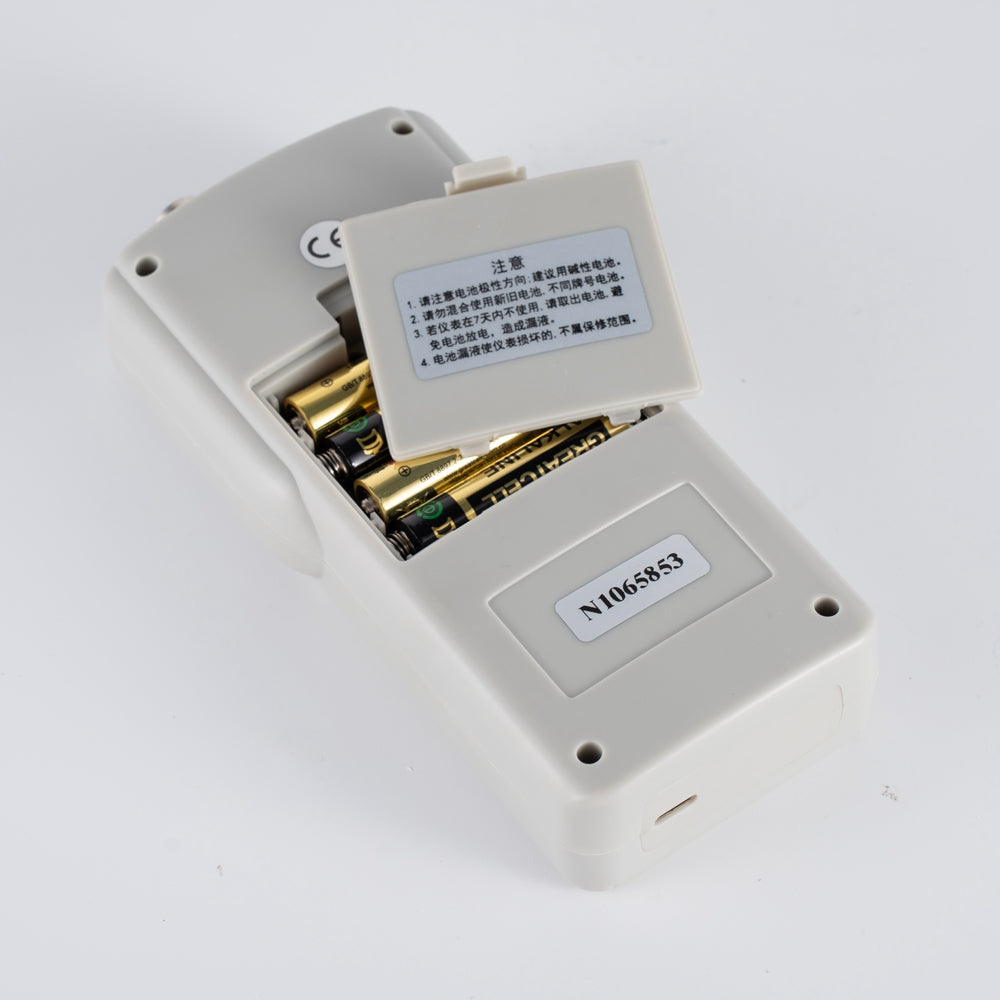

4 * 7 batteries
Backlight:
LED backlight
Host size:
70mm * 140mm * 30mm
External power supply:
5V
