Textile Hardness Tester AS-120T

Textile Hardness Tester AS-120T

$630.00
$630.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Indenter Ball Size

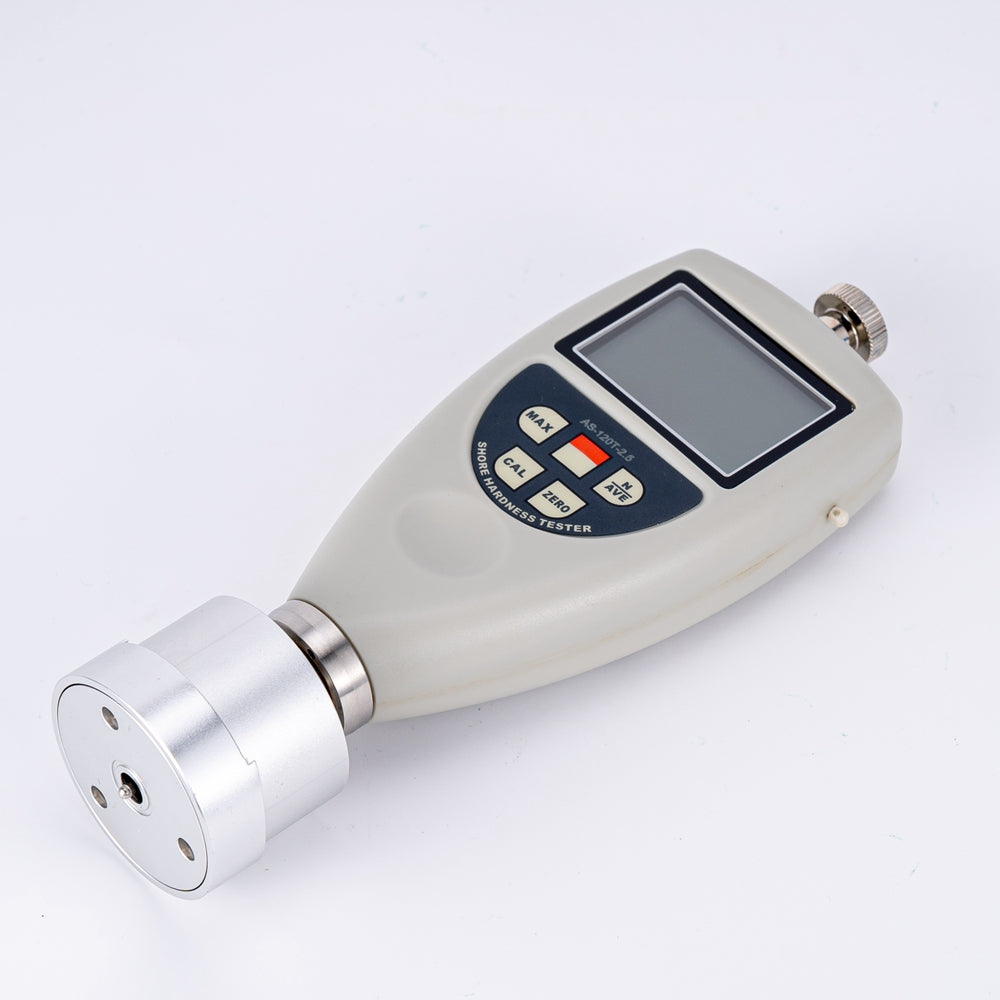

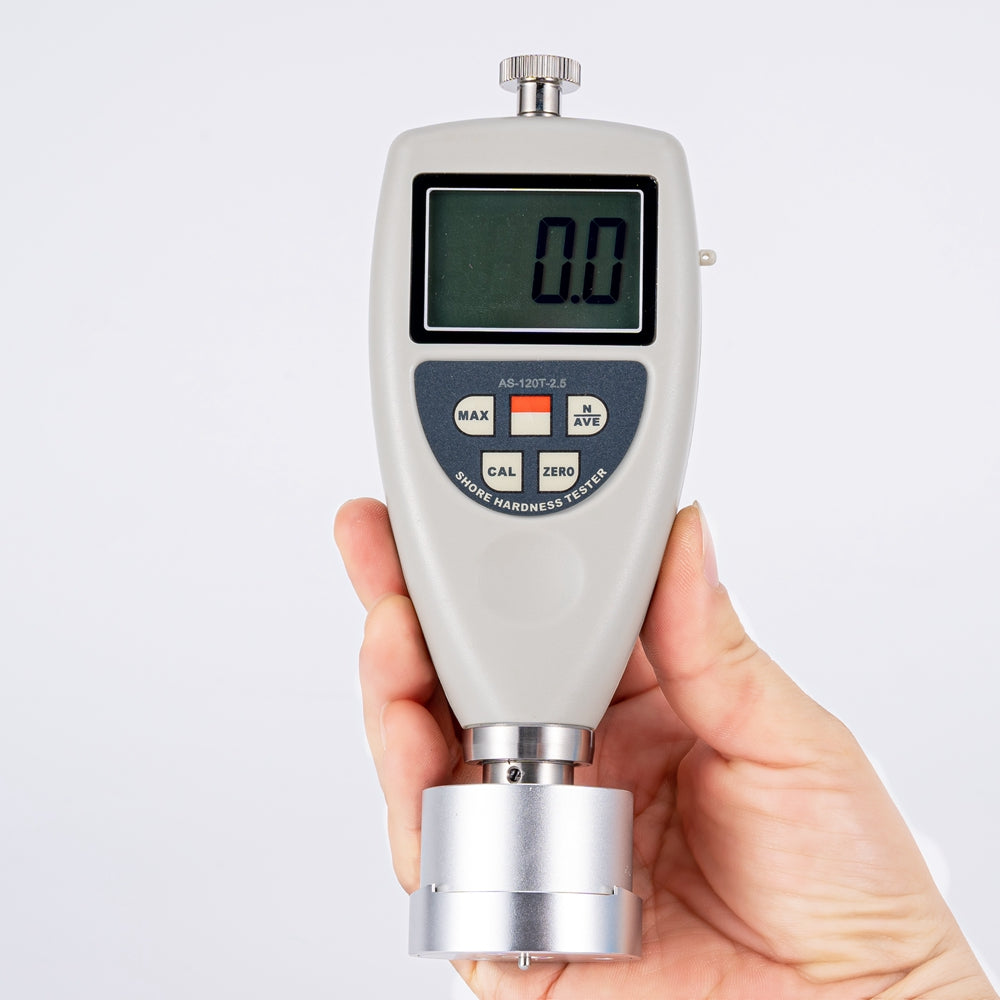

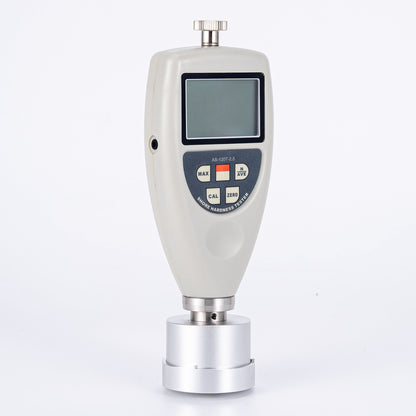

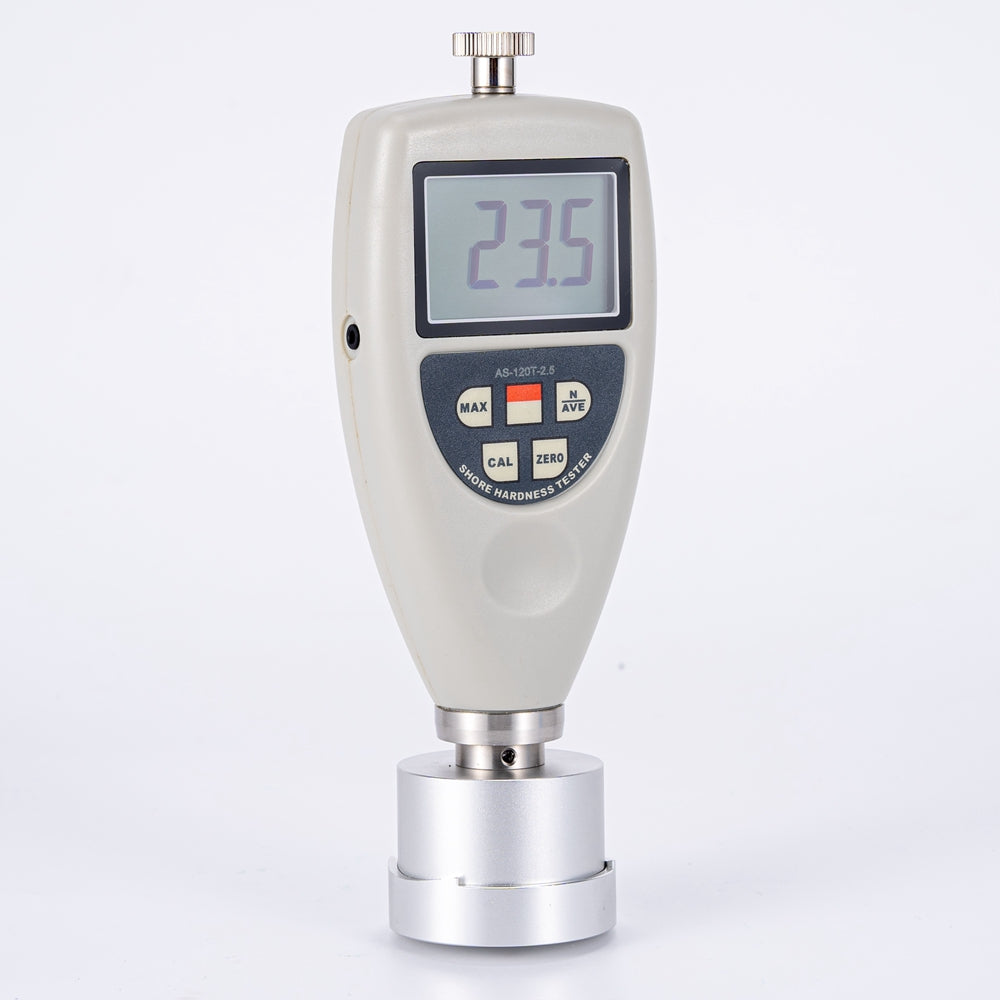

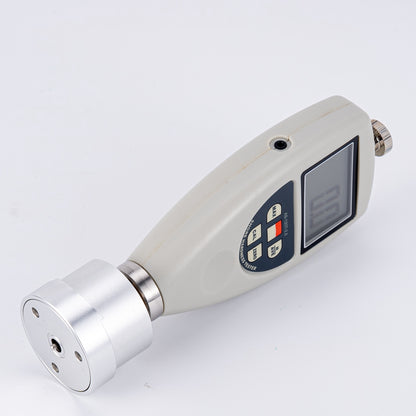

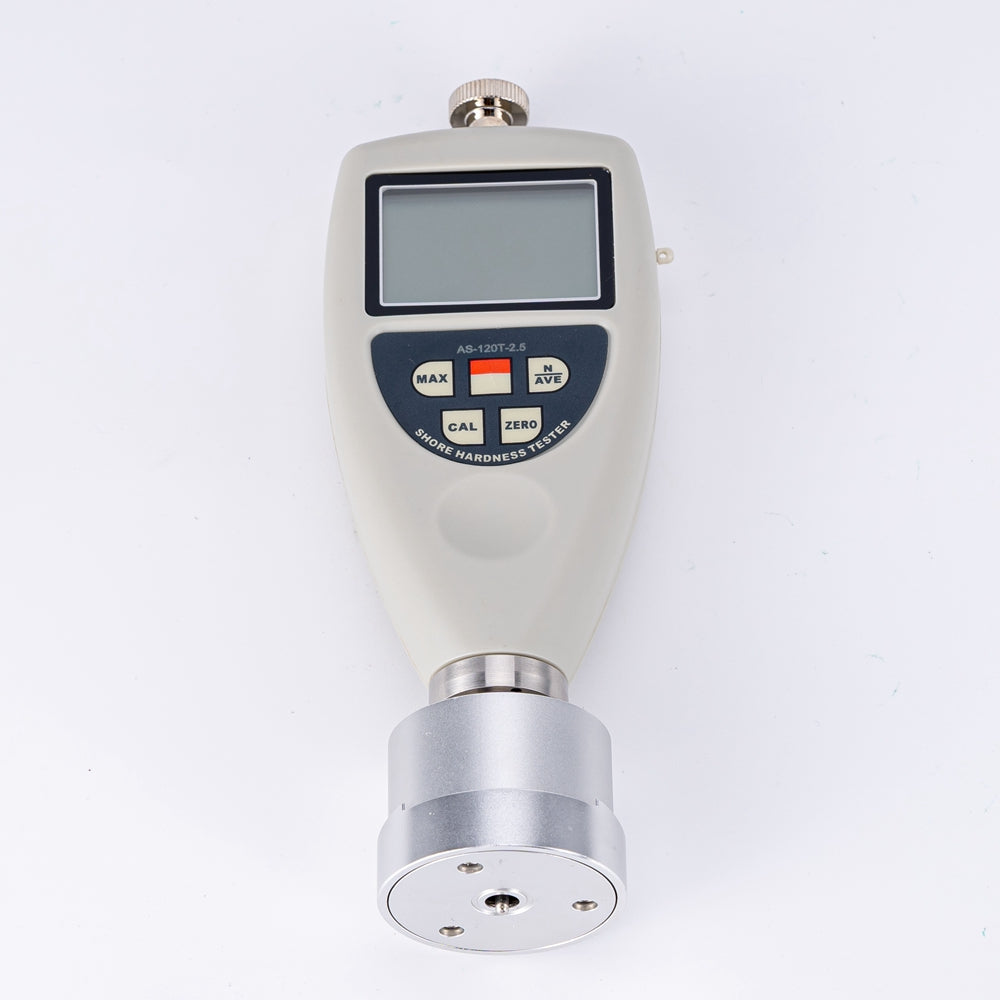

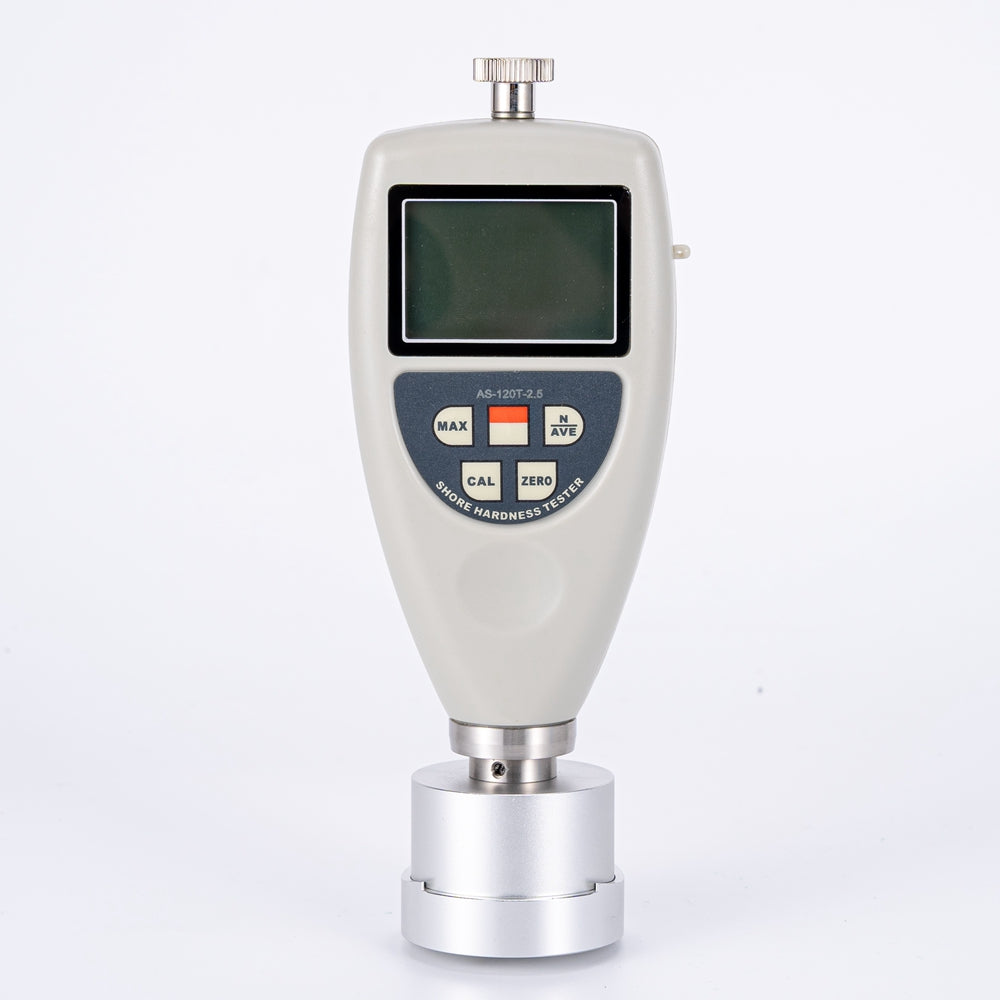

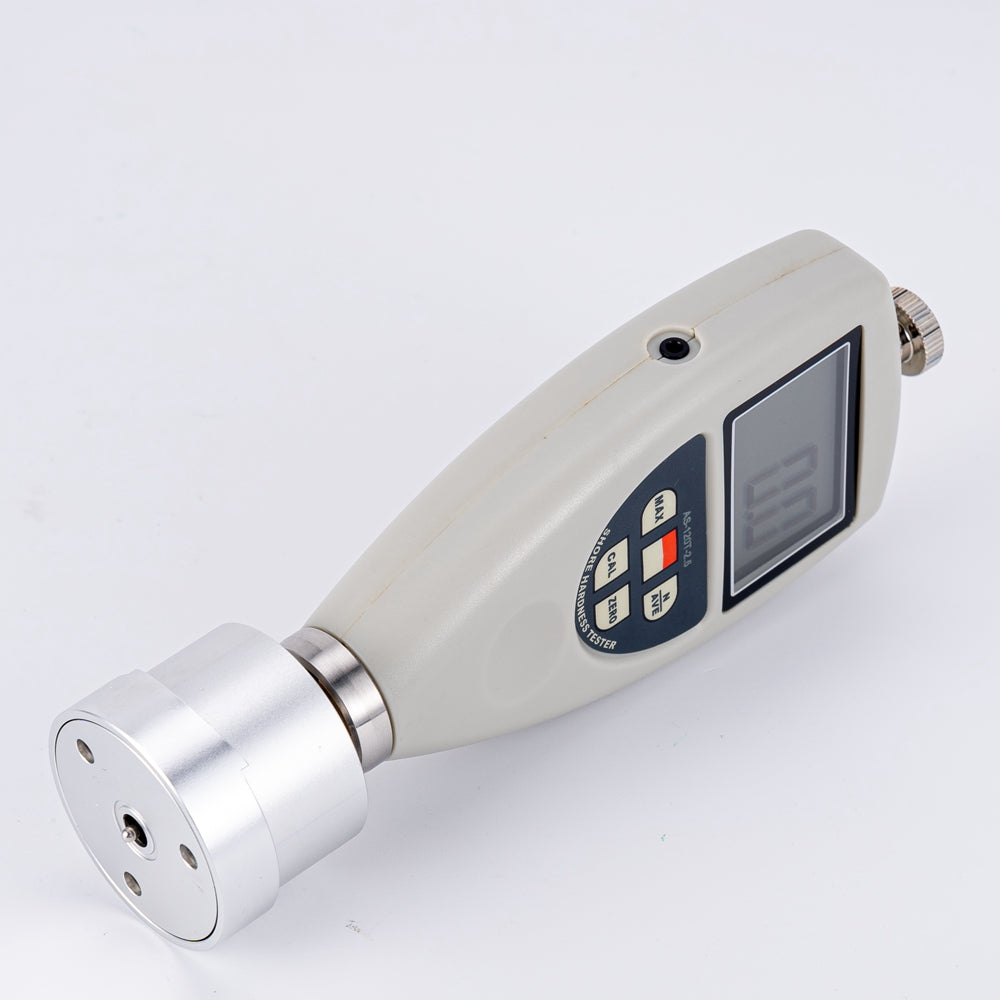

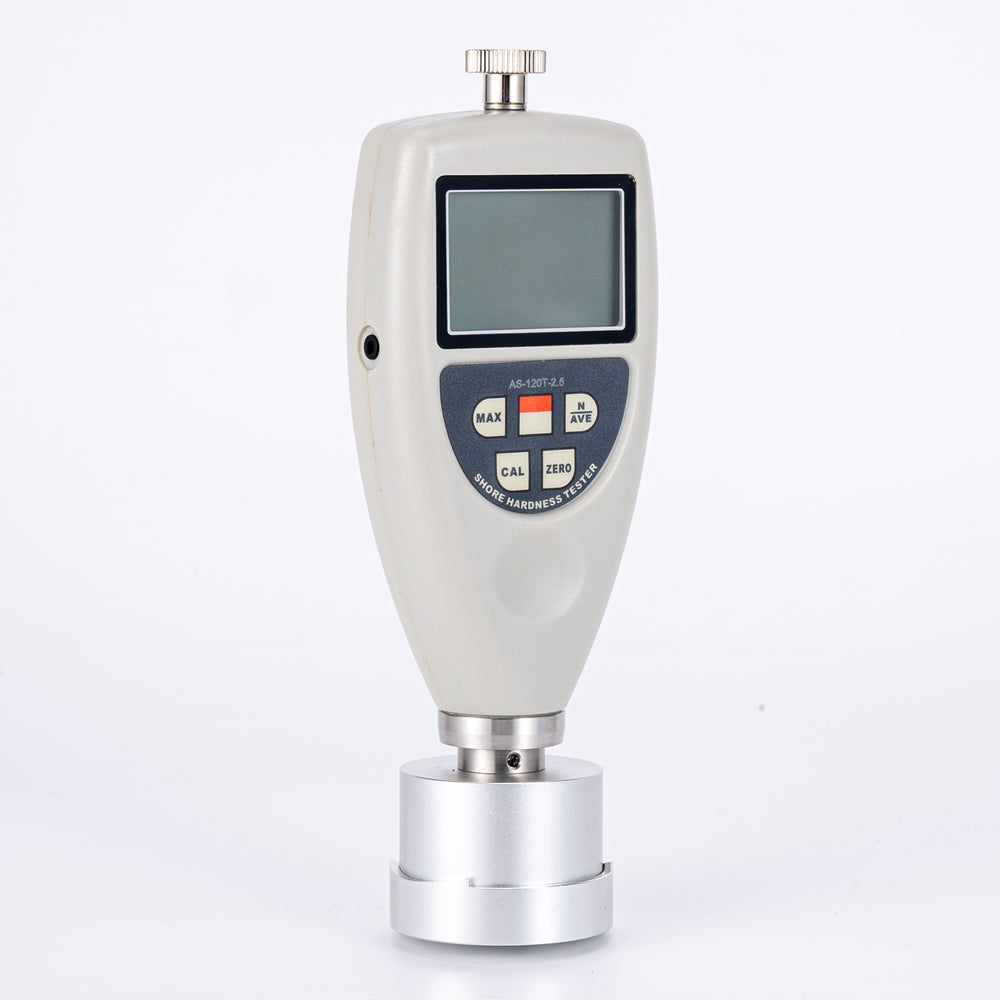

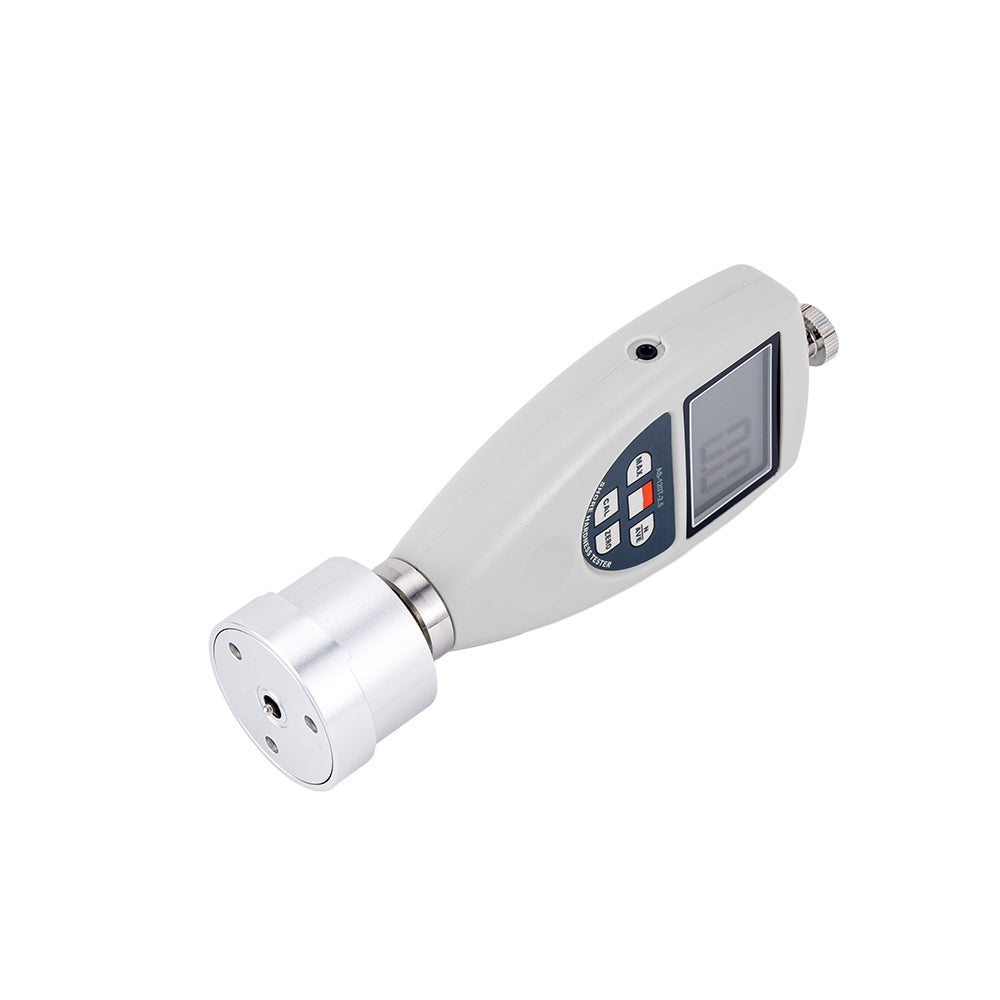

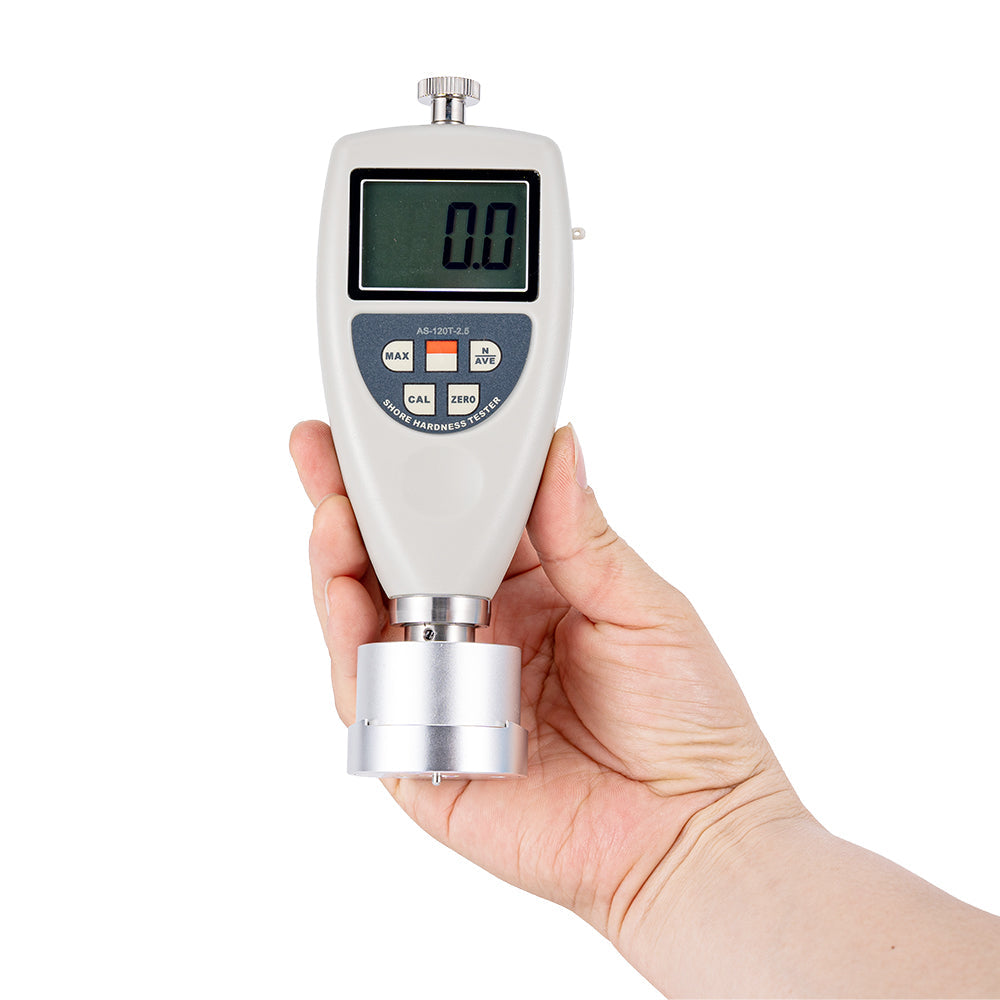

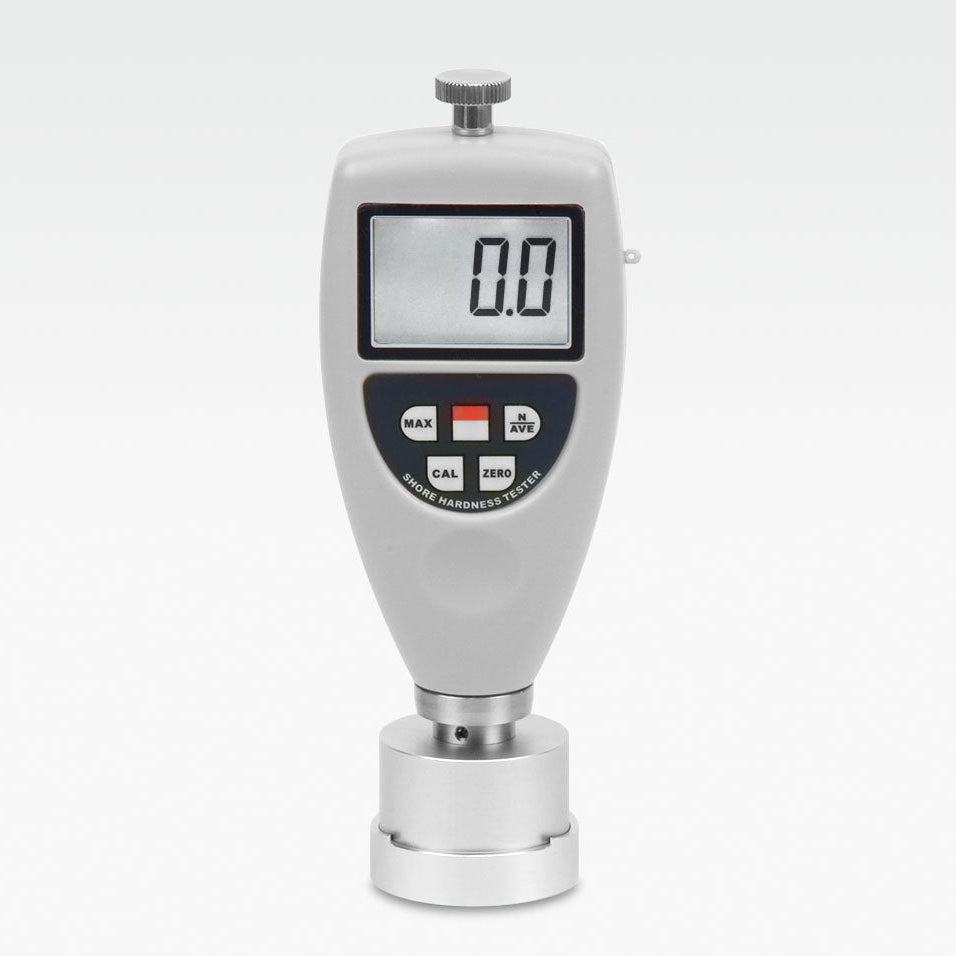

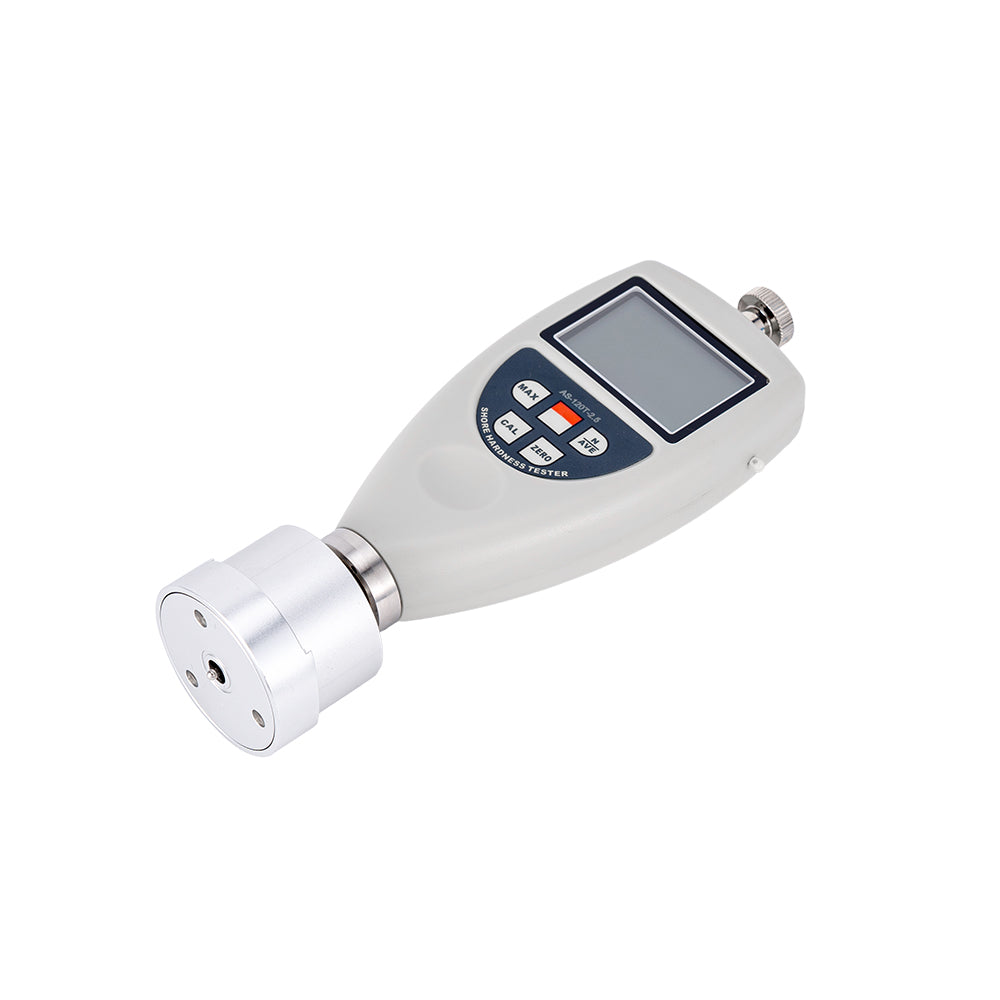

TOMLIN Textile Hardness Tester (Model AS-120T)

Description:
The TOMLIN Textile Hardness Tester AS-120T is a precision instrument specifically designed to measure the winding density (hardness) of textile bobbins, beams, spools, cones, and dye packages. By measuring the resistance force of a ball penetrating the spool under a specified spring load, this device provides accurate and reliable results, ensuring quality control in textile manufacturing processes.

Applications:

  • Textile Manufacturing: Evaluates the hardness of bobbins, beams, and spools.
  • Quality Control: Ensures consistency in winding density for yarns and fibers.
  • Dyeing Industry: Measures dye package hardness to optimize processing.

Key Features:

  • Convertible Probe Design:
    • Curved Probe End: Suitable for bobbins with diameters ≤ 400 mm.
    • Flat Probe End: Ideal for bobbins with diameters > 400 mm.
  • Measurement Data Retention: Calculates average and peak values for critical analysis.
  • USB Data Output: Facilitates seamless data transfer to a PC for further analysis.
  • Bluetooth Connectivity (Optional): Enables wireless data transmission for added convenience.
  • Low Battery Indicator: Alerts the user to replace or recharge batteries.
  • Auto Switch Off: Conserves battery life with automatic power-down functionality.
Specifications
Model AS-120T-2.5 AS-120T-5 AS-120T-10
Indenter Ball 2.5 mm Φ 5 mm Φ 10 mm Φ
Area of Application Closely wound bobbins of synthetic, finished fibers and filaments Loosely wound bobbins of synthetic fibers, closely wound natural fibers, yarns, and threads Very loosely wound bobbins of thick yarns, such as carpet yarns
  • Display Range: 0~100H (hardness graduation marks)
  • Testing Range: 10~90H (hardness graduation marks)
  • Accuracy: ≤ ±1H
  • Resolution: 0.1H
  • Depth of Indentation: 0~2.5 mm
  • Test Pressure: Approx. 12.5 N
  • Measuring Spring Force: 0.55~8.065 N
  • Scale Diameter: 51 mm
  • Working Face Radius: 55 mm (curved end), 45 mm Φ (flat end)
  • Operating Temperature:

    040°C (32104°F)

  • Operating Humidity: <80% RH

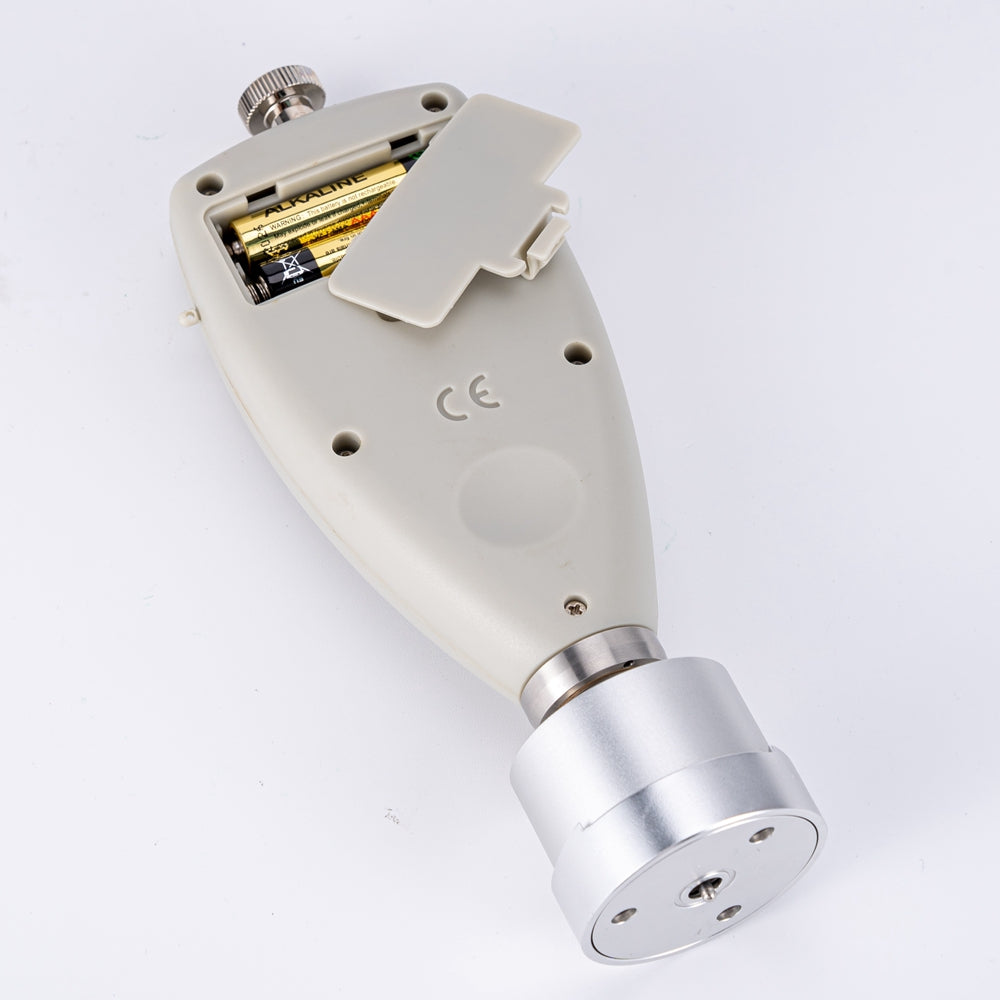

  • Power Supply: 2 x 1.5V AAA (UM-4) batteries
  • Size: 178 x 65 x 45 mm
  • Weight: 290 g (excluding batteries)

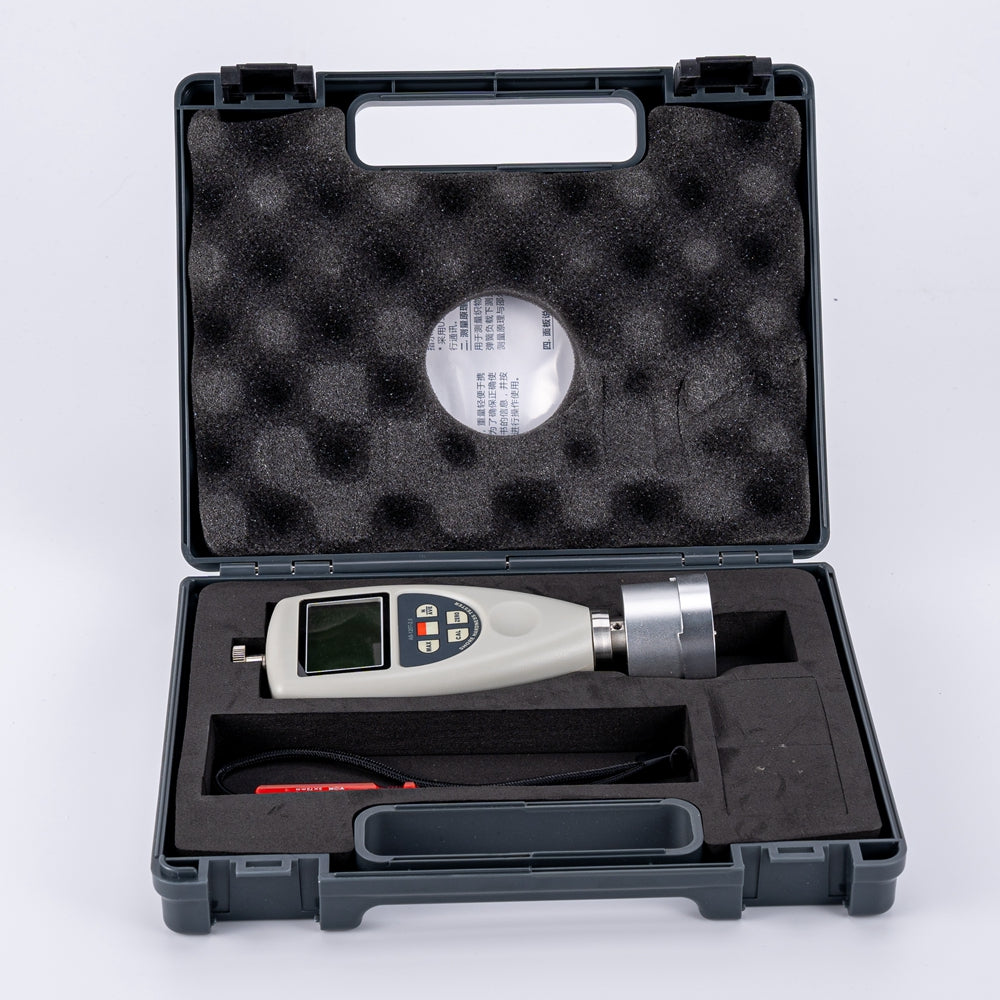

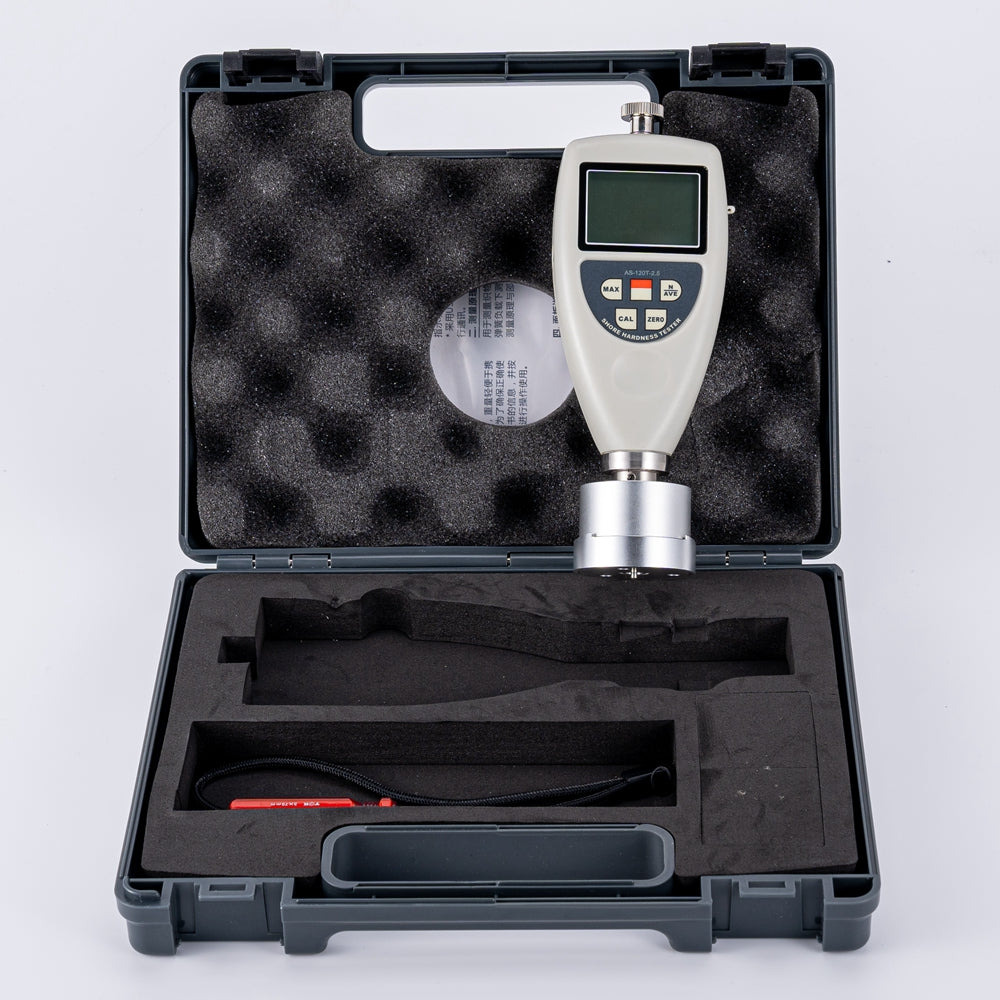

Standard Accessories:

  • Main Unit

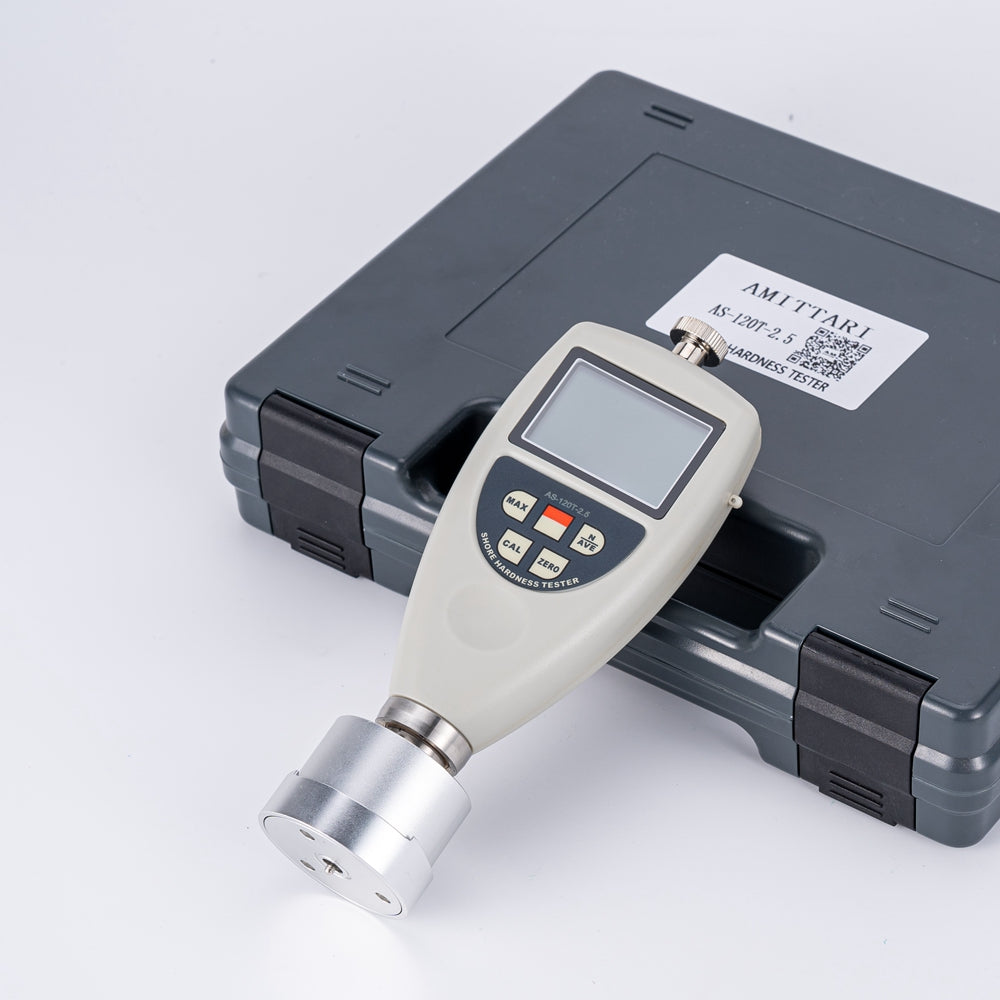

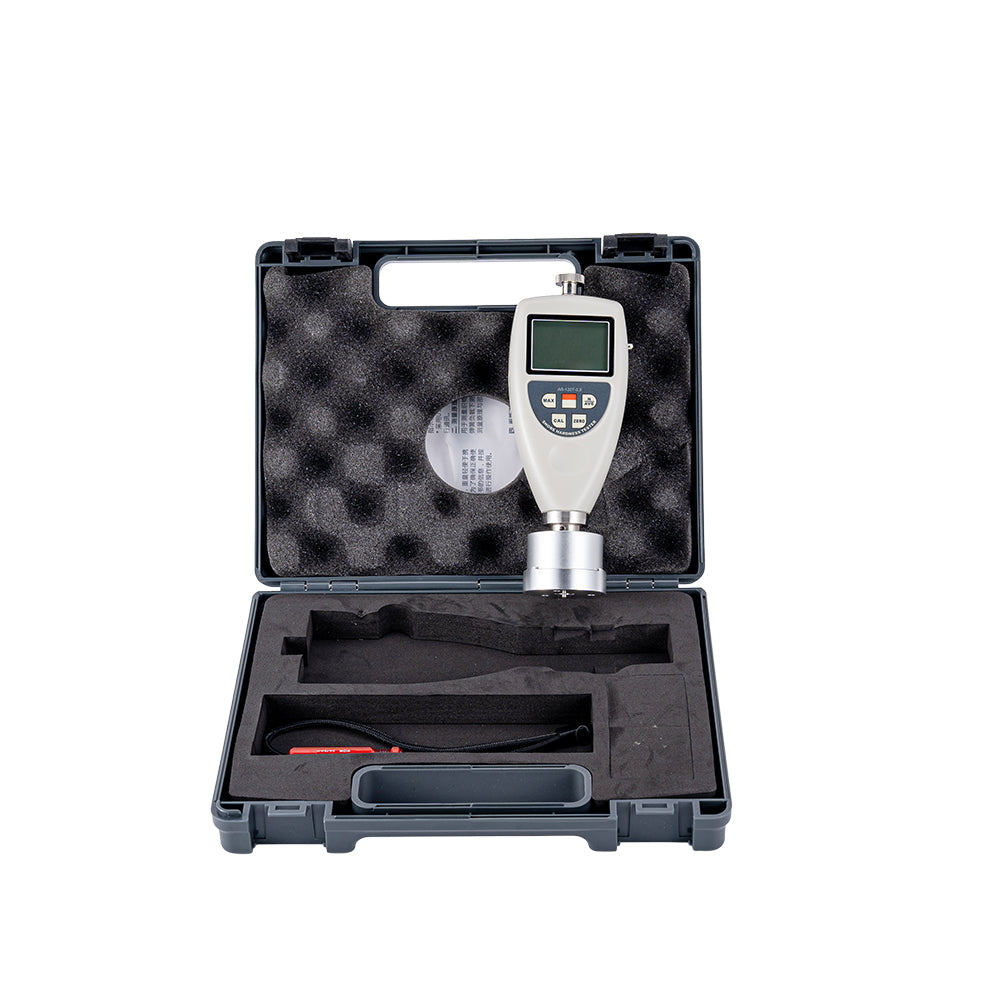

  • Carrying Case
  • Operation Manual

Optional Accessories:

  • USB Data Cable with Software
  • Bluetooth Data Adapter with Software

Alternative Names

  • Textile Bobbin Hardness Tester
  • Yarn Winding Density Analyzer
  • Digital Hardness Tester for Textile Spools
  • Portable Textile Winding Tester

PDF Specification Sheet - Download Here
