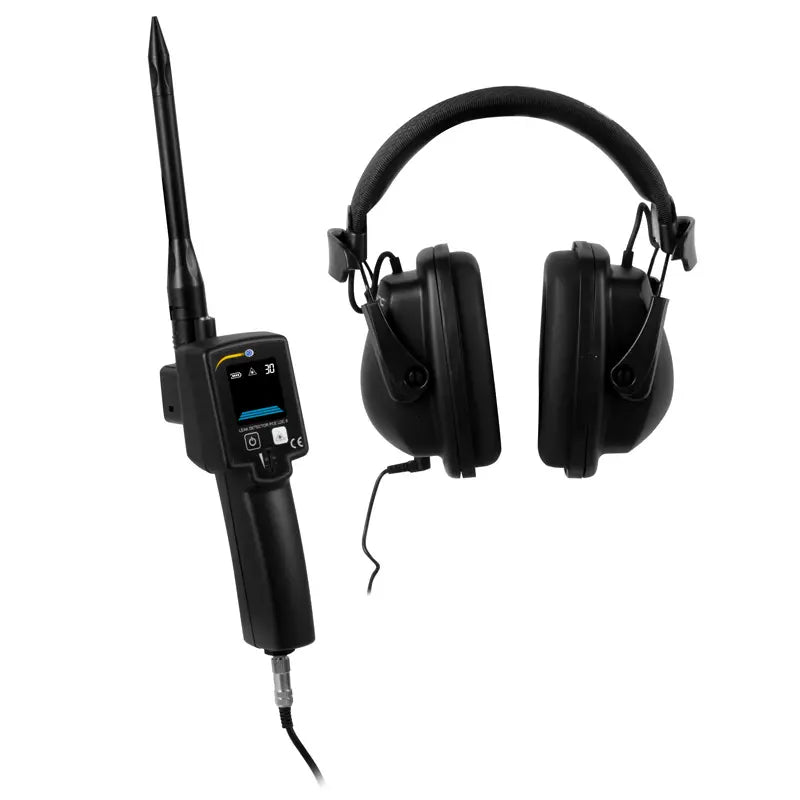

Ultrasonic Leak Detector PCE-LDC 8

Ultrasonic Leak Detector PCE-LDC 8

$4,560.00
$4,560.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

DESCRIPTION

Ultrasonic Leak Detector for compressed air lines / easy handling /

operating frequency 40 kHz / Leak detection with the help of a headphone /

robust device / battery operation

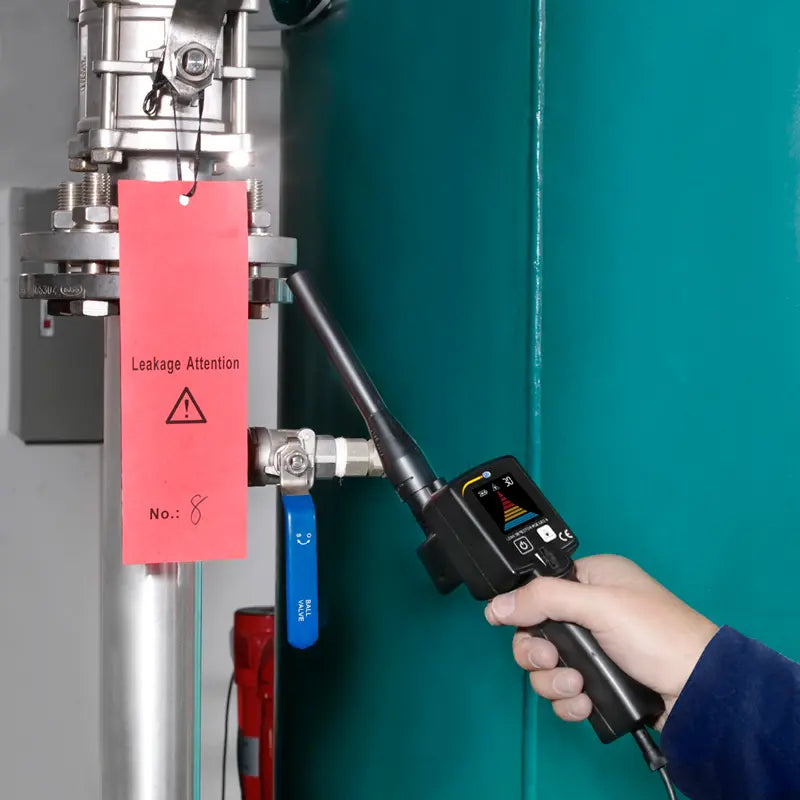

The Ultrasonic Leak Detector is used to locate leaks on compressed air lines. Furthermore, the Ultrasonic Leak Detector can also be used on coolant lines or gas lines for leak detection. The Ultrasonic Leak Detector is equipped with an ultrasonic sensor that can precisely detect leaks in air lines. The ultrasound sensor from the Ultrasonic Leak Detector works at a frequency of 40 kHz. This means that the Ultrasonic Leak Detector is calibrated to the medium frequency that leaks on pressure lines emit. This is in the range between 20 ... 80 kHz. A high-pass filter in the leak detector ensures that all noises are filtered at a frequency <40 kHz in order to perform a better leak detection. An integrated amplifier element in the leak detector ensures that the high-frequency tones,

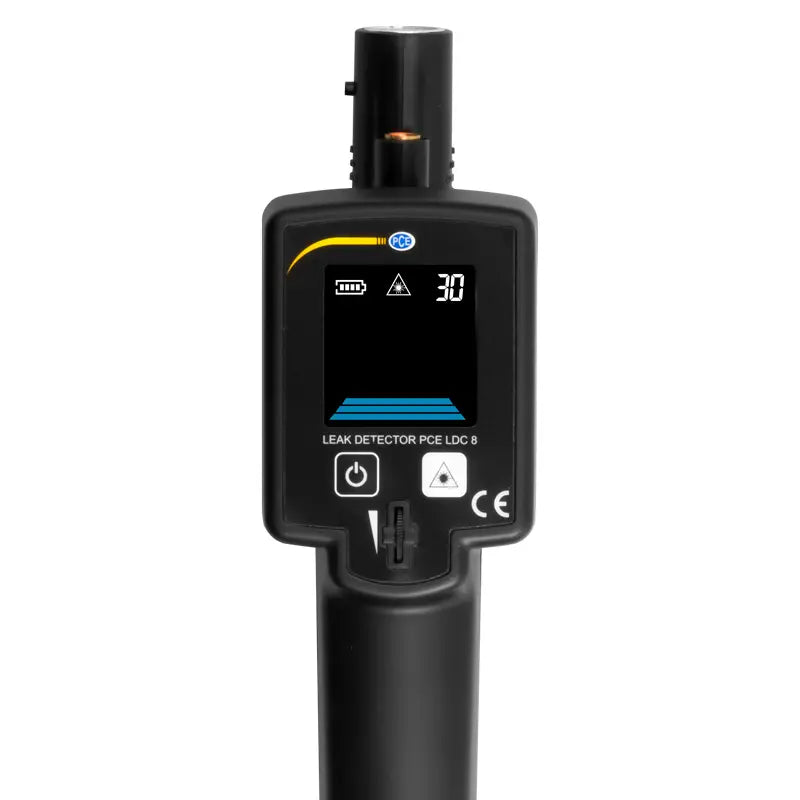

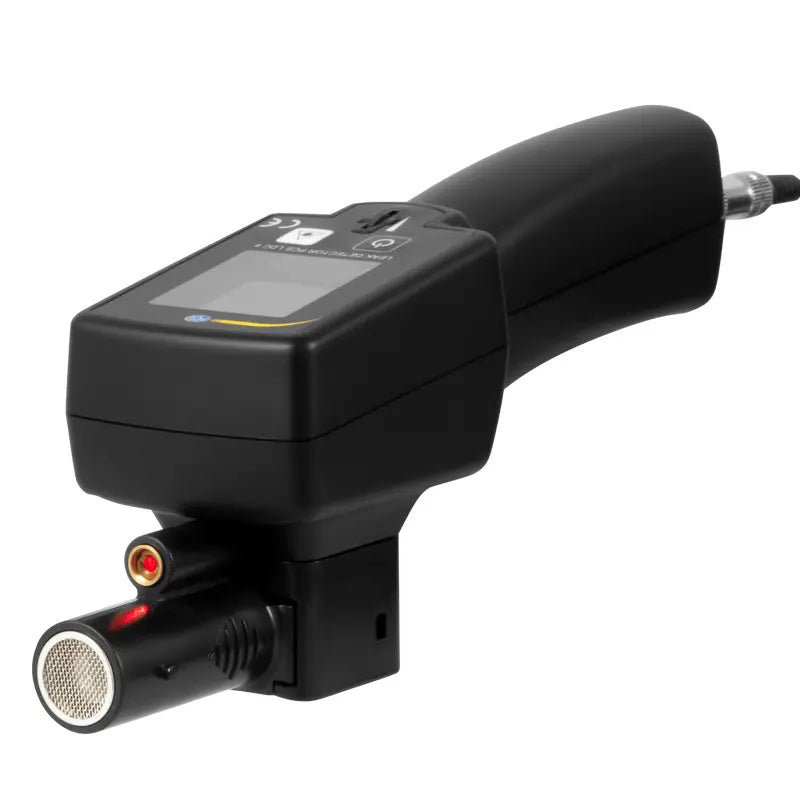

In addition to the acoustic detection of a leak in compressed air lines, the Ultrasonic Leak Detector shows the intensity of the ultrasound signal on a display. The sensor from the Ultrasonic Leak Detector has a laser pointer for better targeting of the pipes or pressure vessels. A lance can also be adapted to the sensor, which contributes to pinpoint leak detection. With the help of the Ultrasonic Leak Detector, depending on the operating pressure in the pipeline, the user can safely locate a leak from a distance of up to 18m, 59 ft. The Ultrasonic Leak Detector is operated with a rechargeable battery, which ensures that the Ultrasonic Leak Detector can be used for up to 6 hours. The Ultrasonic Leak Detector is delivered in a robust carrying case including all accessories.


HIGHLIGHTS

- Working frequency of 40 kHz
- easy to use
- up to 6 h battery operation
- Leak detection via headphones and LCD display
- robust and ergonomic
- Can be used over long distances

SPECIFICATION

measuring principle Ultrasonic
measuring medium Air, coolant, non-explosive gases
operating frequency 40 kHz ± 2 kHz
connections 3.5 mm jack plug for sensor
3.5 mm jack plug for headphones and charger
display LC display
power supply NiMH battery
operating time approx. 6 h without laser pointer
approx. 4 h with laser pointer
charging time about 1.5 h
operating temperatur Normal operation: 0 ... 40 ° C
Charging mode: 10 ... 40 ° C
laser 2nd grade; <1mW; 650 nm
Dimensions 7.54 x 3.44 x 2.09 in; 191.5 x 87.5 x 53 mm
Weight approx. 250 g
Measurement options pressure vs. Diameter / range
print diameter Range
0.5 bar 0.1 mm 6.6 ft, 2 m
0.2 mm 6.6 ft, 2 m
0.5 mm 32.8 ft, 10 m
print diameter Range
5 bar 0.1 mm 26.2 ft, 8 m
0.2 mm 45.9 ft, 14 m
0.5 mm 59.1 ft, 18 m

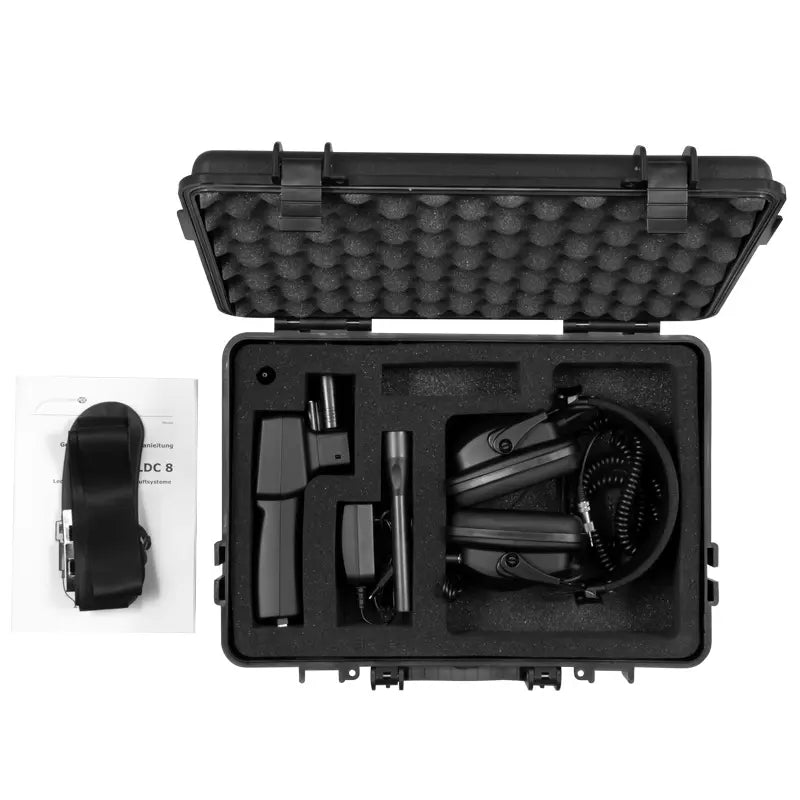

DELIVERY SCOPE

1 x Ultrasonic Leak Detector PCE-LDC 8
1 x sensor unit
1 x headphones
1 x focus tube incl. focus tip
1 x sensor extension cable
1 x charger
1 x carrying case
1 x instruction manual
