Ultrasonic Thickness Probe P5EE

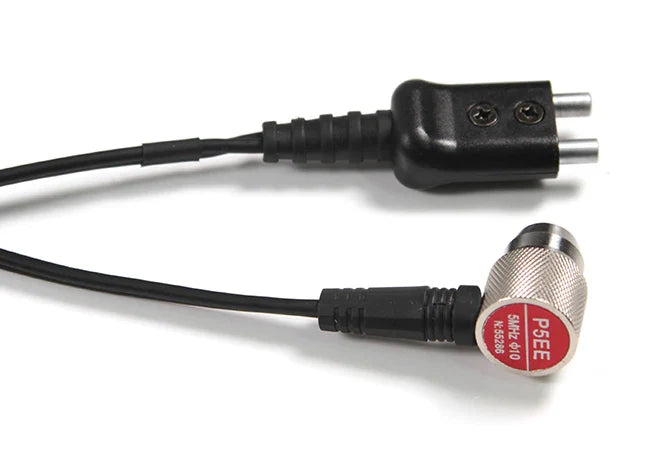

Mitech P5EE Narrow-pulse Thickness Probe 5MHz 10mm

• Mitech narrow-pulse thickness probe P5EE, suitable for Mitech series multi-mode ultrasonic thickness gauges including MT180, MT190, MT600, MT660.
• It is the standard configuration for MT180, MT190, MT600, MT660.
• The P5EE probe operates at a frequency of 5MHz with a crystal size of 10mm. Its measuring range is 2mm-600mm in steel under the launch-echo model, while it is 3.0mm-100mm in steel under the echo-echo mode.
• The cable length of the P5EE probe is 90cm, and its limitation for the minimum pipe diameter is Φ20mm×3.0mm.
• Mitech P5EE probe is elaborately developed with imported material, integrated die casting process, and splinting probe design for convenient plugging. It can effectively reduce faults caused by frequent plugging, ensuring accuracy and durability.
• It can measure the base thickness for the workpiece with a coated surface directly through the coating without needing to handle the surface.
• It is widely used in the manufacturing, metal processing industry, chemical industry, inspection industry, and other testing fields.
