UV Meter PCE-UV 40A
UV Meter PCE-UV 40A
Regular price
$6,000.00
Regular price
Sale price
$6,000.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

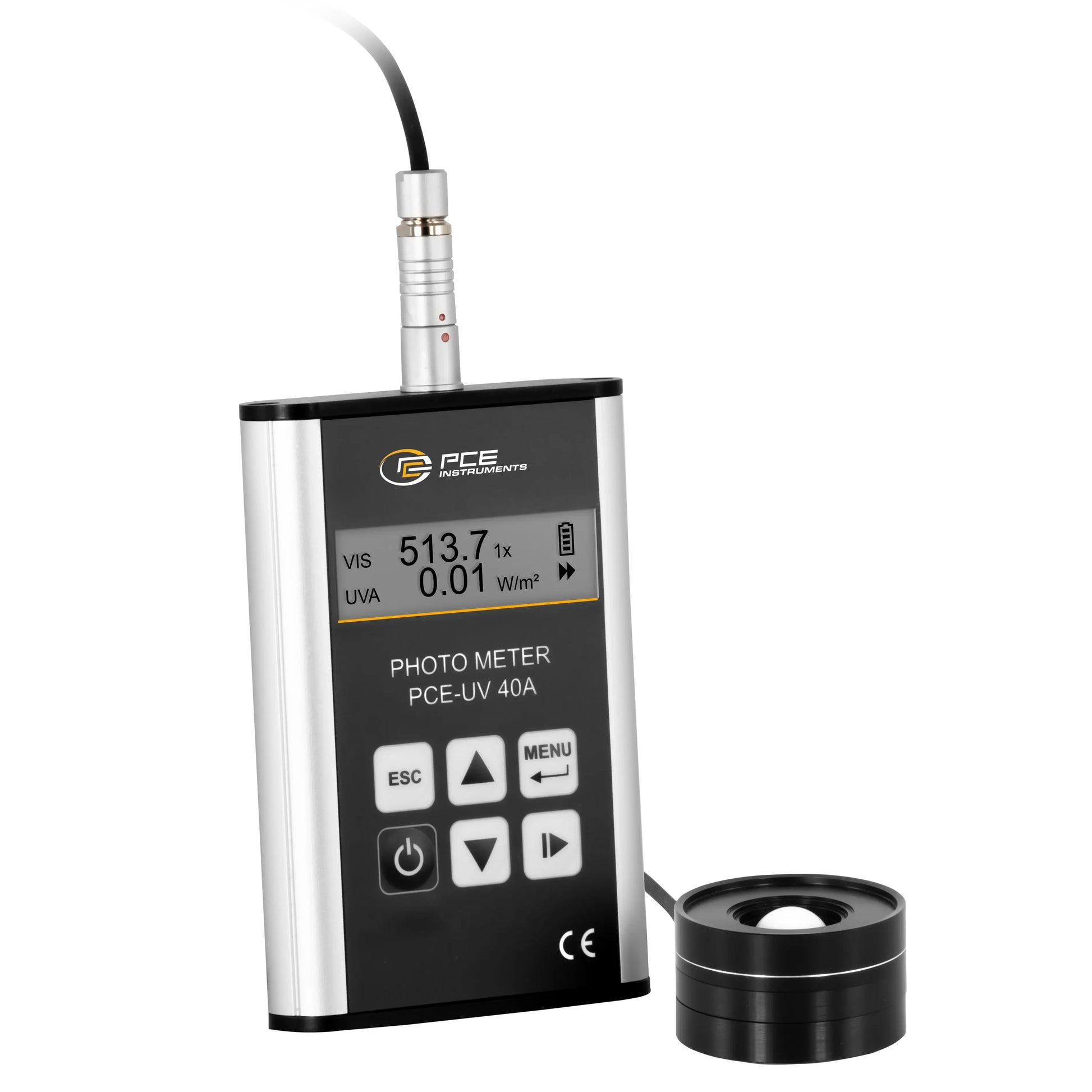

UV Meter / UV Tester with external sensor / Simultaneous measurement of UVA and light / Independent measurement of the lamp type / Measurement memory
The UV Meter / UV Tester is a highly developed instrument that is characterized by its versatility and precision. With its dual measurement channels, the UV Meter / UV Tester enables the simultaneous measurement of UV-A radiation and visible light. This UVA meter feature is particularly useful for applications that require comprehensive light characterization.
The external sensor allows the UV Meter / UV Tester to be positioned flexibly to carry out precise measurements in different locations. This function is helpful, for example, when measuring UV lights for material testing according to the standards “EN ISO 9934-1 Non-destructive testing with magnetic powder” and “EN ISO 3059 Non-destructive testing, penetrant testing and magnetic particle testing” where precise UVA measurement is crucial. The precise measurements ensure reliable monitoring and quality assurance when processing UV-sensitive materials.
The ability to store data makes the device particularly user-friendly. Users can easily record and analyze measurement results to monitor long-term trends or document quality checks.
Overall, the UV/light meter offers a comprehensive solution for applications that require precise measurement of UV-A radiation and visible light. With its advanced features and simultaneous measurement capability, it is an indispensable tool for areas such as material testing, tanning bed control and workplace lighting control.
Highlights
- Two-channel measuring device UV-A and visible light

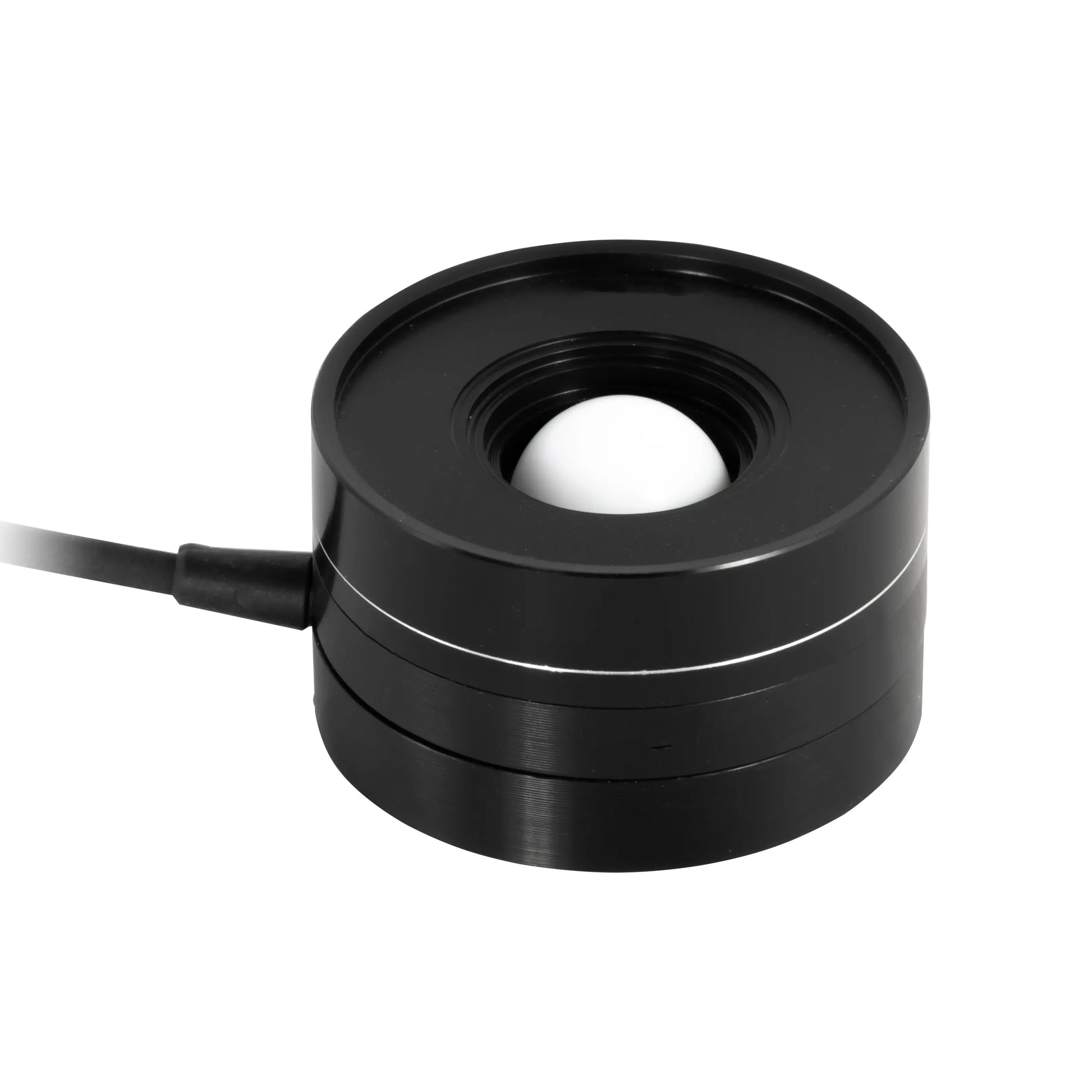

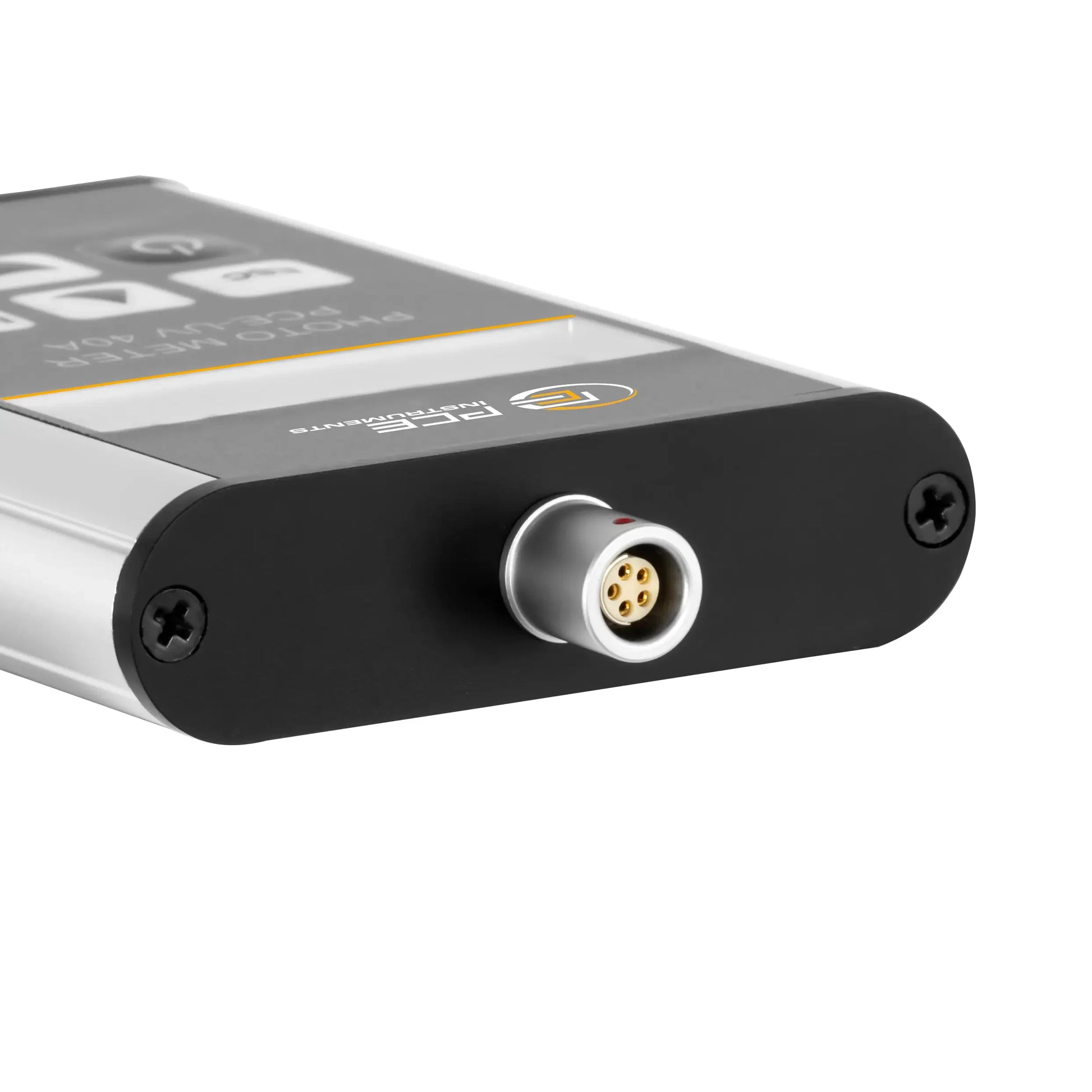

- External sensor
- Simultaneous measurement
- Two UV-A measuring ranges up to 100 W/m²
- Control of UV lights for material testing
- Automatic measuring range changeover 0 lx ... 10 klx
- Accurate measurement of illuminance regardless of lamp type
- Measured value memory
- External sensor
- Simultaneous measurement
- Two UV-A measuring ranges up to 100 W/m²
- Control of UV lights for material testing
- Automatic measuring range changeover 0 lx ... 10 klx
- Accurate measurement of illuminance regardless of lamp type
- Measured value memory
Specification
| Light | |
| Measuring range | 0 lx ... 10 klx |
| resolution | 0.1 lx |
| accuracy | f1 ≤ 3% |
| UV | |
| Measuring range | 0 W/m² ... +100 W/m² |
| resolution | 0.01W/m² |
| accuracy |
According to EN ISO 3059 V(λ) CIE ∆λ1/10 320 – 395nm ∆λ1/2 337 – 385nm λmax 365nm Sλ=313nm < 5% Sλ=405nm < 0.5% |
| General technical data | |
| Display type | LCD with lighting |
| Storage medium | Internal memory |
| Storage capacity | 20 records |

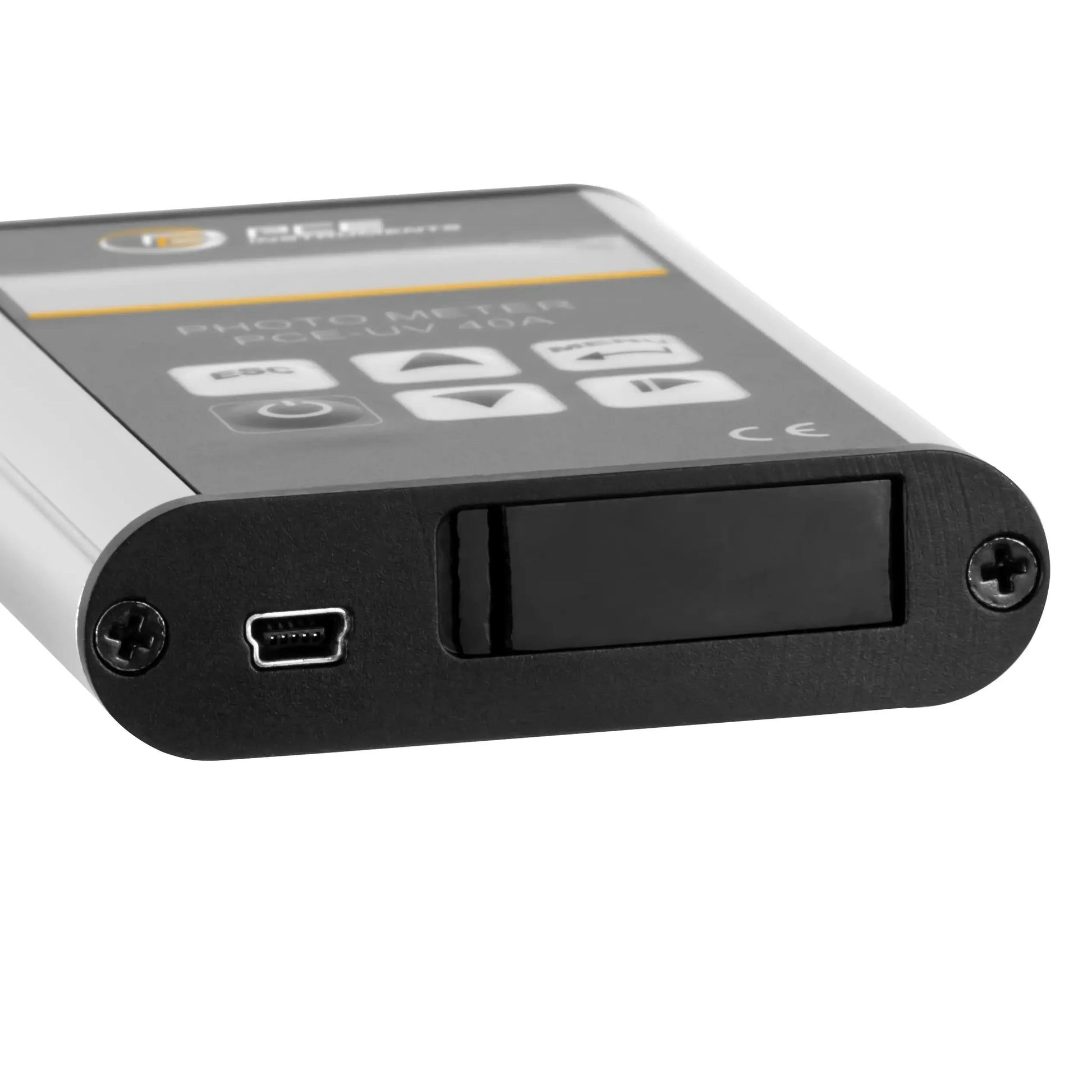

| interface | Mini USB |
| Norm(s) | ISO/CIE 19476, EN ISO 3059, EN ISO 9934 |
| Measuring rate | 1Hz |
| Menu language | English, Polish |
| Protection class (device) | IP20 |
| Weight | 148g / 0.3 lbs |
| Device weight with scope of delivery | 1198g / 2.6 lbs |
| Device weight including scope of delivery and outer packaging | 1377g / 3 lbs |
| Dimensions (L x W x H) | 118 x 72 x 20 mm / 4.6 x 2.8 x 0.8 in |
| Other dimensions |
Probe Ø44 x 25.5 mm Cable length probe 1.5 m / 4.9 ft Extension rod 460 mm / 18.1 in |
| Operating conditions | -10 ... 50°C / 14 ... 122°F, 0 ... 90% RH |
| Storage conditions | -10 ... 50°C / 14 ... 122°F, 0 ... 80% RH |
| Languages of the instructions | English |

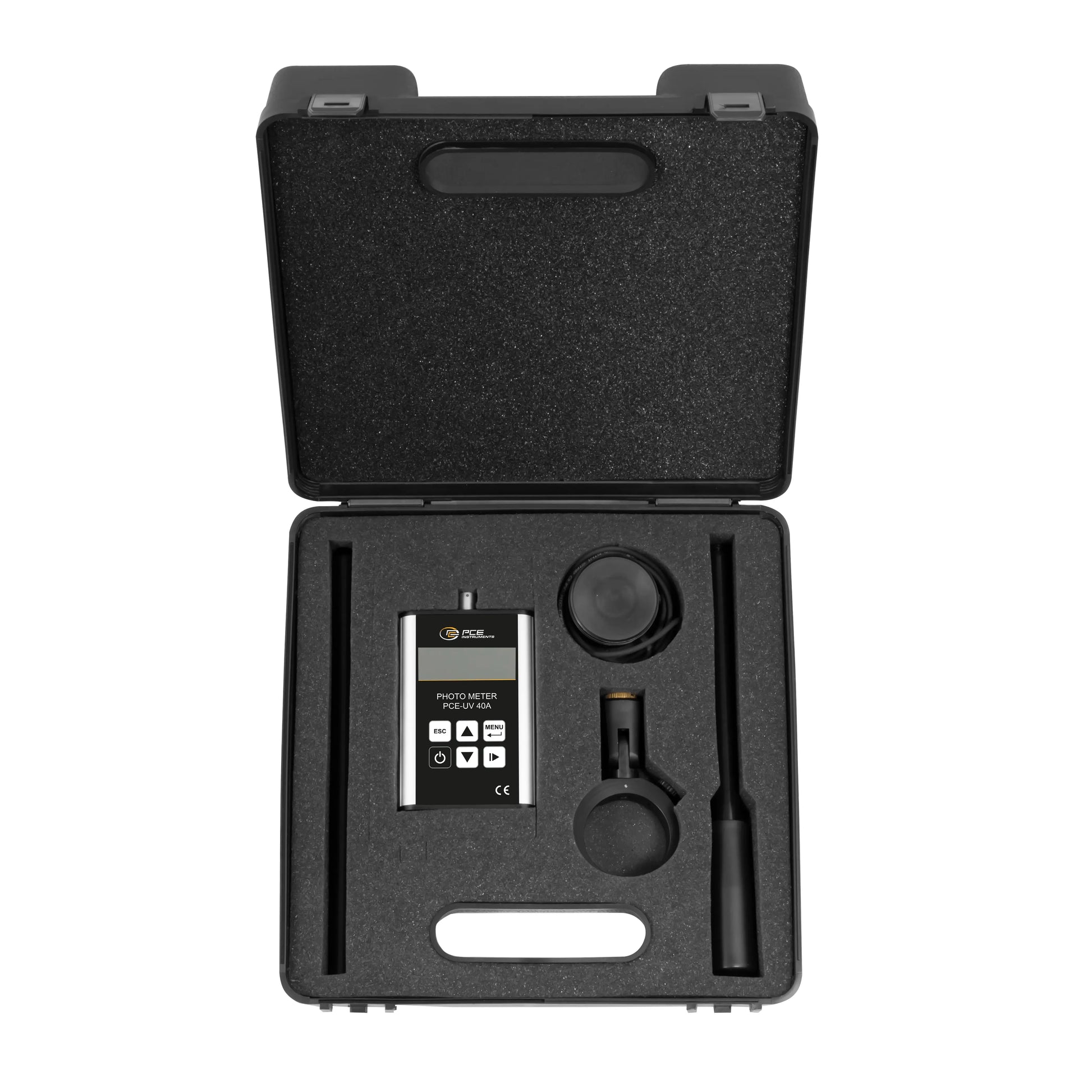

Delivery Scope
1 x UV Meter / UV Tester PCE-UV 40A
1 x UVA / Lux sensor

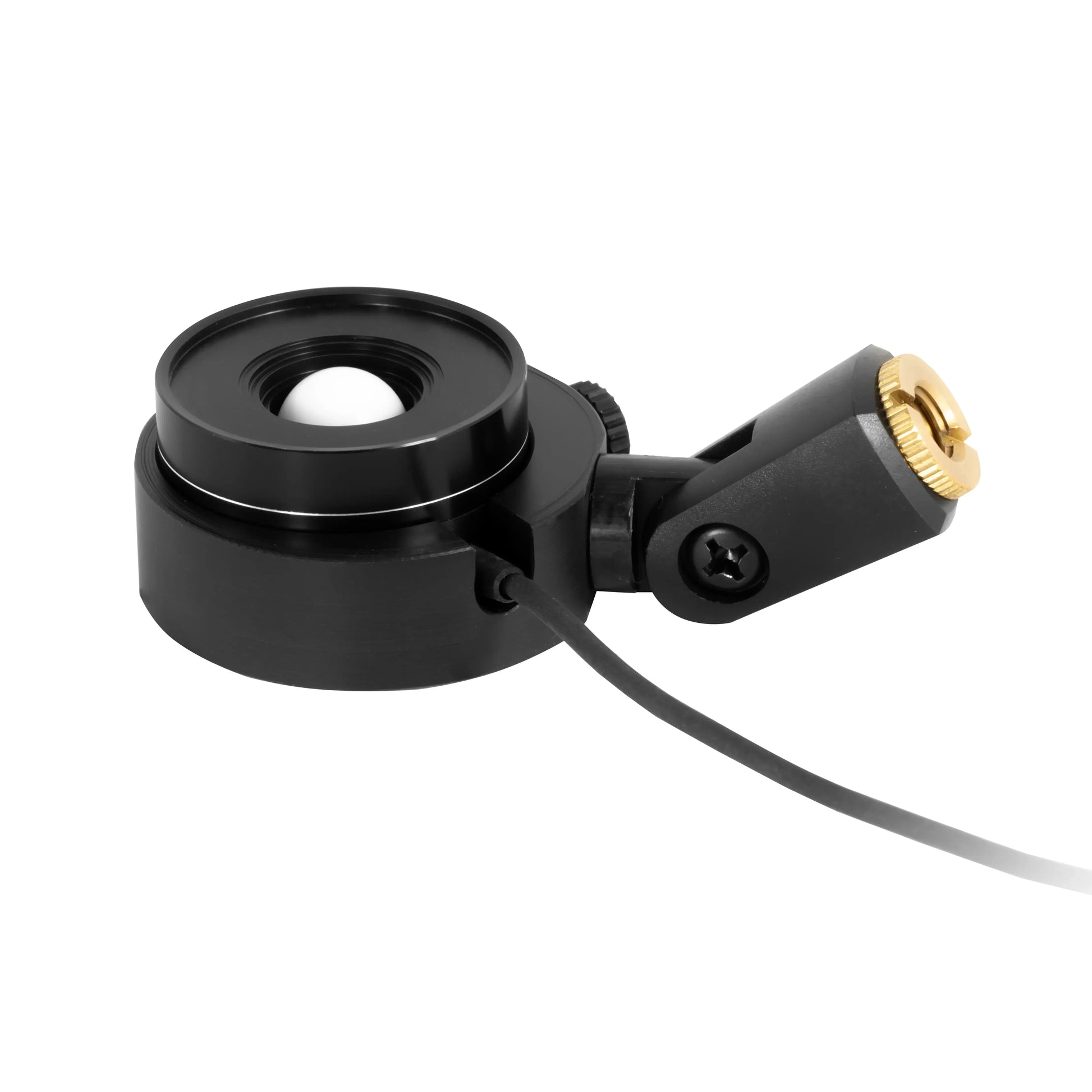

1 x Sensor Holder
1 x Extension rod short to the sensor holder
1 x Transport case
1 x User Manual
1 x UVA / Lux sensor
1 x Sensor Holder
1 x Extension rod short to the sensor holder
1 x Transport case
1 x User Manual
