3-Axis Vibration Tester AV-160D

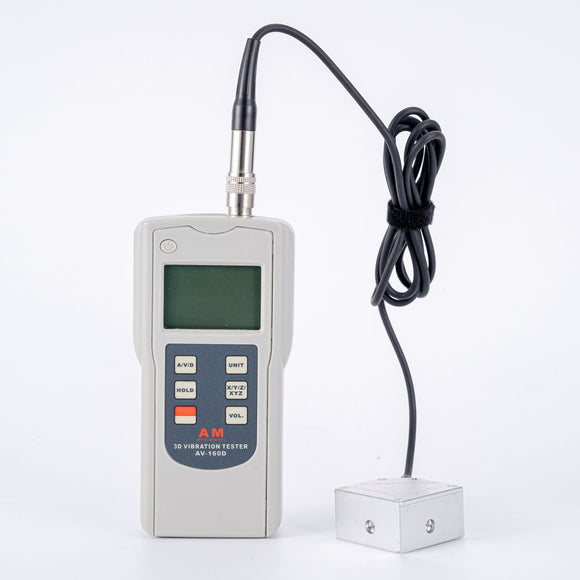

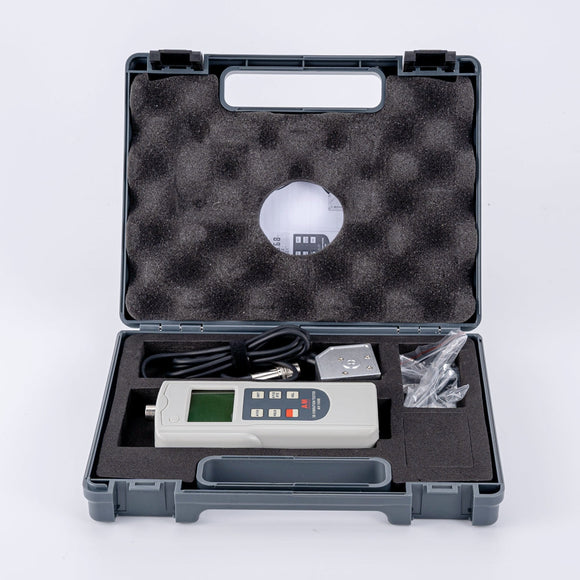

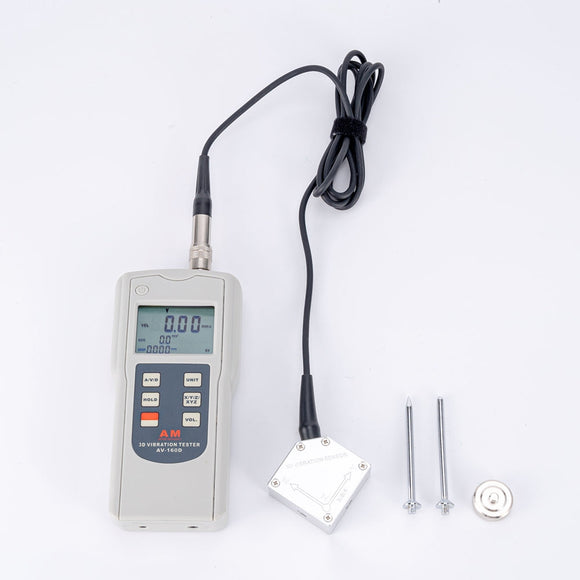

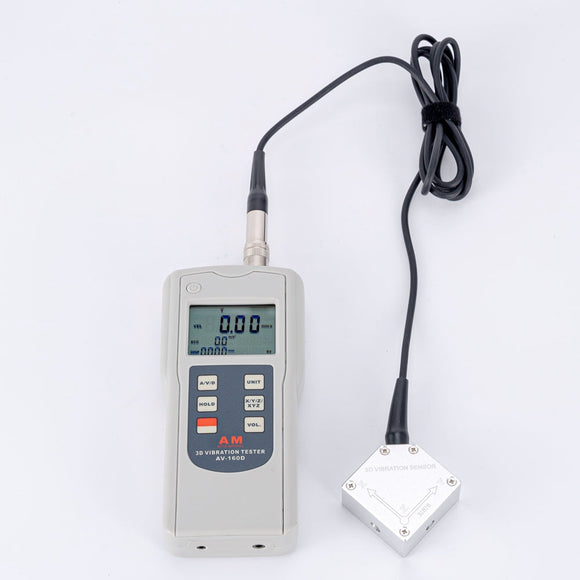

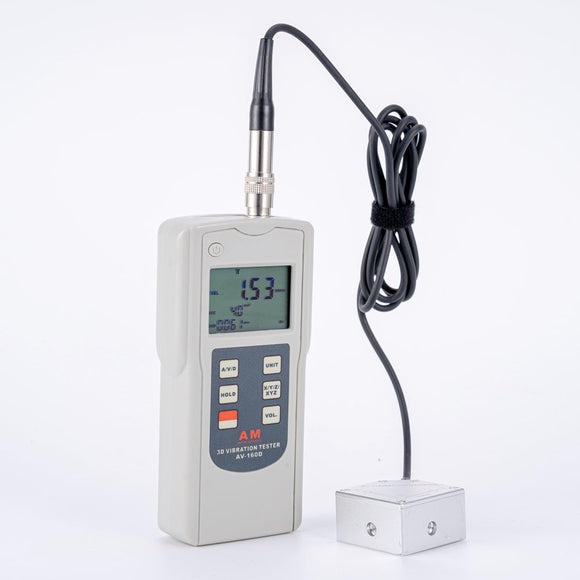

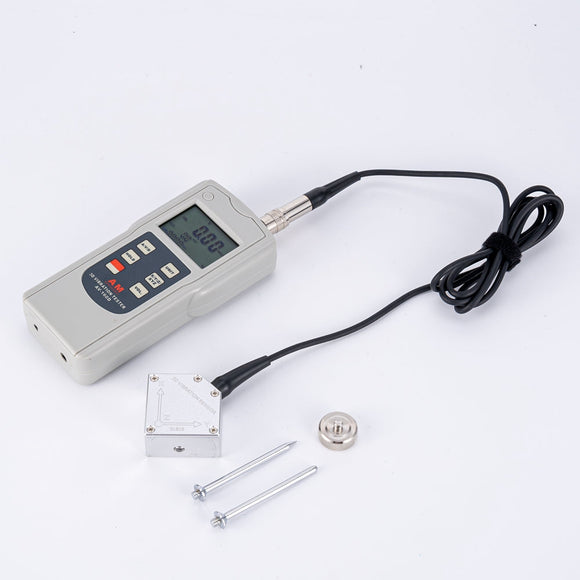

TOMLIN 3-Axis Vibration Tester (Model AV-160D)

Description:
The TOMLIN 3-Axis Vibration Tester AV-160D is a high-performance device designed for comprehensive vibration analysis across three axes (X, Y, Z). Equipped with a 3-axis piezoelectric accelerometer, this tester delivers precise measurements of velocity, acceleration, and displacement for industrial applications such as quality control, maintenance, and machinery diagnostics. Its wide frequency range and automatic power-off feature make it an essential tool for vibration monitoring in rotating machinery.

Applications:

• 3-Axis Vibration Analysis: Comprehensive analysis across X, Y, and Z axes.
• Industrial Diagnostics: Ideal for troubleshooting and quality control in rotating machinery.
• Predictive Maintenance: Provides precise vibration data for machinery health monitoring.

Key Features:

1. Displays three parameters (velocity, acceleration, and displacement) for 3D or single-axis measurement.
2. Wide frequency range: 10Hz to 10kHz (acceleration mode).
3. Automatic power-off function for battery conservation.
4. Metric/Imperial conversion for flexible measurement options.
5. Max. Value Hold Function to retain peak measurement data.
6. Backlight display for clear visibility in low-light environments.
7. Buzzer sound reminder for operational alerts.
8. Low battery indicator to notify users when batteries need replacement.
9. Computer connectivity for advanced data analysis and reporting.
