Whiteness Meter AWM-216
Whiteness Meter AWM-216
Couldn't load pickup availability
Description
The Tomlin Whiteness Meter AWM-216 is a high-precision instrument designed to measure the whiteness value of flat surfaces, powders, and materials with exceptional accuracy. Utilizing advanced optics and blue light reflectance technology (R457), this device provides consistent and reliable results for quality control and product evaluation across various industries. Equipped with a rechargeable lithium battery and robust features, the AWM-216 offers superior performance for both laboratory and field applications.
Applications
The Tomlin AWM-216 Whiteness Meter is ideal for:
- Textile Printing and Dyeing: Measuring fabric and yarn whiteness.
- Paint and Coatings: Ensuring quality during production and application.
- Construction Materials: Assessing whiteness of white cement, plaster, and related materials.
- Paper and Packaging: Evaluating whiteness in paperboard and cardboard.
- Chemicals and Powders: Testing whiteness in starch, flour, talc, and detergents.
- Plastics and Polymers: Ensuring consistency in product color and quality.
- Cosmetics and Personal Care: Measuring whiteness in powders, creams, and formulations.
Key Features
- Advanced Optics: Delivers accurate measurements using blue light reflectance (R457).
- No Preheating Required: Ready to operate immediately, saving time.
- Rechargeable Lithium Battery: Ensures extended usage without frequent replacements.
- Data Storage: Stores up to 254 measurement groups for easy review and analysis.
- Backlit Display: Enables visibility in low-light environments.
- Compact Design: Lightweight and portable, suitable for both field and laboratory use.
- Calibration and Review: Simplifies operation with memory and review of readings.
- Low Battery Indicator: Alerts users to recharge the device for uninterrupted operation.
Specifications
| Parameter | AWM-216 |
|---|---|
| Measurement Range | 0–120 |
| Resolution | 0.1 |
| Illumination Condition | 45/0 |
| Illuminant | LED 457 nm |
| Whiteness Formula | Blue Light Whiteness (WB=R457) |
| Measurement Aperture | 18 x 11 mm (Rectangle) |
| Zero Drift | ≤0.1 |
| Stability of Display | ≤0.5 |
| Repeatability of Measurement | ≤0.1 |
| Operating Temperature | 0–40°C (32–104°F) |
| Operating Humidity | <85% RH |
| Power Supply | Rechargeable Lithium Battery |
| Size (Main Unit) | 140 x 45 x 75 mm (5.5 x 1.8 x 3.0 in) |
| Weight (Including Battery) | 305 g (10.76 oz) |
Standard Accessories

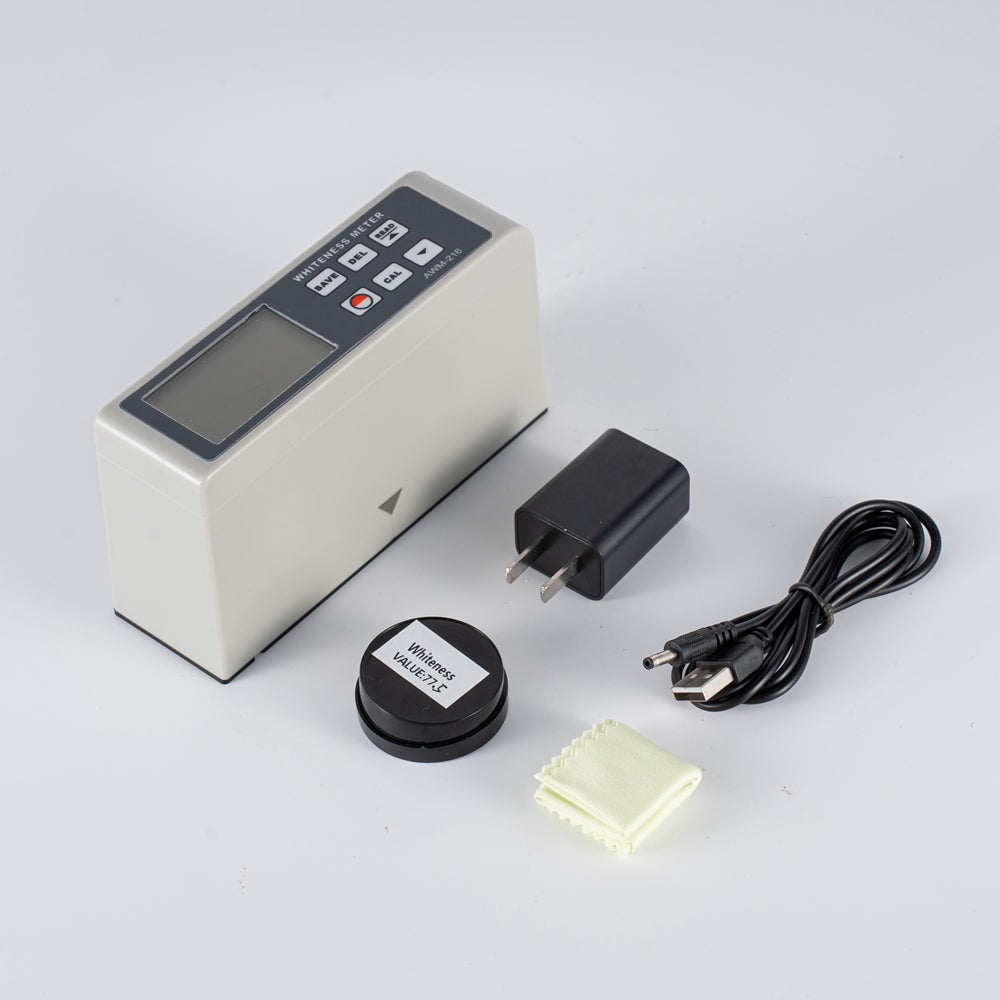

- Main Unit
- Standard White Board
- Optical Cleaning Cotton Cloth
- AC Adaptor
- Carrying Case
- Operation Manual
Optional Accessories
- Constant Pressure Powder Forming Apparatus
- USB Cable & Software
- Bluetooth Adapter & Software
Alternative Names
- Whiteness Measurement Device
- TOMLIN AWM-216 Color Quality Tester
- Portable Blue Light Reflectance Meter
Downloads
PDF Specification Sheet - Download Here
