Tomlin Instruments SKU: TM-TME110 Barcode:

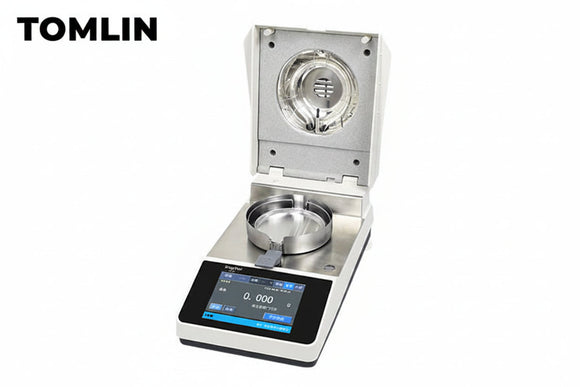

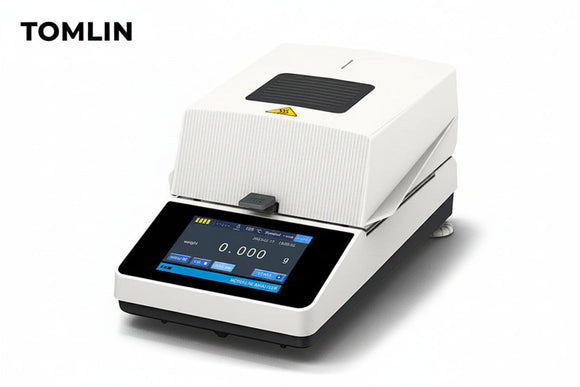

The TOMLIN INSTRUMENTS TME Series Halogen Moisture Analyzer is an entry-level solution designed for reliable and efficient moisture content determination. It is ideal for routine laboratory and industrial applications where simple operation and consistent results are required.
With a compact design and intuitive interface, the TME Series delivers stable performance and fast drying using halogen heating technology. It offers multiple drying modes and flexible operation, making it a cost-effective choice for basic moisture analysis across a wide range of materials.
TME Series
Name
TME110
TME105
TME101
Model
Capacity
110 g
Readability
0.01 g
0.005 g
0.001 g
Sensor
Load Cell
HBM
Pan Size
Φ96mm(20pcs)
Display
5 inch touch screen
Operate.Temp
5℃-35℃
Heating Source
Halogen lamp
Temp.Sensor
PT-100-2
Temp.Range
40℃-160℃
Temp.Setting
1℃
Moisture.Range
90.00%-10.00%
95.00%-5.00%
100.00%-0.00%
Moisture Readability
0.1%
0.05%
0.01%
Testing Range
DRY% Readability
Storage
20 Groups
Analysis Curve
Real time dynamic curve
Testing Height
30mm
LANGUAGE
EN/CN
Power supplier
220V 50Hz / 110V 60Hz
Dimension
336X214X166mm
Packing Size
415*310*255mm
G.Weight/N.Weight
4.0kg/3.5kg
Industries Used In
Product Data Sheet Link
