Product Description

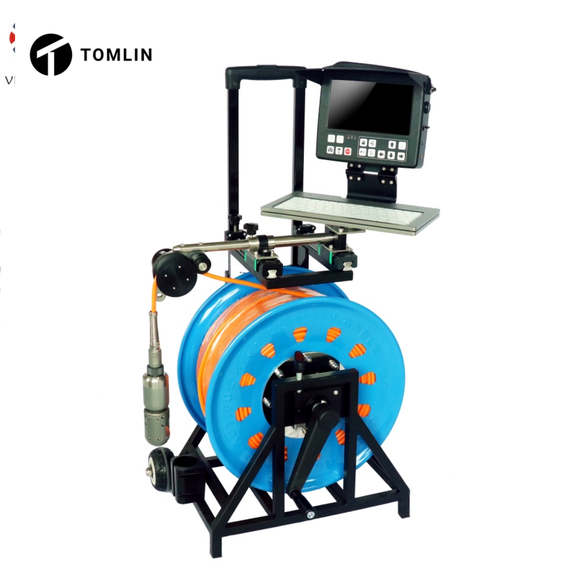

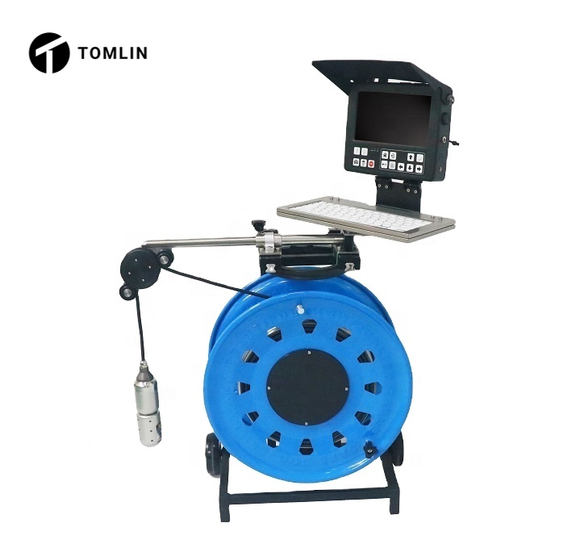

The Tomlin TC-V8-3288PTN-2 is a professional pan tilt borehole inspection camera designed for inspecting deep water bores, wells, shafts and vertical cavities up to 200 metres.

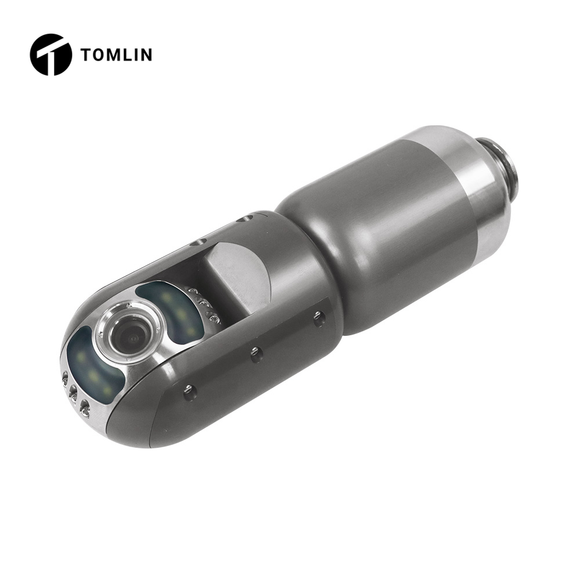

Featuring a 50mm Full HD Pan & Tilt camera head, 8-inch HD IPS LCD monitor, 200m heavy-duty cable reel and integrated 512Hz sonde, the system delivers outstanding image quality together with full 360° rotation and 180° tilt, allowing operators to inspect borehole walls, casing condition, joints and obstructions from every angle.

Its portable control unit, digital metre counter and DVR recording make the TC-BH-08-200PT an ideal solution for drilling contractors, pump installers, councils and groundwater inspection professionals.

Key Features

• 50mm HD Pan & Tilt camera head
• 360° continuous pan rotation
• 180° tilt control
• 200m heavy-duty cable reel
• Built-in 512Hz sonde
• 8" HD IPS LCD monitor
• 1080P Full HD camera
• MP4 video, photo & audio recording
• Digital metre counter
• Wireless USB keyboard
• Sapphire glass lens window
• IP68 waterproof camera (10 Bar)
• 7000mAh rechargeable Li-ion battery
• Interchangeable Tomlin camera inputs

Technical Specifications

Ideal Applications

• Borehole inspections
• Water well inspections
• Pump installation verification
• Bore casing inspections
• Groundwater investigations
• Mining shafts
• Vertical duct inspections
• Geotechnical investigations
