Product Description

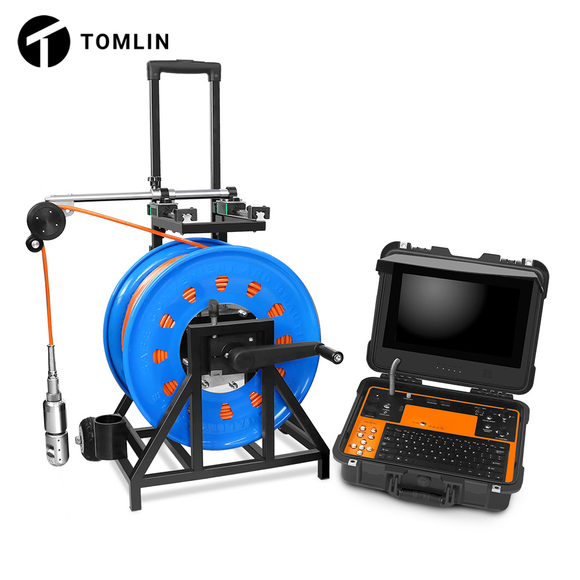

The Tomlin TC-V13-50PTS is a professional rotating borehole inspection camera designed for inspecting deep water bores, wells, shafts and vertical cavities up to 150 metres.

Featuring a 55mm HD rotating camera head, 13-inch HD IPS LCD monitor, 150m heavy-duty cable reel and integrated 512Hz sonde, the system delivers clear high-definition images while allowing operators to rotate the camera through 360° for complete inspection of borehole casings, joints, fractures and structural defects.

Its rugged field-ready design, digital metre counter, DVR recording and wireless keyboard make the TC-BH-13-150R an ideal solution for drilling contractors, pump installers, councils and groundwater professionals.

Key Features

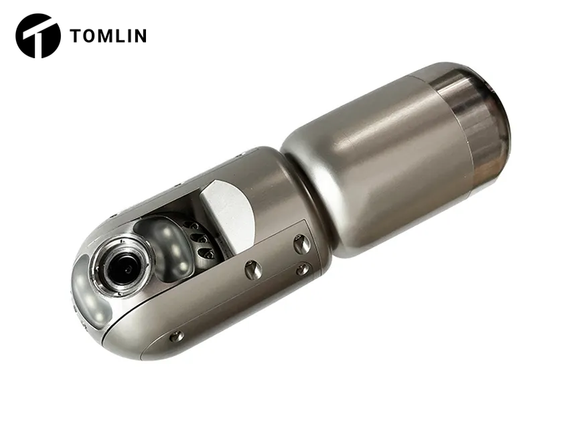

• 55mm HD rotating camera head
• 360° continuous camera rotation
• Built-in 512Hz sonde transmitter

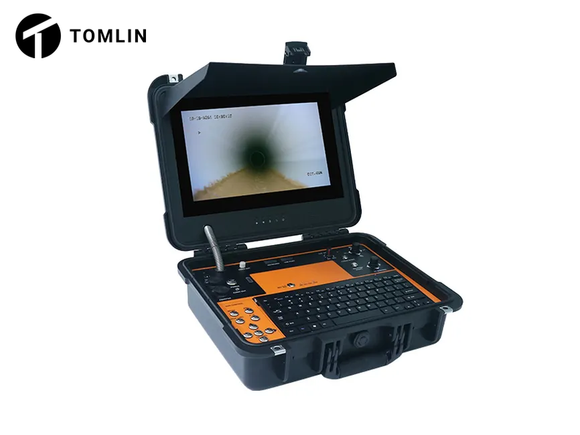

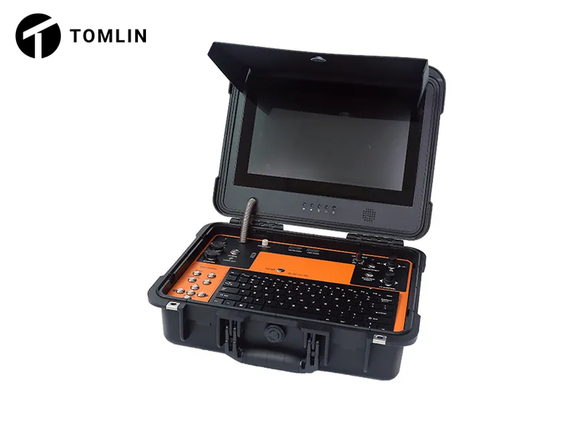

• 13" HD IPS LCD monitor
• 1080P Full HD camera
• MP4 video, photo & audio recording

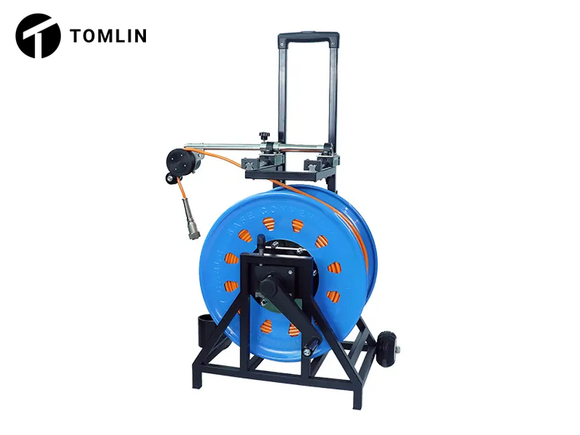

• 150m heavy-duty borehole cable
• Digital on-screen metre counter

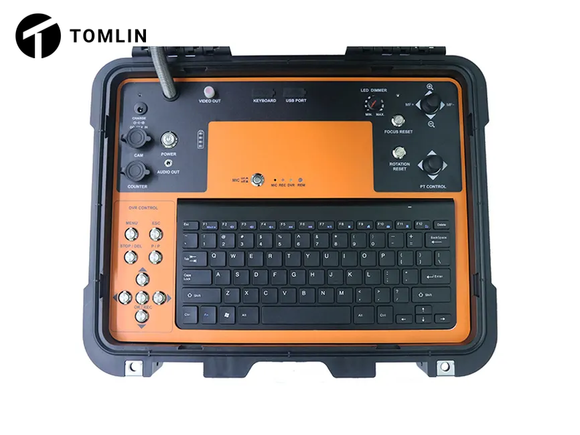

• Wireless USB keyboard
• IP68 waterproof camera (10 Bar)
• Sapphire glass lens window
• Adjustable high-intensity LED lighting
• 7000mAh rechargeable Li-ion battery
• Heavy-duty portable control unit

Technical Specifications

Ideal Applications

• Borehole condition inspections
• Water well inspections
• Pump installation verification
• Bore casing inspections
• Groundwater investigations
• Mining and exploration boreholes
• Geotechnical surveys
• Vertical shaft inspections
