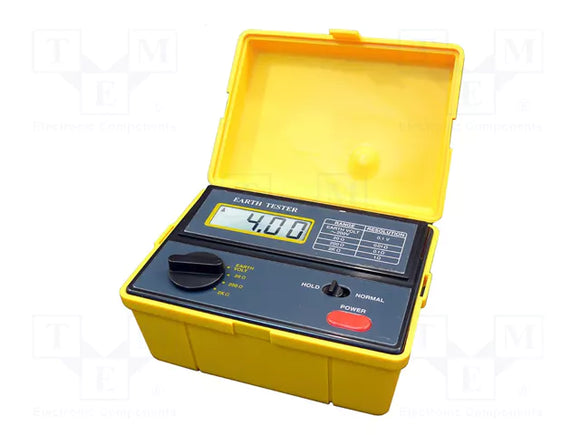

PAT Meter Earth Resistance Tester PCE-ET 3000

$1,630.00

Tax includedShipping calculated at checkout

Tomlin Instruments SKU: PCE-ET-3000

PRODUCT DESCRIPTION:

This PAT Tester is used to measure lightning-arresters or ground connection lightning-arresters for all kind of buildings. earth tester possesses a hermetic case and fulfils all the VDE 0413 safety requirements for the technical service operators.



KEY FEATURES:

- 3 ½ positions LCD display (máx. 1999)
- High accuracy
- Battery indicator / of range superation
- Data Hold
- Safety: IEC-1010-1 y CAT III 300 V
- Very good quality
- Components: checking cables: 15 m of red
  cable, 10 m of yellow cable, 5 m of green
  cable, ground needles, batteries and user
  manual.
- Optional ISO calibration certificate.



Measuring earth resistance

The earth tester is connected with the special ground components introduced on the earth by means of the checking cables. To make accurate measurements with this tester, ground has to be wet, if not ground will be wet. Ground components will be put in a straight line (place the black cable, then the green cable, the yellow one for one ground rod and finally the red cable for the second ground rod). Now everything is ready to connect the earth tester to check the earth connection of your building. This can be also used inside a building to check that water connections with earth work properly. This tester has been developed according to IEC 1010-1 standard and fulfils all the  safety conditions for  control electronic mechanism (CAT III).



SPECIFICATIONS:


Functions Range Resolution Accuracy
Earth resistance 0 ... 19.99/ 0 ... 199/
y 0 ... 1999 Ω		 10/ 100 mΩ / 1 Ω ± 2% + 2 positions
 AC Stress 0 ... 200 V AC
50/60 Hz		 0,1 V ± 3% + 2 positions
Lower measurement limit.   0.01 Ω
Current of measurement 2 mAeff / rms
Response time aprox. 2.5 s
Measuring quota 4 s
Frequency 820 Hz
Overload range in case of overlaoad, „1“ is shown
Power 6 x 1.5 V batteries
Dimensions 160 x 120 x 65 mm
Weight 560 g
Safety IEC- 1010- 1; EN 61010- 1
instalation category: III
EMV EN 50081- 1; EN 50082- 1
corresp. DIN/ VDE 0413 part 7

DELIVERY SCOPE:

1 x PAT Tester PCE-ET 3000
1 x Test cable set (15 m red, 10 m yellow, 5 m green)
1 x Set of earth rods
1 x User manual



DATA SHEET:

https://www.pce-instruments.com/us/api/getartfile?_fnr=2721514&_dsp=inline
