Digital Adhesion Tester PCE-DAT 500-1
Digital Adhesion Tester PCE-DAT 500-2
Digital Adhesion Tester PCE-DAT 500-3

Digital Adhesion Tester PCE-DAT 500

$5,780.00

Tax includedShipping calculated at checkout

PCE SKU: PCE-DAT 500

Description

Adhesion Tester meter with accessories / robust and dust-tight housing / self-aligning measuring head / complies with ISO 4624/16276-1, GB/T 5210 and ASTM D4541/D7234

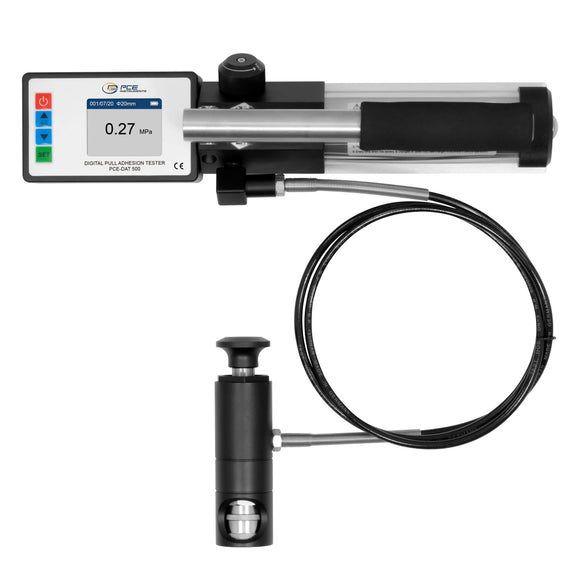

The Adhesion Tester is a portable, hand-operated device that measures the force required to pull a specific test diameter of coating from a substrate using hydraulic force. The measured force is shown on the LCD and represents the adhesion strength of the coating to the substrate. This device is used to evaluate the adhesion (peel strength) of a coating by determining the maximum tensile force it can withstand before it peels off. Breakage points, which appear as cracks along the weakest layer in the system of carrier, adhesive, coating layers and substrate, are visualised by the Adhesion Tester.

Equipped with a hand-operated hydraulic pump, our Adhesion Tester enables precise and repeatable application of the required tensile force. Thanks to a selection of different dolly sizes, the device can be flexibly adapted to different test requirements, making it particularly versatile.

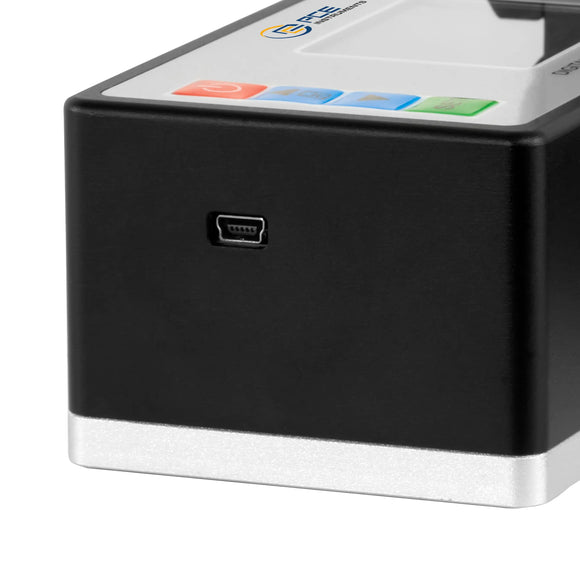

In addition, the Adhesion Tester offers a mini-USB interface for easy transfer of measurement data to external devices. The data can be saved in practical CSV format, which enables easy processing and analysis. You can find some additional as well as replacement measuring heads as well as the right base for your needs in the accessories.


Highlights

- various measuring head sizes selectable
- mini USB port
- memory in CSV file format
- battery operated
- automatic power off

Specification

Pressure
Measurement range up to   0,4 ... 80 MPa
Resolution   0,01 MPa
Accuracy   ±1 % FS

Pressure
Measurement range up to   25 ... 11600 psi
Resolution   1 psi
Accuracy   ±1 % FS

General technical data
Units   MPa, psi
Display type   LCD
Display size   2,36 Inch
Storage medium   Internal memory
Storage capacity   16 MB
Interface   Mini-USB
Standard(s)   GB/T 5210, ASTM D4541/D7234, ISO 4624/16276-1
Automatic power-off from...to   1 ... 10 min.
Menu language   English (GB), English, Chinese
Protection class (device)   IP40
Power supply   100 ... 240 V AC | 50/60 Hz
Connector type   Euro plug
Weight   3,25 kg
Operating conditions   0 ... 50 °C , 10 ... 90 % RH
Storage conditions   0 ... 50 °C , 10 ... 90 % RH
(Rechargeable) battery   1 x 3,7 V 18650 , Lithium-ion battery
Capacity   3400 mAh
Dimensions ( L x W x H )   220 x 140 x 81 mm

Delivery Scope

1 x Adhesion Tester PCE-DAT 500
1 x 20 mm base for measuring heads
20 x 20 mm measuring heads
2 x cutting tool for 20 mm measuring heads
1 x electric cutting tool
1 x two-component adhesive
1 x manual gun for dual cartridges
1 x 5 V / 1 A mains adaptor
1 x USB-C cable
1 x mini USB cable
1 x shoulder strap
1 x sealing set
1 x user manual
1 x carrying case
