Anticorrosion Coating Thickness Gauge – Precision Measurement Tool

The Anticorrosion Coating Thickness Gauge is a portable, high-precision measuring instrument designed for quick, non-destructive coating and paint thickness measurement. Suitable for both laboratory and field applications, this device is widely used in industries such as manufacturing, metal processing, chemical engineering, and quality inspection. It supports multiple measurement needs with interchangeable measuring heads, making it an essential tool for material protection professionals.

Key Features:

✔ Digital Backlit Display – Provides clear, accurate readings with no guesswork.
✔ Dual Measurement Modes – Choose between Single and Continuous measurement.
✔ High Precision & Wide Range – Ensures reliable measurements across various surfaces.
✔ Automatic & Manual Shutdown – Helps conserve battery life.
✔ Data Storage & Statistics – Stores up to 99 groups of measurements for easy reference.
✔ Connectivity Options – Supports USB and Bluetooth data output for PC connection.

Technical Specifications:

📏 Measuring Range: 0–12 mm (customizable range available)
🎯 Resolution: 0.01mm / 0.1mm
📌 Accuracy: ±1~3% or 0.2 mm (whichever is greater)
🌡️ Operating Temperature: 0~50°C
💧 Humidity Resistance: <95% RH
📐 Device Dimensions: 140 × 70 × 30 mm
🔋 Power Supply: 4 × 1.5V AAA UM-4 batteries
⚖ Weight: 130 g (excluding batteries)

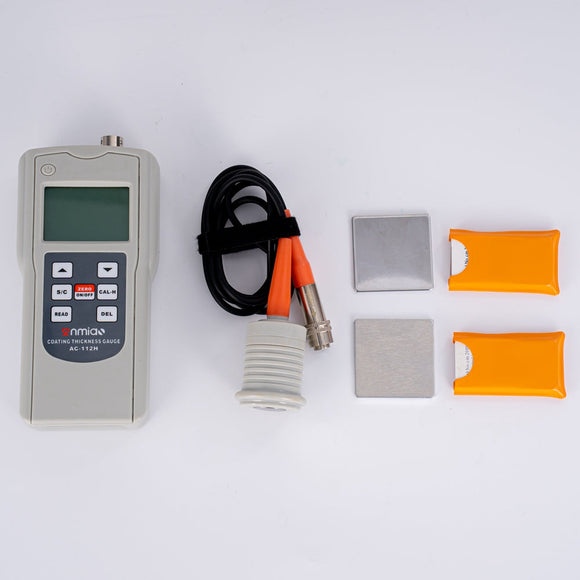

Included Accessories:

✅ Standard Accessories:

• Main Unit (Host)
• Calibration Foils
• Iron Substrate

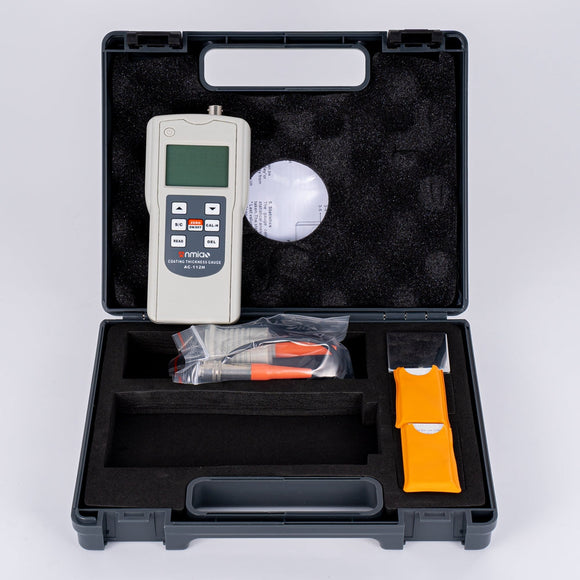

• Carrying Case
• Operation Manual

✅ Optional Accessories:

• USB Data Output Module
• Bluetooth Data Output Module (10m–100m range available)

Customization & Bluetooth Functionality:

Most Amittari instruments can be supplied with Bluetooth data output (except select models). Since Bluetooth functionality is an optional add-on, please specify your preference at the time of purchase. For Bluetooth output, contact customer service for assistance.

Available Purchase Options:

1️⃣ Standard Accessories + USB Data Output
2️⃣ Standard Accessories + Bluetooth Data Output
3️⃣ Bluetooth Accessories Only
