Coating Thickness Gauge 110CS

Product Description:

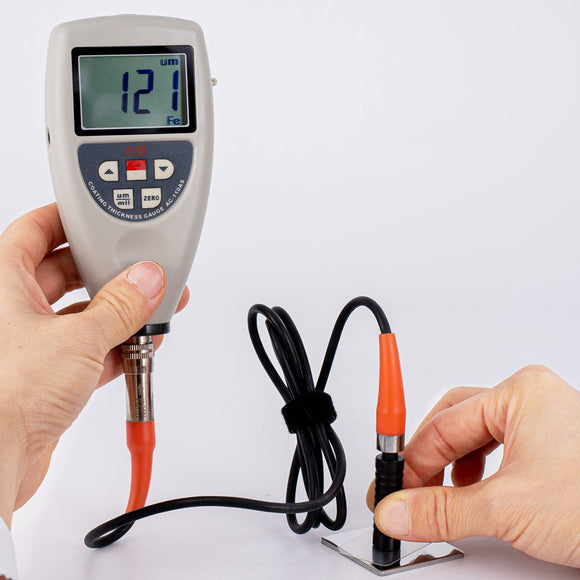

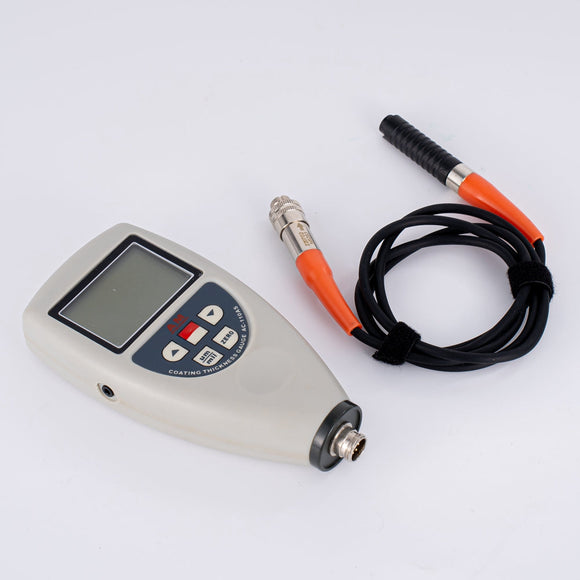

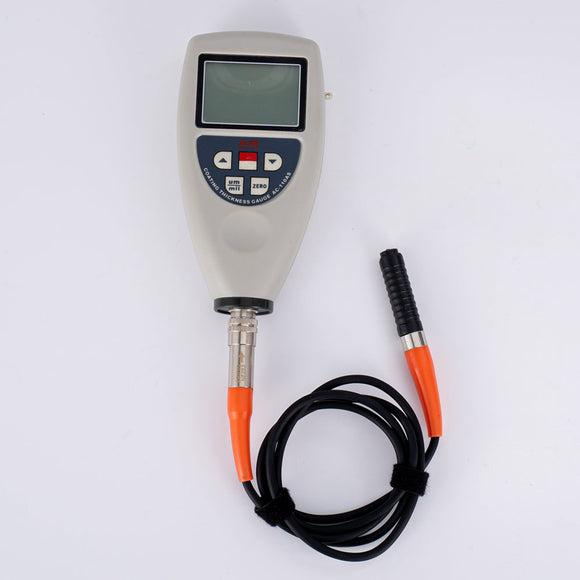

The Basic Type Coating Thickness Gauge AC-110 Series offers two variations: Type C (Integral Type) and Type CS (Separate Type). These gauges are specifically designed for automotive applications and paint layer coating thickness measurements. The Integral Type allows for single-hand operation with its large probe and contact surface, providing enhanced stability and delivering continuous, precise, and repeatable measurements. The Separate Type offers flexibility with multiple probe options, allowing for various measurement requirements. This portable instrument enables quick, non-destructive, and accurate coating thickness measurements, making it suitable for both laboratory and field use. With different measuring heads available, it can cater to a wide range of measurement needs. The gauge finds extensive usage in manufacturing, metal processing, chemical industries, and commodity inspection and testing fields, serving as a professional tool for material protection.

Product Parameters:

• Measuring Range: 0-1250 um, 0-50 mil (other ranges can be specified)
• Resolution: 0.1 um (0-99.9 um), 1 um (over 100 um)
• Accuracy: 1-3%n or 2.5 um or 0.1 mil (whichever is greater)
• Minimum Measurement Area: 6 mm
• Minimal Surface:
  • F Type: convex 1.5 mm / concave 25 mm
  • NF Type: convex 3 mm / concave 50 mm
• Operating Condition: Temperature: 0-50°C, Humidity: <95%
• Size: 120x63x25 mm
• Power Supply: 2x1.5vAAA Um-4 Battery
• Weight: 90 g (excluding batteries)

Product Accessories:

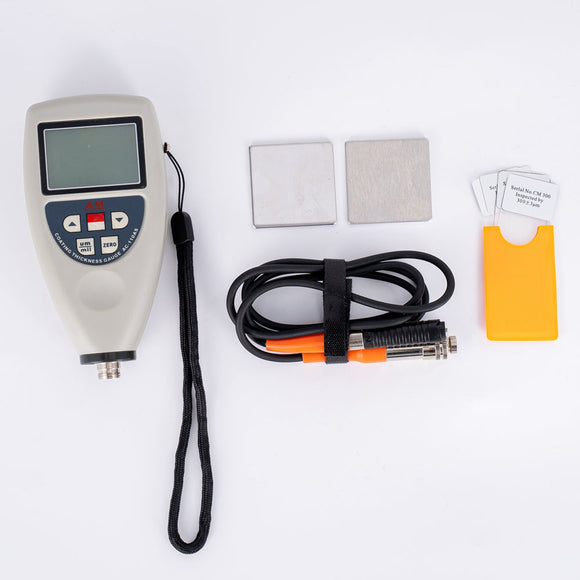

Standard Accessories:

• Main Unit
• Calibration Foils
• Substrate (Iron)
• Substrate (Aluminium)

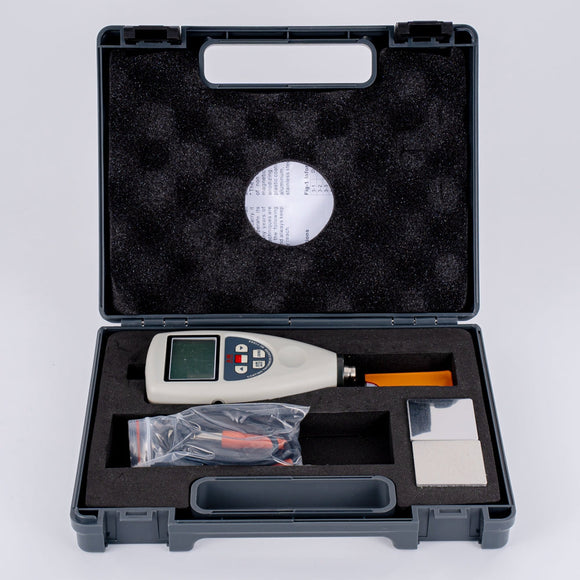

• Carrying Case
• Operation Manual

Optional Accessories:

• USB data output
• Bluetooth data output

Buying Guide:

When selecting the model number of an Amittari instrument, the standard delivery is the default option. If you require additional optional accessories, please inform our customer service team. The following are three basic optional accessory choices:

• Standard Accessories + USB data output
• Standard Accessories + Bluetooth data output
