Scanning UV-Vis Spectrophotometer – Laboratory UV & Visible Analysis System BK-UV1900PC

$4,550.00

Tax includedShipping calculated at checkout

Biobase SKU: BK-UV1900PC-1

Product Description

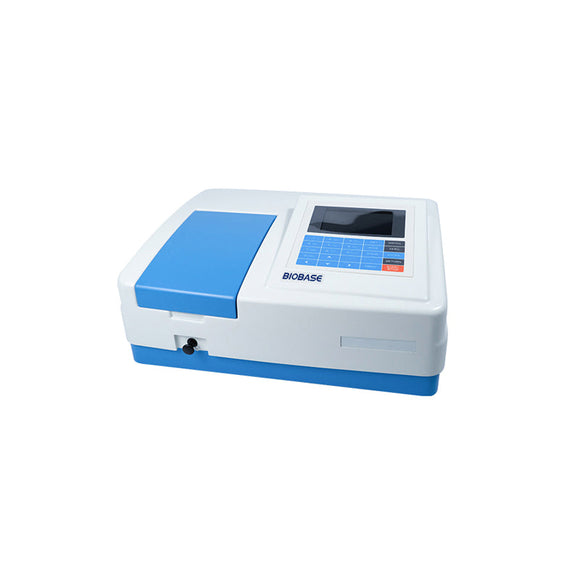

The BIOBASE Scanning UV-Vis Spectrophotometer BK-UV1900, BK-UV1900PC, BK-V1900, and BK-V1900PC are high-precision analytical instruments designed for quantitative and qualitative laboratory analysis. Ideal for research institutions, environmental monitoring, pharmaceuticals, food testing, and chemical laboratories, these systems deliver reliable optical performance with ultra-low stray light and high wavelength accuracy.

Featuring a hermetically sealed optical system with high-grade grating (1200 lines/mm) and SiO₂-coated mirrors, the instrument ensures stable, accurate, and long-term measurement reliability. The integrated GLP self-check function automatically verifies wavelength and photometric accuracy, while intelligent lamp monitoring tracks deuterium and tungsten lamp life in real time.

The PC versions include dedicated scanning software for enhanced data processing and curve analysis.

Factory direct supply with delivery within 7 days.

Key Features

  • Advanced Optical System – Sealed light path with 1200 lines/mm grating for ultra-low stray light

  • SiO₂-Coated Optical Mirror – Minimizes external contamination

  • GLP Self-Check Function – Automatic wavelength and photometric accuracy verification

  • Automatic Calibration – Wavelength setting, dark current calibration, and lamp switching

  • Real-Time Lamp Life Monitoring – Intelligent tracking of deuterium and tungsten lamps

  • Wide Wavelength Range Options – UV and Visible models available

  • Large True-Color TFT LCD Display – 480×272 resolution for clear data visualization

  • USB Data Output & PC Connectivity – Easy printing and data export

  • Multiple Analytical Modes – Photometry, Quantitative, Kinetics, Multi-Wavelength, Scanning, and Biological analysis

Basic Functions

Photometry

Measure Absorbance (A), Transmittance (T), Energy (E), and Concentration (C) at fixed wavelengths.

Quantitative Analysis

  • Linear fit and linear fit through zero

  • Standard curve establishment (coefficient input, standard sample input, standard sample reading)

  • Stores up to 240 curves with 240 data points each

  • Double and triple wavelength test functions

Kinetics

Time-course scanning and reaction rate calculations (△A/t).

Multi-Wavelength

Measure absorbance or transmittance at up to 8 wavelengths simultaneously.

Scanning

Adjustable scan range (190–1100 nm for UV models) to detect maximum absorbance peaks. Supports derivative and arithmetic graph processing.

Biological Methods

Includes 6 built-in methods:

  • DNA/Protein

  • UV

  • Lowry

  • BCA

  • CBB

  • Biuret

Model Comparison

Model BK-UV1900 BK-UV1900PC BK-V1900 BK-V1900PC
Optical System Single Beam, 1200 lines/mm Grating
Wavelength Range 190–1100 nm 190–1100 nm 320–1100 nm 320–1100 nm
Spectral Bandwidth 2 nm
Wavelength Accuracy ±0.5 nm
Wavelength Repeatability ≤0.2 nm
Photometric Accuracy ±0.002A (0–0.5Abs), ±0.004A (0.5–1.0Abs), ±0.5%T
Photometric Repeatability 0.001Abs / 0.002Abs / ≤0.2%T
Stray Light ≤0.04%T@360nm;220nm ≤0.04%T@360nm
Stability ±0.001A/h @500nm
Baseline Flatness ±0.002A
Noise 0.0005Abs @500nm
Display 480×272 TFT LCD
Detector Silicon Photodiode
Light Source Deuterium Lamp & Tungsten Lamp (UV models) / Tungsten Lamp (Visible models)
Output USB & PC Connection
Power Supply AC85–265V, 50/60Hz
Package Size 620×500×370 mm
Gross Weight 18 kg 18 kg 16.5 kg 16.5 kg

Standard Accessories

UV Models:

  • 4 × 1cm Glass Cuvettes

  • 2 × 1cm Quartz Cuvettes

  • 1 × Quadruple Cuvette Holder

  • Scanning Software (PC versions only)

Visible Models:

  • 4 × 1cm Glass Cuvettes

  • 1 × Quadruple Cuvette Holder

  • Scanning Software (PC versions only)

Optional Accessories

  • Standard single-slot cuvette holder

  • Long optical path cuvette holder

  • Micro cuvette

  • Solid sample holder

  • Constant temperature absorption pools

  • Reflection accessories

  • Printer

  • General application or scanning software (non-PC models)

Downloads

Data Sheet Link
