Digital Color Meter (Paint & Coating)

Product Description:

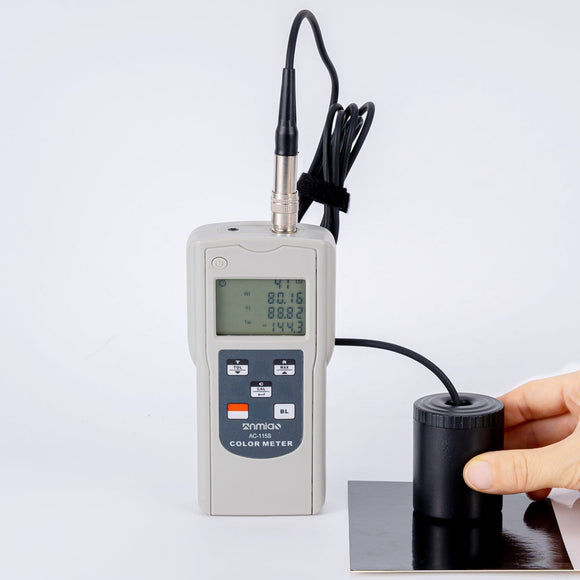

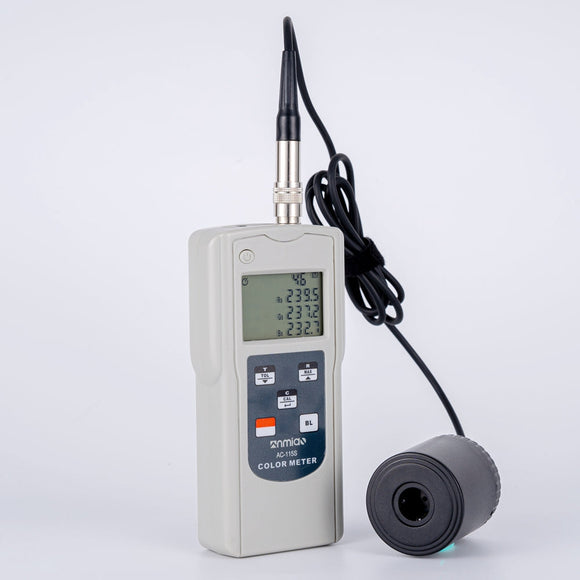

The AMITTARI Color Meter AC-115S is an extremely compact and easy-to-use tristimulus color meter designed for measuring color differences between two colors. It is specifically designed for measuring the color of non-illuminated and non-fluorescent samples such as textiles, paper, leather, and painting materials. This meter is a useful tool for quality control and various industrial applications.

Product Features:

• The meter's measuring head needs to directly touch the color sample without any distance.
• Displays color differences as ?(L*, a*, b*), ?(Eab, Cab, H*ab), ?(Y, x, y), ?(X, Y, Z), ?(Rs, Gs, Bs), or ?(WI, YI, Tw).
• Displays color spaces as (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs), or (WI, YI, Tw).
• Statistical function includes Maximum, Minimum, Average, and Standard Deviation.
• Color difference tolerance can be set to determine PASS/WARN/FAIL results.
• Stores 9 color-difference target colors.
• User calibration function ensures higher accuracy.
• Auto memory for up to 99 sets of data.
• Digital backlight display for clear visibility.
• Auto power-off function to conserve battery life.

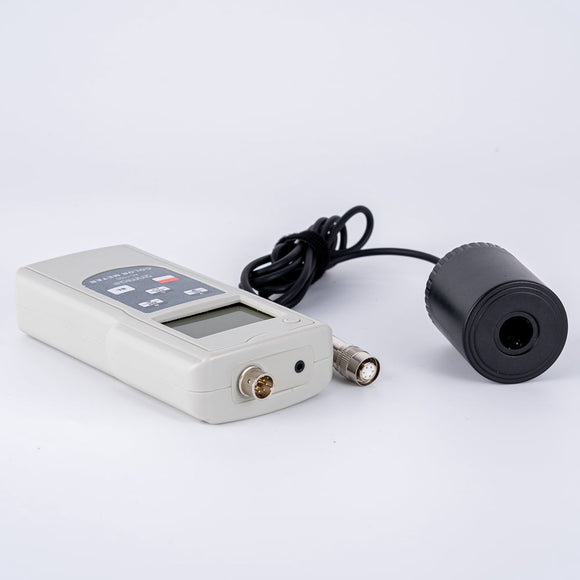

• Supports USB data output and RS-232 data output for connection to a PC.

Product Parameters:

• Display: Triple 4-digit LCD Display
• Auto power-off: Approx. 3 minutes
• Data memory capacity: 99 sets (Direct reading from LCD display)
• Low battery indication
• Temperature:
• Operating: 0-40°C (32-104°F)
• Storage: -10-40°C (14-104°F)
• Humidity:
• Operating: <85% RH
• Storage: <70% RH

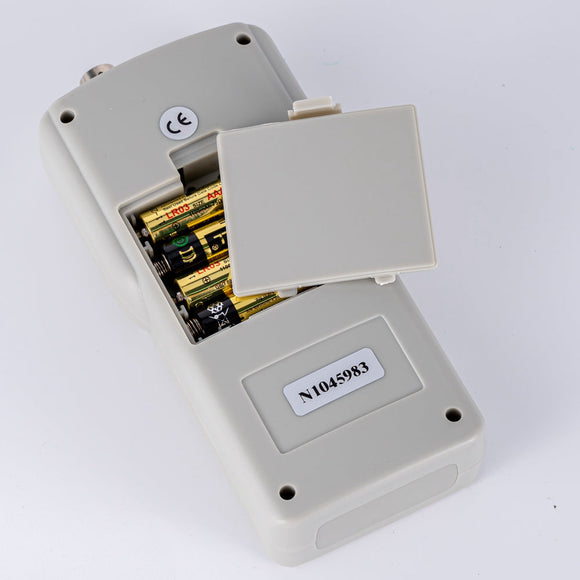

• Power source: 4x1.5 AAA (UM-4) Battery
• Dimensions:
• Main unit: 140x70x31mm
• Sensor: ?44x55mm
• Weight: 205g (excluding battery)
• Illuminating/Viewing geometry: 45°/0° (Illumination at 45°, measurement at 0°)
• Illuminant: White LED lamp
• Measuring area: Approx. ?10mm
• Display modes: Color difference (?(L*, a*, b*), ?(Eab, Cab, H*ab), ?(Y, x, y), ?
