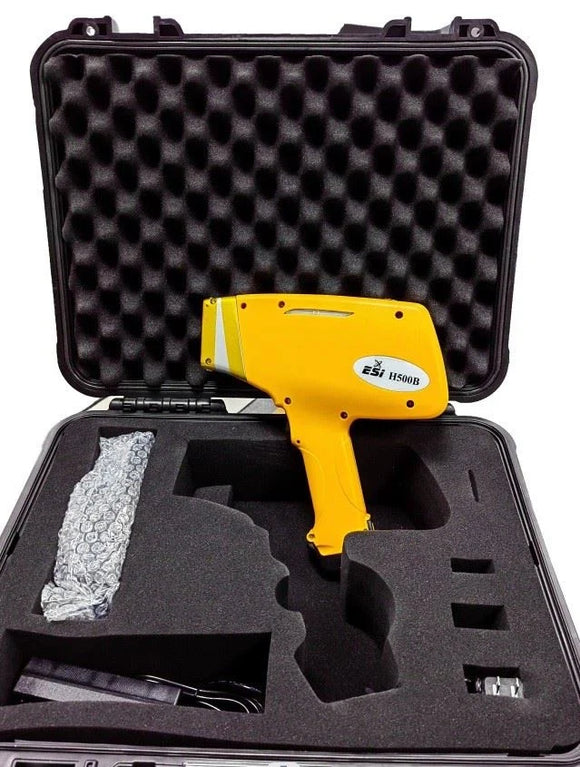

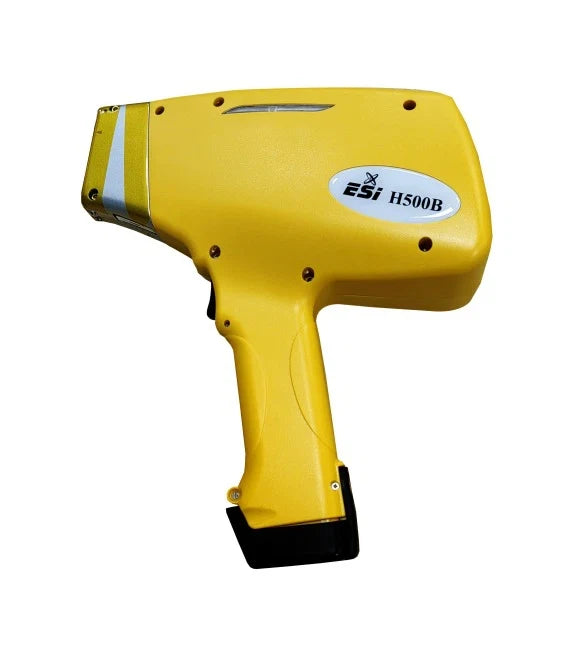

Handheld XRF Spectrometer H500B

Handheld XRF H500B

Product Name: EDXRF: Energy Dispersive X-Ray Fluorescence Spectrometer

Model: H500B

Configurations

• Large area beryllium-window silicon drift detector (SDD)
• X-ray tube and high/low voltage power supply
• AMP and digital multi-channel system
• Power and control system
• Embedded PDA
• PDA version of dedicated XRF analytical software
• 110V/220V universal adapter
• 1× 7800mAh li-ion battery, 1× 2600mAh li-ion battery, 1× li-ion battery charger
• Anti-shock, anti-pressure and waterproof carrying case with lock

Technical Data

• Analysis method: ED-XRF
• Detector: 25mm², 0.3mil, SDD
• Excitation source: 50KV/200uA miniature integrated X-ray tube
• Measurement time: 3-30 seconds
• Sample type: Solid, liquid, powder
• Detection limits: Down to ppm level
• Concentration range: 1ppm?99.99%
• Ambient humidity: ?90%
• Ambient temperature: -20??+50?

Specifications

• Detector: SDD, 25 mm², 0.3mil, resolution <135eV
• Software: Brand new FP and EC software
• Power Consumption: DC9V
• Power Source: Rechargeable li-ion battery, 7800mAh, 4-6 hours running; 110V/220V wide-voltage universal adapter for AC power
• Charger: DC charger: car charger; AC charger: 110/220V, 50/60HZ
• Safety: With auto-sensing feature, the instrument will not work if there is no sample in place. When working, the maximum radiation is <2.5?Sv/hr.
• Warnings: The green light indicates the analyzer is on, while the blinking red light indicates the X-rays are on.
• Package: Vacuum carrying case with lock, high compressive strength, waterproof

Application

Suitable for Mining and Mineral Analysis

Accessories

• Power cable and adapter
• 2 batteries
• Battery seat charge
• USB cable
• 1 standard sample
• Sample cup for powder and liquid sample
• Test membrane

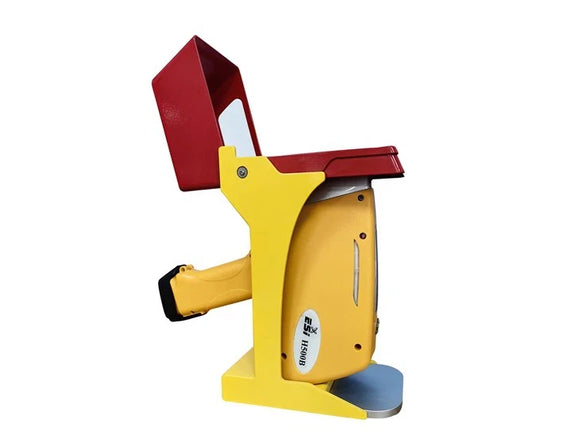

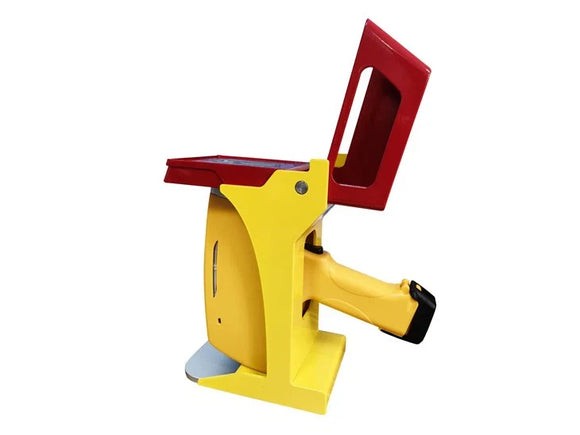

• ESI Handheld stand – Stationary base (optional)

Necessary Technical Documents Enclosed

• Operation Manual
• A List of the Parts
• Inspection Report
• CE certificate
• Data and software CD
• Warranty certificate
