Reflectance Meter ARM-216

TOMLIN Reflectance Meter / Hiding Power Meter (Model ARM-216)

Description

The TOMLIN Reflectance Meter is a high-precision instrument designed to comply with international coating industry standards. It adheres to ISO3906-1980 (E), ISO3905, ISO2814, and national standards GB/T13452.3-92, GB9270-88, GB5211.17-88, ensuring accurate measurement and reliability. This meter is ideal for measuring the transparency of coatings, grease, films, plastics, and organic products. It is also highly effective for assessing the reflectivity of solid surfaces, such as 3D movie screens.

Applications

The TOMLIN Reflectance Meter is widely used in the following industries:

• Coatings, Pigments, and Inks
• Plastics
• Printing and Dyeing
• Leather
• Film Screening

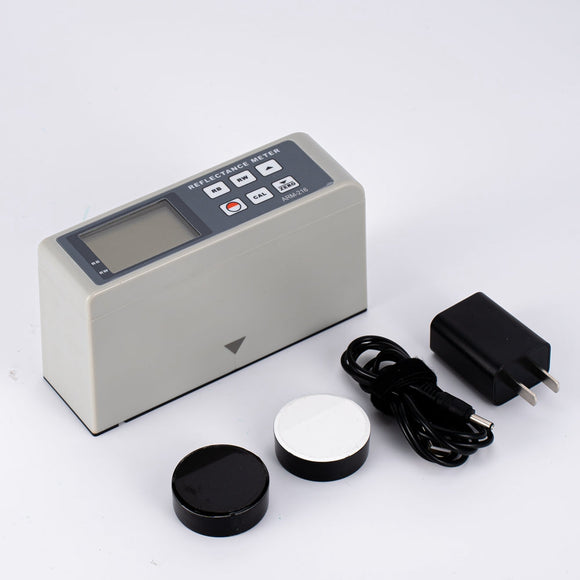

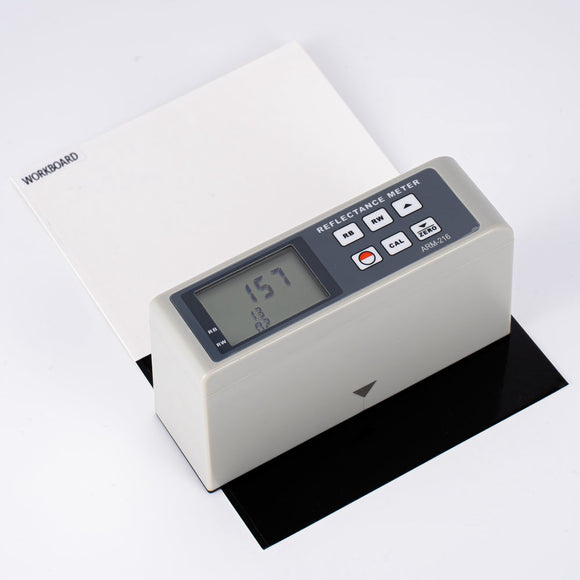

The instrument's design includes a main unit, a standard board, and a testing board. It operates by analyzing light reflected from a sample surface, amplifying the electrical signal for display.

Features

• Lithium-Ion Rechargeable Battery: Ensures extended operation with convenient charging.

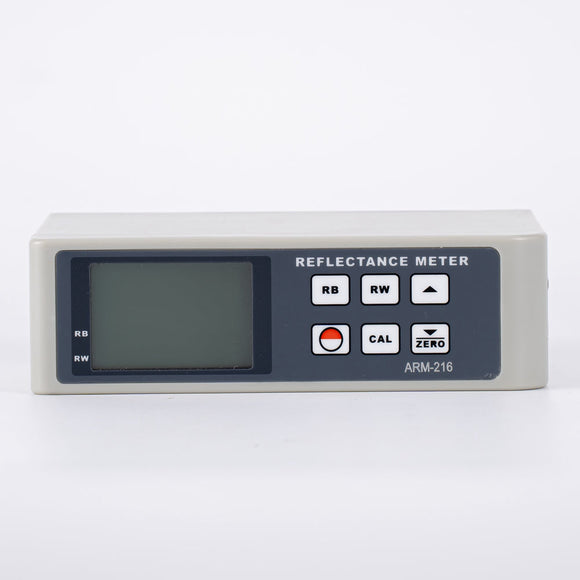

• Backlight Display: Provides clear visibility of measurement readings.
• Buzzer Sound Reminder: Notifies users audibly when measurements are complete.
• Low Battery Indicator: Alerts users when the battery is running low.
• Computer Connection: Enables seamless data transfer and analysis via PC.
