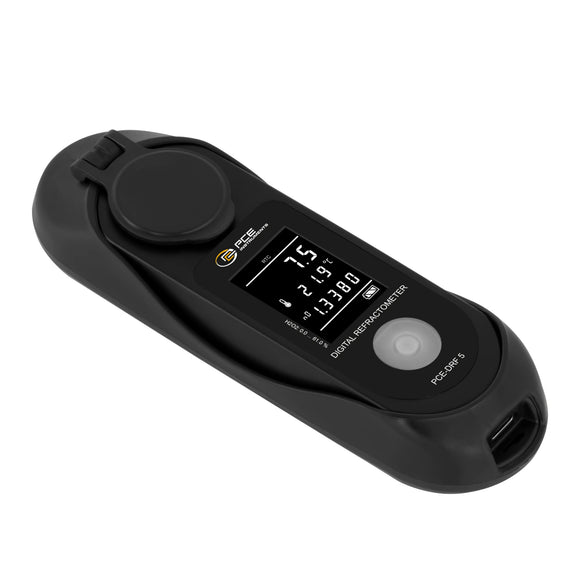

Refractometer PCE-DRF 5

Name: Refractometer PCE-DRF 5
Brand: PCE
SKU: PCE-DRF-5
Price: 1000.00 NZD
Availability: InStock

$1,000.00 Save $-1,000

Tax includedShipping calculated at checkout

PCE SKU: PCE-DRF-5 Barcode: 4250348732767

Description

Water Analyser for determinining hydrogen peroxide / measurement in Brix and per cent / measurement range 1.3330 ... 1.4650 nD / 0 ... 61 % / ABS housing with protection class IP65

Our Water Analyser determines the percentage of hydrogen peroxide in water with a measurement range of 0 to 61 %. The measurement result and the temperature of the sample are shown in two lines on the LCD display of the Water Analyser. Our Water Analyser can measure various parameters such as percentage and refractive index quickly and accurately with just four to five drops of the sample. The Water Analyser has a wide range of applications: it is used in medicine, in the food industry, in pharmaceutical technology or biology to decontaminate or sterilise any surface.

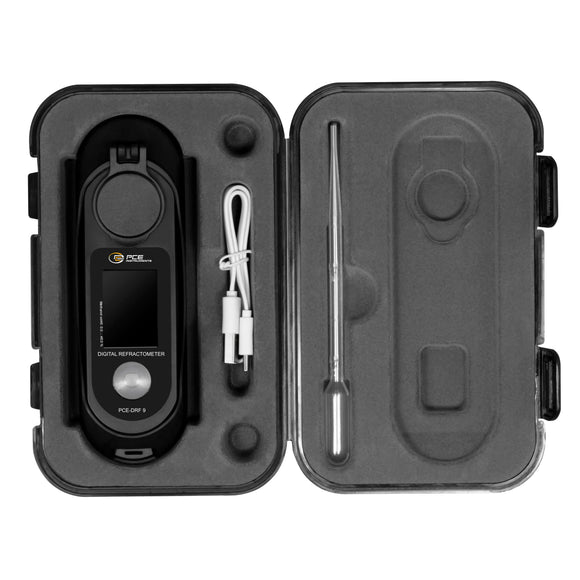

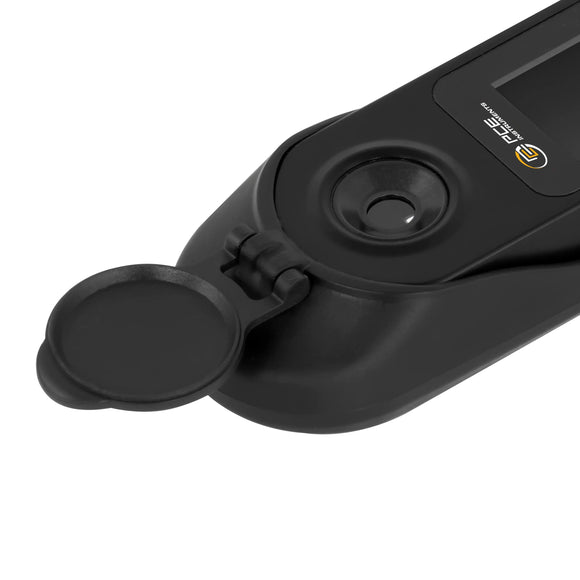

The funnel-shaped stainless steel ring protects the glass prism from damage, into which the liquid sample to be measured is placed. The internal light source enables measurement under poor lighting conditions. Our Water Analyser is supplied in a rugged plastic case with pipette and charging cable.

Highlights

- quick and accurate measurement in approx. 1 s

- large LC display (measured value and temperature)

- easy to use (1-key operation)

- small sample volume

- simple calibration with distilled water

- automatic temperature compensation

- stainless steel sample holder with glass prism

- automatic power-off after 1 min of inactivity

Specification

Refractive index
Measurement range up to	1,333 ... 1,465 nD
Resolution	0,0001 nD
Accuracy	±0,0003 nD

Hydrogen peroxide
Measurement range up to	0 ... 61 %
Resolution	0,1 %
Accuracy	±0.2 %

Temperature
Measurement range up to	0 ... 40 °C
Resolution	0,1 °C
Accuracy	±0.5 °C

General technical data
Temperature compensation	automatic 10 ... 40 °C
Display type	LCD
Measuring rate	1 Hz
Automatic power-off	1 min
Sample quantity	0,2 ... 0.3 ml
Menu language	English, English (GB)
Protection class (device)	IP65
Power supply	5V DC, 500mA
Weight	115 g
Operating conditions	0 ... 50 °C , 0 ... 95 % RH
Storage conditions	0 ... 50 °C , 0 ... 95 % RH
Capacity	500 mAh
Dimensions ( L x W x H )	145 x 46 x 27 mm
