Environmental meter PCE-VDL 16I
With up to 800 Hz / Temperature, Humidity, Air pressure, Vibration, and Light
With up to 800 Hz / Temperature, Humidity, Air pressure, Vibration, and Light
The environmental meters of the PCE-VDL series are available in two versions. The environmental meter PCE-VDL 16I contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration. The max. sampling rate of the acceleration sensor is 800 Hz, the remaining sensors are sampled with max. 1 Hz.
The shock and vibration logger is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.
Highlights
- 3-axis Acceleration up to 800 Hz
- For temperature, humidity, air pressure and light

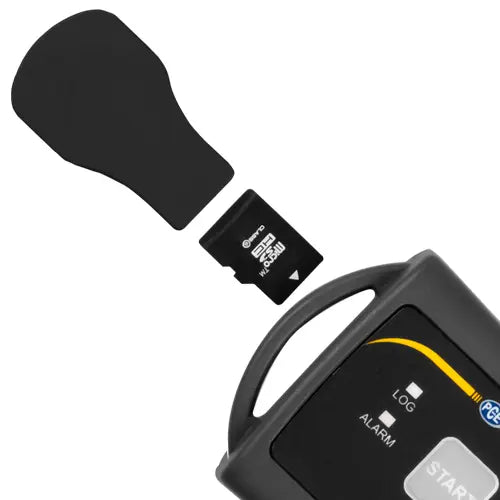

- 32 GB SD memory card
- Small design: 86.8 x 44.1 x 22.2 mm / 3.4 x 1.7 x 0.87 in
- Made in Germany
Specification
| Temperature | |
| Measuring range | -20 … 65°C / -4 ... 149°F |
| Accuracy | ± 0.2°C / ± 0.36°F |
| Resolution | 0.01°C / 0.018°F |
| Max. Sampling rate | 1 Hz |
| Humidity | |
| Measuring range | 0 … 100% r.H. |
| Accuracy | ± 1.8% r.H. |
| Resolution | 0.04% r.H. |
| Max. Sampling rate | 1 Hz |
| Air pressure | |
| Measuring range | 10 … 2000 mbar |
| Accuracy | ±2 mbar (750 … 1100 mbar); otherwise ± 4 mbar |
| Resolution | 0.02 mbar |
| Max. Sampling rate | 1 Hz |
| Light | |
| Measuring range | 0.045 … 188,000 Lux |
| Resolution | 0.045 Lux |
| Max. Sampling rate | 1 Hz |
| 3 Axes Acceleration | |
| Measuring range | ± 16 g |
| Accuracy | 0.24 g |
| Resolution | 0.00390625 g |
| Max. Sampling rate | 800 Hz |
Delivery Scope
1x Environmental meter PCE-VDL 16I

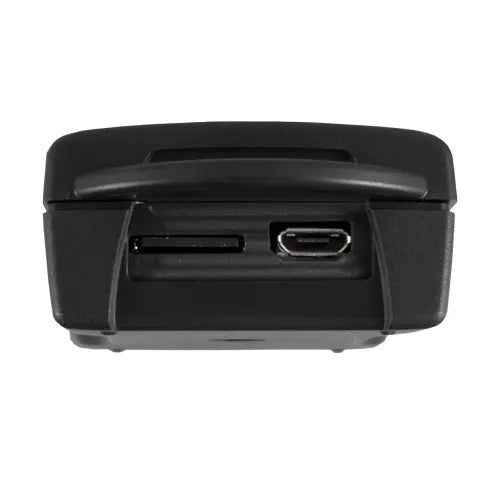

1x Data cable USB – USB Micro
1x 32 GB SD memory card
1x SD card ejector tool
1x USB pen drive with PC software and user manual
1x Data cable USB – USB Micro
1x 32 GB SD memory card
1x SD card ejector tool
1x USB pen drive with PC software and user manual
