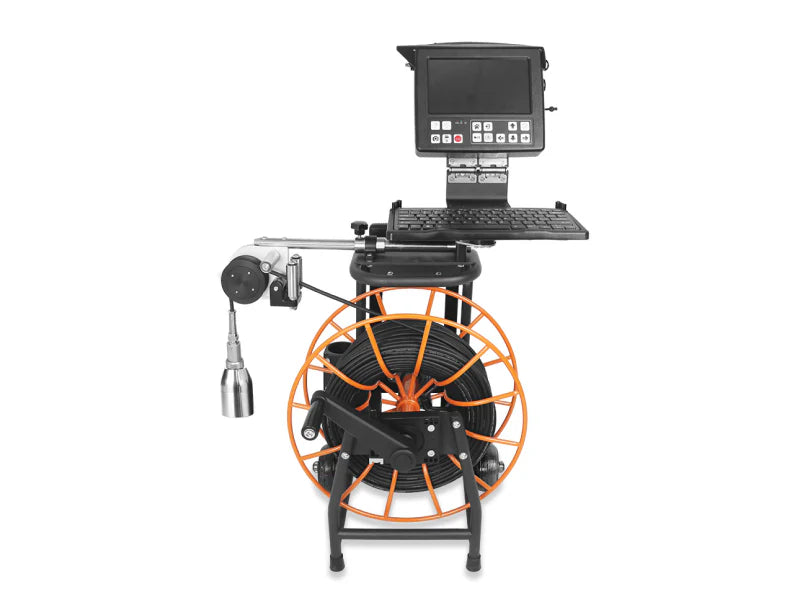

Borehole Inspection Camera Down View 100m – TC-V8-100
Borehole Inspection Camera Down View 100m – TC-V8-100
Couldn't load pickup availability
Product Description
The Tomlin TC-V8-100 is a professional down-view borehole inspection camera engineered for inspecting water wells, boreholes, vertical shafts and underground infrastructure. Designed with a rugged 55mm AHD waterproof camera head, the system delivers clear high-definition live video for evaluating borehole condition, casing integrity, water levels and obstructions.

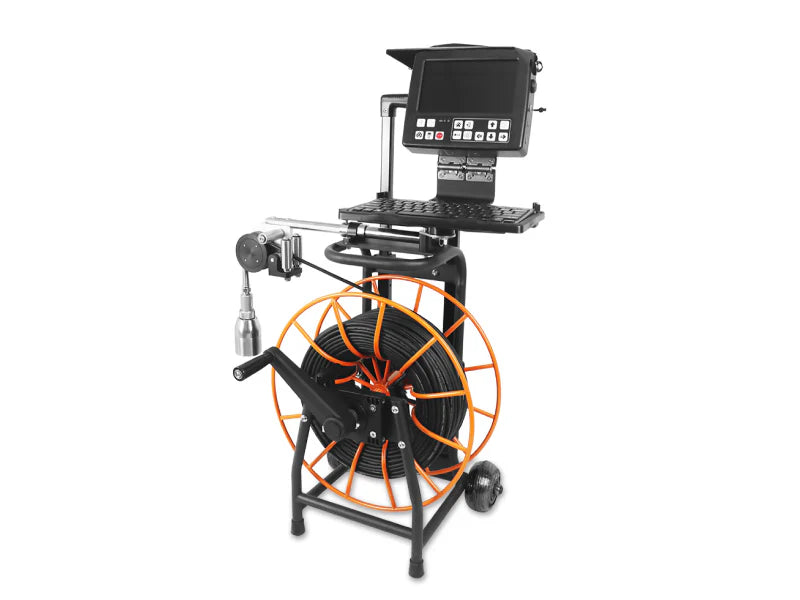

Featuring an 8-inch HD IPS DVR control unit, 100m flexible inspection cable with digital depth counter, HD video recording, image capture and audio recording, the TC-V8-100 provides contractors and water authorities with a reliable inspection solution for routine maintenance and detailed borehole assessments.
Built with a stainless steel camera housing, sapphire glass lens and adjustable high-intensity LED illumination, the TC-V8-100 is designed to perform reliably in demanding underground environments.
Features
- 55mm HD AHD down-view camera head
- Designed for boreholes, wells and vertical shafts
- 100m flexible oxygen-free copper inspection cable
- 8" HD IPS LCD monitor
- HD video recording (AVI format)
- Still image capture
- Audio recording
- Digital depth counter
- USB wireless keyboard for inspection notes
- 32GB USB storage included
- Adjustable high-intensity LED lighting
- Stainless steel camera housing
- Sapphire glass lens window
- IP68 waterproof camera head
- 6800mAh rechargeable Li-ion battery
- Detachable aviation connector
Specifications

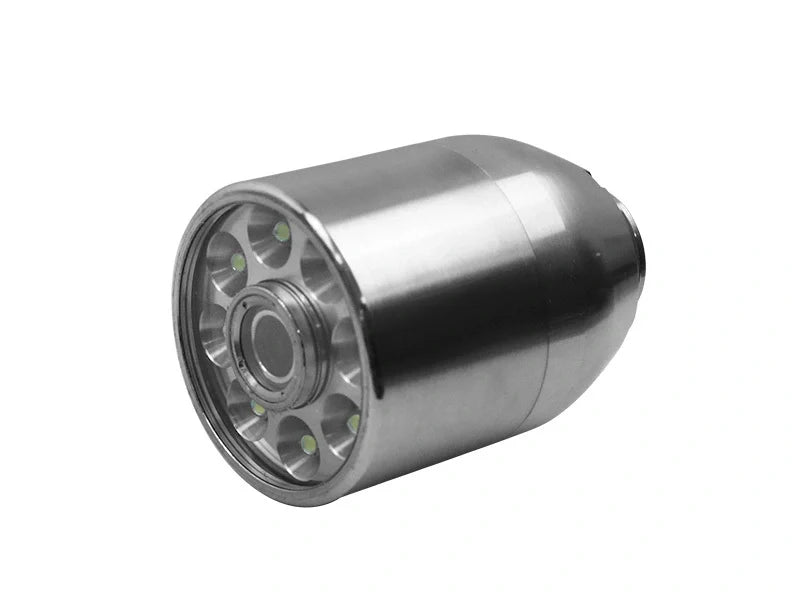

Camera Head
| Specification | Details |
|---|---|
| Camera Head Diameter | 55mm |
| Camera Length | 75mm |
| Camera Type | Down View AHD Camera |
| Camera Sensor | 1/3" CMOS, 1.3MP |
| Camera Resolution | HD 720P |
| Viewing Angle | 120° |
| Waterproof Rating | IP68 |
| Camera Housing | Stainless Steel |
| Lens Window | Sapphire Glass |
| LED Lighting | 8 × Adjustable High-Intensity LEDs |
| Camera Connection | Detachable Aviation Connector |
Display & Recording
| Specification | Details |
|---|---|
| Display | 8" HD IPS LCD |
| Screen Resolution | 1920 × 1080 |
| Video Recording | AVI |
| Photo Capture | Yes |
| Audio Recording | Yes |
| Storage | 32GB USB Flash Drive |
| Wireless Keyboard | USB |
| Digital Depth Counter | Yes |
| Waterproof Control Panel | Yes |
| Battery Indicator | Yes |

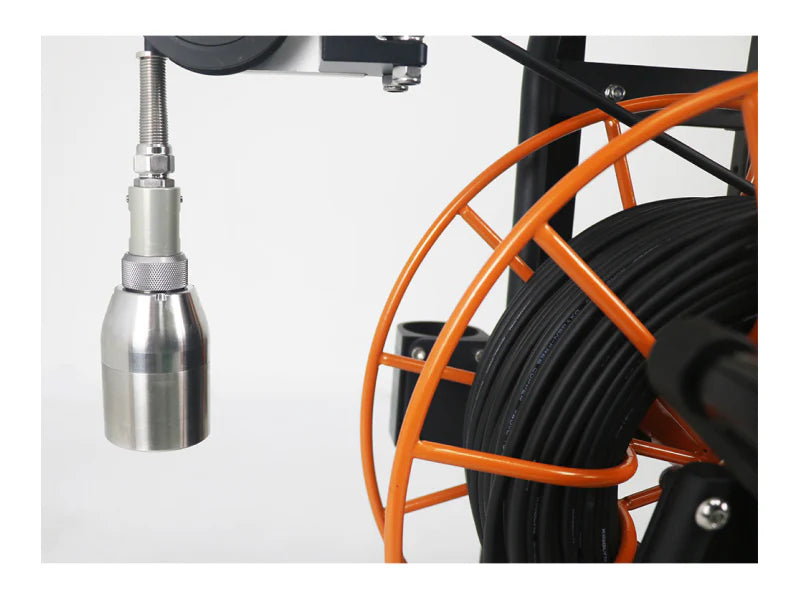

Cable & Reel
| Specification | Details |
|---|---|
| Cable Material | Oxygen-Free Copper Flexible Cable |
| Cable Diameter | 6.8mm |
| Standard Cable Length | 100m |
| Optional Cable Lengths | 50m–200m |
| Reel Type | Manual Cable Reel |
| Reel Dimensions | 400 × 350 × 600mm |
| Digital Depth Counter | Yes |
Power
| Specification | Details |
|---|---|
| Battery | 6800mAh Rechargeable Li-ion |
| Operating Voltage | 12V DC |
| Operating Time | Approx. 5–6 Hours |
General
| Specification | Details |
|---|---|
| Tomlin Model | TC-V8-100 |
| Camera Type | 55mm HD Down View Borehole Camera |
| Inspection Depth | 100m |
| Suitable Applications | Boreholes, Water Wells & Vertical Shafts |
| Waterproof Rating | IP68 Camera Head |
Help Me Choose
| Camera Head Type | Tomlin Model | Cable Length | Reel Type |
|---|---|---|---|
| Down View AHD | TC-V8-100 | 100m | Manual |
| Pan & Tilt | TC-V8-3288PTN-2 | 100–200m | Manual |
| Dual View Rotating | TC-V8-BCS | 100–200m | Manual |
| Pan & Tilt | TC-V13-50PTS | 100–200m | Manual |
| Dual View Rotating | TC-V13-BCSA | 200–500m | Electric |
| Dual View Rotating | TC-SWP-200 | 100–1000m | Manual / Electric / Automatic |
| Dual View Rotating | TC-V13-BCS | 100–300m | Manual |
| Pan & Tilt | TC-V13-50PTE | 100–200m | Electric |
| Dual View Rotating | TC-V13-45E | 100–200m | Electric |
| Feature | Down View | Rotating | Pan & Tilt | Dual View |
|---|---|---|---|---|
| Down View Inspection | ✓ | ✓ | ✓ | ✓ |
| Side Wall Inspection | ✗ | ✓ | ✓ | ✓ |
| Continuous 360° Rotation | ✗ | ✓ | ✓ | ✓ |
| 180° Tilt | ✗ | ✗ | ✓ | ✗ |
| Simultaneous Down + Side View | ✗ | ✗ | ✗ | ✓ |
| Manual Reel Available | ✓ | ✓ | ✓ | ✓ |
| Electric Winch Available | ✗ | ✗ | ✓ | ✓ |
