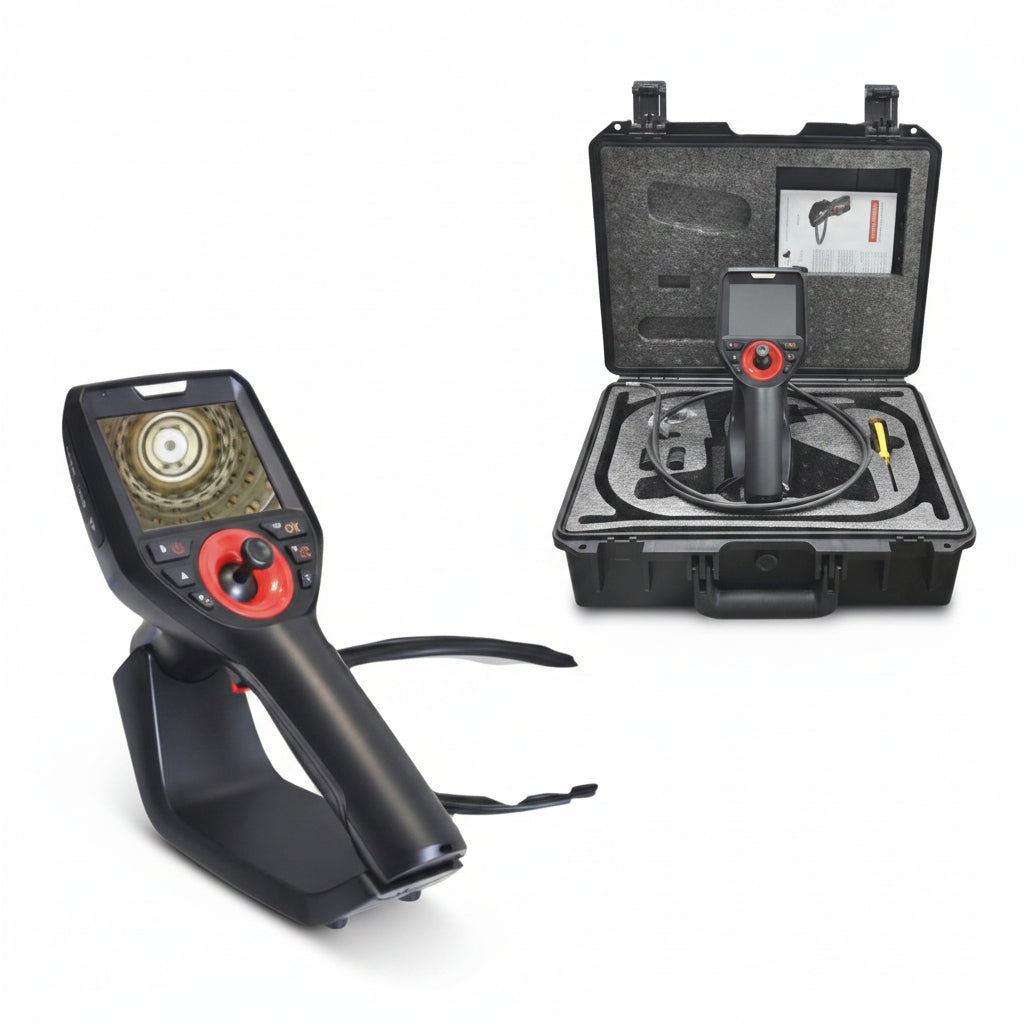

10m Endoscope Articulating 360° Industrial Videoscope Forward & Side View Inspection Camera V40-D

Description

The V40-D Industrial Videoscope is a premium dual-lens articulating borescope engineered for advanced industrial inspection and precision diagnostics. Equipped with integrated forward-view and side-view cameras, the V40-D enables comprehensive internal inspection without repositioning the probe, making it ideal for pipelines, engines, weld inspections, turbines, and industrial equipment diagnostics.

The system features a 3.5-inch HD display, 360° all-way articulation, and a rugged 10m insertion tube with IP67 waterproof protection. The dual-camera design significantly improves inspection efficiency by allowing operators to inspect sidewalls, joints, cracks, and hidden surfaces with greater accuracy.

With high-definition image capture, video recording, HDMI output, and powerful LED illumination, the V40-D is built for professionals requiring reliable visual inspection in demanding environments.

Features

• Integrated forward-view and side-view dual camera system
• 360° all-way articulating probe with mechanical joystick
• 2MP HD industrial inspection camera
• 3.5-inch HD display
• 10m industrial-grade insertion tube
• 7-level LED brightness adjustment
• Real-time image and video recording
• HDMI video output support
• IP67 waterproof probe
• IP55 protected host unit
• Compact handheld industrial design
• High-visibility inspection in confined spaces

Specifications

Host System

• Display: 3.5-inch non-touch LCD
• Display Resolution: 640 × 480
• Video Output: HDMI
• Storage: 8GB TF card
• Battery Type: 18650 rechargeable lithium battery
• Operating Time: Approx. 4 hours
• Host Protection Rating: IP55

Probe System

• Probe Diameter: 6.2mm
• Camera Resolution: 2,000,000 pixels
• Camera Type: Forward-view + side-view dual camera
• Field of View: 100°
• Articulation: 360° all-way articulation
• Bending Angle: 90°
• Forward Camera DOF: 15mm – infinite
• Side Camera DOF: 15mm – infinite
• Tube Length: 10m
• Brightness Adjustment: 7 levels
• Probe Protection: IP67 waterproof

Delivery Scope

• V40-D Industrial Videoscope
• 10m Dual Lens Articulating Probe
• Rechargeable 18650 Battery
• Battery Charger
• 8GB TF Memory Card
• USB Reader
• Carry Case
• User Manual

Industries Used In

• Industrial Pipeline Inspection
• Automotive Diagnostics
• Aerospace Maintenance
• Power Plant Inspection
• Manufacturing Facilities
• Weld Inspection
• Turbine Inspection
• Mechanical Engineering
• Utilities & Infrastructure
• Preventive Maintenance

Downloads

Data Sheet - Click Here
