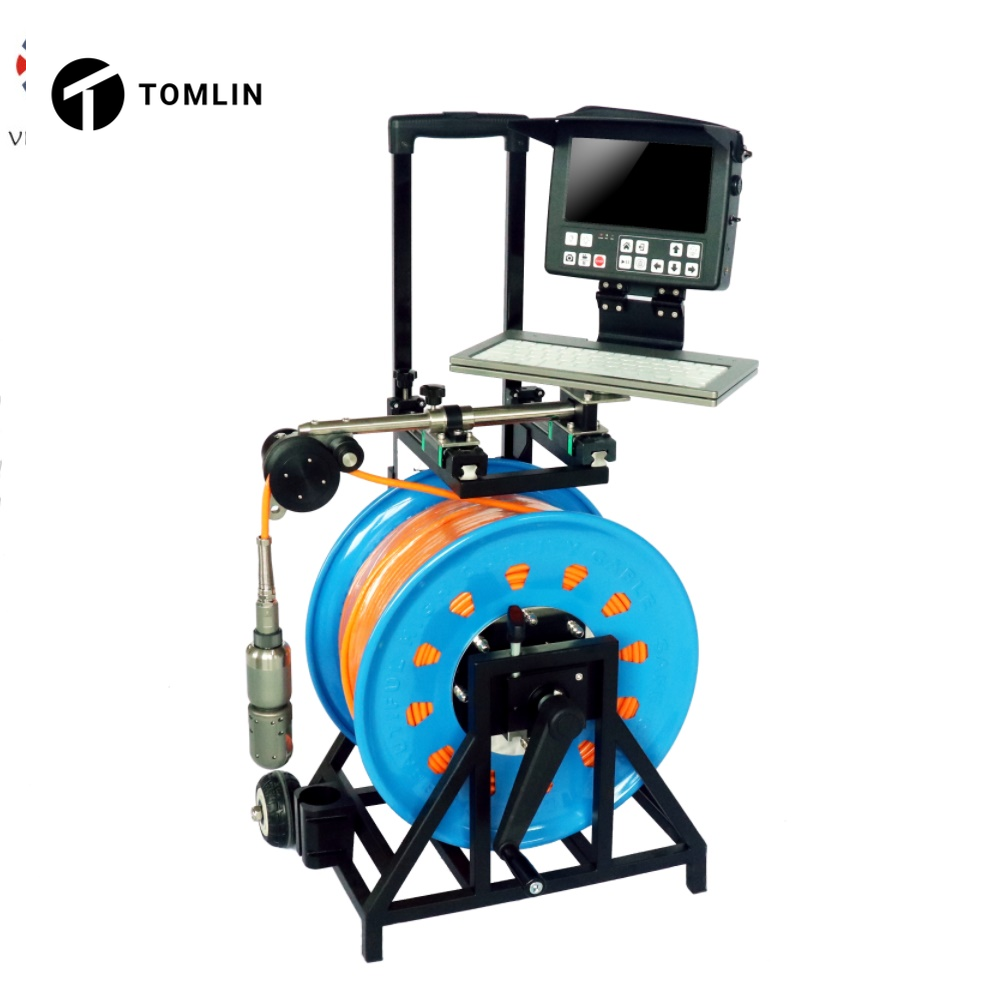

Borehole Inspection Camera Pan & Tilt 150m – TC-V8-3288PTN-2
Borehole Inspection Camera Pan & Tilt 150m – TC-V8-3288PTN-2
Couldn't load pickup availability
Product Description
The Tomlin TC-V8-3288PTN-2 is a professional pan tilt borehole inspection camera designed for inspecting deep water bores, wells, shafts and vertical cavities up to 200 metres.
Featuring a 50mm Full HD Pan & Tilt camera head, 8-inch HD IPS LCD monitor, 200m heavy-duty cable reel and integrated 512Hz sonde, the system delivers outstanding image quality together with full 360° rotation and 180° tilt, allowing operators to inspect borehole walls, casing condition, joints and obstructions from every angle.
Its portable control unit, digital metre counter and DVR recording make the TC-BH-08-200PT an ideal solution for drilling contractors, pump installers, councils and groundwater inspection professionals.
Key Features
- 50mm HD Pan & Tilt camera head
- 360° continuous pan rotation
- 180° tilt control
- 200m heavy-duty cable reel
- Built-in 512Hz sonde
- 8" HD IPS LCD monitor
- 1080P Full HD camera
- MP4 video, photo & audio recording
- Digital metre counter
- Wireless USB keyboard
- Sapphire glass lens window
- IP68 waterproof camera (10 Bar)
- 7000mAh rechargeable Li-ion battery
- Interchangeable Tomlin camera inputs
Technical Specifications
| Specification | Details |
|---|---|
| Model | TC-V8-3288PTN-2 |
| Camera Type | HD Pan & Tilt |
| Camera Head Diameter | 50mm |
| Camera Length | 154mm |
| Image Sensor | 1/3" CMOS, 2.0MP |
| Camera Resolution | 1080P Full HD |
| Pan Rotation | 360° Continuous |
| Tilt Rotation | 180° |
| Viewing Angle | 120° |
| Waterproof Rating | IP68 (10 Bar) |
| Lens Window | Sapphire Glass |
| Camera Housing | Aluminium & Stainless Steel |
| LED Illumination | 6 Adjustable High-Intensity LEDs |
| Sonde | Integrated 512Hz |
| Display | 8" HD IPS LCD |
| Screen Resolution | 1280 × 720 |
| Video Recording | MP4 |
| Photo Capture | Yes |
| Audio Recording | Yes |
| Storage | USB Flash Drive |
| Wireless Keyboard | Included |
| Digital Metre Counter | Yes |
| Battery | 7000mAh Rechargeable Li-ion |
| Operating Time | Up to 6 Hours |
| Cable Type | Oxygen-Free Copper |
| Cable Diameter | 8mm |
| Cable Length | 200m |
| Reel Type | Heavy-Duty Manual Reel |
| Camera Inputs | CAM1 / CAM2-PT / Video In |
| Suitable Borehole Diameter | 100mm+ |
| Application | Professional Borehole & Well Inspection |
Ideal Applications
- Borehole inspections
- Water well inspections
- Pump installation verification
- Bore casing inspections
- Groundwater investigations
- Mining shafts
- Vertical duct inspections
- Geotechnical investigations
Help Me Choose
| Camera Head Type | Tomlin Model | Cable Length | Reel Type |
|---|---|---|---|
| Down View AHD | TC-V8-100 | 100m | Manual |
| Pan & Tilt | TC-V8-3288PTN-2 | 100–200m | Manual |
| Dual View Rotating | TC-V8-BCS | 100–200m | Manual |
| Pan & Tilt | TC-V13-50PTS | 100–200m | Manual |
| Dual View Rotating | TC-V13-BCSA | 200–500m | Electric |
| Dual View Rotating | TC-SWP-200 | 100–1000m | Manual / Electric / Automatic |
| Dual View Rotating | TC-V13-BCS | 100–300m | Manual |
| Pan & Tilt | TC-V13-50PTE | 100–200m | Electric |
| Dual View Rotating | TC-V13-45E | 100–200m | Electric |
| Feature | Down View | Rotating | Pan & Tilt | Dual View |
|---|---|---|---|---|
| Down View Inspection | ✓ | ✓ | ✓ | ✓ |
| Side Wall Inspection | ✗ | ✓ | ✓ | ✓ |
| Continuous 360° Rotation | ✗ | ✓ | ✓ | ✓ |
| 180° Tilt | ✗ | ✗ | ✓ | ✗ |
| Simultaneous Down + Side View | ✗ | ✗ | ✗ | ✓ |
| Manual Reel Available | ✓ | ✓ | ✓ | ✓ |
| Electric Winch Available | ✗ | ✗ | ✓ | ✓ |
