Borehole Inspection Camera Pan & Tilt 100-200m – TC-V13-50PTS
Borehole Inspection Camera Pan & Tilt 100-200m – TC-V13-50PTS
Couldn't load pickup availability
Product Description
The Tomlin TC-V13-50PTS is a professional rotating borehole inspection camera designed for inspecting deep water bores, wells, shafts and vertical cavities up to 150 metres.
Featuring a 55mm HD rotating camera head, 13-inch HD IPS LCD monitor, 150m heavy-duty cable reel and integrated 512Hz sonde, the system delivers clear high-definition images while allowing operators to rotate the camera through 360° for complete inspection of borehole casings, joints, fractures and structural defects.
Its rugged field-ready design, digital metre counter, DVR recording and wireless keyboard make the TC-BH-13-150R an ideal solution for drilling contractors, pump installers, councils and groundwater professionals.
Key Features

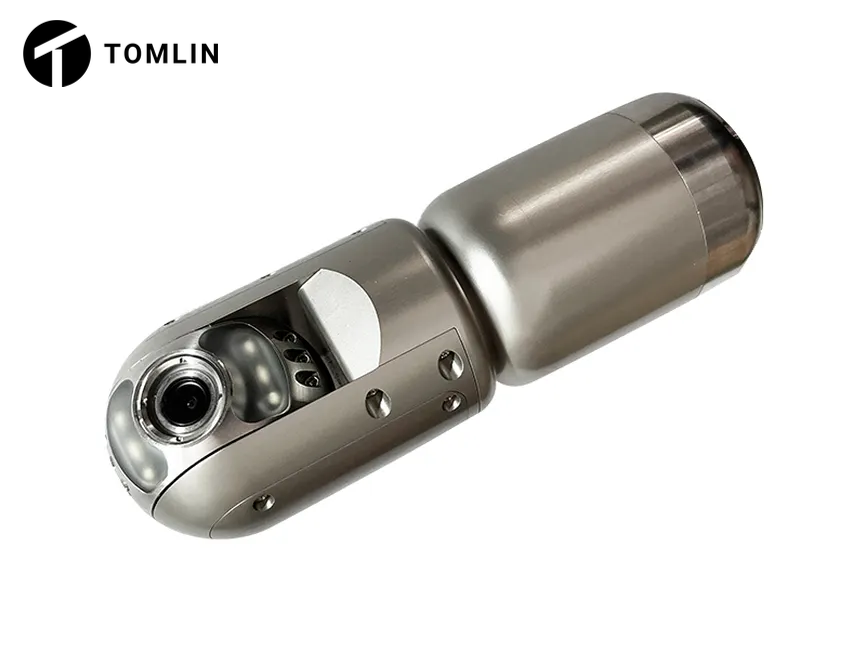

- 55mm HD rotating camera head
- 360° continuous camera rotation
- Built-in 512Hz sonde transmitter
- 13" HD IPS LCD monitor
- 1080P Full HD camera
- MP4 video, photo & audio recording
- 150m heavy-duty borehole cable
- Digital on-screen metre counter
- Wireless USB keyboard
- IP68 waterproof camera (10 Bar)
- Sapphire glass lens window
- Adjustable high-intensity LED lighting
- 7000mAh rechargeable Li-ion battery

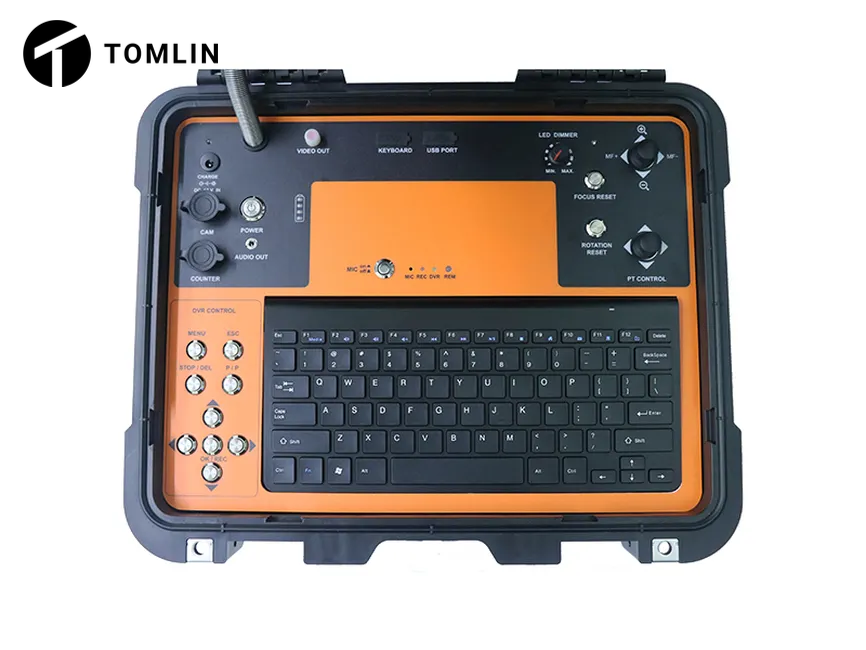

- Heavy-duty portable control unit
Technical Specifications
| Specification | Details |
|---|---|
| Model | TC-V13-50PTS |
| Camera Type | HD Rotating Borehole Camera |
| Camera Head Diameter | 55mm |
| Camera Rotation | 360° Continuous |
| Image Sensor | 1/3" CMOS, 2.0MP |
| Camera Resolution | 1080P Full HD |
| Viewing Angle | 120° |
| Waterproof Rating | IP68 (10 Bar / 100m) |
| Lens Window | Sapphire Glass |
| Camera Housing | Aluminium & Stainless Steel |
| LED Illumination | 6 Adjustable High-Intensity LEDs |
| Sonde | Integrated 512Hz |
| Display | 13" HD IPS LCD |
| Screen Resolution | 1280 × 720 |
| Video Recording | MP4 |
| Photo Capture | Yes |
| Audio Recording | Yes |
| Storage | USB Flash Drive |
| Wireless Keyboard | Included |
| Digital Metre Counter | Yes |
| Image Zoom | 4× Digital |
| Battery | 7000mAh Rechargeable Li-ion |
| Operating Time | Up to 6 Hours |
| Cable Type | Flexible Borehole Cable |
| Cable Diameter | 8mm |
| Cable Length | 150m |

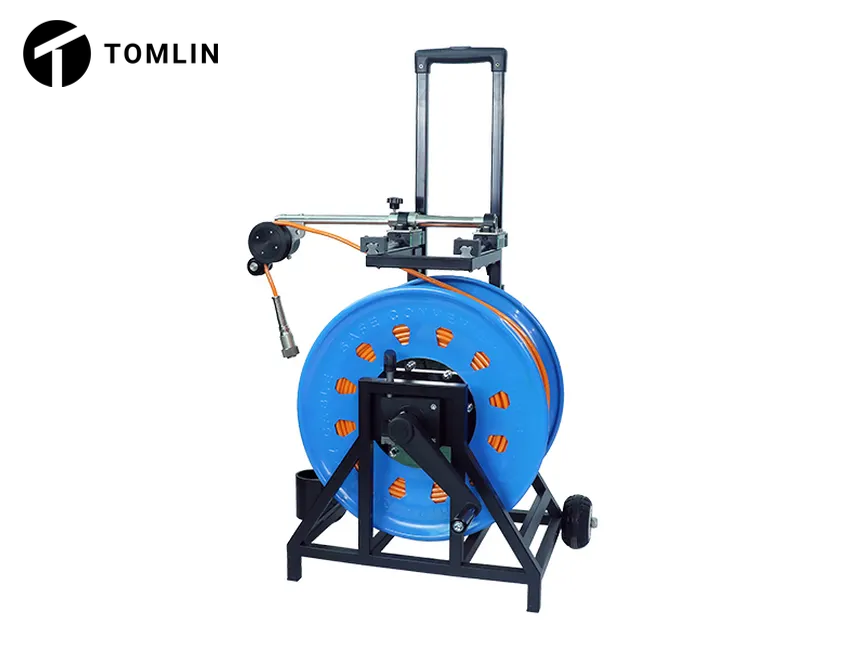

| Reel Type | Heavy-Duty Manual Reel |
| Camera Connection | Detachable Pin Type |
| Suitable Borehole Diameter | 100mm+ |
| Application | Professional Borehole & Well Inspection |
Ideal Applications
- Borehole condition inspections
- Water well inspections
- Pump installation verification
- Bore casing inspections
- Groundwater investigations
- Mining and exploration boreholes
- Geotechnical surveys
- Vertical shaft inspections
Help Me Choose
| Camera Head Type | Tomlin Model | Cable Length | Reel Type |
|---|---|---|---|
| Down View AHD | TC-V8-100 | 100m | Manual |
| Pan & Tilt | TC-V8-3288PTN-2 | 100–200m | Manual |
| Dual View Rotating | TC-V8-BCS | 100–200m | Manual |
| Pan & Tilt | TC-V13-50PTS | 100–200m | Manual |
| Dual View Rotating | TC-V13-BCSA | 200–500m | Electric |
| Dual View Rotating | TC-SWP-200 | 100–1000m | Manual / Electric / Automatic |
| Dual View Rotating | TC-V13-BCS | 100–300m | Manual |
| Pan & Tilt | TC-V13-50PTE | 100–200m | Electric |
| Dual View Rotating | TC-V13-45E | 100–200m | Electric |
| Feature | Down View | Rotating | Pan & Tilt | Dual View |
|---|---|---|---|---|
| Down View Inspection | ✓ | ✓ | ✓ | ✓ |
| Side Wall Inspection | ✗ | ✓ | ✓ | ✓ |
| Continuous 360° Rotation | ✗ | ✓ | ✓ | ✓ |
| 180° Tilt | ✗ | ✗ | ✓ | ✗ |
| Simultaneous Down + Side View | ✗ | ✗ | ✗ | ✓ |
| Manual Reel Available | ✓ | ✓ | ✓ | ✓ |
| Electric Winch Available | ✗ | ✗ | ✓ | ✓ |
