Product Description

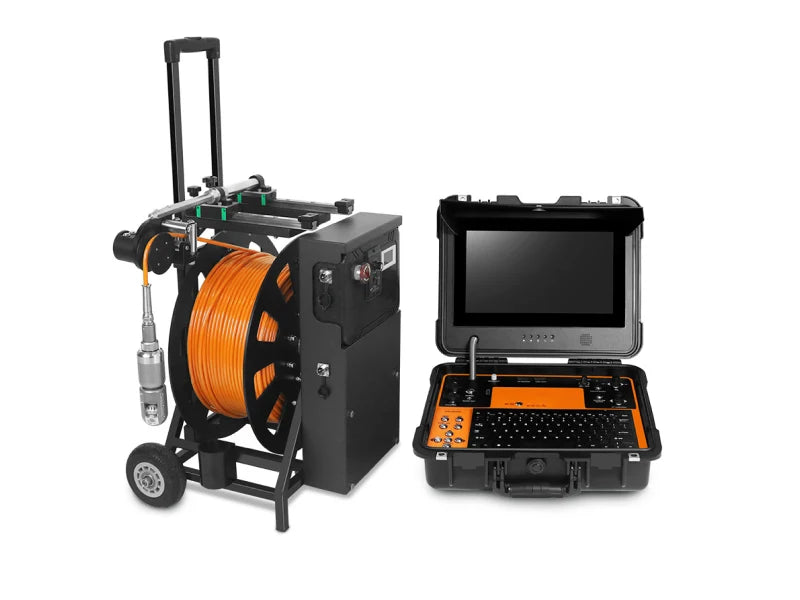

The Tomlin TC-V13-50PTE is a professional pan & tilt borehole inspection camera engineered for detailed inspections of deep boreholes, water wells, vertical shafts and underwater structures. Featuring a robust 50mm HD pan & tilt camera head, 13-inch HD IPS DVR control unit, and 200m electrically powered cable reel, it delivers exceptional image quality and precise camera positioning in demanding inspection environments.

The 360° continuous pan and 180° tilt functions allow operators to inspect the entire borehole casing, joints, fractures and sidewalls without repositioning the camera. Combined with adjustable manual focus, integrated LED lighting and an electric winch with variable speed control, the TC-BH-13-200PT provides complete inspection coverage while reducing operator effort.

Designed for professional contractors, drilling companies, municipal authorities and environmental specialists, the system combines rugged construction, advanced recording capabilities and reliable performance for accurate borehole inspections.

Key Features

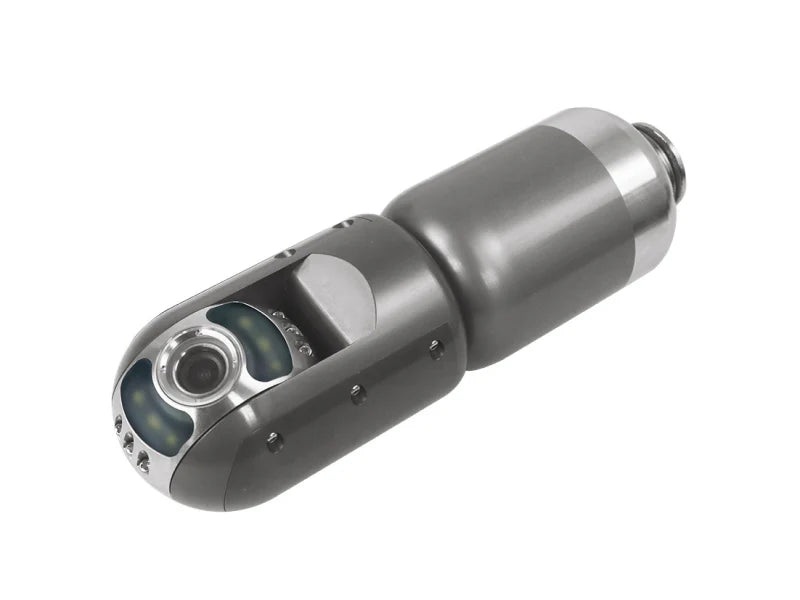

• 50mm HD Pan & Tilt camera head
• Continuous 360° pan and 180° tilt rotation
• Suitable for boreholes, wells and vertical shafts

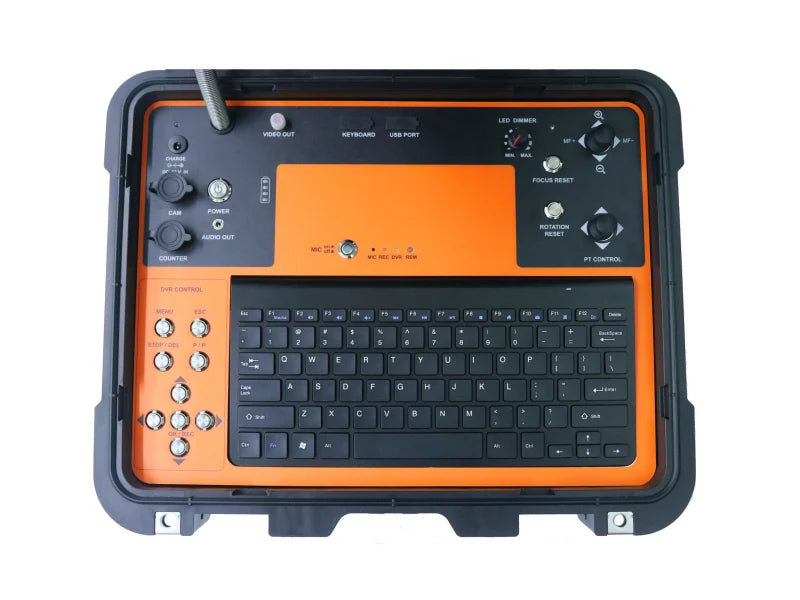

• 13" HD IPS LCD monitor
• Full HD video, photo and audio recording
• Adjustable manual focus
• 6 high-intensity adjustable LED lights
• Built-in DVR recording system
• Digital metre counter

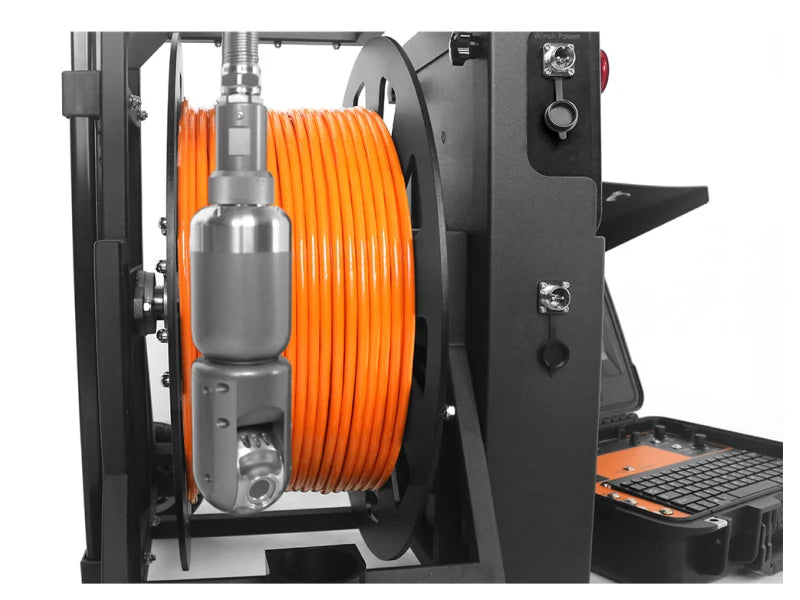

• Electric powered winch with adjustable winding speed
• 200m oxygen-free copper inspection cable
• USB wireless keyboard
• 8800mAh rechargeable Li-ion battery
• IP68 waterproof stainless steel camera head
• Detachable aviation connector

Technical Specifications

Camera Head

Display & Recording

Cable & Winch

Power

General

Ideal Applications

• Borehole inspections
• Deep water well inspections
• Groundwater investigations
• Water supply infrastructure
• Vertical shaft inspections
• Underground utility inspections
• Municipal infrastructure maintenance
• Environmental monitoring
• Dam and reservoir inspections
• Marine and underwater inspections

Typical Users

• Borehole drilling contractors
• Water well service companies
• Municipal water authorities
• Environmental consultants
• Civil engineering contractors
• Mining operations
• Utility maintenance teams
• Infrastructure inspection companies

Benefits

Complete Borehole Visibility

The pan & tilt camera allows full inspection of borehole walls, joints and casing without rotating the cable.

Precision Camera Control

Adjustable pan, tilt and manual focus enable accurate inspection of defects, fractures and corrosion.

Electric Powered Operation

The variable-speed electric winch makes deploying and retrieving up to 200 metres of cable faster and easier.

Professional Documentation

Record Full HD video, photographs and audio for reporting, asset management and maintenance records.

Built for Demanding Environments

The IP68-rated stainless steel camera head is designed to withstand harsh underwater and borehole conditions.

What's Included

• Tomlin TC-V13-50PTE Borehole Inspection Camera
• 50mm HD Pan & Tilt Camera Head
• 13" HD IPS DVR Control Unit
• 200m Electric Cable Reel
• 8800mAh Rechargeable Battery
• USB Wireless Keyboard
• AC Power Adapter
• Protective Camera Skids
• User Manual

Optional Accessories

• Replacement battery
• Spare camera head
• Additional camera skids
• Carry case
• Cleaning kit
• Replacement cable assemblies
