2D 2.5D 3D Manual Semi-Automatic Vision Measuring Machine High precision VMS Series
2D 2.5D 3D Manual Semi-Automatic Vision Measuring Machine High precision VMS Series
Couldn't load pickup availability

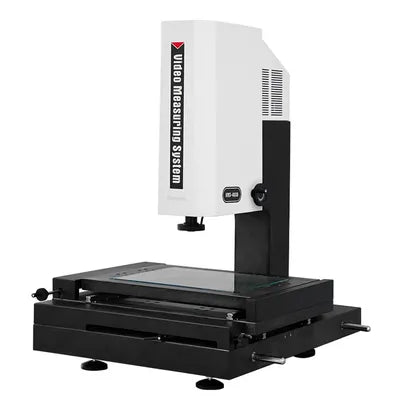

Video Measuring System VMS-4030 Series
Product Characteristic:
● Adopt granite stone base and column to ensure the stability and precision of the machine;
● Adopt toothless polished rod and fast-moving locking device to ensure that the return error of the table is within 2um;
● Adopt high-precision instrument optical ruler and precision worktable to ensure the accuracy of the machine is within ≤3.0+L/200um;
● Adopt zoom lens and high-resolution color digital camera to ensure clear picture quality without distortion;
● Using the program-controlled surface 4-ring 8-area LED cold illumination and Contour LED Parallel Illumination as well as a built-in intelligent light adjustment module, the area brightness of the light in the 4-ring 8-area can be freely controlled;
● iMeasuring Vision measurement software improves quality control to a new level;
● Optional contact probe and three-dimensional measurement software can be used to upgrade the machine to a contact three-dimensional measuring machine.
● It can be upgraded to install an autofocus function module to achieve accurate semi-automatic measurement.
Technical Specifications:
| Commodity | Manual Video Measuring System VMS Series |
| Model | VMS-4030 |
| Marble Workbench | (605*450)mm |
| Glass Workbench | (456*348)mm |
| X/Y axis Travel | (400*300)mm |
| Z axis travel | High-precision linear guide, effective travel 200mm |
| X/Y/Z aixs resolution | 0.5um |
| Pedestal and Uprights | High Precision Granite |
| Measurement Accuracy* | XY axis: ≤3.0+L/200(um)；Zais:≤5+L/200(um) |
| Repart Accuracy | 2um |
| Illumination System(Software Adjustment) | Surface 4 rings and 8 zones infinitely adjustable LED cold Illumination |
| Contour LED Parallel Illumination | |
| Optional Coaxial Light | |
| Digital Camera | 1/3"/1.3Mpixel High Resolution Digital Camera |
| Zoom Lens | 6.5X High-Resolution Zoom lens; |
| Optical Magnification: 0.7X~4.5X times; Video Magnification: 26X~172X(21.5” Monitor) | |
| Measuring Software | iMeasuring |
| Operation System | Support WIN 10/11-32/64 Operating System |
| Language | English, Simplified Chinese, Traditional Chinese, Optional other language versions |
| Working Environment | Temperature 20℃±2℃, temperature change <1℃/Hr; Humidity 30%~80%RH; Vibration <0.02g's, ≤15Hz. |
| Power Supply | AC220V/50Hz; 110V/60Hz |
| Dimension(WxDxH) | (908*776*1070)mm |
| Net Weight | 283Kg |
Product Configuration Model Description (Example with VMS-4030)
| Product Category | Manual Video Measuring System | Semi-auto Video Measuring System | |||
| Sensor Configuration | 2D | 2.5D | 3D | 2.5D | 3D |
| Commodity |
2D Video Measuring System |
2.5D Video Measuring System |
3D Contact & Video Measuring System |
2.5D SemiautomaticVideo Measuring System |
3D Semiautomatic Contact & Video Measuring System |
| Model | VMS-4030 | VMS-4030A | VMS-4030B | VMS-4030C | VMS-4030D |
| Type | ------ | A | B | C | D |
| Significance | Optical Zoom-lens Sensor | Optical Zoom-lens Sensor |
Zoom-lens Sensor and Contact Probe Sensor |
Zoom-lens Sensor and Z- axis Autofocus Function | Zoom-lens Sensor, Contact Probe Sensor and Autofocus Function |
| Z-axis Auto-focus | Without | Without | Without | With | With |
| Contact Probe | Without | Without | With | Without | With |
| Software | iMeasuring2.0 | iMeasuring2.1 | iMeasuring3.1 | iMeasuring2.2 | iMeasuring3.1 |
| Operation | Manual | Manual | Manual | Semi-auto | Semi-auto |
Model and Specification of Manual Video Measuring System:
| Model | Code# | Model | Code# | Model | Code# | Model | Code# |
| VMS-2015 | 525-020E | VMS-2515 | 525-020F | VMS-3020 | 525-020G | VMS-4030 | 525-020H |
| VMS-2015A | 525-120E | VMS-2515A | 525-120F | VMS-3020A | 525-120G | VMS-4030A | 525-120H |
| VMS-2015B | 525-220E | VMS-2515B | 525-220F | VMS-3020B | 525-220G | VMS-4030B | 525-220H |
| VMS-2015C | 525-320E | VMS-2515C | 525-320F | VMS-3020C | 525-320G | VMS-4030C | 525-320H |
| VMS-2015D | 525-420E | VMS-2515D | 525-420F | VMS-3020D | 525-420G | VMS-4030D | 525-420H |
The Measuring Space of VMS Series of Vision Measuring System:
| Travel mm | Model | Code# | X Axis Travel mm | Y Axis Travel mm | Z Axis Standard Travelmm | Z-axis Maximum Customized Travel mm |
| 100x100x100 | VMS-1010 | 525-020C | 100 | 100 | 100 | ------ |
| 150x100x100 | VMS-1510 | 525-020D | 150 | 100 | 100 | ------ |
| 200x150x200 | VMS-2015 | 525-020E | 200 | 150 | 200 | 300 |
| 250x150x200 | VMS-2515 | 525-020G | 250 | 150 | 200 | 300 |
| 300x200x200 | VMS-3020 | 525-020G | 300 | 200 | 200 | 400 |
| 400x300x200 | VMS-4030 | 525-020H | 400 | 300 | 200 | 400 |
| 500x400x200 | VMS-5040 | 525-020J | 500 | 400 | 200 | 400 |
| 600x500x200 | VMS-6050 | 525-020K | 600 | 500 | 200 | 400 |
Structural Drawings:
sdsd
Downloads
Data Sheet Download Link
