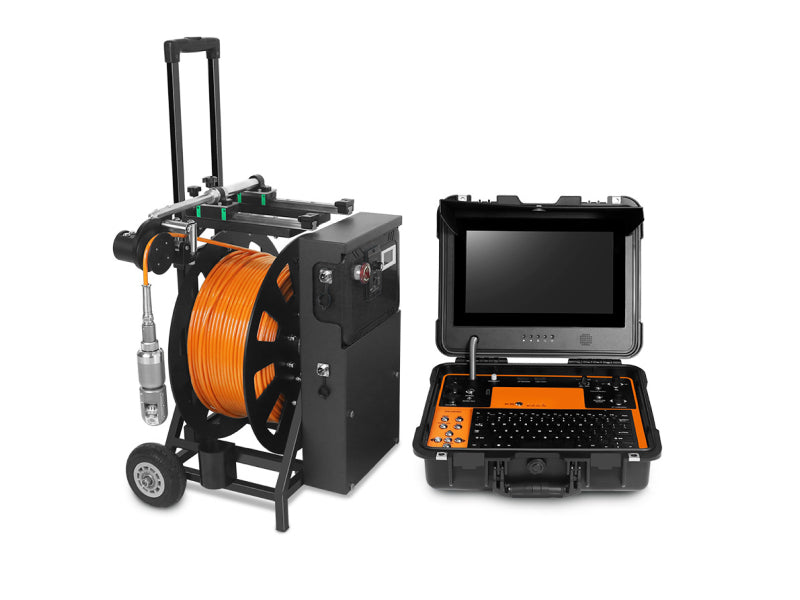

100-200m Borehole Pan Tilt 360 Camera System – V13-50PTE

Description

The Tomlin Vicam V13-50PTE 50mm Pan & Tilt Underwater Camera System is a professional-grade inspection solution designed for deep wells, boreholes, pipelines, and underwater environments. Equipped with a 360° pan and 180° tilt waterproof camera head, this system delivers precise, full-view inspection capabilities even in challenging conditions.

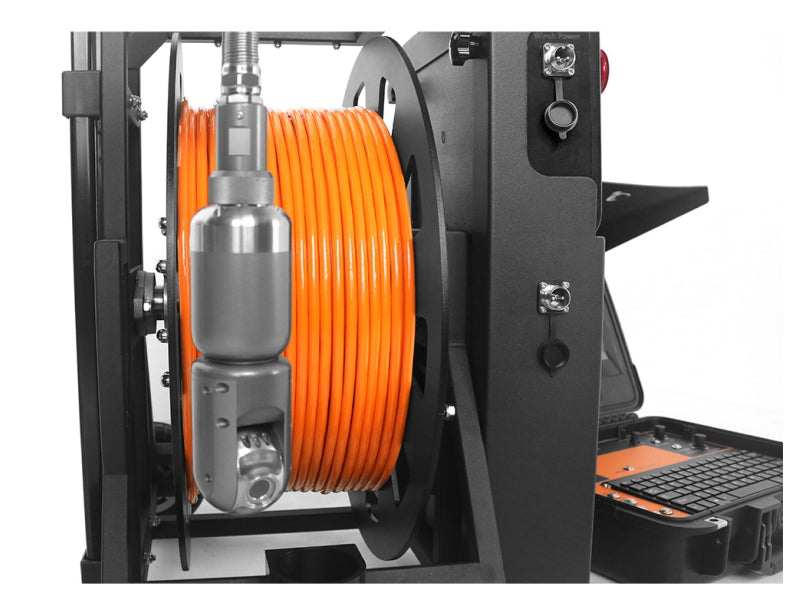

The durable Ø50mm stainless steel camera head features adjustable focus, high-intensity LED lighting, and IP68 waterproof protection, ensuring clear and detailed imaging underwater. The 13-inch HD IPS LCD monitor (1980x1080 resolution) provides sharp visuals, while the integrated DVR system supports video recording, audio capture, and photography.

An electric cable reel with adjustable winding speed and a digital meter counter (less than 1% error) enhances operational efficiency and accuracy. Powered by an 8800mAh rechargeable Li-ion battery, the system is suitable for both field and workshop use.

This versatile inspection camera is ideal for professionals who require reliable and high-precision underwater and underground inspection equipment.

Features

• 360° Pan and 180° Tilt AHD Camera Head

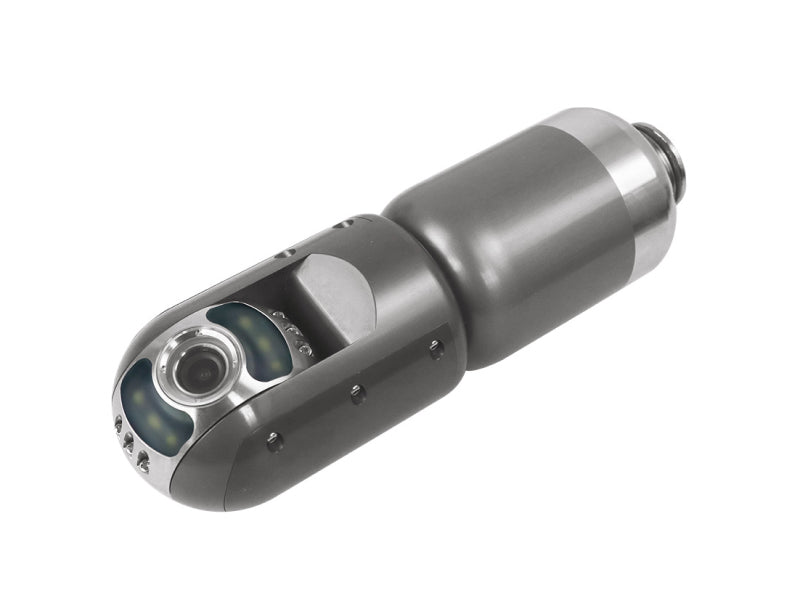

• Ø50mm x 154mm IP68 Waterproof Stainless Steel Camera
• 1/3” CMOS Sensor, 2.0MP FHD Imaging
• Adjustable Manual Focus
• 6 High-Intensity Adjustable LED Lights

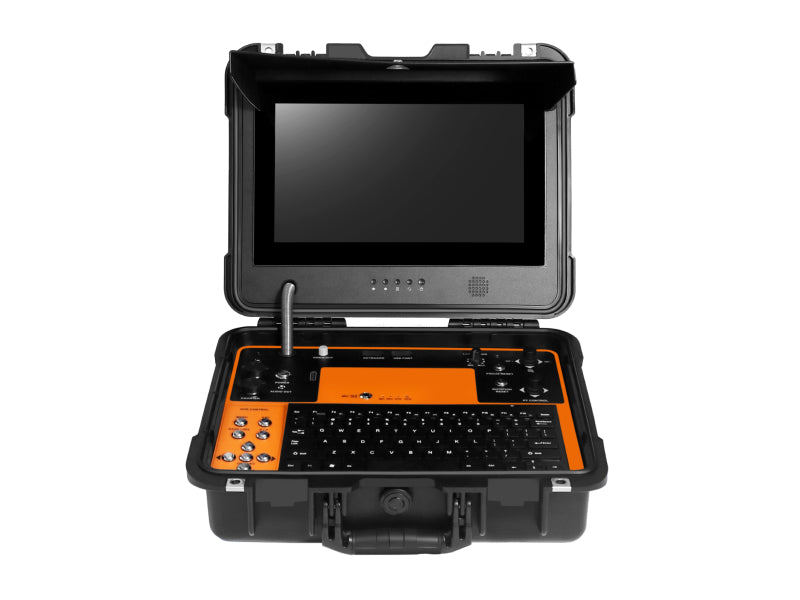

• 13” HD IPS LCD Monitor (1980x1080 Resolution)
• Built-in DVR with Video, Audio & Photo Recording

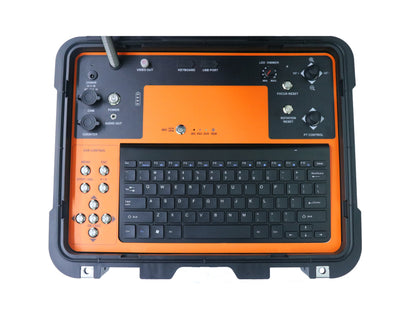

• USB Wireless Keyboard for Real-Time Text Input

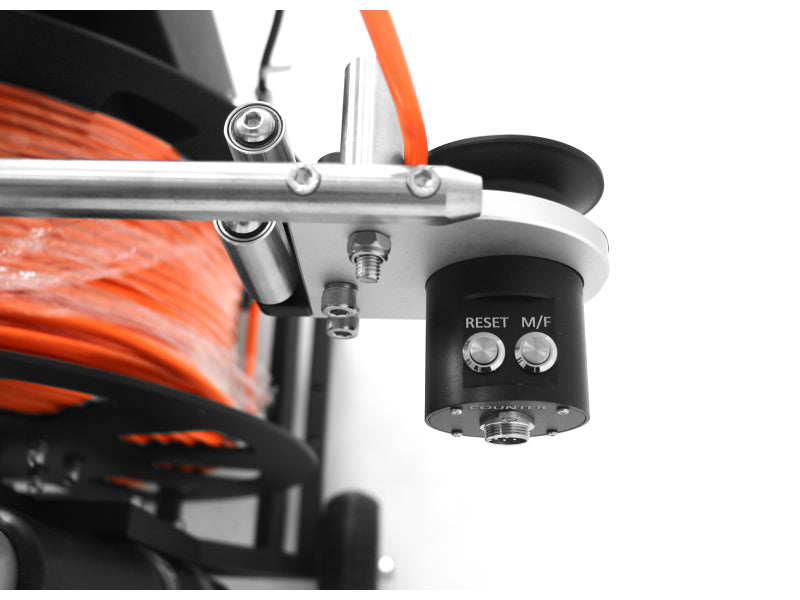

• Digital Meter Counter (Error <1%)
• 8800mAh Rechargeable Li-ion Battery

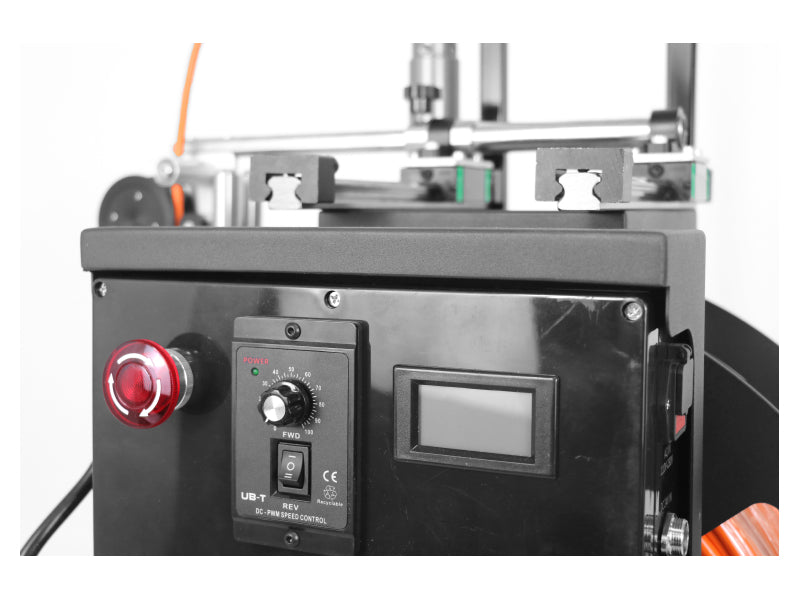

• Electric Winch with Adjustable Winding Speed
• 100m–200m Oxygen-Free Copper Flexible Cable
• Detachable Aviation Plug Connection

Specifications

• Model No.: V13-50PTE
• Camera Size: Ø50mm x 154mm
• Sensor: 1/3” CMOS
• Resolution: Up to 2.0MP FHD
• Viewing Angle: 120°
• Rotation Range: Pan 360°, Tilt 180°
• Waterproof Rating: IP68 (Camera Head)
• Lighting: 6pcs Adjustable High-Brightness LEDs
• Monitor: 13” HD IPS LCD, 1980x1080
• DVR Functions: Video, Audio & Photography
• Battery Capacity: 8800mAh Rechargeable Li-ion
• Power Supply: AC110V–240V (Electric Winch)
• Cable Material: Oxygen-Free Copper Flexible Cable
• Cable Diameter: 8mm
• Cable Length: 100m–200m
• Meter Counter Accuracy: <1% Error

Delivery Scope

• 1 × 50mm Pan & Tilt Waterproof Camera Head

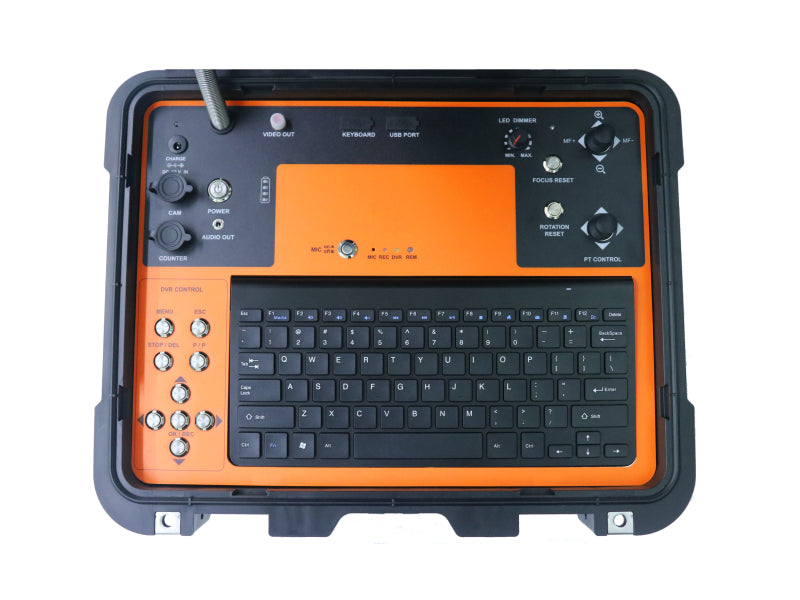

• 1 × 13” HD IPS DVR Control Unit
• 1 × Electric Cable Reel (100m–200m Cable)
• 1 × 8800mAh Rechargeable Li-ion Battery Pack
• 1 × USB Wireless Keyboard
• 1 × Power Adapter (AC110V–240V)
• 1 × User Manual

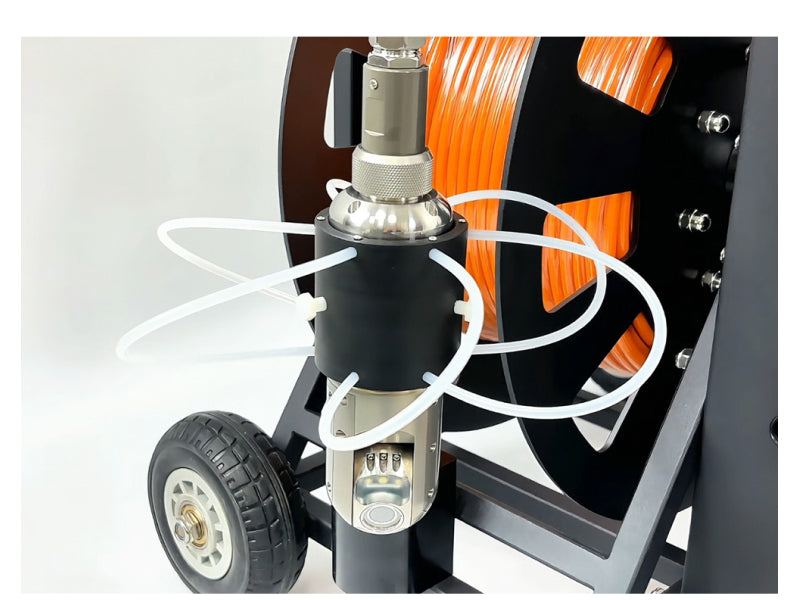

• 1 x Protective Skids

Industries Used In

• Deep Well Inspection
• Borehole Inspection
• Water Supply Pipeline Inspection
• Sewer & Drain Inspection
• Underground Pipeline Detection
• Municipal Engineering
• Construction & Infrastructure Maintenance
• Marine & Underwater Exploration
