50m Pipe Inspection Camera – Sewer Drain Endoscope System with Sonde Self Levelling High Low Beam QY6688

50m Pipe Inspection Camera – Sewer Drain Endoscope System with Sonde Self Levelling High Low Beam QY6688

$4,210.00
$4,210.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Product Description

The Industrial Pipe Inspection Camera System is a professional-grade sewer and drain inspection solution designed for plumbers, maintenance engineers, and industrial technicians. Available with 29 mm, 21 mm, or 12.8 mm camera heads, it delivers crisp HD video and photo recording directly to the built-in DVR system.

Featuring a 9″ or 13.3″ high-definition LCD monitor, stainless-steel waterproof camera heads, and a long-lasting 9000 mAh Li-ion battery, this inspection camera provides unmatched clarity and durability in underground or hard-to-reach environments. Ideal for inspecting pipes, drains, ducts, HVAC systems, and industrial machinery.

Key Features

  • Multiple camera options: 29 mm (standard/customized), 21 mm, and 12.8 mm heads for various pipe diameters

  • High-definition imaging: 1080 P video resolution with sapphire lens and CMOS sensor

  • Waterproof & durable: IP68/IP66 rated stainless-steel body, 3 Bar pressure rating

  • Long battery life: 9000 mAh rechargeable battery provides up to 7 hours of operation

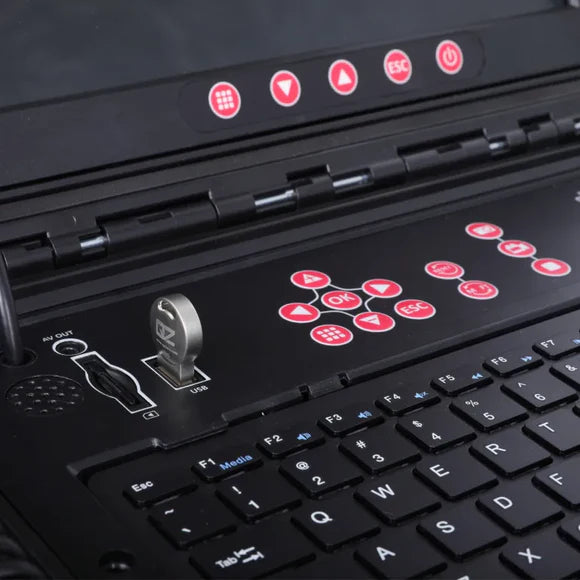

  • Built-in DVR recorder: Capture video, audio, and photos directly to SD or USB storage

  • Flexible cable lengths: 20 m – 50 m options with meter/footage counter

  • User-friendly display: 9″ (1024×RGB×600) or 13.3″ (1920×RGB×1080) color LCD screen

  • Self-leveling & 512 Hz transmitter (optional, depending on model)

  • Supports multiple languages (English, French, German, Spanish, Russian, etc.)

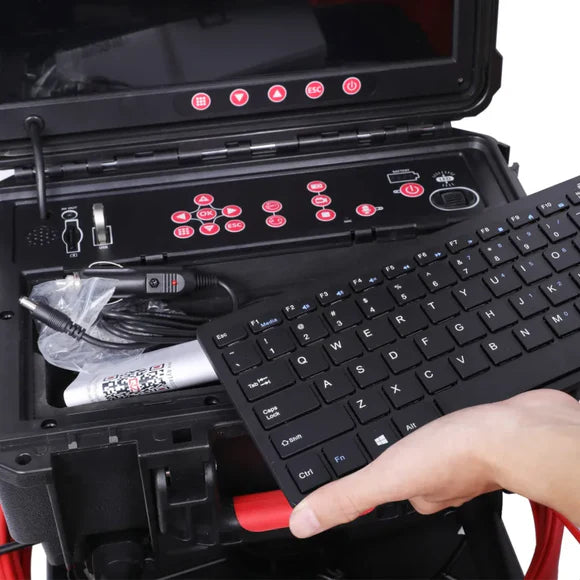

  • Compatible with wireless keyboard for data entry and labeling

Technical Specifications

Item 29 mm (Standard) 29 mm (Customized) 21 mm Camera 12.8 mm Camera
Operating Temp. –10 to 50 °C –10 to 50 °C –10 to 50 °C –10 to 50 °C
Operating Humidity 30 %–90 % RH 30 %–90 % RH 30 %–90 % RH 30 %–90 % RH
Storage Temp. –20 to 60 °C –20 to 60 °C –20 to 60 °C –20 to 60 °C
Battery Capacity 9000 mAh Li-ion 9000 mAh Li-ion 9000 mAh Li-ion 9000 mAh Li-ion
Working Time 7 h (9″ DVR) / 5 h (13.3″ DVR) 7 h / 5 h 7 h / 5 h 7 h / 5 h
Charge Time ≈ 8 h ≈ 8 h ≈ 8 h ≈ 8 h
Waterproof Level IP66 / IP68 (when sealed) IP66 / IP68 IP66 / IP68 IP66 / IP68
Sensor 1/2.9″ CMOS 1/2.9″ CMOS 1/3″ CMOS 1/3″ CMOS
Resolution 1080 P (1920×1080) 1080 P 1080 P 1080 P
View Angle 120° 150° 120° 100°
Focus Distance 10 cm 15 cm 10 cm 3 cm
Depth of Field ≈ 150 cm ≈ 150 cm ≈ 100 cm ≈ 100 cm
Lighting 15 × LEDs (white) 12 × LEDs + 2 × high beam LEDs 12 × LEDs (white) 6 × LEDs (white)
Front Lens Sapphire Sapphire Sapphire Sapphire
Material 304 Stainless Steel 304 Stainless Steel 304 Stainless Steel 304 Stainless Steel
Self-Leveling Optional Optional Optional None
512 Hz Transmitter Optional Optional Optional None
Waterproof Pressure Rating 3 Bar (on cable) 3 Bar (on cable) 3 Bar (on cable) 3 Bar (on cable)
Cable Diameter Ø 6.8 mm Ø 6.8 mm Ø 5.3–6.8 mm Ø 5.3 mm
Cable Length 20 m / 30 m / 40 m / 50 m 20 m / 30 m / 40 m / 50 m 20 m / 30 m / 40 m / 50 m 20 m / 30 m / 40 m / 50 m
Monitor Resolution 9″ DVR: 1024×RGB×600 / 13.3″ DVR: 1920×RGB×1080 Same Same Same
Photo / Video Format JPEG / MP4 JPEG / MP4 JPEG / MP4 JPEG / MP4
Memory Support Max 256 GB SD / 1 TB USB drive Same Same Same
Language Options English, 中文, Français, Deutsch, Español, Русский, Italiano, 한국어 + more Same Same Same
Dimensions (Control Box) 440 × 303 × 235 mm Same Same Same
Weight ≈ 12–15 kg (dep. on cable) Same Same Same

Included Accessories

  • Control box with built-in DVR

  • Selected camera head (29 mm / 21 mm / 12.8 mm)

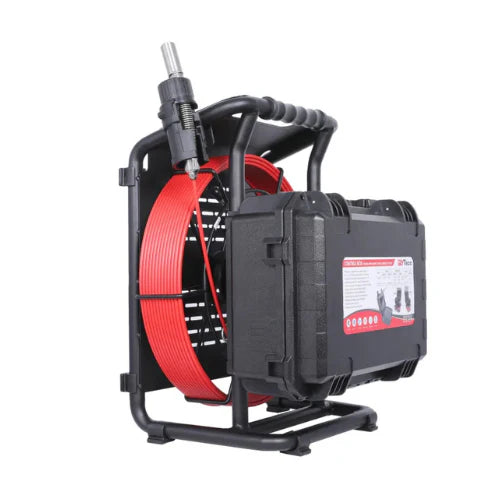

  • Cable reel (20 – 50 m) with meter counter

  • 9000 mAh Li-ion battery & charger

  • USB cable, SD card slot, and audio mic

  • Instruction manual and carrying case

Applications

  • Sewer, drain, and pipe inspections

  • HVAC and ductwork monitoring

  • Industrial and utility maintenance

  • Underground or underwater conduit inspections

  • Construction and municipal infrastructure diagnostics
