Accelerometer PCE-VM 20

Accelerometer PCE-VM 20

$5,350.00
$5,350.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

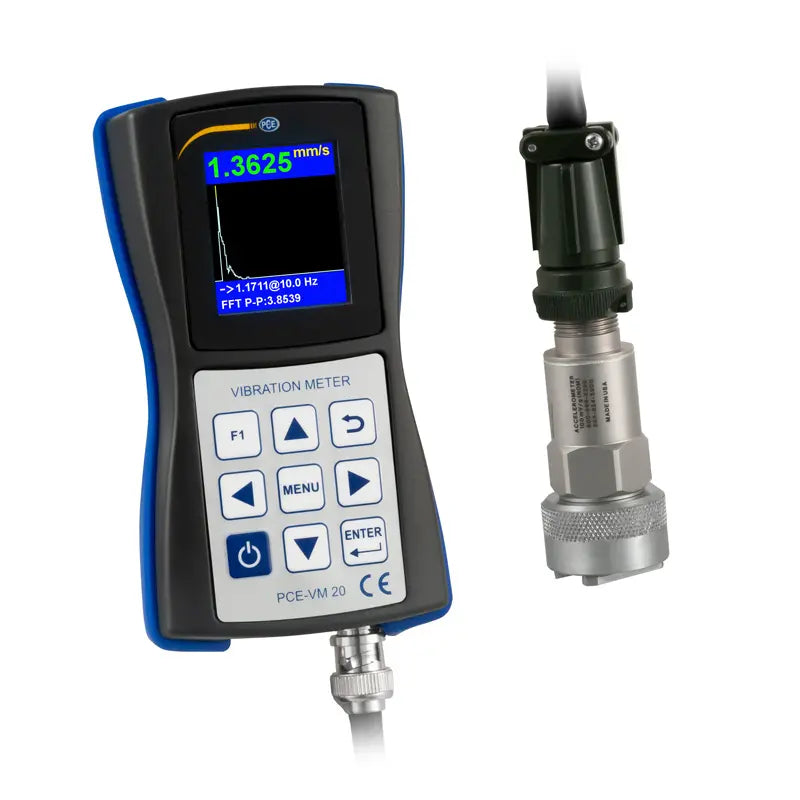

Accelerometer PCE-VM 20
Vibration measuring device for vibration measurement on machines /  Direct evaluation according to DIN ISO 10816 / Various measurement modes / Real-time FFT analysis / Route option for fast acquisition of measuring points

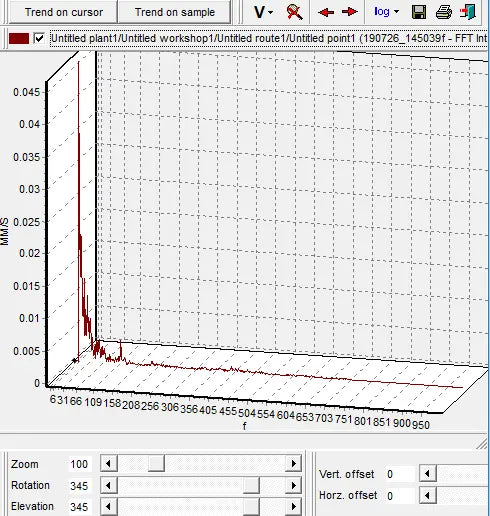

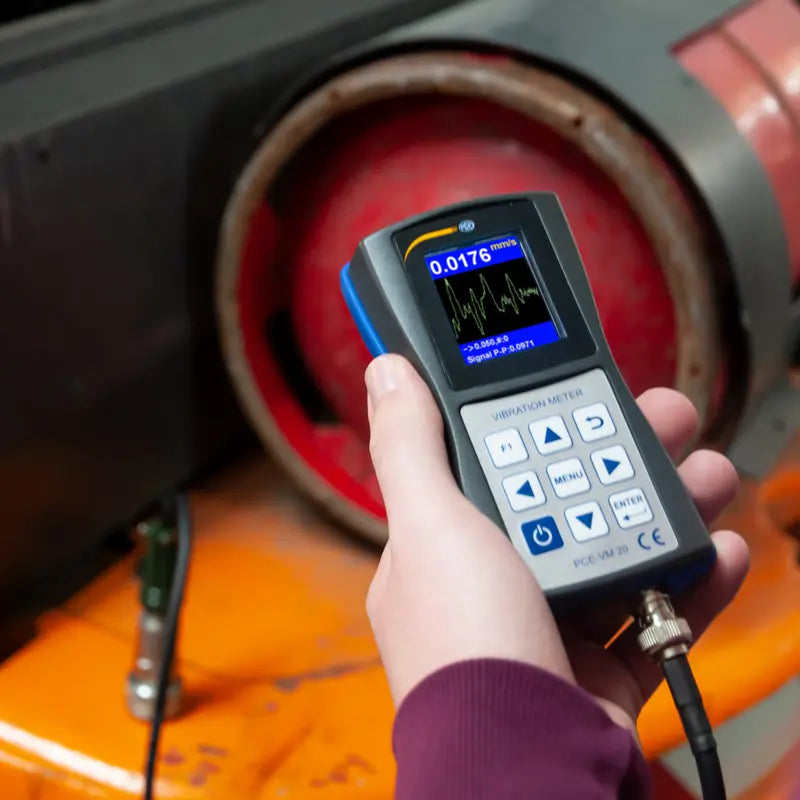

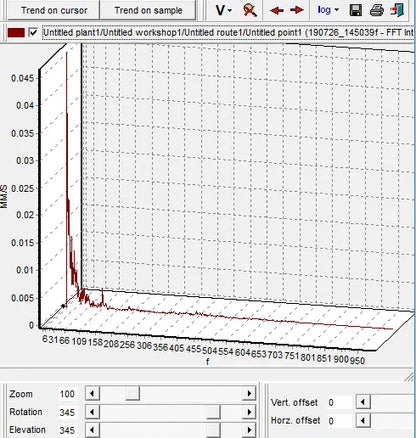

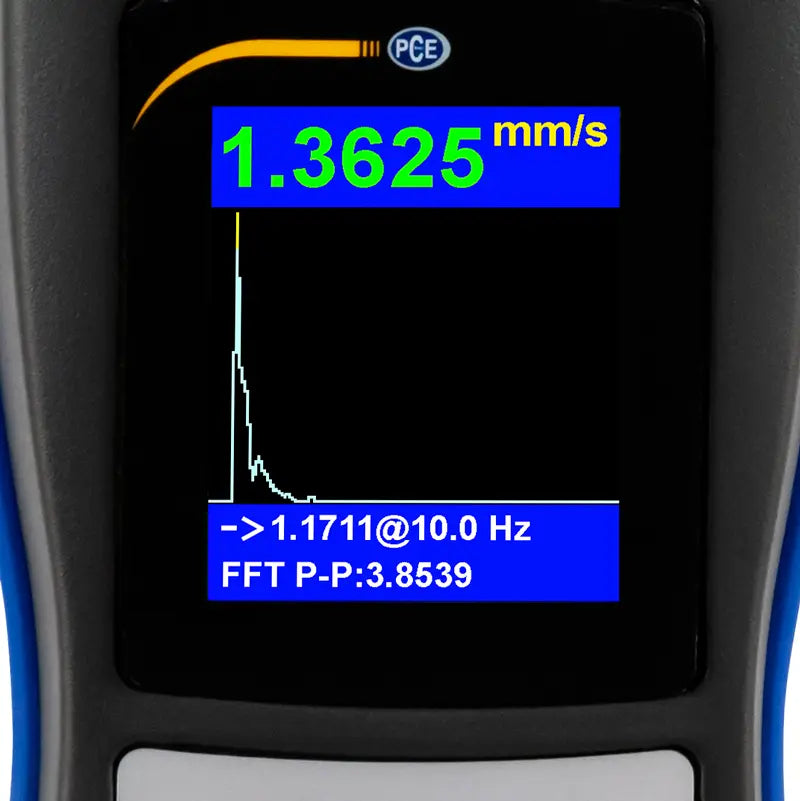

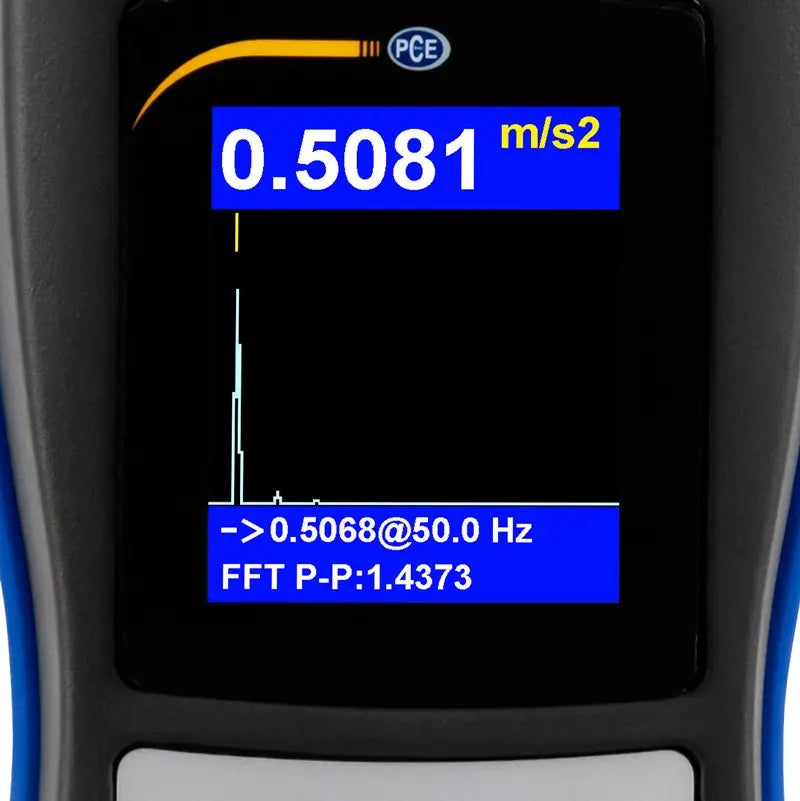

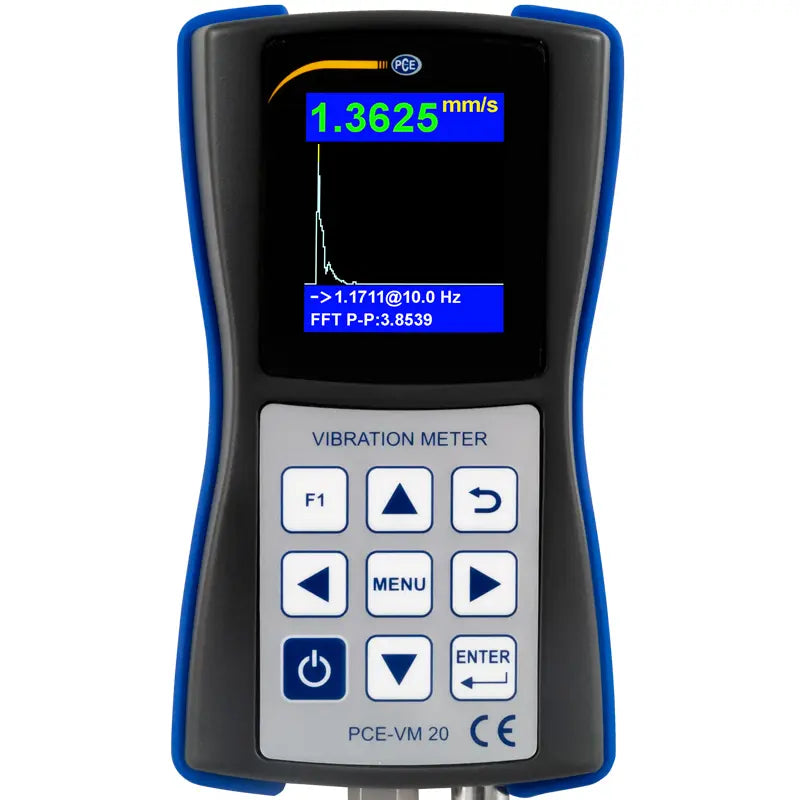

The vibration measuring device PCE-VM 20 is a compact device for the direct evaluation of the vibration behavior of a machine. The device can measure and display various vibration parameters, such as vibration acceleration, vibration velocity or vibration displacement. Thanks to the integrated real-time FFT analysis, the condition of a machine can be analyzed and determined during the measurement.

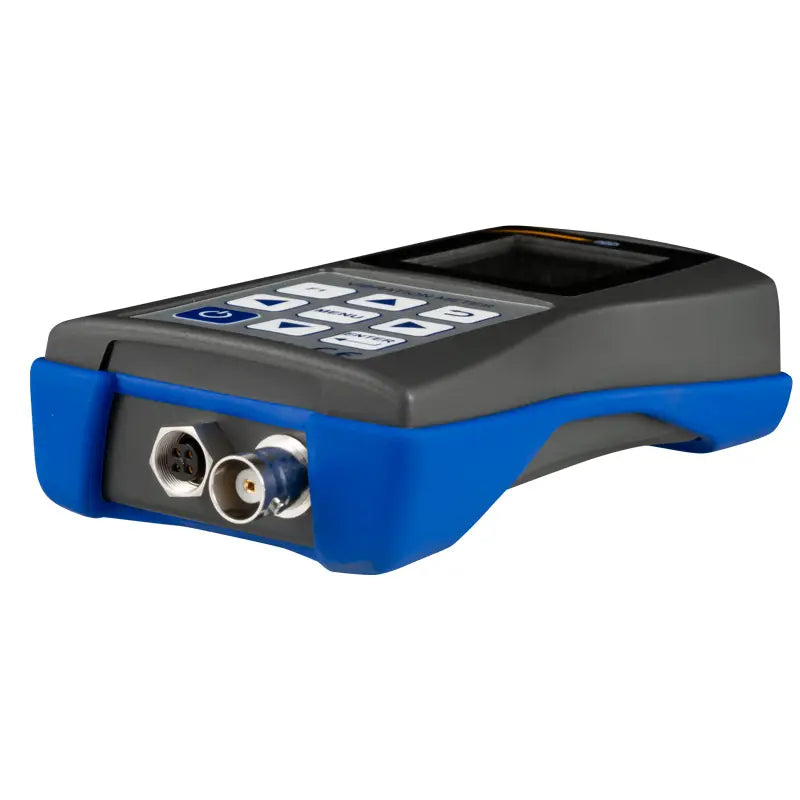

The PCE-VM 20 vibration meter can evaluate and display signals from IEPE standard piezoelectric vibration sensors as well as piezoelectric vibration sensors with charge output.

HIGHLIGHTS

- Real-time FFT analysis
- Robust housing
- Many vibration parameters
- Direct evaluation according to DIN ISO 10816
- Integrated LiPo battery
SPECIFICATION
Vibration acceleration 0 ... 200 m/s², RMS and Peak-Peak
Vibration velocity 0 ... 200 mm/s, RMS
Vibration displacement 0 ... 2000 μm, Peak-Peak



Accuracy vibration ± 5%



Operating modes Vibration, temperature, speed
Representable measured variables Frequency
  Vibration acceleration
  Vibration velocity
  Vibration
  FFT spectrum


Units Metric
  Hz, mm/s², mm/s, μm, RPM, Hz

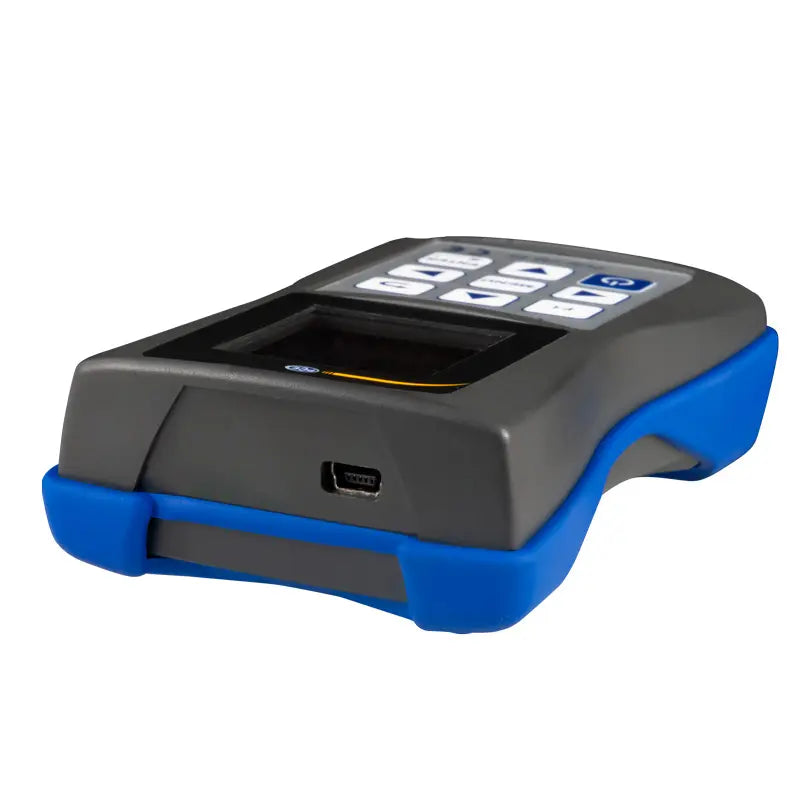

Interface USB 2.0
Storage 4GB micro SD card
Battery life Up to 8 h continuous operation
Battery type Lithium polymer
Display 128 x 160 pixel color LCD
Environmental conditions -10 ... 55°C / 14 ... 131°F
  ≤ 80% RH not condensing
Dimensions 132 x 70 x 33 mm / 5.2 x 2.8 x 1.3 in (L x W x D)
Weight About 150 g / < 1 lb

Handset: must not be exposed to strong vibrations, magnetic fields, corrosive media or dust

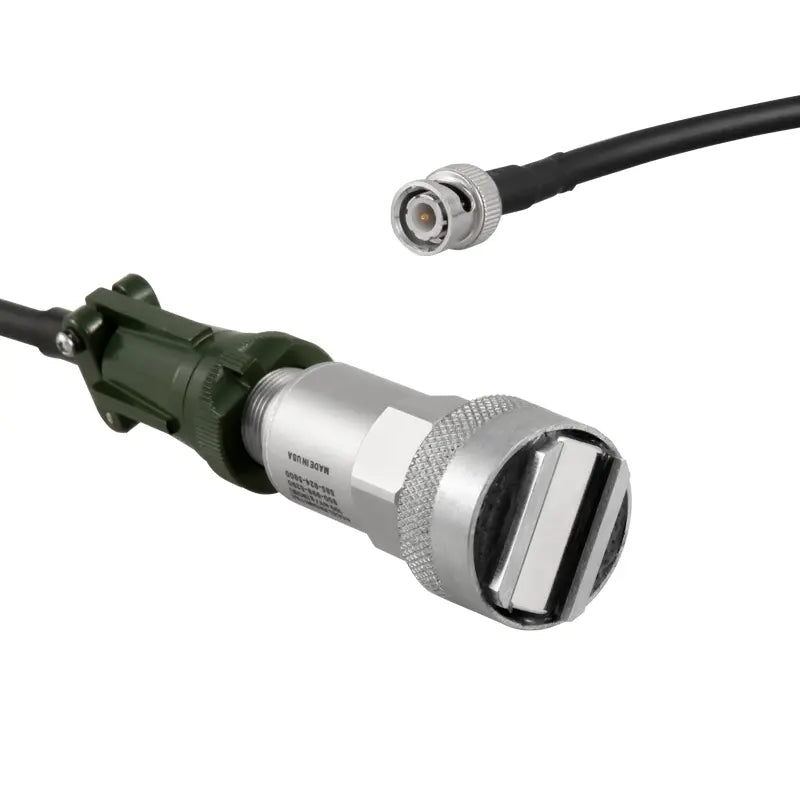

Technical data for the vibration sensor
Sensitivity 100 mV / g
Frequency response (± 3 dB) 0.5 ... 15,000 Hz
Frequency response (± 10%) 2.0 ... 10,000 Hz
Dynamic range ± 50 g, peak
Power supply (IEPE) 18 ... 30V DC
Constant current source 2 ... 10-mA
Spectral noise at 10 Hz 14 μg / √Hz
Spectral noise at 100 Hz 2.3 μg / √Hz
Spectral noise at 1000 Hz 2 μg / √Hz
Output impedance < 100 Ω
Bias voltage 10 ... 14V DC
Housing insulation > 100 MΩ
Environmental conditions -50 ... 121 °C / -58 ... 249.8 °F
Maximum impact protection 5000 g, peak
Resonant frequency 23,000 Hz
Housing material 316L stainless steel
Connection 2 Pin MIL-C-5015
Protection IP68
Weight 90 g / < 1 lb

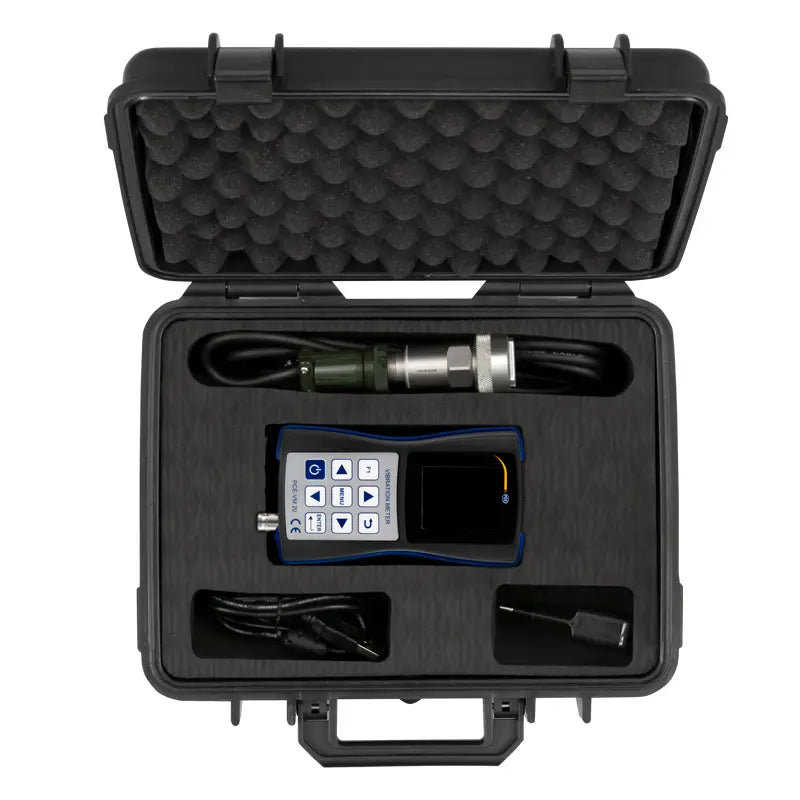

DELIVERY SCOPE

1 x Accelerometer PCE-VM 20
1 x Magn. Accelerometer with 1.8 m / 5.9 ft connection cable
1 x USB connection cable
1 x Charger 100 ... 240V AC
1 x PC software
1 x User manual
