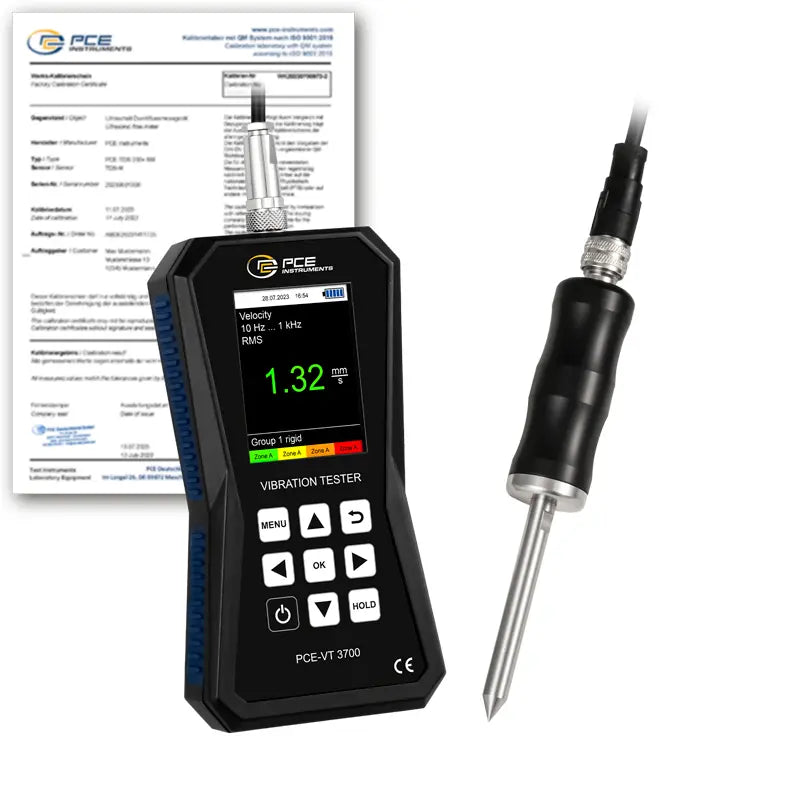

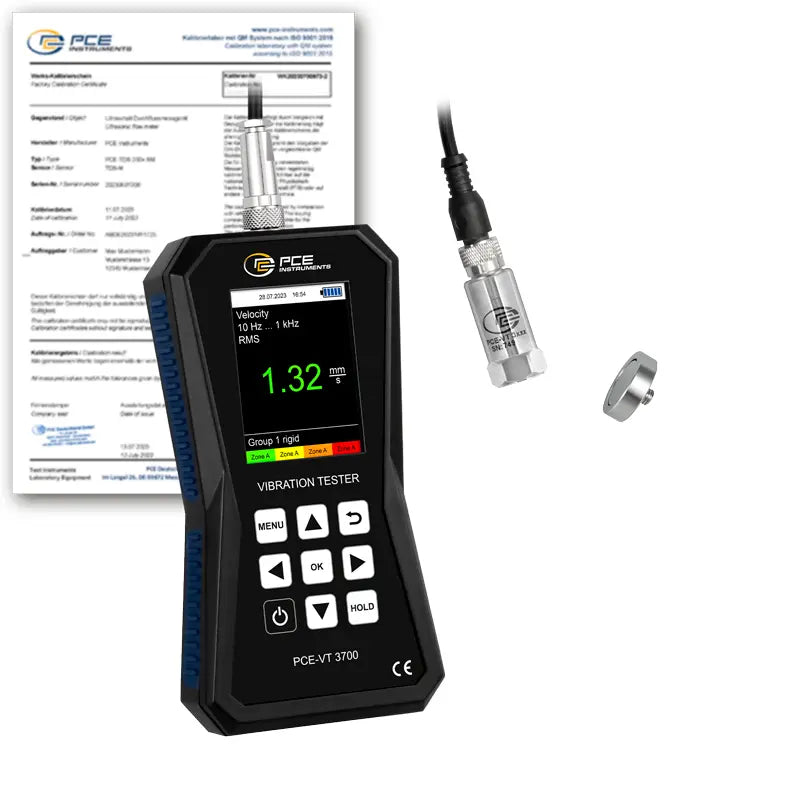

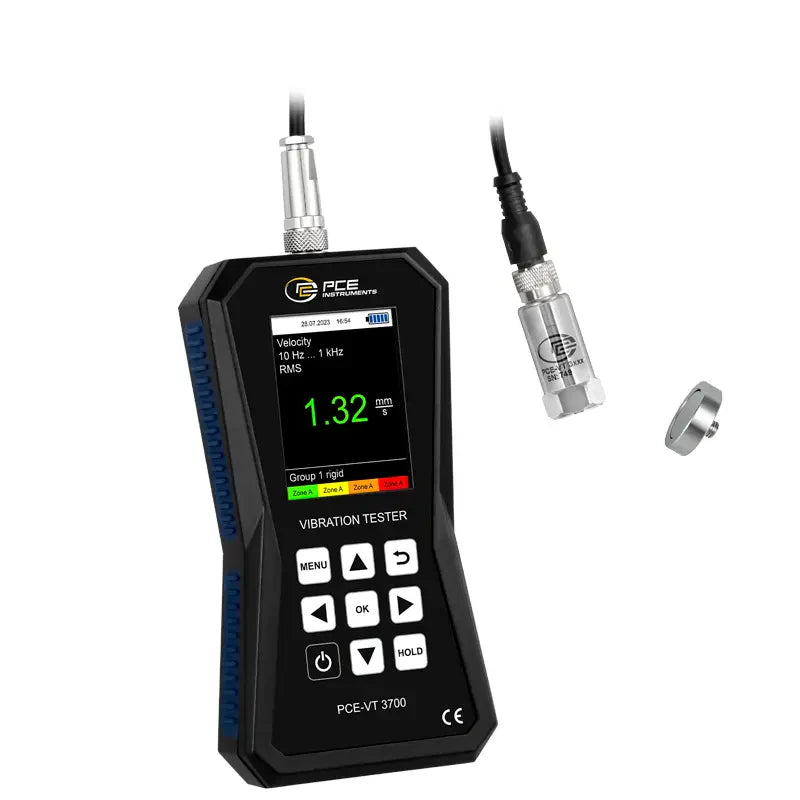

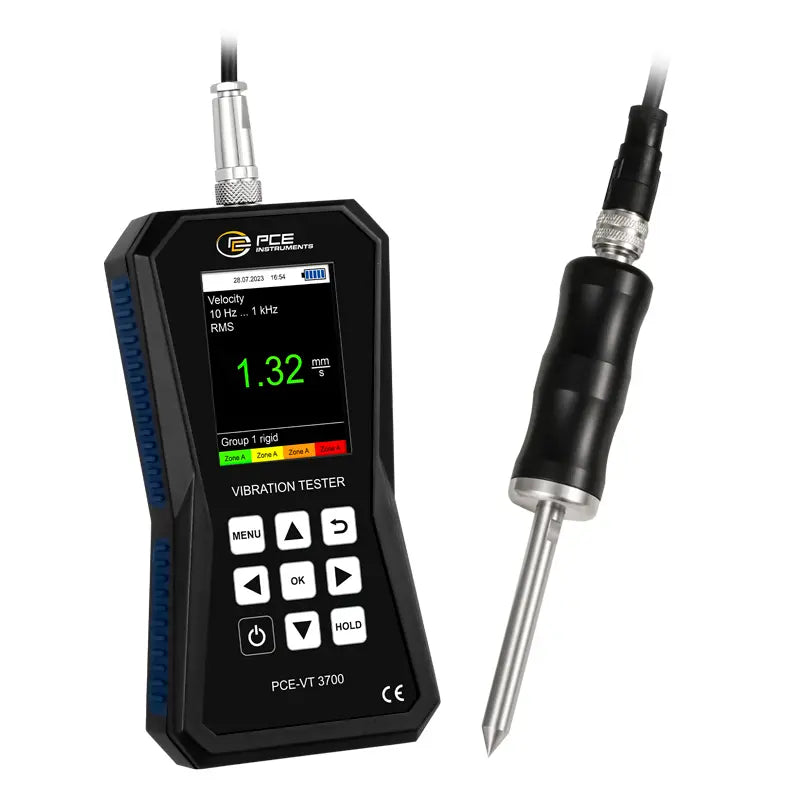

Accelerometer Vibration Meter PCE-VT 3700

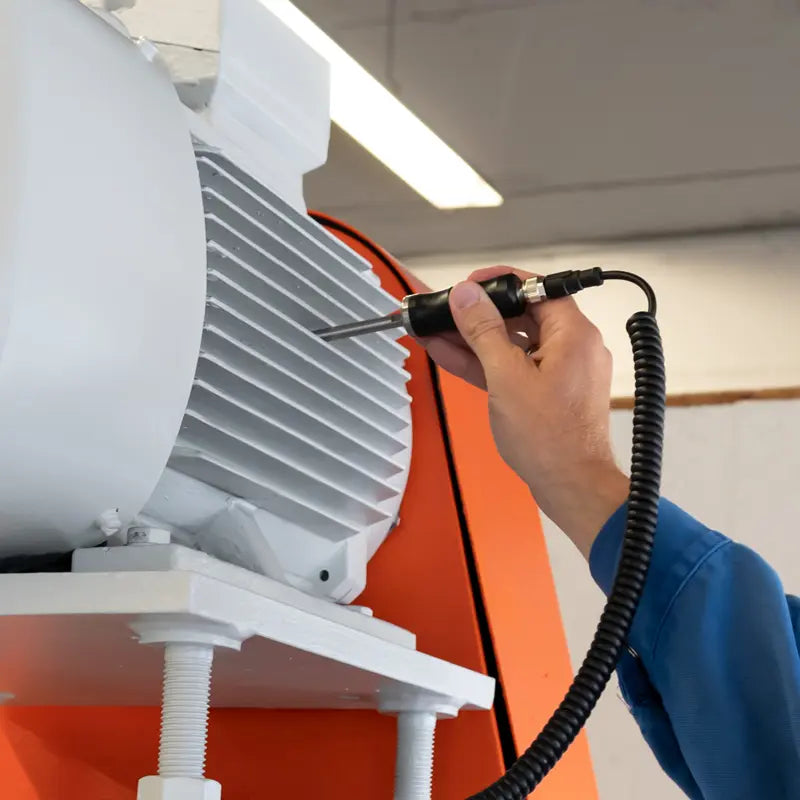

The accelerometer is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display.

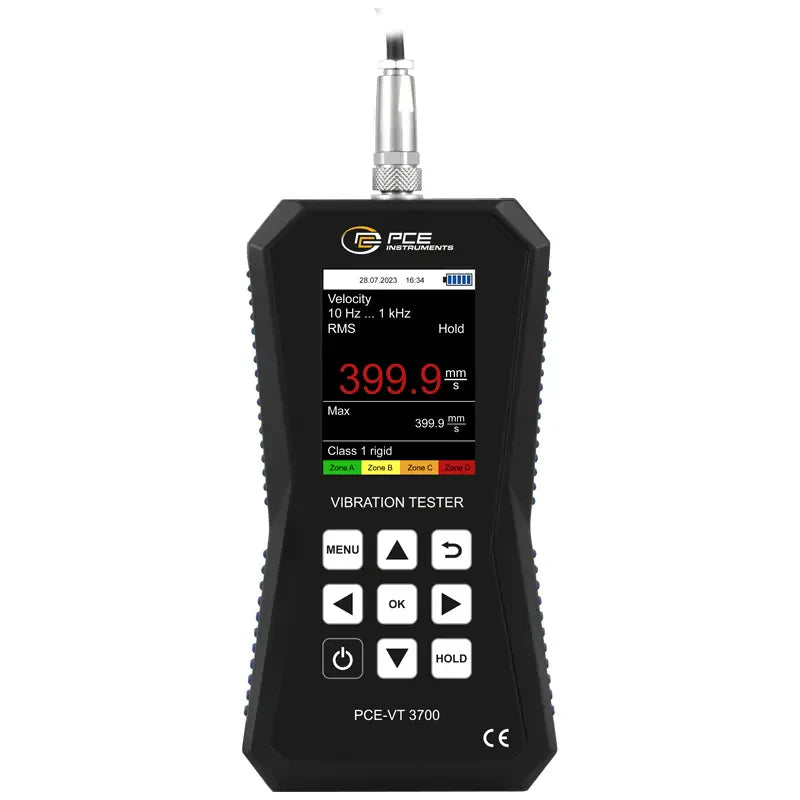

The vibration meter is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The display of the vibration meter is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the vibration meter are easily switchable.

Key Features:

• - Automatic ISO 10816-3 evaluation
  - Easy to handle
  - For mobile vibration measurement
  -The measurement unit can be switched between the metric system and imperial units.
  - Colored graphic display
  - Peak-hold function

Specifications

• Measuring range	Acceleration
  	0.0 - 399.9 m/s² / 0.0 - 15744 in/s²
  Resolution	0.1 m/s² / 3.94 in/s²
  Accuracy @ 160 Hz	±2 %
  Frequency range	1 kHz - 10 kHz
  	10 Hz - 10 kHz
  Measuring range	Velocity
  	0.00 - 399.99 mm/s / 0.00 - 15.74 in/s
  Resolution	0.01 mm/s / 0.0039 in/s
  Accuracy @ 160 Hz	±2 %
  Frequency range	10 Hz - 1 kHz
  Measuring range	Displacement
  	0.000 - 3.999 mm / 0.000 - 0.154 in
  Resolution	1 µm / 39.4 µin
  Accuracy @ 160 Hz	±2 %
  Frequency range	10 Hz - 200 Hz
  Measurement parameters	RMS, Peak, Peak-Peak
  	Crest factor
  Units	switchable metric / imperial
  Display	2.8" LC display
  Menu languages	English, German, French
  	Spanish, Italian, Dutch
  	Portuguese, Turkish, Polish
  	Russian, Chinese, Japanese
  Power supply	3 x 1.5 V AA batteries
  Operating and storage conditions	-20 ... +65 °C / -4 ... 149 °F; 10 ... 95 % r.H.
  Dimensions	165 x 85 x 32 mm / 6.4 x 3.3 x 1.2"
  Weight	239 g / 8,4 oz
  Technical Data Vibration Sensor
  Resonance frequency	24 kHz
  Transverse sensitivity	≤ 5%
  Destruction limit	5000 g (peak)
  Operating and storage temperature	-55 ... +150 °C / -67 ... 302 °F
  Housing material	stainless steel and plastic
  Mounting thread	¼ - 28“
  Dimensions	Ø 29 x 81 mm / 1.14 x 3.18"
  Weight (without cable)	119 g / 4.2 oz
  Protection Class:	IP52

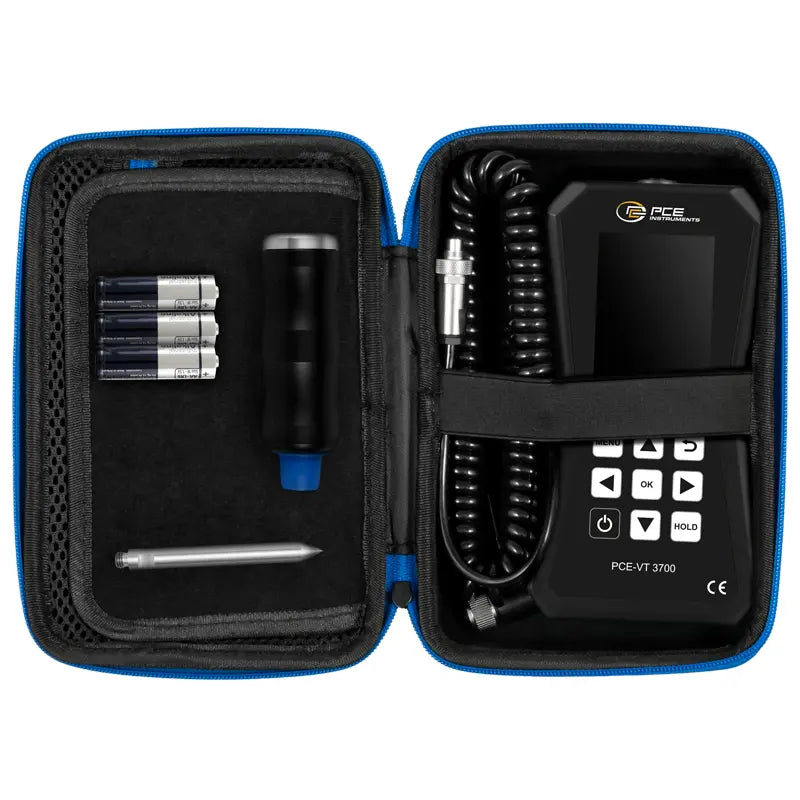

Delivery Scope:

• 1 x Accelerometer PCE-VT 3700S/ Accelerometer PCE-VT 3700S (Depending on Model)

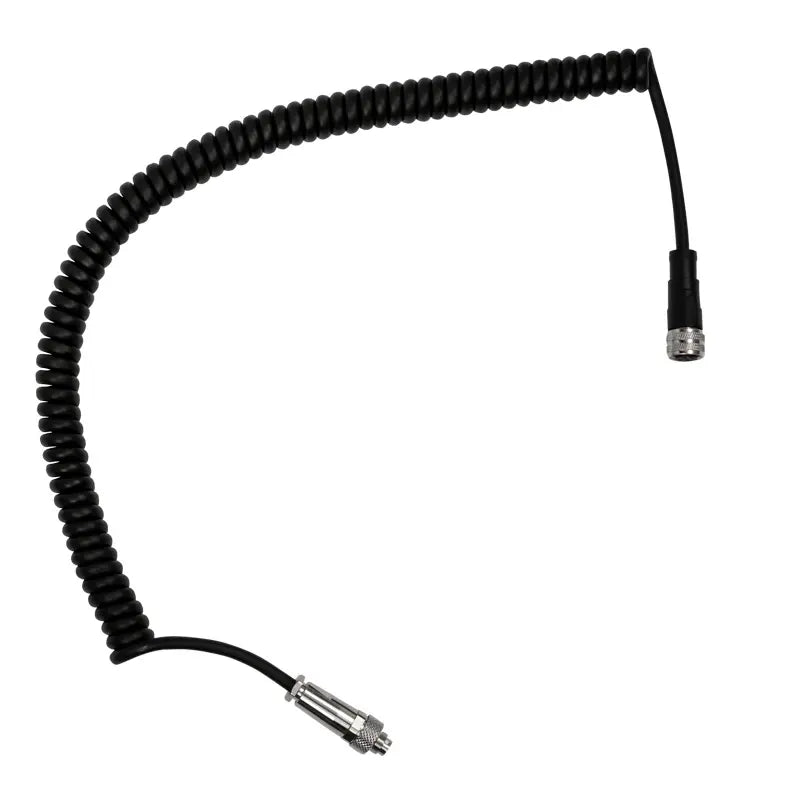

  1 x Sensor with spiral cable PCE-VT 3xxx SENSOR

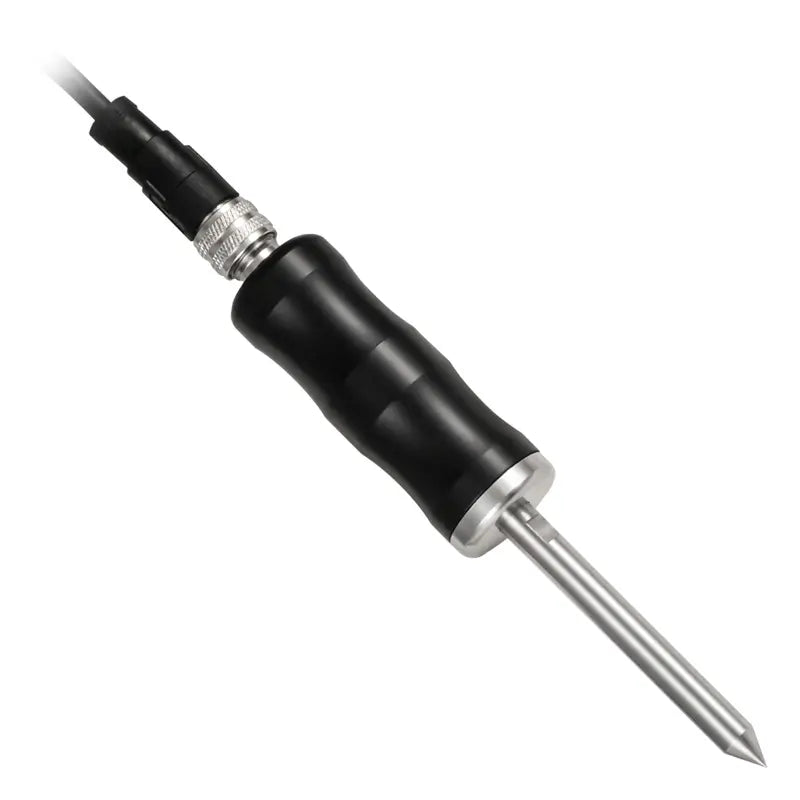

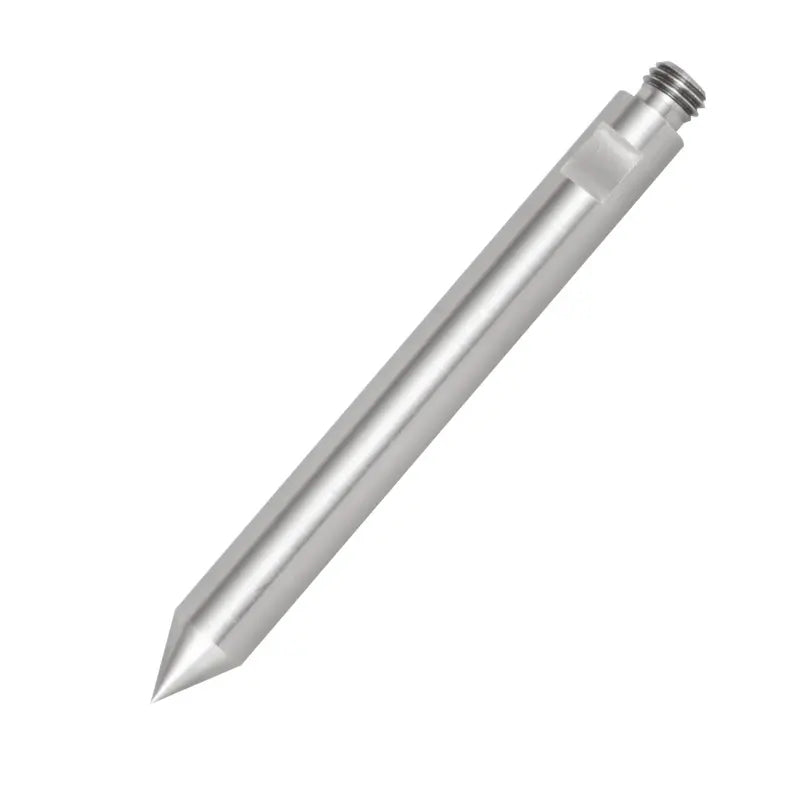

  1 x Needle sensor PCE-VT NP

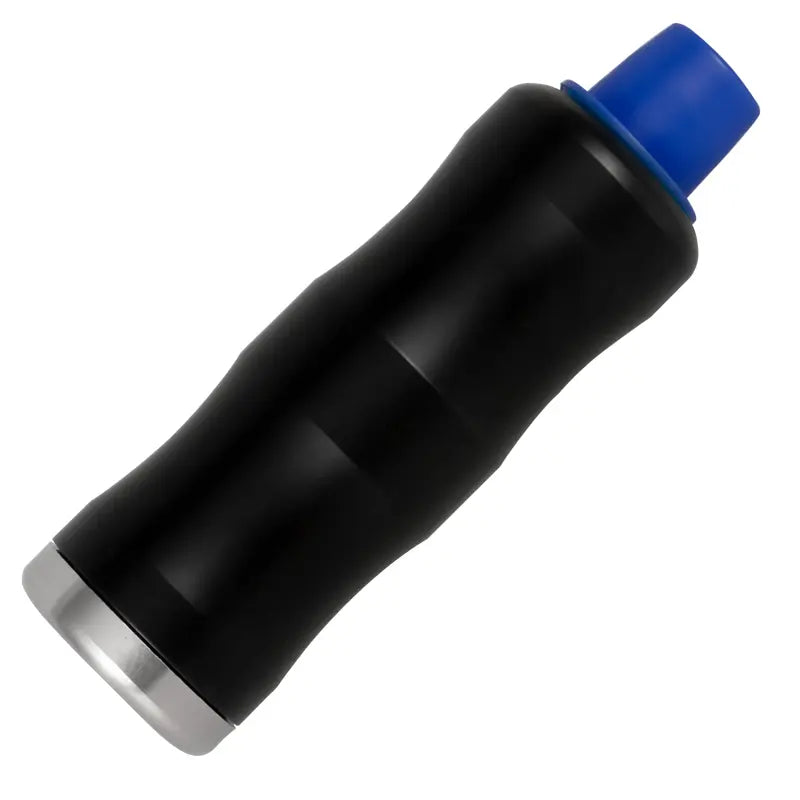

  1 x Handgrip PCE-VT 3xxx HANDLE
  3 x 1.5 V AA batteries
  1 x Quickstart guide
  1 x Service bag
