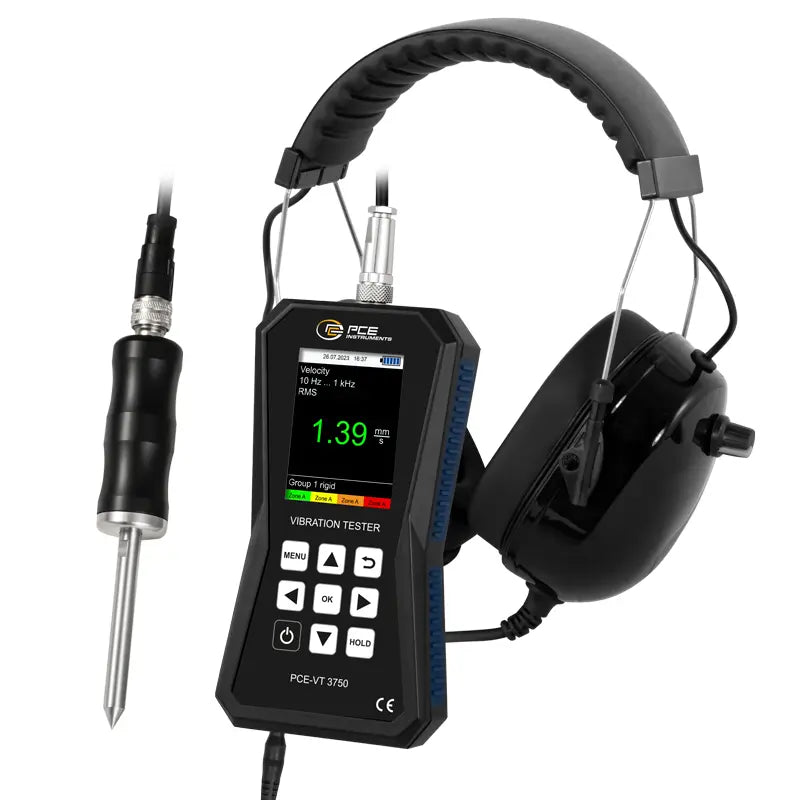

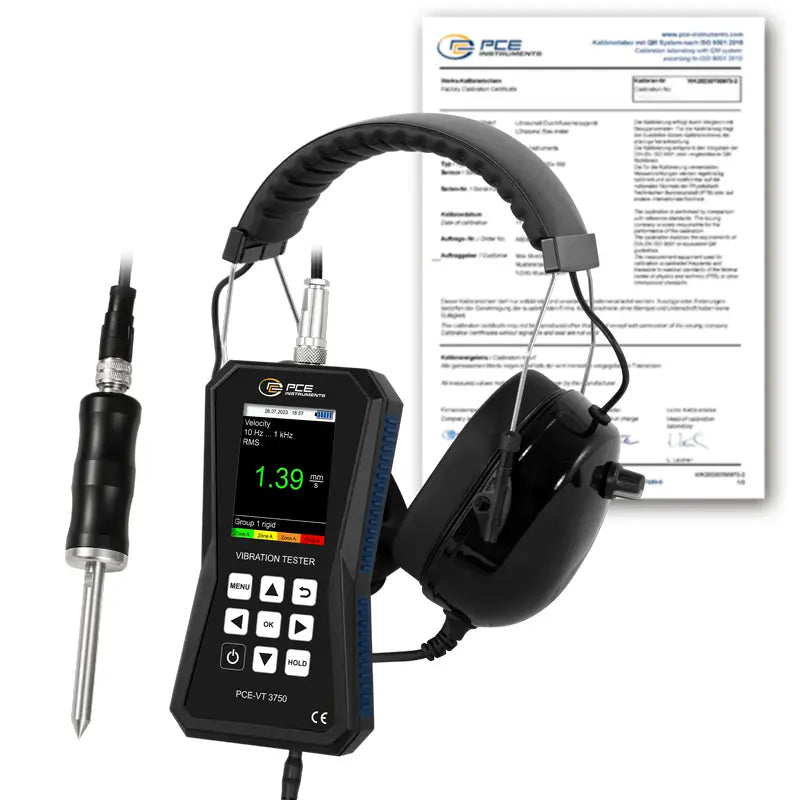

Accelerometer Vibration Meter PCE-VT 3750

The accelerometer is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display.

The vibration meter is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The display of the vibration meter is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the vibration meter are easily switchable.

Key Features:

• - Automatic ISO 10816-3 evaluation
  - Easy to handle
  - For mobile vibration measurement
  -The measurement unit can be switched between the metric system and imperial units.
  - Colored graphic display
  - Peak-hold function

Specifications

• Measuring range	Acceleration
  	0.0 ... 399.9 m/s² / 0.0 - 15744 in/s²
  Resolution	0.1 m/s² / 3.94 in/s²
  Accuracy @ 160 Hz	±2 %
  Frequency range	10 Hz ... 10 kHz
  	1 kHz ... 10 kHz
  Measuring range	Velocity
  	0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s
  Resolution	0.1 mm/s / 0.0039 in/s
  Accuracy @ 160 Hz	±2 %
  Frequency range	10 Hz ... 1 kHz
  Measuring range	Rotational Speed
  	600 ... 50000 RPM
  FFT acceleration	10 Hz ... 8 kHz
  FFT velocity	10 Hz… 1 kHz
  Accuracy @ 160 Hz	± 2%
  Number of FFT lines	2048
  Route measurement	100 routes each with 100 machines each with
  	100 measuring points with 1000 measured values each
  Measuring range	Displacement
  	0.000 ... 3.9 mm / 0.000 - 0.154 in
  Resolution	1 µm / 39.4 µin
  Accuracy @ 160 Hz	±2 %
  Frequency range	10 Hz ... 200 Hz
  Measurement parameters	RMS, Peak, Peak-Peak
  	Crest factor
  Manual memory	99 folders with 50 measured values ​​each
  Data logger	Various start/stop triggers
  	Measurement interval between 1 s … 12 h
  	50 memory locations with 43200 measured values ​​each
  Units	can be switched to metric / imperial
  Display	2.8" LC display
  Menu languages	English, German, French
  	Spanish, Italian, Dutch
  	Portuguese, Turkish, Polish
  	Russian, Chinese, Japanese
  Power supply	internal: LiPo battery (3.7 V, 2500 mAh)
  	external: USB 5 VDC, 500 mA
  Headphone connection	3.5 mm jack plug
  Operating time	ca. 15 … 20 h (depending on display brightness)
  Operating and storage conditions	temperature: -20 ... +65 °C / -4 ... 149 °F
  	humidity: 10% RH ... 95% RH,
  	non-condensing
  Protection class	IP52
  Dimensions	165 x 85 x 32 mm / 6.5 x 3.3 x 1.3"
  Weight	239 g / 8.4 oz

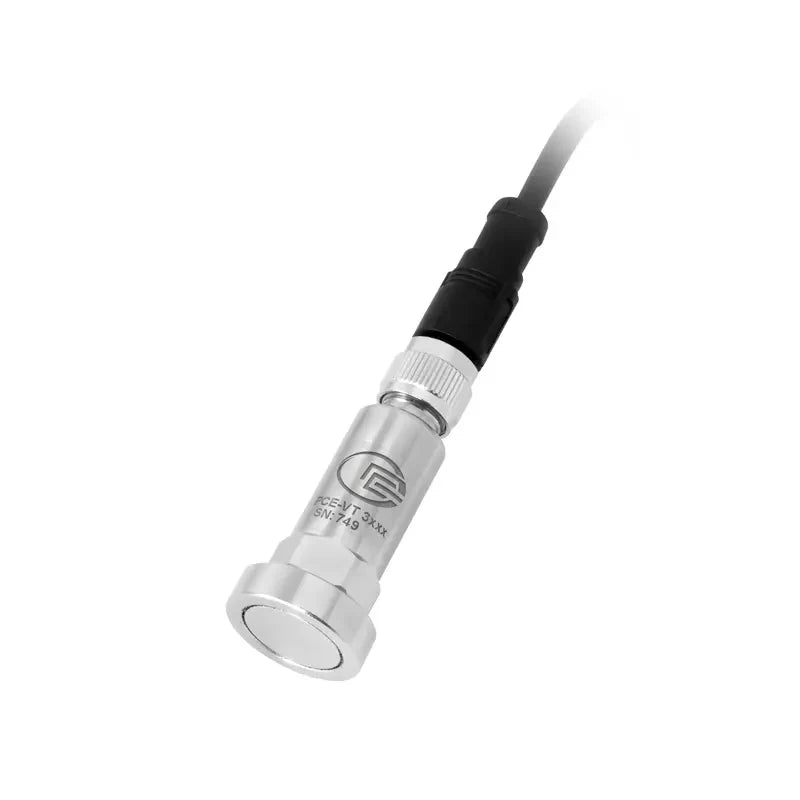

  Technical Data Vibration Sensor
  Resonance frequency	24 kHz
  Transverse sensitivity	≤ 5%
  Destruction limit	5000 g (peak)
  Operating and storage temperature	-55 °C … +150 °C / -67 °F ... 302 °F
  Housing material	stainless steel
  Mounting thread	¼ - 28“
  Dimensions	Ø 17 x 46 mm / 0.67 x 1.8"
  Weight (without cable)	52 g / 1.8 oz

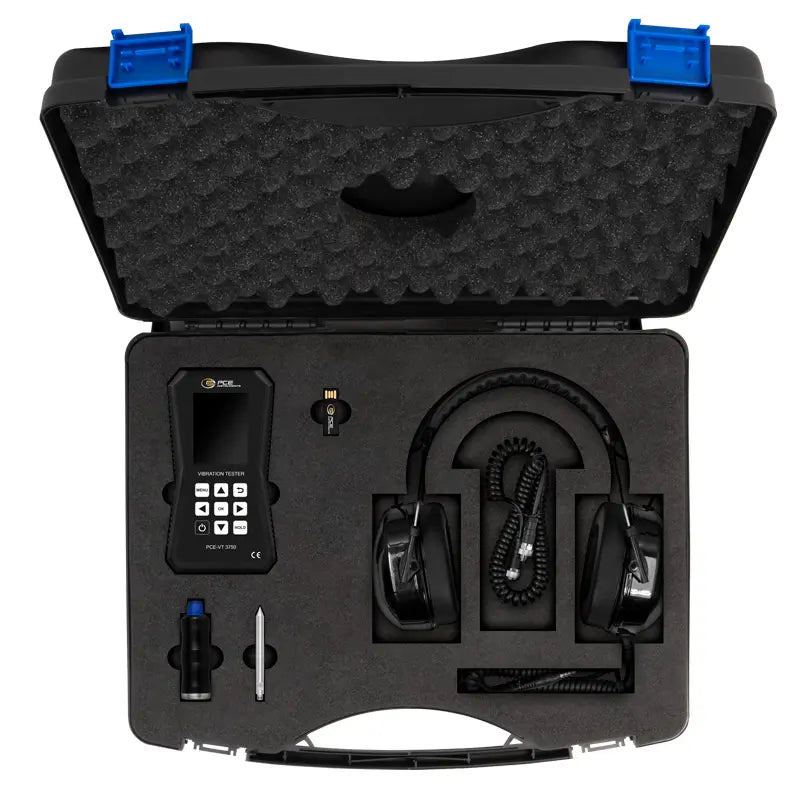

Delivery Scope:

• 1 x Accelerometer PCE-VT 3750/ Accelerometer PCE-VT 3750S (Depending on Model)

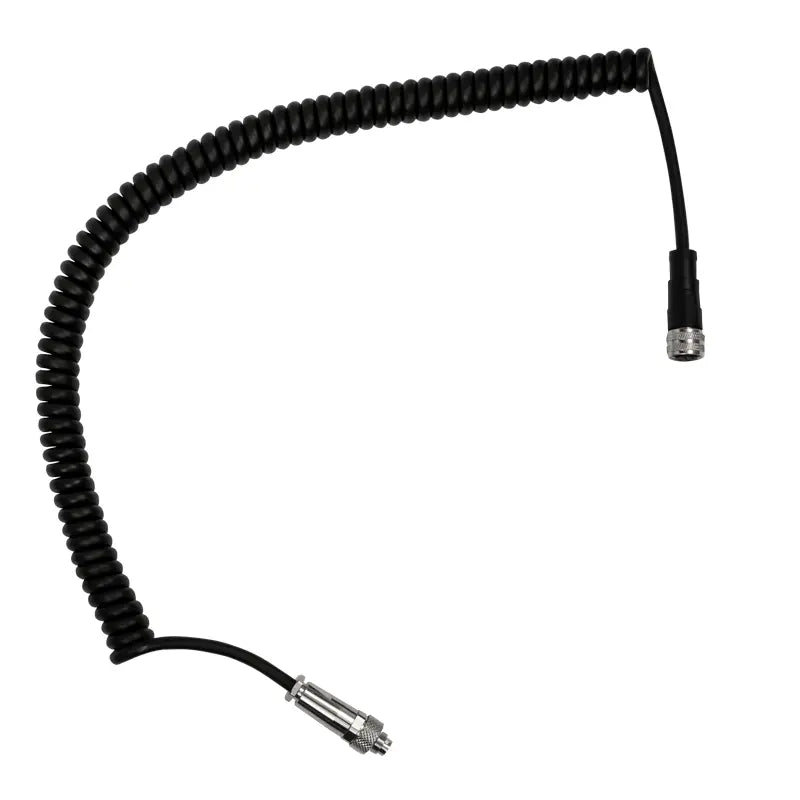

  1 x Sensor with spiral cable PCE-VT 3xxx SENSOR

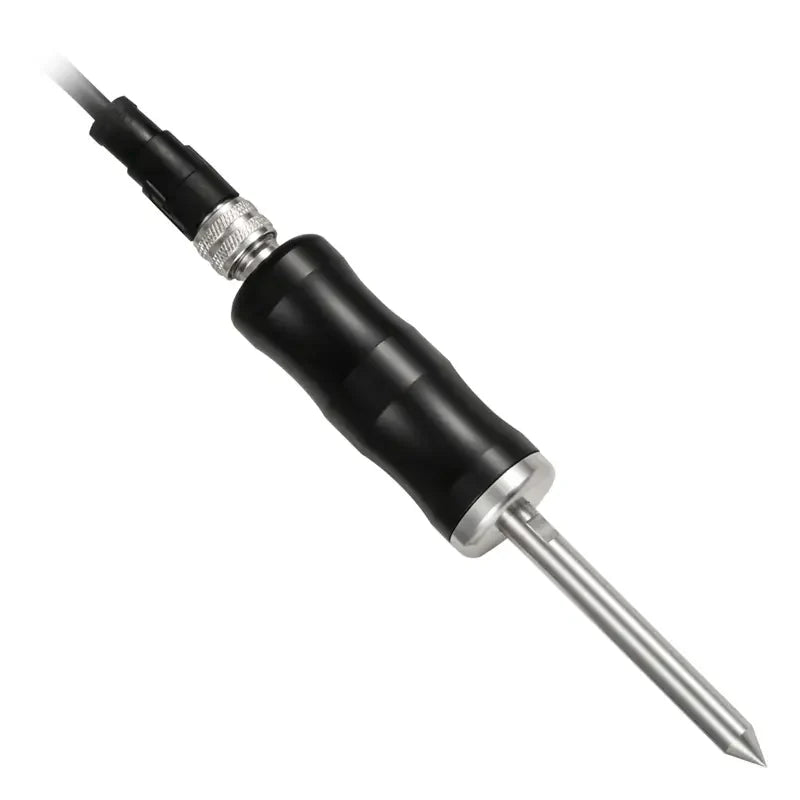

  1 x Needle sensor PCE-VT NP
  1 x Handgrip PCE-VT 3xxx HANDLE
  3 x 1.5 V AA batteries
  1 x Quickstart guide
  1 x Service bag

Downloads

PDF Specification Sheet - Download Here
